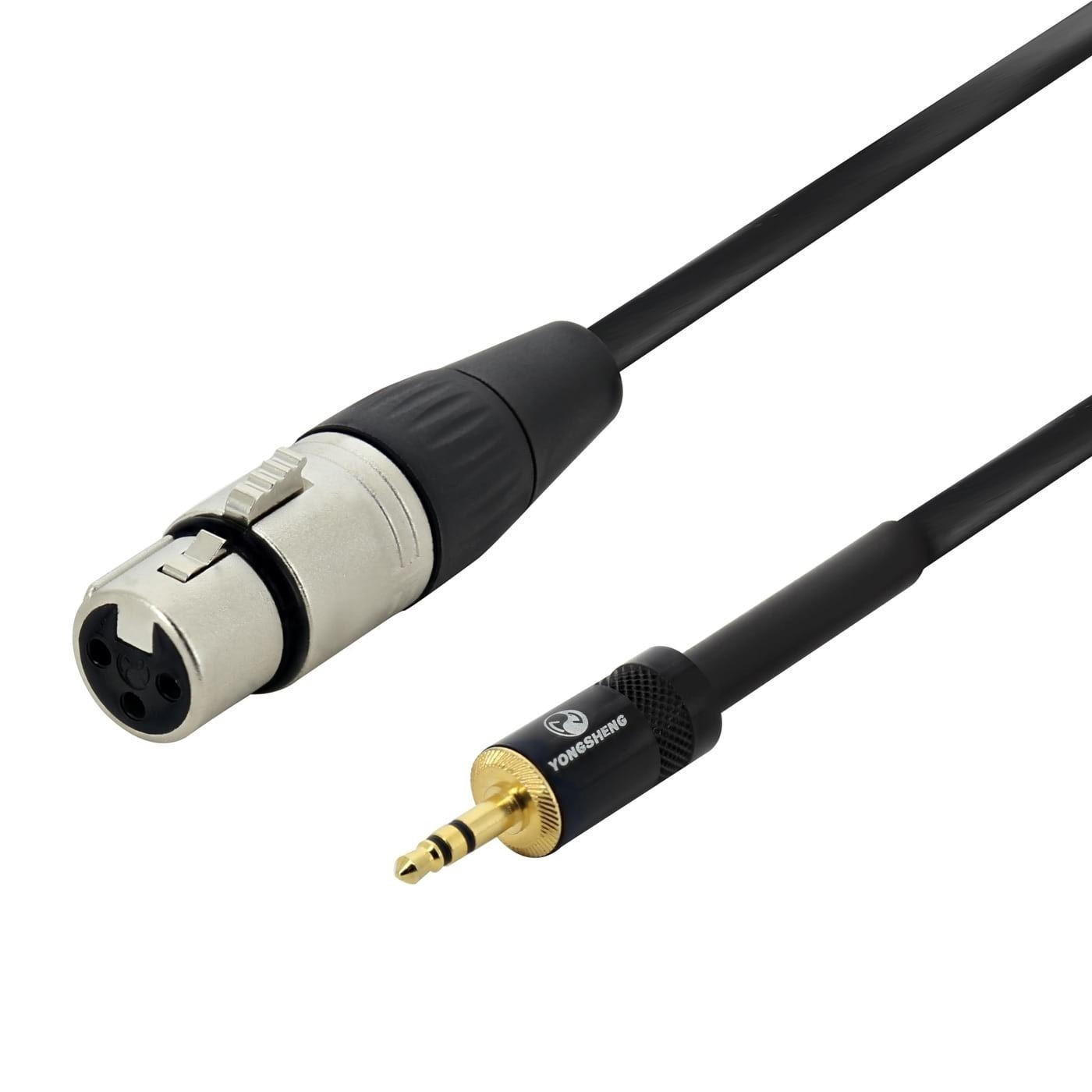

XLR(f) to 3.5mm TRS - Balanced to Stereo Cable - Mic to Camera Cable - 150cm
In Stock
YS231L-B-YS136N-SM-150cm
Free Shipping
Enter Post Code to Calculate ETA or Upgrade to Express
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
150cm Length - Use this cable to connect a balanced microphone into a "stereo" mic input, as found on some laptops and DV cameras. Can also be used to plug a mono balanced signal from a mixer into a stereo system or PC. Gold contacts ensure maximum conduc
| Loading... | ||||||
Swamp 3.5mm (Mini-Jack) to XLR(f) Cable - 5m
XLR(mono) to 3.5mm Stereo
A microphone outputs a "balanced" signal, which is also "mono" (1 audio channel). If you need to connect a mic to a 3.5mm "stereo" input, such as on an iPod, PC sound card or HD camera, a cable like this is required to SPLIT the "mono" signal into a "stereo" signal, so it reaches both the LEFT and RIGHT side of the 3.5mm stereo input.
Perfect for Balanced Mic to HD Video Camera connection
Smaller HD Video Cameras often have a Stereo mic input, and if you need to connect a balanced microphone signal to the camera, a mono to stereo cable is handy so the audio is recorded to the LEFT and RIGHT audio channels.
What happens to the Balanced signal?
As you are connecting to a stereo 3.5mm input (which if stereo, cannot be balanced), you cannot gain a balanced connection. The balanced (inverted polarity signal) just gets shorted with the ground and not used.
Specifications:

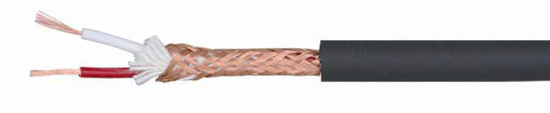

- Conductor Gauge: 2x (0.12mm*20)
- Conductor Cores: 2x (0.12mm*50)
- Ground Shield: BRAIDED (0.12mm*2*16)
- Connectors: 3.5mm (1/8") - XLR(f) (Yongsheng YS231L-B, YS136N)
- Wiring: XLR (Pin1 - Sleeve, Pin2 - Tip, Pin2 - Ring, Pin3 - Sleeve)
- Length: 150cm
