SWAMP Head-Line AES/EBU 110ohm Digital Audio Cable

SWAMP Head-Line AES/EBU 110ohm Digital Audio Cable

$39.99
  In Stock
or interest free for up to 6 months with
-
+

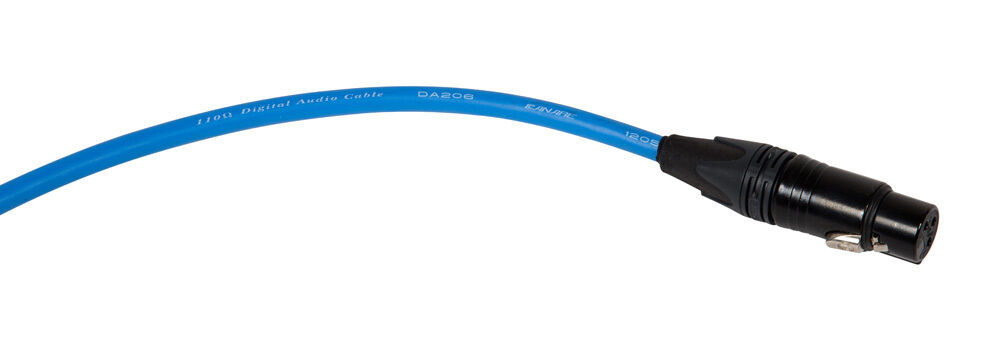

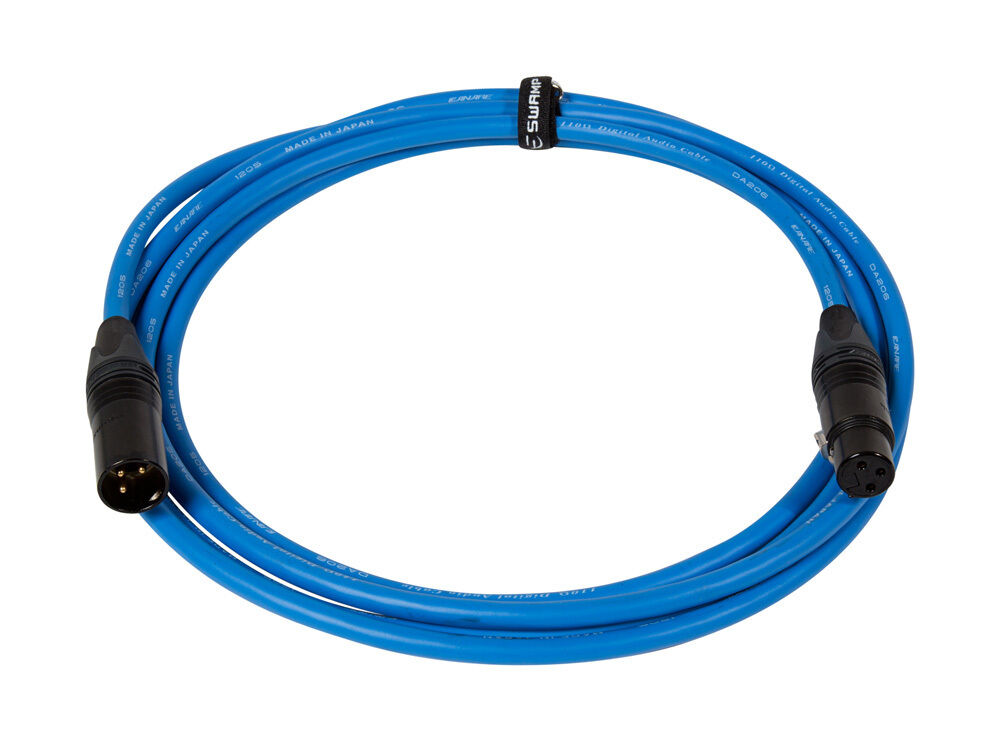

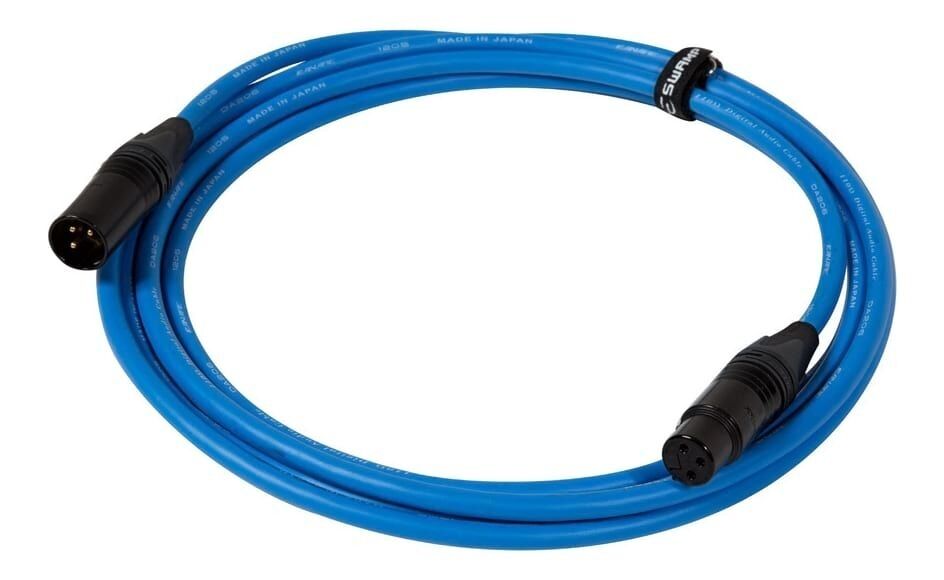

1m Length - Custom built in Australia with Neutrik XX-B connectors and Blue Canare DA206 cable. The Head-Line series features the very best components from the leading audio connector and cable brands Neutrik and Canare.



Dispatch

Head-Line Digital Audio Series
Custom built in Australia with Neutrik XX-B connectors and Blue Canare DA206 cable. The Head-Line series features the very best components from the leading audio connector and cable brands Neutrik and Canare. Constructed by our experienced technician right here in Canberra. Perfect for the professional musician who needs a no compromise, quality mic cable for live shows and touring.

SWAMP 3pin XLR AES/EBU "Digital Audio" cable
Designed to carry a 'balanced' version of the AES3 digital data protocol (AES/EBU), commonly used for interconnecting professional digital audio interfaces and soundcards. The AES3 standard is able to carry two channels of PCM audio (digital audio). A 'balanced' AES3 connection can only be achieved using a 3pin XLR AES cable.

Are regular XLR microphone cables OK to use for AES signals?
Digital audio signals are much more vulnerable to interference than analog audio signals. Using a regular mic cable can result in interference reaching the AES signal causing a range of digital syncing issues. A 110-ohm rated cable with either a foil or braided shield should be used (ideally both) for AES signals to reduce the possibility of interference.

SWAMP offers a Custom Cables service!
We now offer customers the opportunity have custom cables made up with your selection of connectors and cable from our huge range. Contact us for more information and order requests.

Specifications:

  • Connectors: 3pin XLR (m) to XLR (f) - Neutrik AG NC3MXX-B, NC3FXX-B
  • Cable: Canare DA206
  • Stripped, twisted and soldered herein Australia
  • Cable Colour: BLUE
  • Twisted Pairs with Braided Shield
  • Special PE Filter Rods maintain constant 100 ohm impedance

Applications:

  • AES/EBU Digital Audio
  • DMX Lighting
  • Audio Rack Wiring
  • Post Production
  • Length: 1m
View PDF brochure for SWAMP Head-Line AES/EBU 110ohm Digital Audio Cable - 1m

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review


MPN: CA-DA206-XX-B-BLUE 1m

SKU: CA-DA206-XX-B-BLUE-1m

ID: 145447
