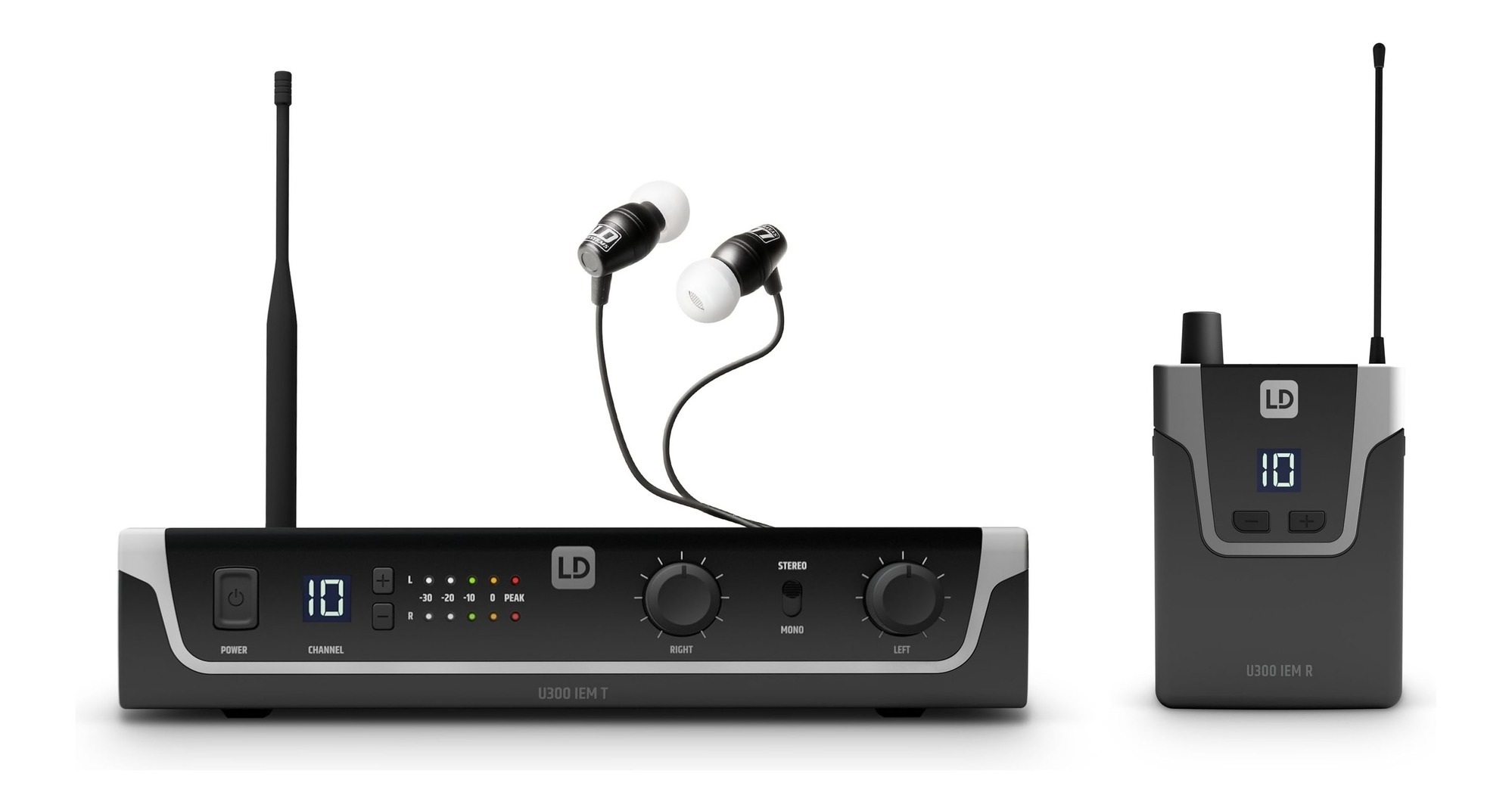

LD Systems U306 IEM In-Ear Monitoring System with Earphones

LD Systems U306 IEM In-Ear Monitoring System with Earphones
The LD Systems U306 IEM In-Ear Monitoring System with Earphones is a perfect introduction to wireless in-ear monitoring. Developed in Germany, clear, modern design and straightforward operation makes it easy to use. 100m range, 12 selectable channels.

U300 Series
The U300 line of in-ear monitoring systems are designed for unlimited freedom of movement on-stage with perfect in-ear monitoring at all times. Developed in Germany, their clear, modern design and straightforward operation make them the perfect choice – not just for beginners. With a range of up to 100 m and low-reaching frequency band of 50 Hz to 16 kHz you can ensure you will get professional performance. Use the U300 in-ear sets between 655 MHz – 679 MHz (B6) frequency band. Furthermore, use up to 6 systems simultaneously with the one case.

Many Features
Offering a choice of 12 transmission channels plus RF 10mw of transmission power. They can also be operated in mono or stereo mode. Combo sockets serve as symmetrical XLR and asymmetrical 6.35 mm jack inputs. Control your left and right input levels separately, while the two LED chains indicate audio signal strength. The U300® bodypack receiver has a mini-jack socket to connect the earphones as well as displays for the channel, stereo mode and low battery status. Running on two AA batteries, it has an operating time of 10 hours. A practical controller allows individual adjustment of the monitoring volume during a performance. A convenient 19″ rack assembly kit included. Overall, the LD Systems In Ear Monitoring system is perfect for monitoring your sound on stage.

Features:

• Reliable wireless transmission with a range of up to 100 m
• Low-reaching frequency response
• 12 selectable channels
• Choice of stereo or mono mode
• Up to 6 systems can be used simultaneously
• 10-hour bodypack operating time with two AA batteries
• Unlimited number of bodypacks can be set to the same transmission frequency
• Channel and RF reception displayed on bodypack
• Transmitter in rugged metal casing with stereo level display
• Removable antenna with BNC connection
• 19” rack assembly kit included.

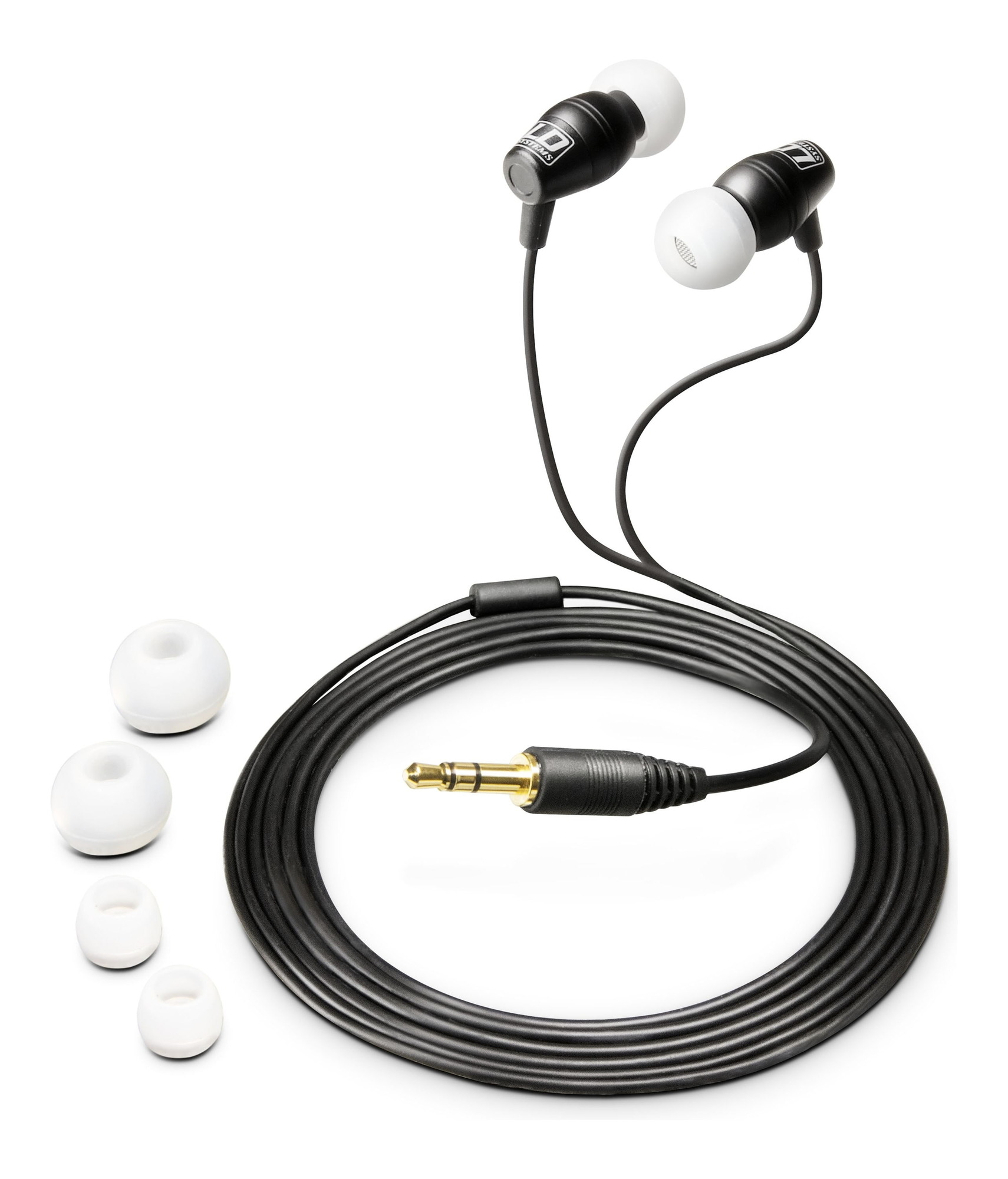

• Earphones included

Specifications:

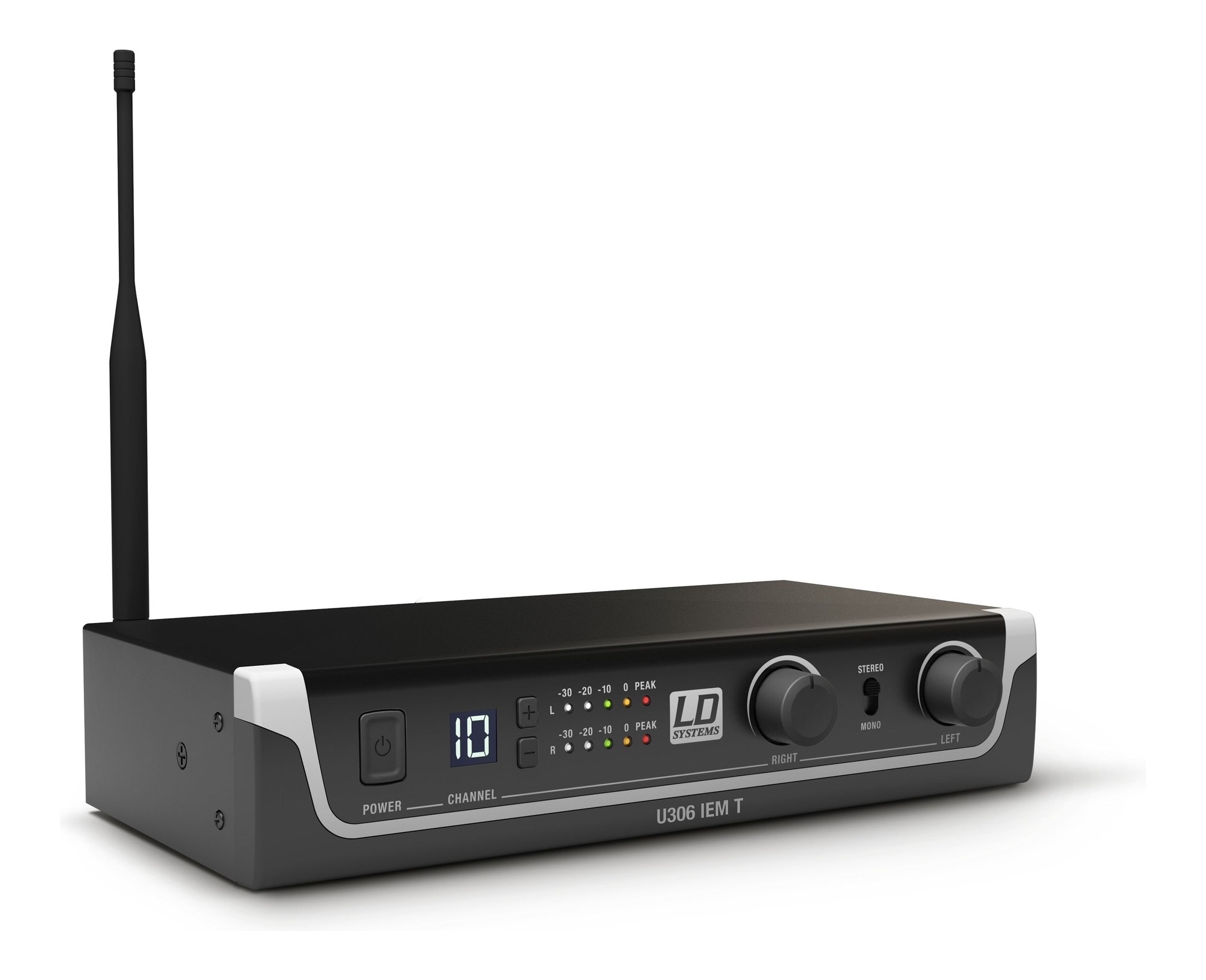

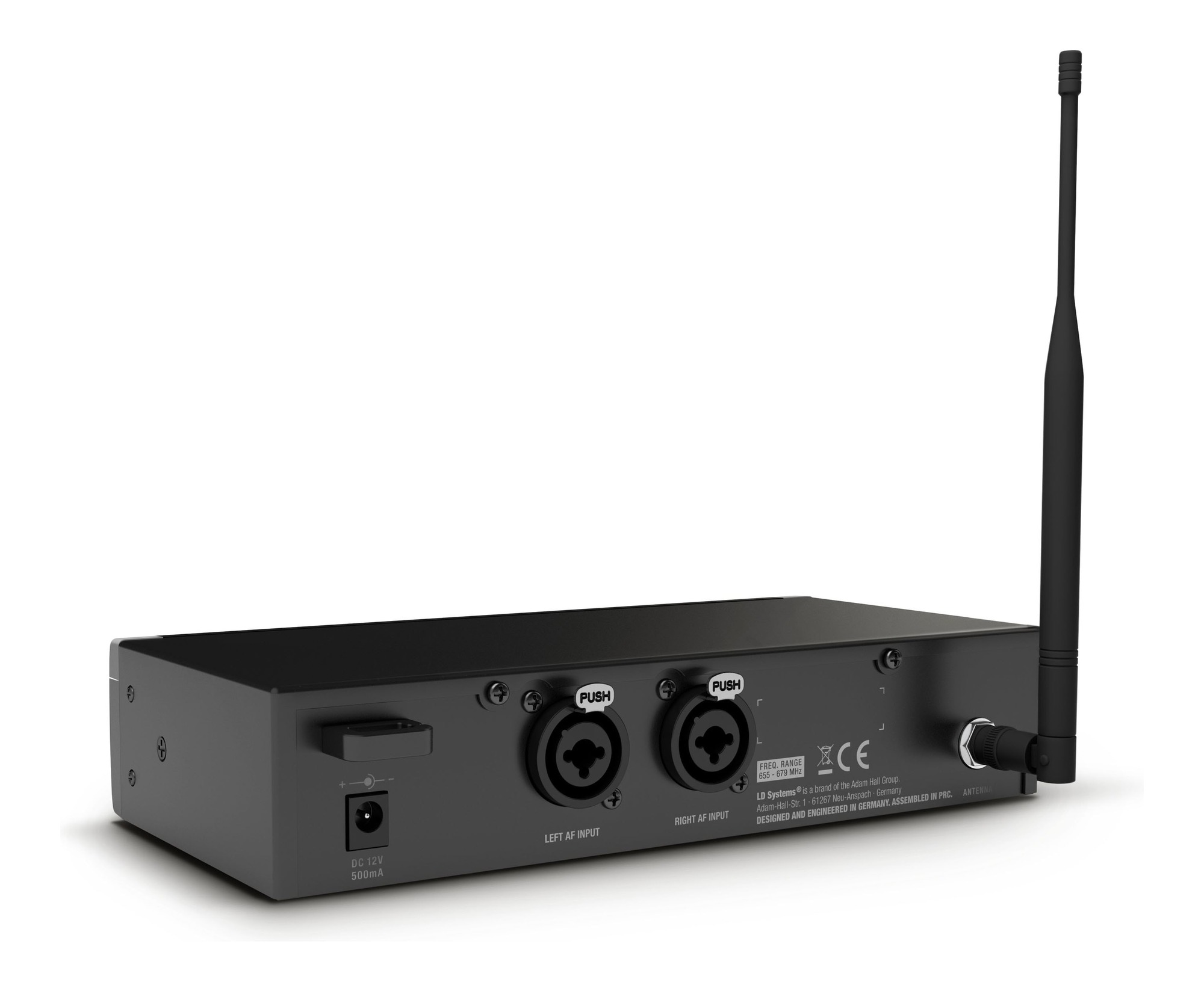

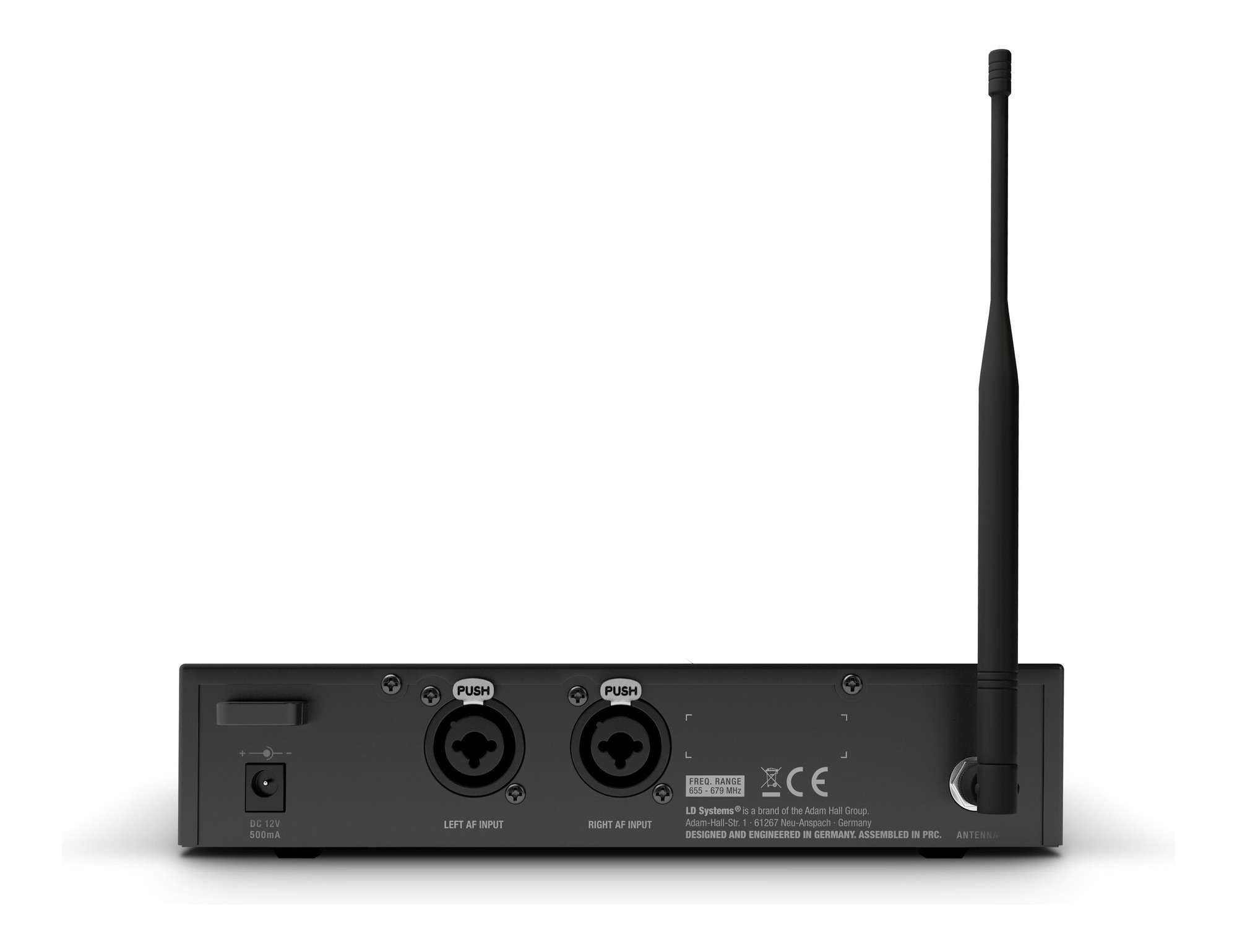

• U306 IEM Transmitter
  • Modes of operation: mono/stereo
  • Rated HF output power: 10 mW
  • Signal-to-noise ratio: 90 dB
  • Total Harmonic Distortion (THD): <0,5%
  • Dynamic range: 88 dB
  • Inputs: 2
  • Input connectors: XLR
  • Input impedance (kOhms): 8.5 kOhm
  • Input sensitivity: -4.5 dbu
  • Antenna connector: BNC
  • Controls: Power On/Off
  • Power consumption: 1.7 W
  • Operating voltage: 12 - 18 V DC
  • Width: 212mm
  • Height: 43mm
  • Depth: 123mm
  • Weight: 0.66 kg
  • Accessories (included): Power supply

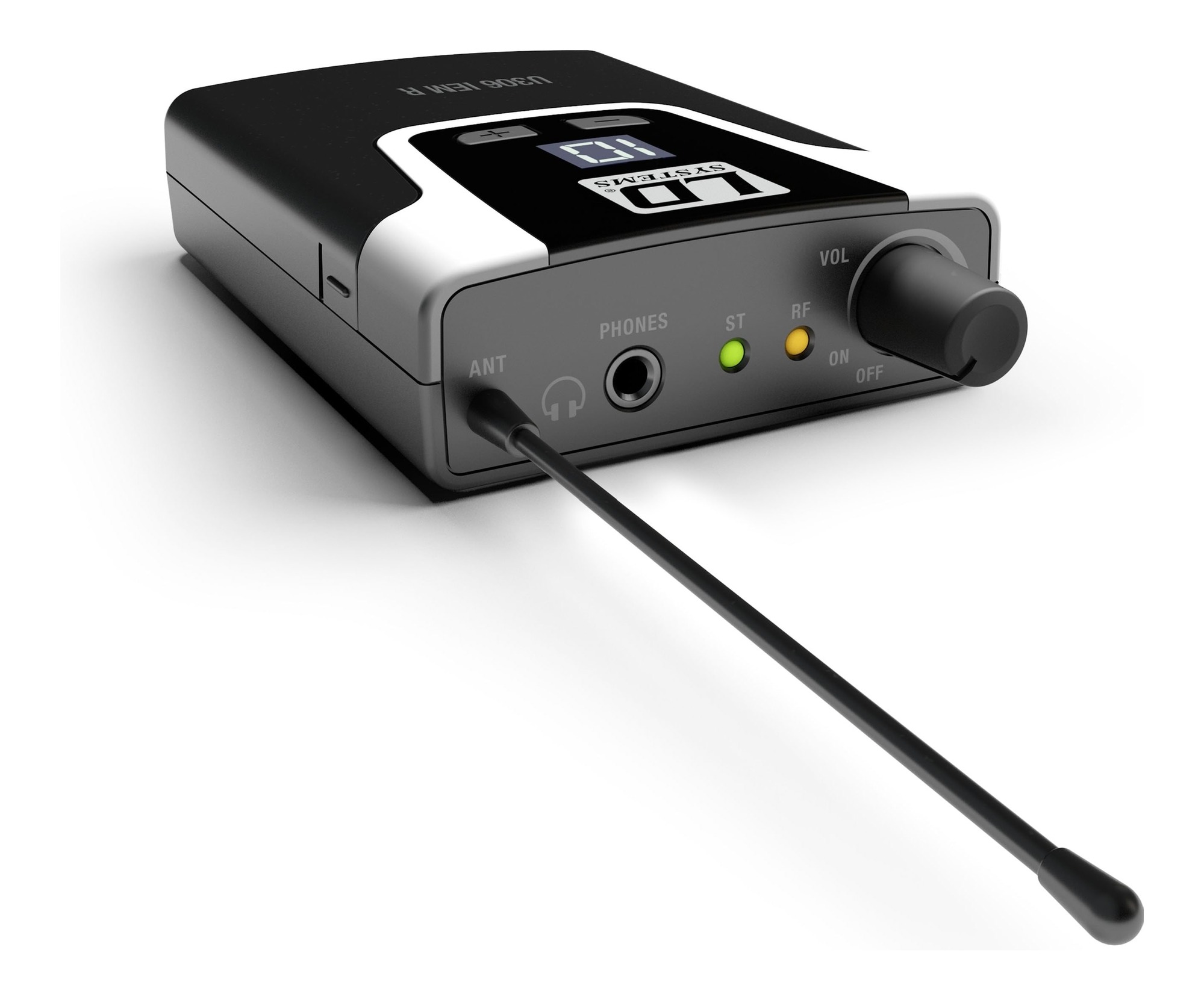

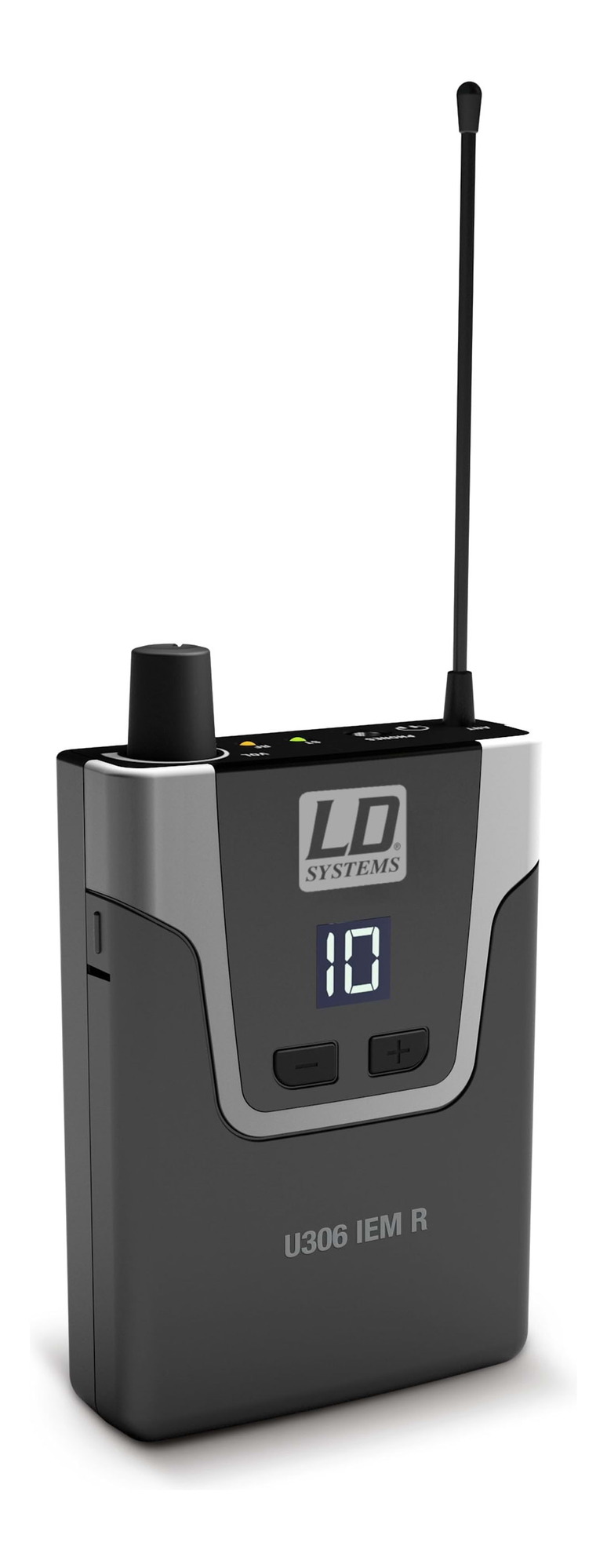

• U306 IEM Receiver
  • Transmission frequency range: 655 - 679 MHz
  • Channels: 12
  • Transmission method: FM, mono/stereo
  • Frequency response: 50 - 16.000 Hz
  • Audio output: 3.5 mm TRS
  • Total Harmonic Distortion (THD): 0.25 %
  • Minimum connected impedance: 16 Ohm(s)
  • Max. audio output level: 73 (@ 33 Ohms load capacity) mW
  • Indicators: RF (LED)
  • Operating time: < 10 hours
  • Antenna connector: Fixed to housing
  • Controls: volume control
  • Operating voltage: 2 x 1.5V AA
  • Features: incl. batteries
  • Width: 64mm
  • Height: 103mm
  • Depth: 24 mm
  • Weight: 0.085 kg
