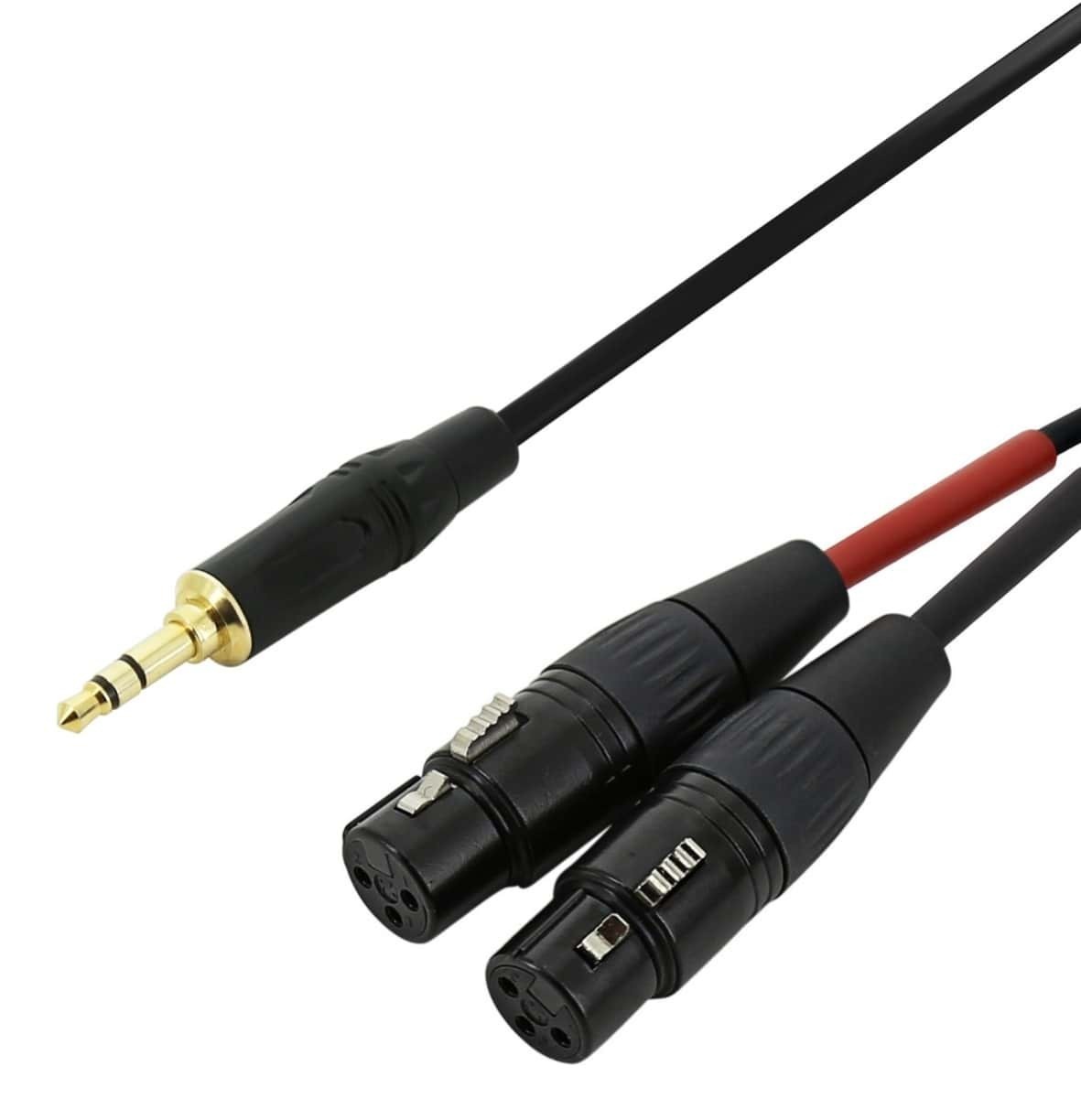

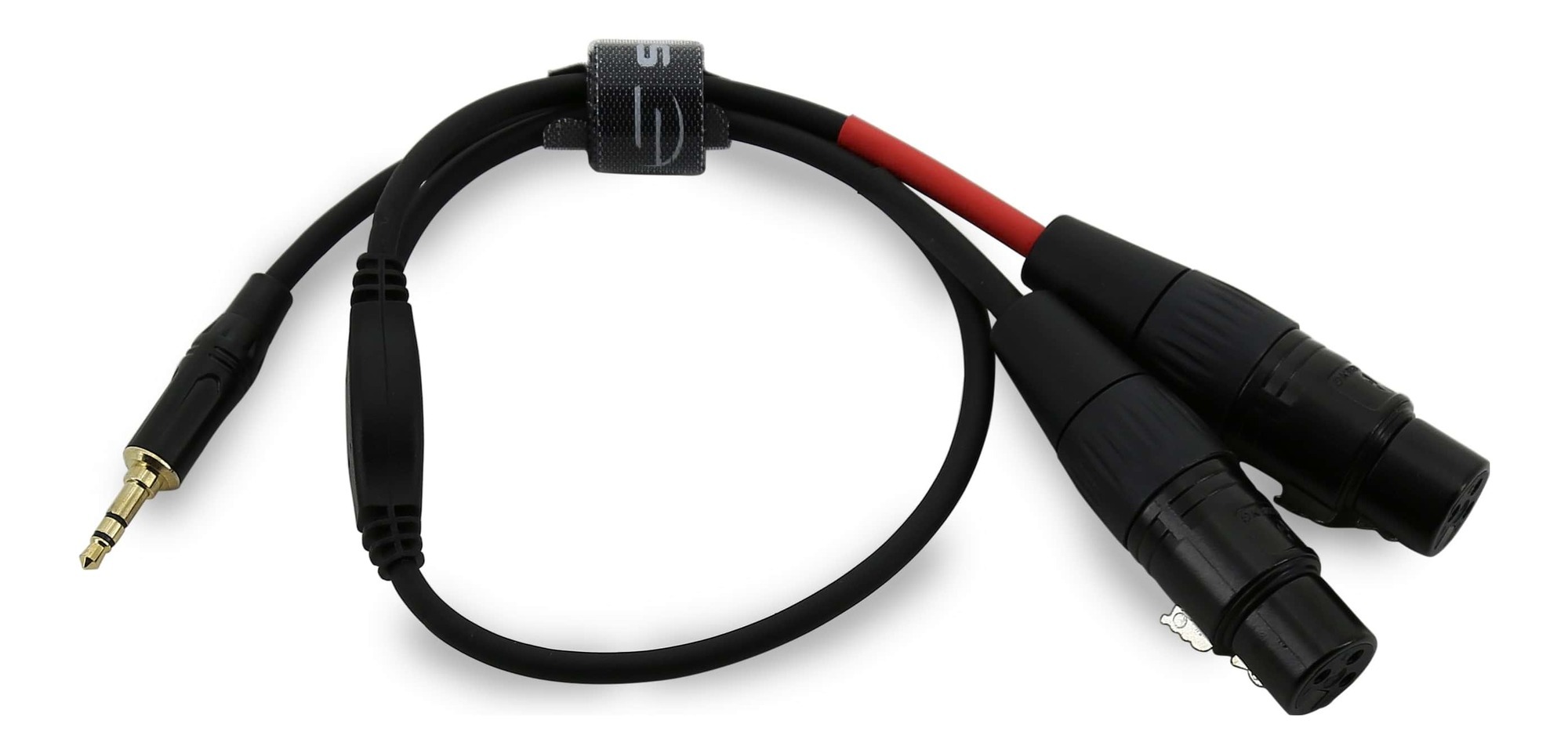

Dual XLR(f) to 3.5mm TRS - Stereo XLR Signal Combiner - 30cm
In Stock
SC-MiniJack-2xXLR-F-30cm
Free Shipping
Enter Post Code to Calculate ETA or Upgrade to Express
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
30cm Length - This cable is designed to combine a stereo (dual) XLR signal from a mixing desk, into a single TRS connector, ready to be inserted into a stereo 1/8" 3.5mm input, such as the input of a laptop, smartphone, camera or recording device.
| Loading... | ||||||
Dual XLR(f) to 3.5mm TRS - Stereo XLR Signal Combiner - 30cm
This cable is designed to combine a stereo (dual) XLR signal from a mixing desk, into a single TRS connector, ready to be inserted into a stereo 1/8" 3.5mm input, such as the input of a laptop, smartphone, camera or recording device.
Need Extra Length?
Extend with a headphone extension cable to give the desired length.
Quality Cable and Connectors

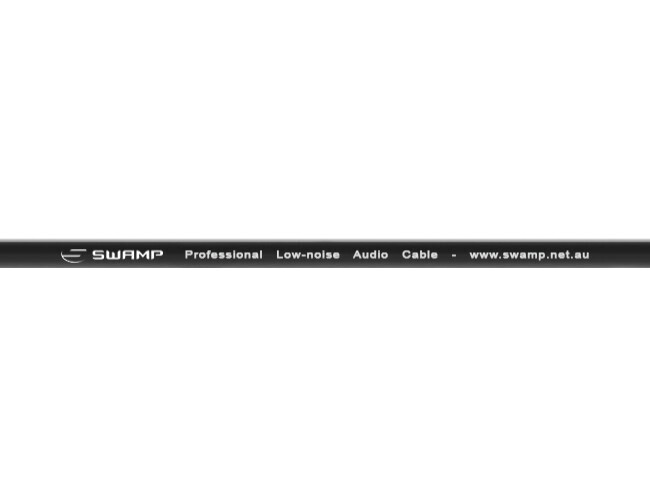

Our slim 4.4mm diameter cable maintains thick 23AWG conductors and a tight spiral shield, but utilises a thinner outer PVC jacket allowing for a smaller overall diameter. Ideal for patching devices in tight spaces and to minimise cable clutter. Using professional quality connectors, OFC conductors and a tight and thorough spiral shield, this cable is designed to transfer your signal without interference while being flexible and able to withstand the rigours of constant use.
Specifications:
- Cable Colour: Black
- Cable Core: 0.12mm*20*2(Conductors) + 0.12mm*48(Spiral Wrapped Shield)
- Conductor Gauge: 23 AWG / 0.23mm2
- Outer Diameter: 4.4mm
- Connectors: 1/8" TRS (male) to 2x XLR (female) - (SWAMP TP180, Yongsheng YS136N-B)
- Length: 30cm
Wiring:
| 1/8” (Stereo / TRS) | XLR (red) | XLR (black) |
| Tip | Pin 2 | |
| Ring | Pin 2 | |
| Pin 3 | Pin 3 + Pin1 | Pin 3 + Pin1 |
