The EA5118 is Audiocenter's latest active 18" subwoofer speaker, with 2000W peak power, a 24bit/96KHz processor, and built with BrainCore, an innovative core application technology that provides supreme performance and high reliability.
| Loading... | ||||||

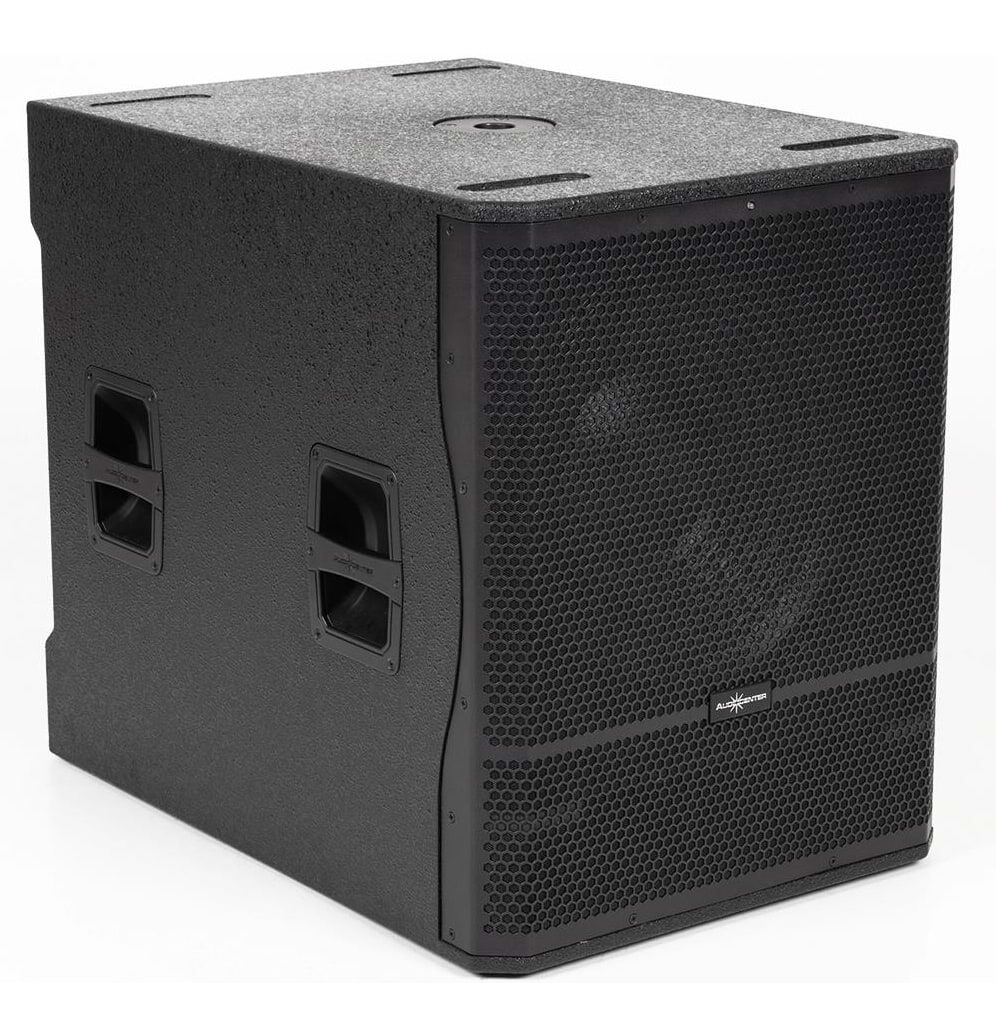

EA5118 Active DSP-Controlled Compact 18" Subwoofer
The EA5118 is Audiocenter's latest active 18" subwoofer speaker, with 2000W peak power, a 24bit/96KHz processor, and built with BrainCore, an innovative core application technology that provides supreme performance and high reliability.
Versatile and Functional Design

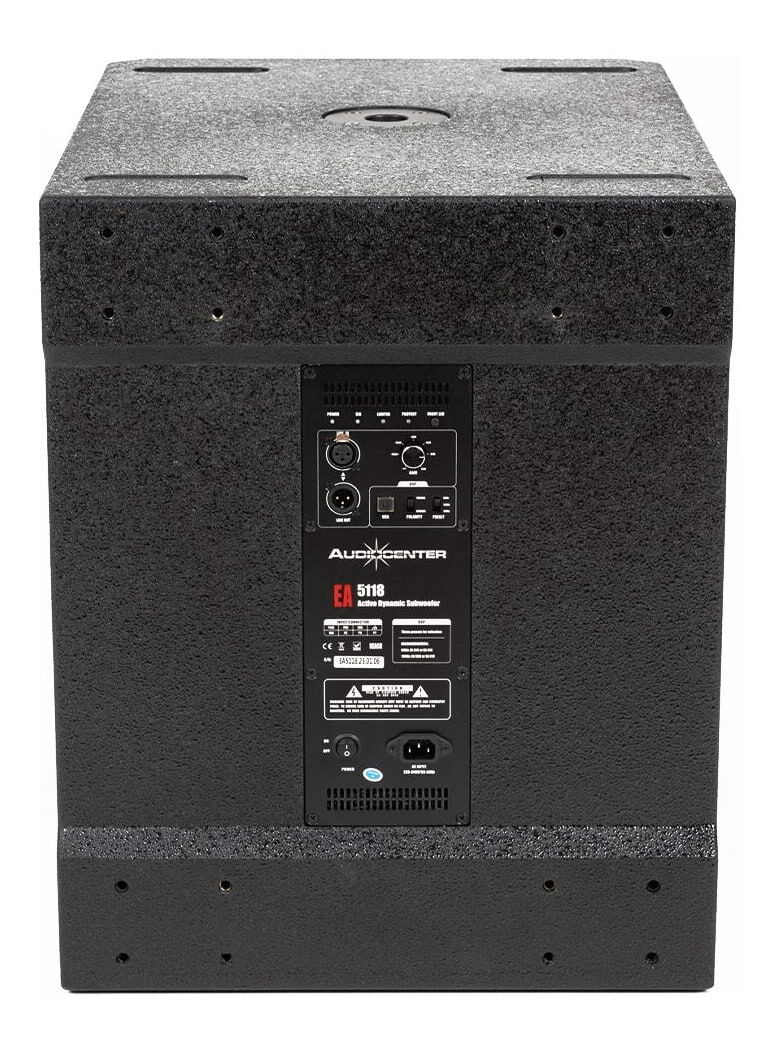

There are 3 low-pass filters (80Hz, 100Hz, 120Hz) in the EA5118, to select according to different venues and music styles. There is also a phase switch. All connectors and function buttons are on the back panel. EA5118 subwoofer is with 1-way XLR for input and output. Signals can be sent to different speakers for sound distribution. To save power, the system will enter into standby mode automatically if it doesn't detect a signal input after 15 minutes. The pole mounts are adjustable, adopting a choice between 0 and 10 degrees.
Built to Last
Along with its customised Class D amplifier, Audiocenter EA series of speakers use advanced cooling systems, with a molded large heatshrink. The solid wood construction of the cabinets makes it ideal for touring applications. The latest ferrite custom driver technology ensures a clean and clear dynamic sound.
Braincore Technology
With its advanced technology and scientific methodology, BrainCore analyses and processes the input signal, DSP module, Class D amplifier and loudspeaker optimally, achieving excellent frequency response and audio reproduction even at high levels of SPL. This technology was researched and developed by Audiocenter.
Features:
- 24bit / 96KHz DSP processor
- 3 different low pass filter presets
- Class D amplifier with switch mode power technology
- Automatic standby
- Customised ferrite drivers
- Advanced cooling system
- CNC machined poplar plywood solid wood cabinet
- Double pole mount
Specifications:
| Type |
Active DSP-controlled Compact Subwoofer |
| Frequency Response (-6dB anechoic chamber) |
35Hz-150Hz |
| Maximum Calculated SPL/1M |
137dB |
| LF Driver |
Customized AUDIOCENTER ferrite driver, 4” voice coil |
| Amplifier Circuitry |
Class D |
| Power(Peak) |
2000W |
| Frequency Response(1W 8Ω 2ch) |
20Hz-6KHz(±0.5dB) |
| Intermodulation Distortion |
＜0.05% |
| Total Harmonic Distortion |
＜0.05% |
| Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Cooling System |
Cooling with fans, air convection |
| Processor |
96KHz signal sampling frequency, 24bit precision |
| Presets |
80Hz,100Hz, 120Hz |
| Crossover |
Controlled by DSP |
| Signal Input |
1×NEUTRIK® female XLR |
| Signal Output |
1×NEUTRIK® male XLR |
| Power Input |
3 pin plug |
| Working Voltage |
100V-130V/60Hz or 220V-240V/50Hz |
| Cabinet Material | CNC machined poplar plywood |
| Cabinet Color |
Black and white available, can be customized according to the RAL code |
| Dimension(W×H×D) |
510mm × 625mm × 712mm |
| Net Weight |
42.5Kg |
