30cm Length - Designed to take the signal from Pins 2 and 3 on an XLR connector, and split to individual 1/4" TS connectors. Whether it be a balanced or stereo audio signal being outputted through the XLR connector, the cable splits each conductor into se
| Loading... | ||||||

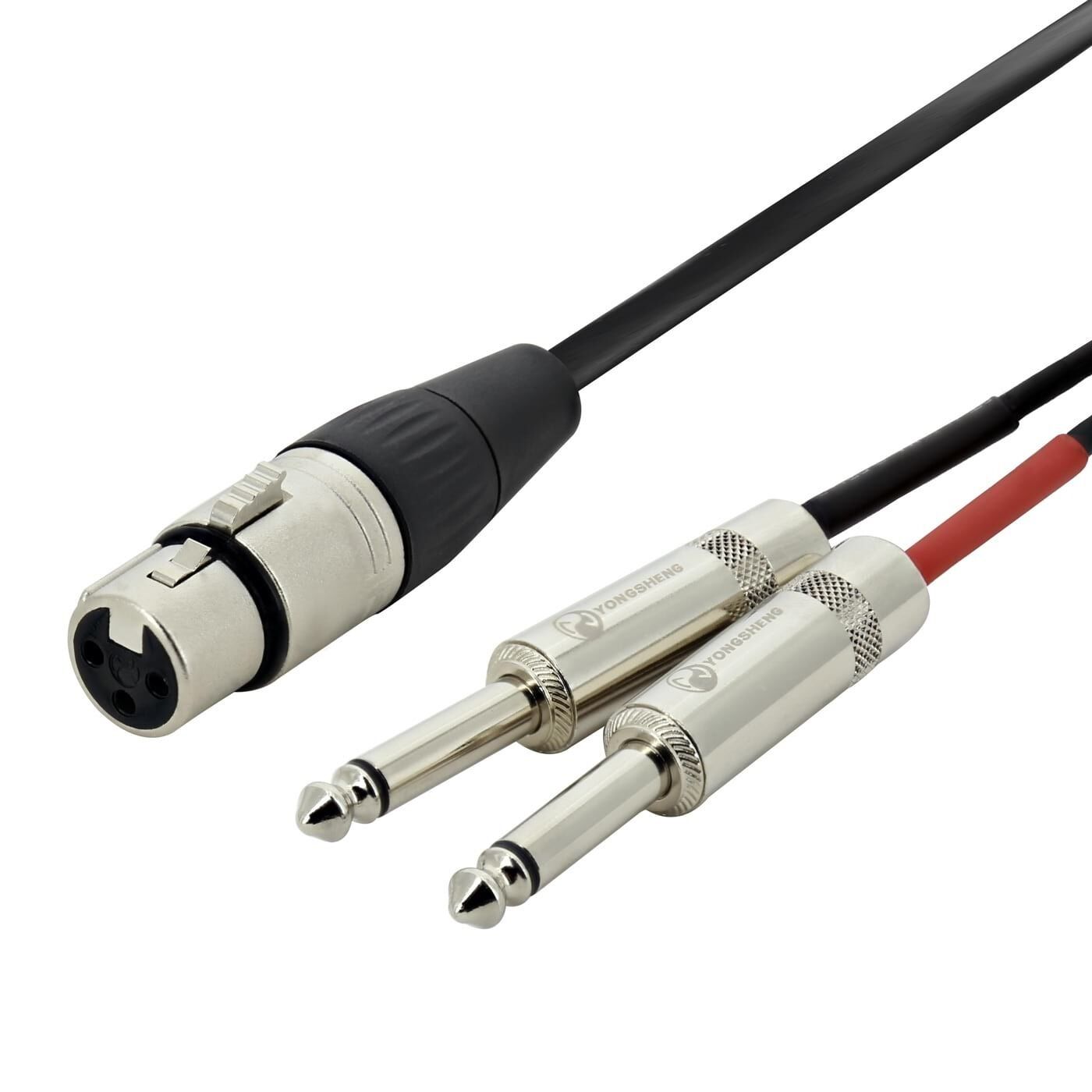

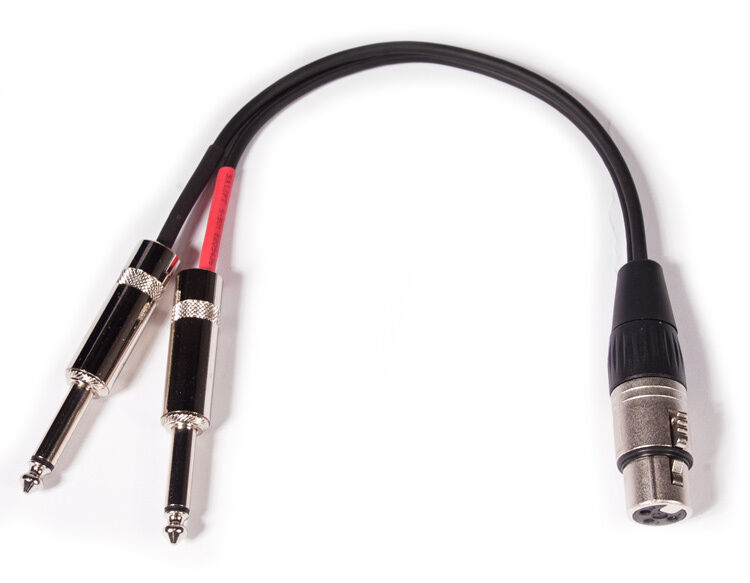

XLR(f) to 2x 1/4" Splitter Y Cable - 30cm
Splitter / Y Cable
Designed to take the signal from Pins 2 and 3 on an XLR connector, and split to individual 1/4" TS connectors. Whether it be a balanced or stereo audio signal being outputted through the XLR connector, the cable splits each conductor into separate lines.
NOTE: This cable is NOT A SUMMING cable, it is wired to take two signals along the same bound cable but the signals are not summed, they each have their own conductor core which is split out at the XLR end.
Stereo Signal Split
A common use for this cable is to split a stereo audio signal being outputted through an XLR socket, to individual connectors to they can be placed into left and right channels of an audio mixer.
Making use of our XLR(f) and XLR(m) versions of this cable, will enable you to carry a stereo output from a keyboard (2x 1/4") down an XLR cable run (multicore) and at the end of the XLR cable, split the signal back into 2x 1/4" for insertion into line level inputs on a mixer. This will save on multicore channel space.
PRO Quality
Our premium guitar cables feature professional quality Yongsheng connectors, suitable for use in demanding professional environments. Consisting of a 25AWG oxygen free copper conductor cable and encased with a thick spiral wrapped ground shield, our cables eliminate interference whilst maximising signal flow.
Features:
- Conductor Gauge: 25AWG / 0.18mm2
- Conductor Cores: 16*0.12mm
- Ground Cores: BRAIDED (0.12mm*2*16)
- Connectors: 2x1/4"(m) (Yongsheng YS224), XLR(f) (Yongsheng YS136N)
- Wiring:
XLR(f) Pin 2 = 1/4" (1) Tip
XLR(f) Pin 3 = 1/4" (2) Tip
XLR(f) Pin 1 = 1/4" (1,2) Sleeve
- Length: 30cm
