TASCAM Studio Bridge 24-Track Recorder and USB Audio Interface with MIDI

Studio Bridge 24-Track Recorder and USB Audio Interface with MIDI
A complete bridge solution, the TASCAM Studio Bridge 24-Track Recorder and USB Audio Interface with MIDI provides lush analog tones from the console with outboard gear whilst merging with your digital setup, including DAW control. Fantastic workflow.

Bridge Between Analog and Digital
The Model Series Studio Bridge is quite literally the bridge between analog mixers and digital recording devices whether you use a DAW or prefer a DAWless setup. Preserve the lush analog tone from your mixing console while tracking and mixing to your DAW of choice or to the Studio Bridge's on-board multitrack recorder. Tracks recorded to the on-board recorder or your DAW can be returned to your analog console for mix summing, turning digital recordings into warm analog productions. Whether tracking at a personal recording studio or a live environment, the Studio Bridge handles all your needs with ease.

Multi-Track and Multi-Bus
Thanks to its six 8-channel DB25 connectors, the Studio Bridge’s 24-in, 24-out multitrack recording, summing, and multi-bus mixing suite is teeming with flexible musicality. Its design eschews preamps to give you complete control of your recording configuration without sacrificing the distinctive analog panache imparted onto each track from an external console, outboard gear, or the Studio Bridge’s onboard circuitry. With every channel operating at line level, a world of modular mixing emerges, making the Studio Bridge a powerful supplement to virtually any studio or live arrangement that doesn’t compromise capability for its hassle-free transportation. In fact, recording couldn’t be easier with the Studio Bridge, thanks to its convenient, surface-mounted SDXC card reader. Its punch-in, punch-out design allows you to swap cards quickly, each of which supports a maximum capacity of 512GB, giving you ample space for 24 tracks of true multitrack recording in full stereo, up to 48kHz/24-bit.

USB Interface
By blending mixing, summing, and recording into a single console, the Studio Bridge utterly transforms DAW-fueled recording. Its 24-in, 24-out design streamlines multitudes of multi-source productions while expanding your palette of recording and processing pliability. Onboard DAW transport controls let you immediately integrate this 24-channel titan into your setup, with malleable multi-bus summing options allowing you to imbue any natively digital audio with the console's lush analog veneer. If DAWless designs are your jam, then TASCAM has you covered, as the Studio Bridge features a slew of built-in MIDI processing, including MIDI Sync, MIDI Time Code (MTC) support, and a dedicated 5-pin MIDI input and output. Moreover, the Studio Bridge includes internal tempo control, a metronome, tap tempo, and a 1/4-inch click out. Finally, DualFootswitch-control compatibility further augments your ability to seize your sound and keep every aspect of your arrangement in lock-step performance.

DAW control operation has been confirmed with the following DAW software: Avid Pro Tools; Apple Logic Pro; MOTU Digital Performer; Steinberg Cubase; Ableton Live; Cakewalk by BandLab; PreSonus Studio One; Cockos REAPER; Steinberg Cubasis 3.3.

Package Includes:

• 1x Studio Bridge
• 1x Power cord
• 1x Safety guide (including warranty)
• 1x TASCAM ID registration guide

Features:

• 24-track recorder and MIDI-capable interface bridges digital recording and multi-bus mixing
• Analog engineering means characteristic warmth and high-fidelity signal processing and recording in any arrangement
• DB25 ports make for seamless integration into virtually any studio or live configuration
• Surface-mounted SDXC card reader features punch-in/punch-out interfacing for streamlined, multitrack recording in true stereo, straight to your SD card
• Flexible recording and summing functions ensure you master your mix, preserving every detail via 48kHz/24-bit recording
• USB support and 24-in, 24-out design mean dual-function use as both a multitrack recorder and USB audio interface for DAW-based and DAWless arrangements
• 5-pin MIDI I/O allows you to manage and control external, compatible devices, including sequencers, synthesizers, drum machines, and more, via MIDI Sync
• Dedicated Clock output and Footswitch input further expand your customizable control and capacity to keep every part in lock-step synchronization
• Onboard DAW transport controls make arming, recording, and playback management a plug-and-play breeze
• MIDI over USB extends interfacing and control options to form complex interoperative relationships between your virtual and physical gear, tailored to suit
• Included Meter Bridge software enables mix monitoring and customizable settings straight from your Mac or PC without cluttering up the console

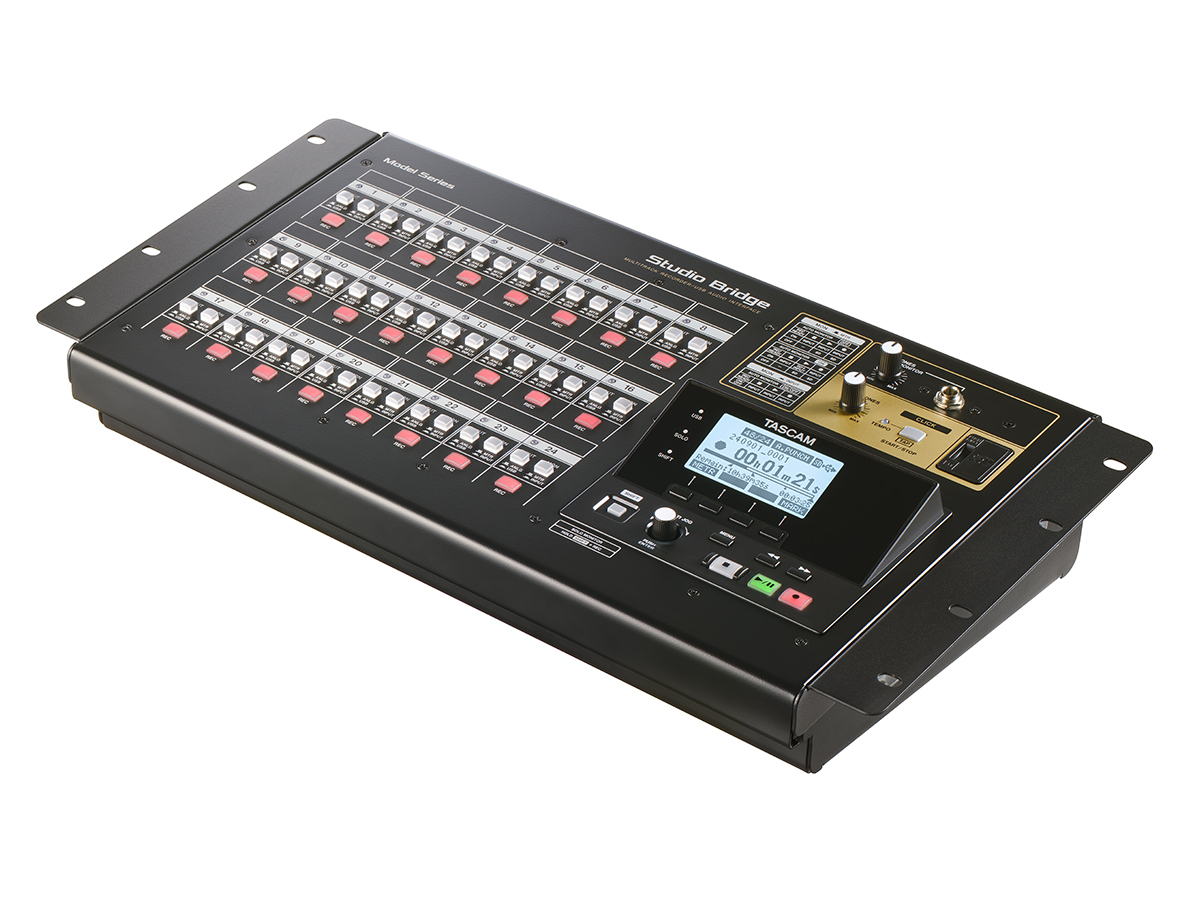

• Modular construction and portability-minded form factor include rackmountable design, letting you slot the Studio Bridge into a 7U space (rack ears not included)

Specifications:

• Computer Connectivity: USB 2.0
• Form Factor: Desktop
• Simultaneous I/O: 24 x 24

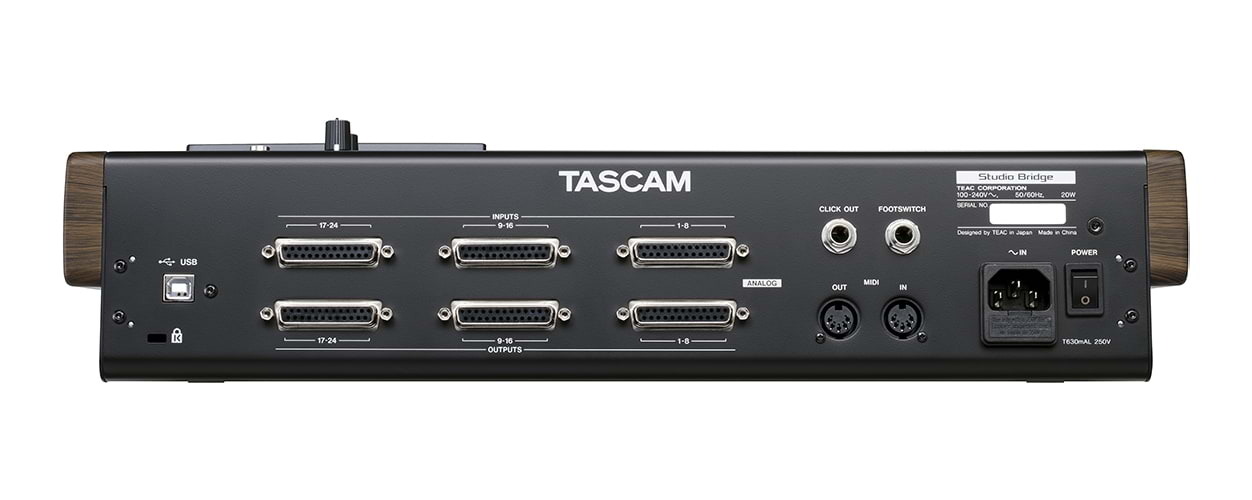

• Analog Inputs: 3 x DB-25
• Analog Outputs: 3 x DB-25
• Headphones: 1 x 1/4"
• MIDI I/O: In/Out
• USB: 1 x Type B
• Other I/O: 1 x 1/4" (footswitch), 1 x 1/4" (audio click in)
• OS Requirements - Mac: macOS 13 or later
• OS Requirements - PC: Windows 10 or later
• Power Supply: Standard IEC AC cable
• Dimensions:  446.5mm (W)  x 114.6mm (H) x 269.5mm (D)
• Weight: 4.5kg
