SWAMP Electric Bass Guitar DIY Precision Kit

SWAMP DIY Build Your Own Electric Bass Guitar Kit - Precision Style

$184.99
BACK-ORDER - DISPATCHED AFTER early December
item is on order with factory, coming via sea shipment, due early December
If your prefer to wait until the stock has arrived:
CLICK HERE TO 'GET NOTIFIED' once we have stock on hand
or interest free for up to 6 months with
Preorder Now and Save 10%
-
+

Having a huge impact on the bass tone in popular music, the Precision Bass was aptly named due to the use of frets, to become among the most sold and imitated electric basses. This kit includes everything to build your own P-Bass to your dream instrument!



Dispatch

SWAMP DIY Build Your Own Electric Bass Guitar Kit - Precision Style
Having a huge impact on the bass tone in popular music, the Precision Bass was aptly named due to the use of frets, to become among the most sold and imitated electric basses. This kit includes everything to build your own P-Bass to your dream instrument!

Precision Basses
From its initial designs in 1950, this type of bass was the first to earn widespread attention and use. In its tradtitional configuration, it is a solid body, four-stringed instrument equipped with a single split-coil humbucking pickup and a one-piece, 20-fret maple neck with poplar fingerboard. Now you have a chance to make one from a kit, using quality components and the opportunity to customise it in any creative way you choose!

Full Kit with Electronics

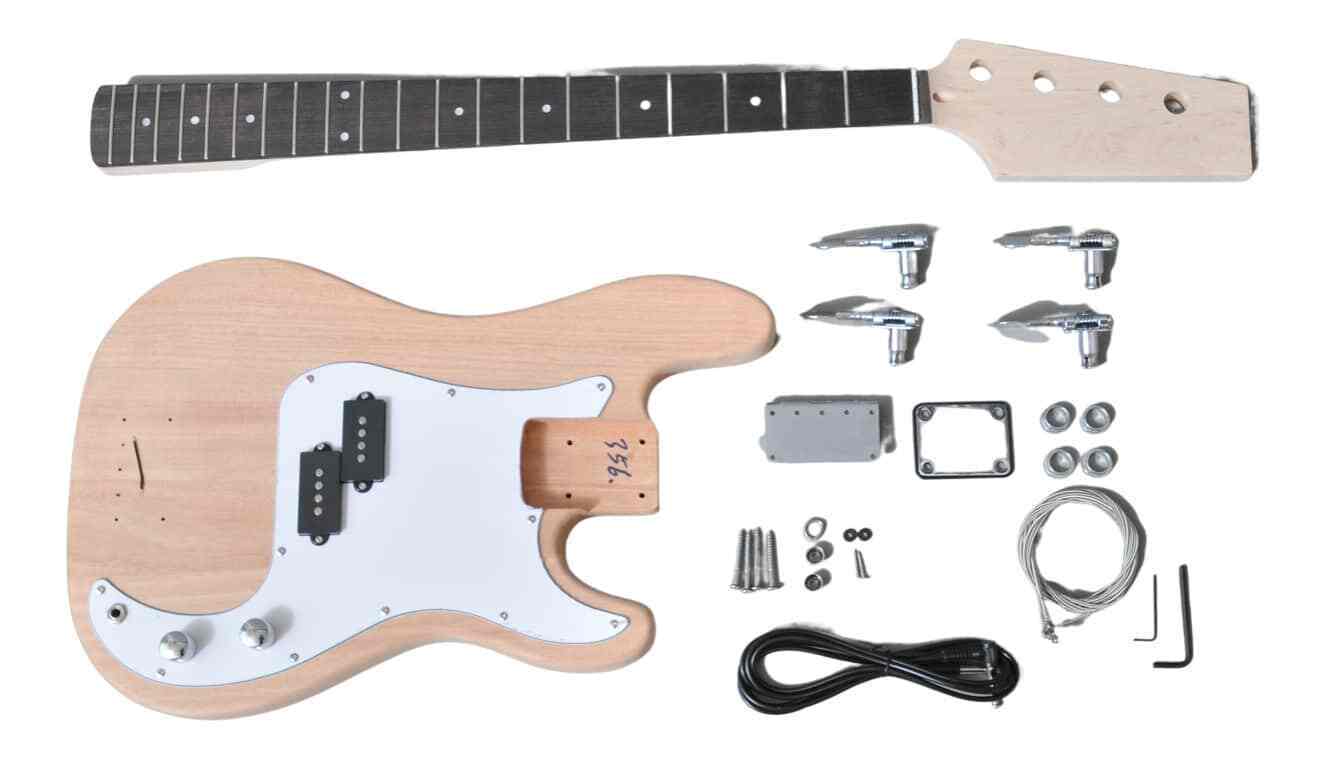

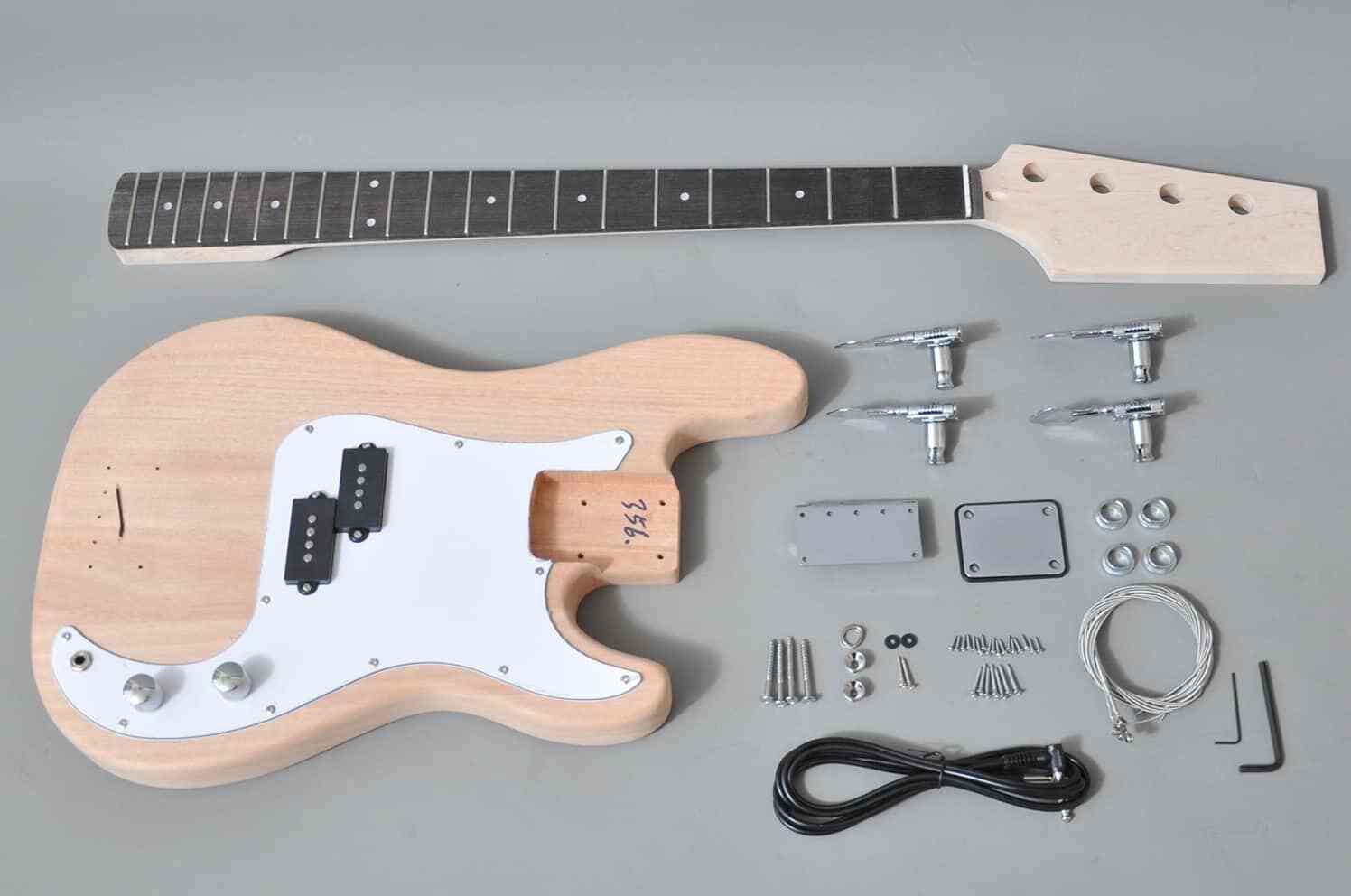

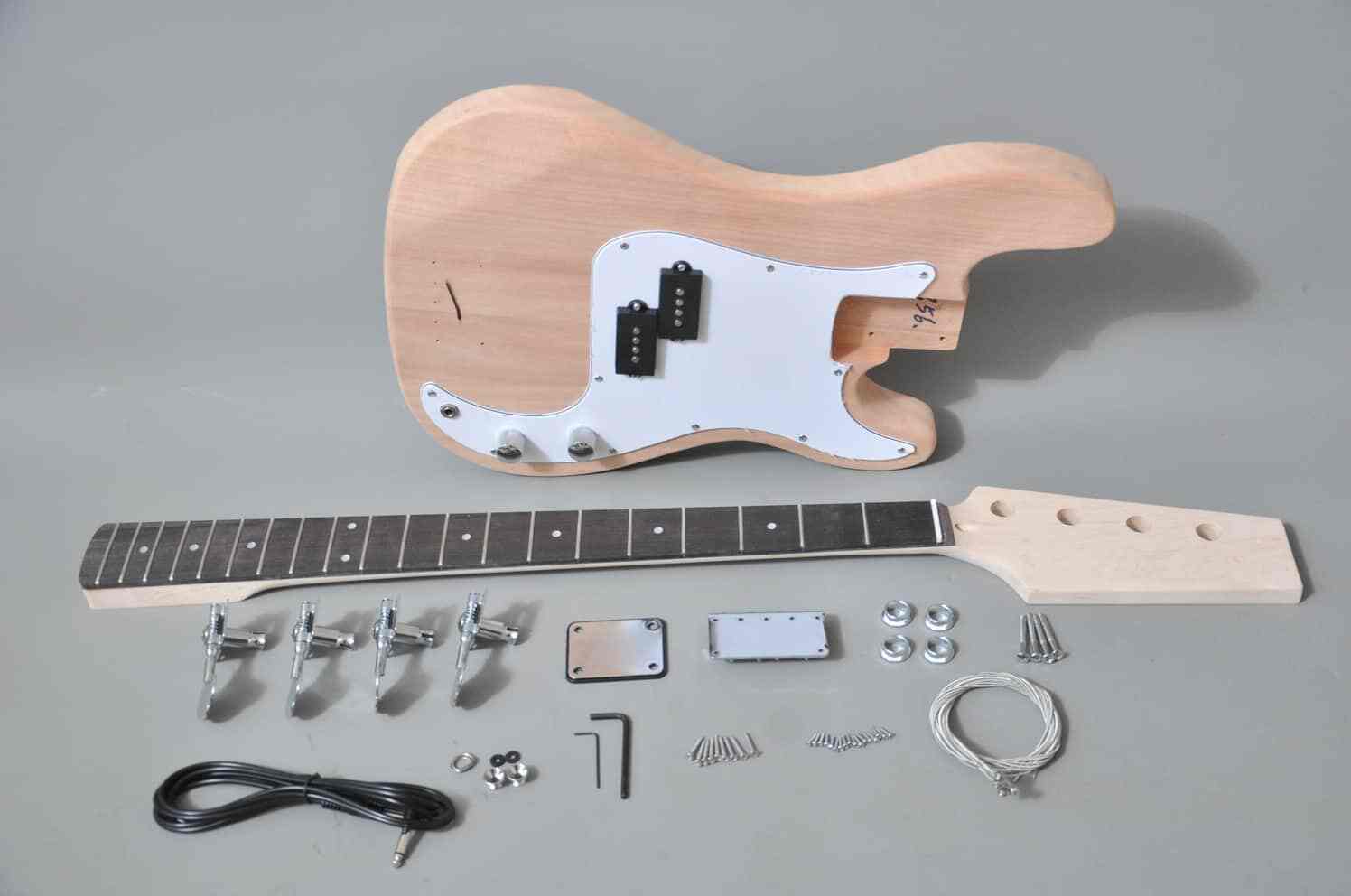

The kit includes the body, neck, pickups, bridge, tailpiece, posts, machine heads (tuners), volume/tone knobs, cavity cover, truss rod cover, strap pins, pots, capacitors, switch, output jack, screws, sleeves, bolts, washers, insulated wire, solder, lead, starter strings, allen key.

Specifications:

Joint Bolt-on
Body Mahogany
Neck Hard Maple
Fingerboard Poplar Laminated
Tuning Machines Chrome Open Back
Scale Length 864mm/34"
Fret 20
Control 1V, 1T
Pickups PB
Hardware Chrome
Pickguard 3-Ply White

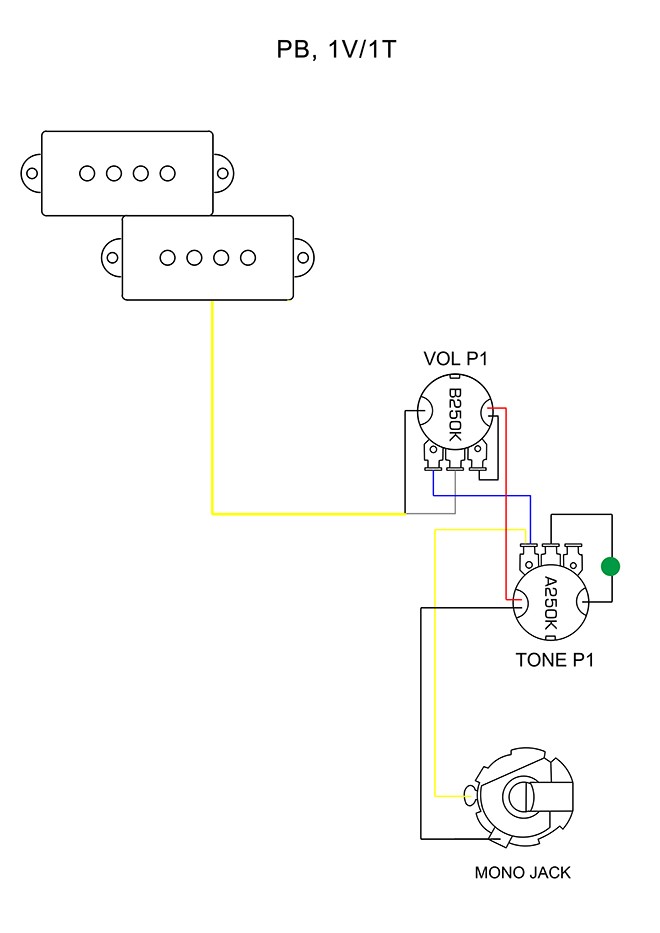

Wiring Diagram:

View PDF brochure for SWAMP DIY Build Your Own Electric Bass Guitar Kit - Precision Style

Good product but no instructions included

By: Stormy Oaker on 25 June 2024
It’s a good item, especially if you are looking for something to really make your own. It works just like any other store bought bass. Only negative is it didn’t come with any sort of instruction or diagram so you had to guess where a couple pieces went.
(5)

Good

By: Alex Lewis on 22 April 2021
You know what you're getting with the electrics. But the kit is worth it for the wood. Few high spots on some of the frets, but I'd say those are less than a mm. Fret ends are smooth, Neck seems straight. If you get one like mine you should just need to whack your choice of finish on it. Good stuff.
(5)
