An incredible DI, the SWAMP DB-1 Passive Direct Box a professional solution for transforming high-impedance, unbalanced instrument outputs to low-impedance, balanced inputs, such as plugging instruments into a mic preamp on a mixer. For stage and studio.
| Loading... | ||||||

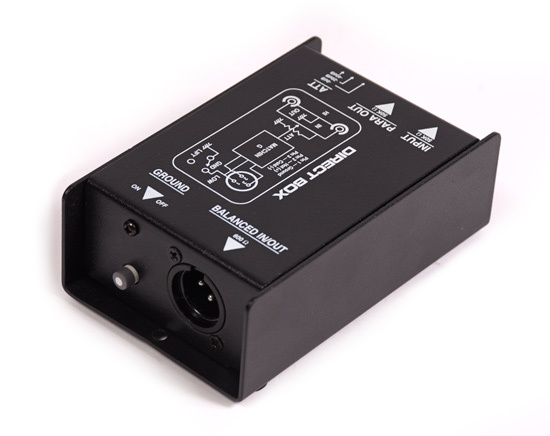

SWAMP DB-1 Passive Direct Injection Box - DI Box
An incredible DI, the SWAMP DB-1 Passive Direct Box a professional solution for transforming high-impedance, unbalanced instrument outputs to low-impedance, balanced inputs, such as plugging instruments into a mic preamp on a mixer. For stage and studio.
When to use a DI?
A DI box basically turns an "instrument" signal into a "mic" signal. It is used when you have an unbalanced, high impedance instrument, like a guitar or keyboard, and want to plug it into balanced XLR microphone input, such as on a mixing desk / PA system. Vital for stage performers that are required to plug into balanced XLR multicore stage boxes.
Connect Instruments to a Mixer
The SWAMP DB-1 is one of the most useful and versatile tools available indispensable in enabling easy interfacing and connection between various audio gear in numerous applications.This unit is used when you have an unbalanced, high impedance instrument, like a guitar or keyboard, and want to plug it into a mic preamp on a mixer for more headroom. Comes with an attenuation switch boasting two cut settings of 20dB and 40dB. Also features an earth lift input.
Simple to Use
DI boxes can be a little confusing at first, however this DI will automatically provide a solution for you easily. Simply plug your instrument into the input via a 1/4" jack cable, and connect a mic cable from the XLR into your desired mixer channel preamp, or a powered speaker. Use the PARA Output to send the clean signal to a tuner or amplifier etc. Use the Signal Attenuation switch to adjust your signal according to your instrument. Basically you can use:
0dB setting for electric guitar, basses and leyboards; -20dB setting for professional audio equipment, and; -40dB setting for guitar power amps. Use the Ground Switch to resolve Hum or noise issues.
Features:
- Single channel passive direct box
- Converts your HI-Z signal to LO-Z XLR
- Attenuation up to 40dB
- Parallel Output - Pre-pad / bypass
- Great for Keyboardists, Acoustic & Electric Guitarists, Bassists, and other instrumentalists
- Without battery or phantom power

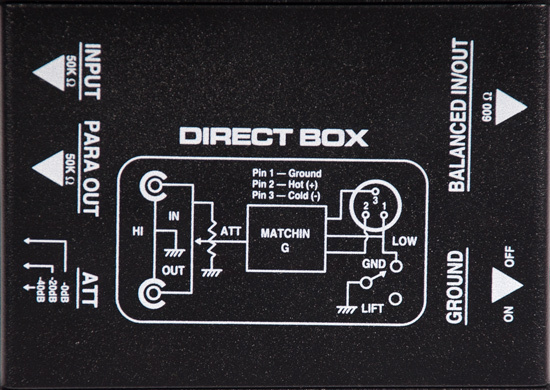

Specifications:
- Input and Para Out Impedance: 50k Ohm
- Balanced In/Out Impedance: 600 Ohm
- 1/4" high impedance input
- Balanced XLR output and 1/4" output
- Switchable ground lift
- Attenuation Pad Switch (0dB, -20dB and -40dB)
- Heavy Duty Metal Construction
- Rubber Feet Pad
- Length: 120mm
- Width: 75mm
- Height: 40mm
- Weight: Approximately 450g
