SWAMP Colour Coded Balanced XLR Cable

SWAMP XLR Coded Cables Colour Coded by Length - 6 Selectable Lengths and Colours
Balanced XLR mic cables coloured coded by length. 6 lengths to choose from, with each length having a different colour boot - Red, Blue, Green, Yellow, Purple and Orange. Built with our high quality SMC-203 braided shield, twisted pair mic cable and quality generic (unbranded) connectors.

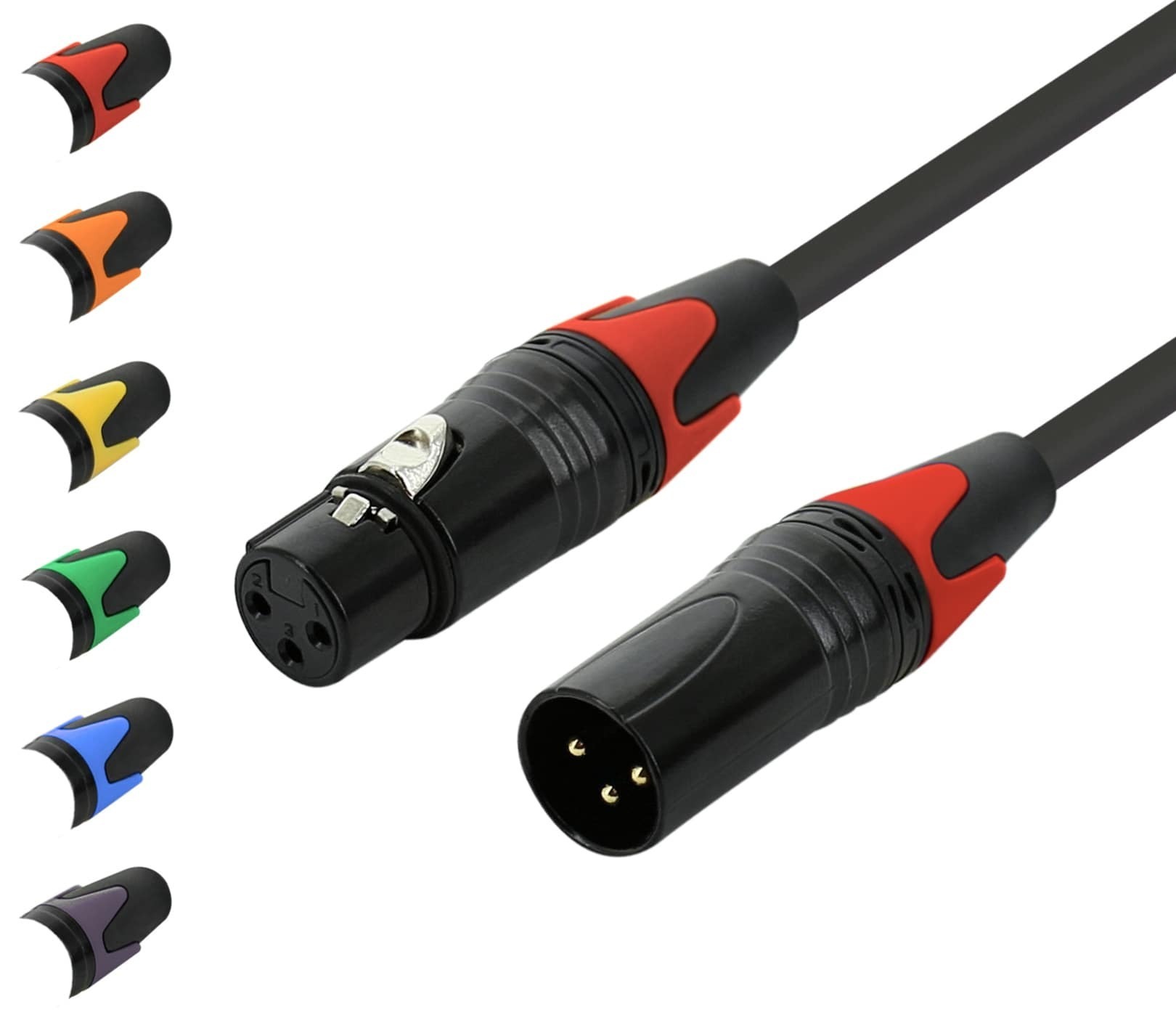

Coloured Boots - Select the right length the first time
The coloured boots make it much easier to select the right length of cable the first time, ideal for event companies where a speedy bump-in is required. Studios and musicians will also find the connectors and cable comparable to more expensive branded options with the added benefit of the colour coding.

Braided Ground Shield
Compared to standard 'spiral wrapped' shielding, braided shielding gives much better coverage around the inner cores, improving the rejection of unwanted RF noise. The more robust shield style also means the cable is more durable and resistant to damage in high use environments. Having a greater shield coverage does mean braided cables are a little less flexible than regular spiral wrapped cables.

Colour Codes by Length
1m: Yellow
2m: Green
3m: Purple
5m: Blue
10m: Red
15m: Orange

Specifications:

• Cable Colour: Black
• Cable Core: 0.10mm*28*2 (Conductors) + 0.10mm*16*6 (Braided Ground)
• Conductor Gauge: 24 AWG / 0.22mm2
• Outer Diameter: 6.7mm
• Connectors: 3pin XLR(m) to 3pin XLR(f) (Generic / Unbranded)

• Length: 1m
