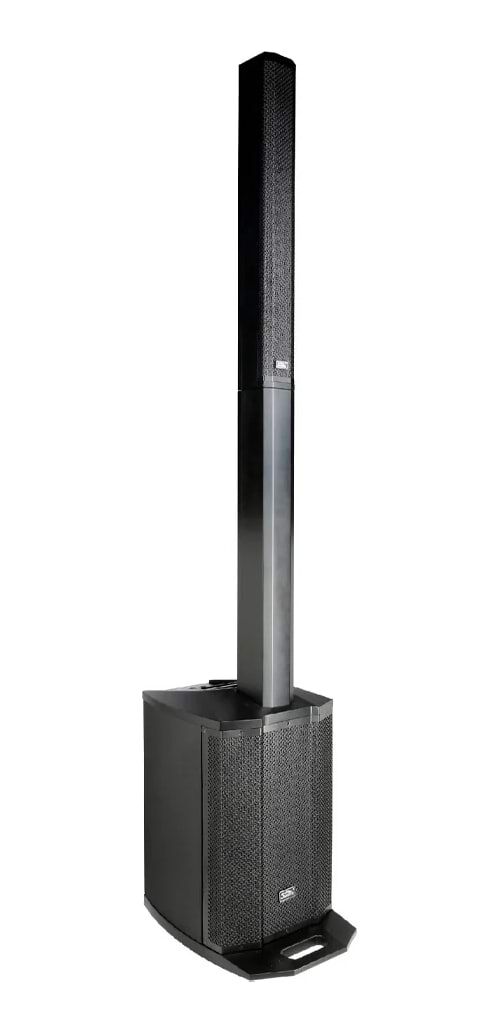

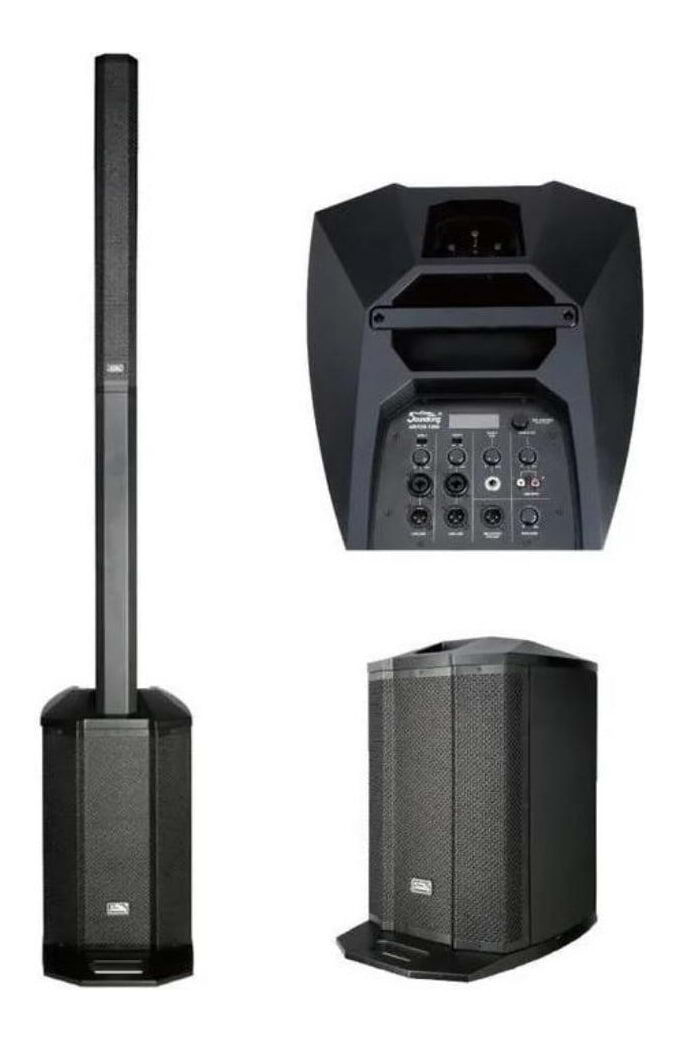

Soundking ARTOS-1200R Active Column PA System

Soundking ARTOS-1200R Active Column PA System
The Soundking ARTOS-1200R is an ultra-compact, powerful vertical array system, perfect for musicians, DJs, Houses of Worship and solo entertainers. Features 6 x 3′ mid frequency transducers, a 1′ high precision driver, and 12" sub. Bluetooth, 24-Bit DSP effects.

Active Solution
The Artos 1200R by Soundking provides a multi-in-one solution, a super compact column speaker system for use in many purposes. The column includes 6x 3inch mid frequency neodymium magnetic transducers for perfect clarity of instruments and vocals, and a 1inch high precision compression driver horn delivering dynamic and clear highs. It has a 120 x 30 degree extra-wide coverage. The column is made of engineered ABS, and is very lightweight. The 12inch subwoofer provides a powerful well-defined bass, and contains a 4-channel mixer.

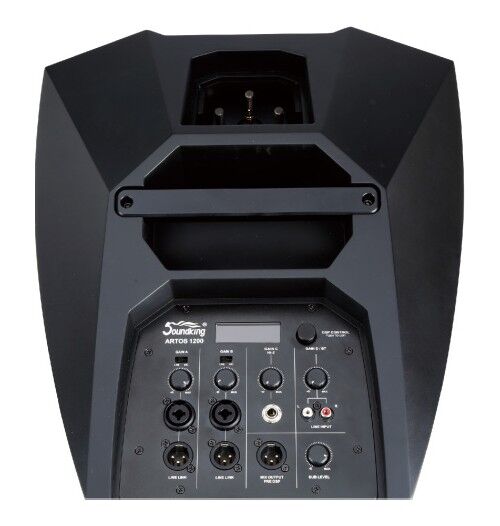

4-Channel Mixer
The on-board 4-channel mixer enables for a wide range of applications. Connecting microphones, instruments, line signals or even wireless bluetooth streaming sources: ARTOS is ready for it. There are 2x Mic/Line combo inputs, 1x RCA stereo inputs, and 1x HI Z input for direct connection to instruments. There are also 2x XLR line outputs for direct connection to more speakers or mixers, and a 1x Sub Level controller, providing an easy way to detail your bottom end tone. The mixer section features gain control, reverb effect on/off switch, reverb mix knob, and DSP setting control. There are 6 reverbs and 6 delay effects to choose from. Channel 4 on the mixer supports TWS Bluetooth connection. When using a pair of ARTOS column speakers, they can be panned left and right for stereo wide performance.

24-bit DSP and EQ Presets
There are 4 bands of EQ that can be saved into presets - HI EQ, MID EQ, MID FREQ, and LOW EQ. There is also a low cut selection at 80Hz, 100Hz, 120Hz and 150Hz. Choose between three modes for the system: Music, Voice and DJ. In all, there are 5 user presets for storing EQ parameters.

Package Includes:
 1x ARTOS Sound Column
 1x Height-adjusting column
 1x ARTOS SUB1200

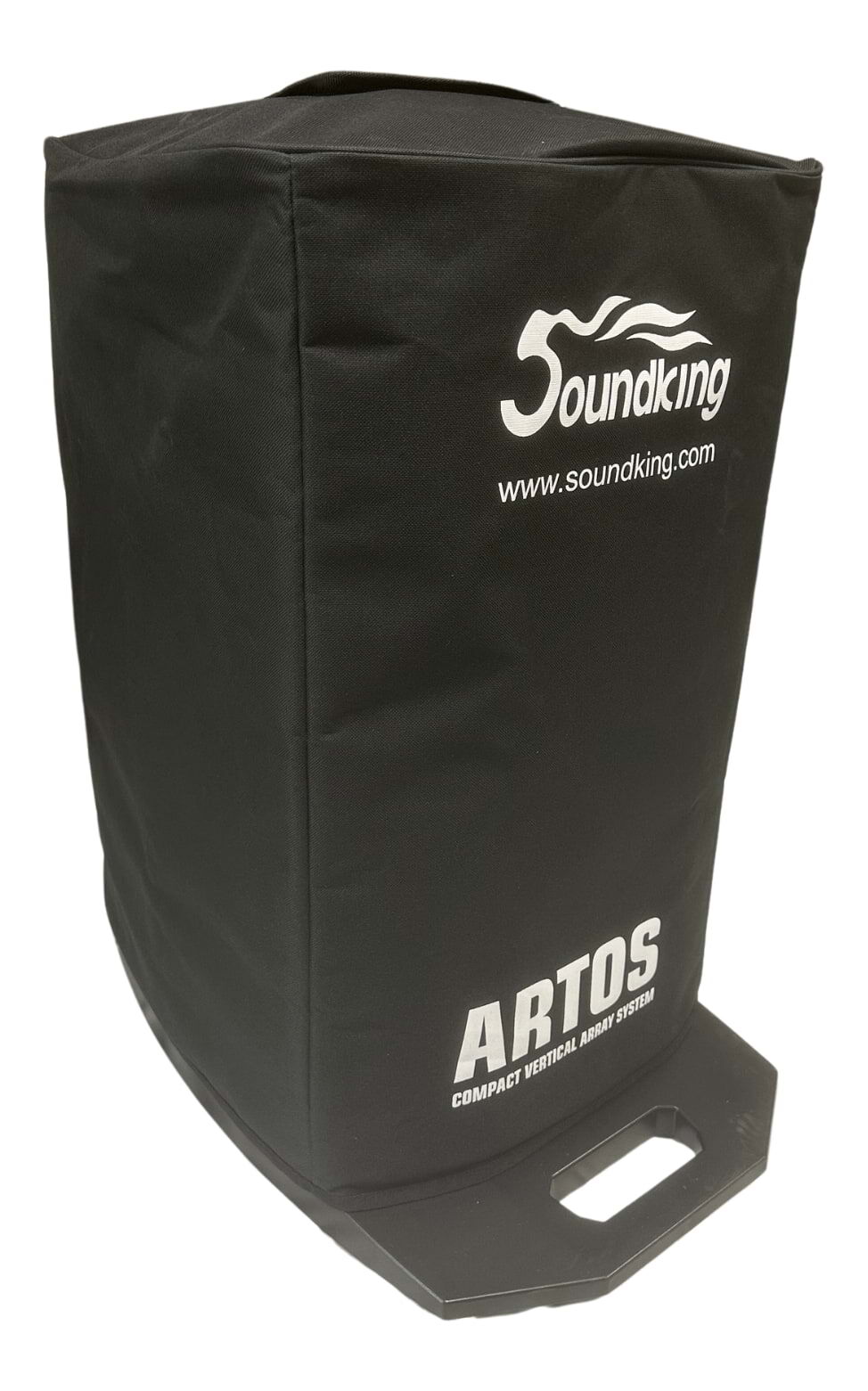

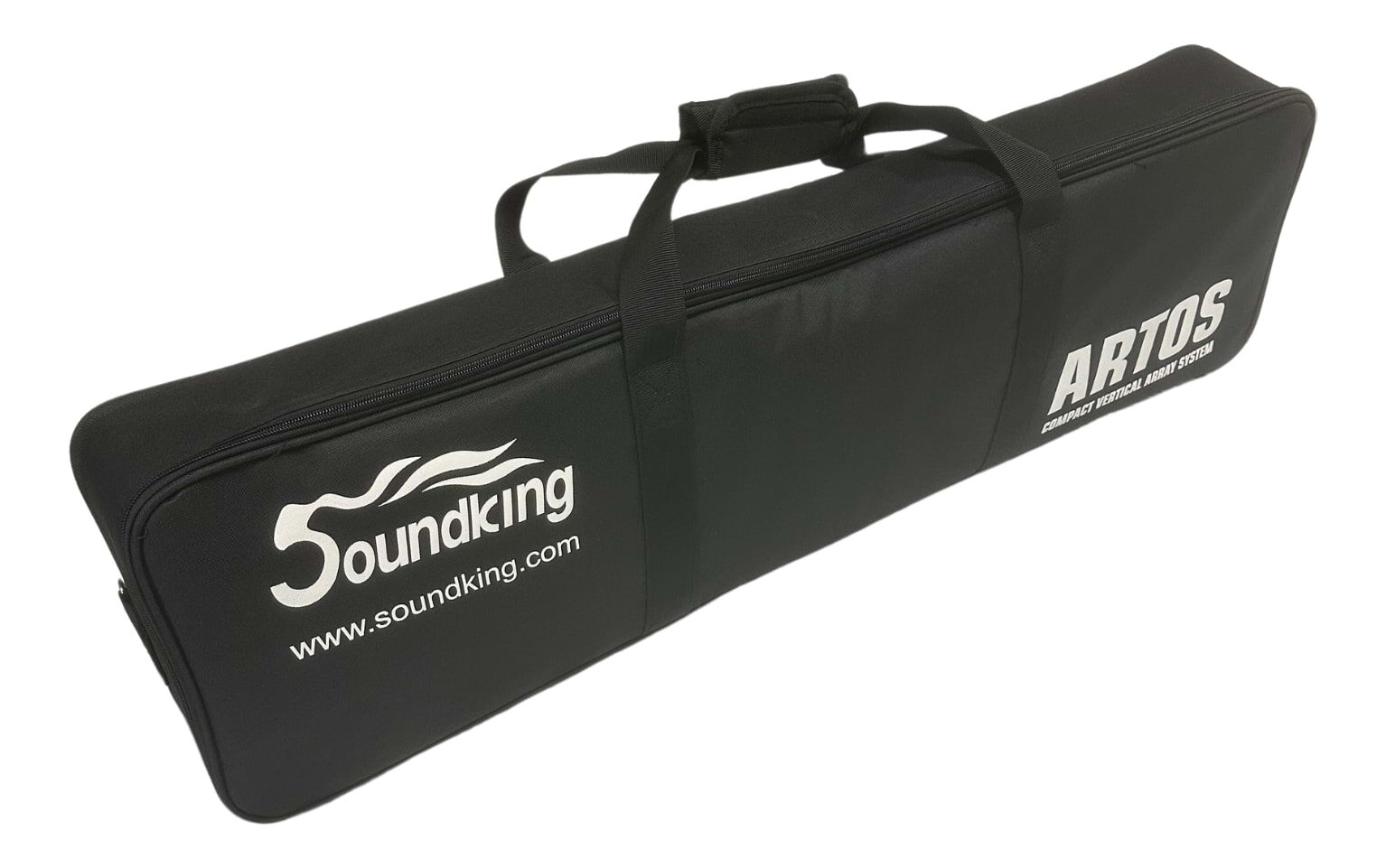

 1x Cover Carry Bags for Sub and Top
 1x Power Cable
 1x User Manual
 1x Certificate
 1x Warranty

Features:

• 4 Channel Mixer - 2 x MIC/LINE input (adjustable), 1 x RCA stereo input, 1 x HI-Z instrument input,
• 2 x XLR line ouput, 1 x SUB LEVEL controller for quick access
• Class-D amplifier modules with 2 x 300W (RMS) for low distortion and excellent sound, powerful SMPS (100 V – 240 V)
• Powerful 24-bit DSP with display
• ONE CONTROL encoder, storable  presets, high-pass filter, delay, dual-channel limiter & equalisation
• Bluetooth connection
• Digital delay for delay zones with up to 100m (in steps of 0.25m)

Specifications:

• SPL: 122db
• Power: 480W RMS
• Input impedance:
  • 1-2# MIC: 40k Ohms balanced
  • 1-2# LINE: 10k Ohms balanced
  • 3#：20k Ohms balanced
  • 4#: 5k Ohms unbalanced

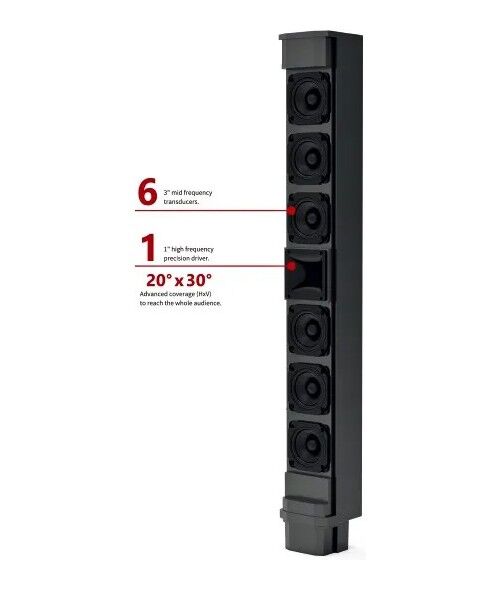

Vertical Array Speaker

• MF: 6 x 3′ mid-range speaker
• HF: 1 x 1′ compression driver
• Coverage: (H*V) 120° x 30°
• Rated Power: 180W (RMS)
• Rated Impedance: 6Ω
• Dimensions (W x H x D): 106mm x 750mm x 100mm
• Weight: 2.5kg

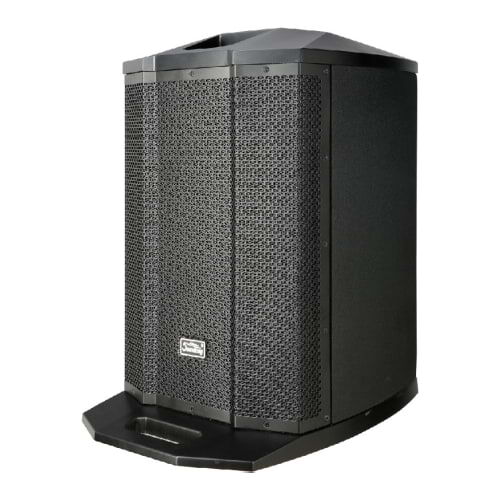

Subwoofer:

• Speaker type: 1 x 12′ transducer
• Rated Power: 300W (RMS）
• Rated Impedance: 4Ω
• Dimensions: 361mm x 650mm x 520mm
• Weight: 18kg
