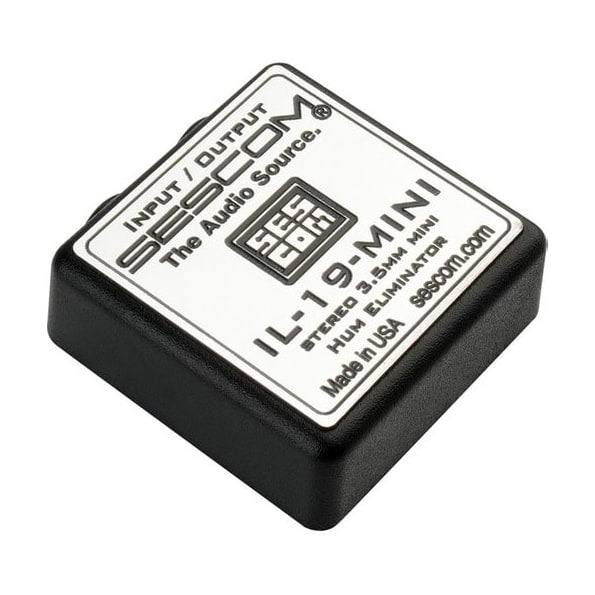

SESCOM IL-19-MINI 3.5mm Stereo Mini I/O Hum Eliminator

SESCOM IL-19-MINI 3.5mm Stereo Mini I/O Hum Eliminator
The IL-19-MINI keeps unwanted signals out of the circuit, but also reduces induced noise providing high-quality transformer isolation to eliminate hum and buzz from interacting gear. Built into a tiny high impact non-conductive ABS enclosure. 3.5mm Jacks.

Next Generation
The next generation of the Sescom IL-19 series, the IL-19-MINI is an inline hum eliminator / matching transformer for 3.5mm stereo (TRS) runs and is perfect for both DSLR audio applications as well as a laptop interface. In DSLR applications, where HUM always poses a problem, you can connect up to a 25 foot unbalanced 3.5mm TRS cable between any mic output source and through the IL-19-MINI to remove hum.

Live Sound and Broadcast Applications
Designed as 3 products in-one, the Sescom IL-19-MINI uses the same technology and Sescom proprietary components as their World Famous Industry Standard IL-19 for instantly removing audio hum in live sound and broadcast applications providing quick fix line isolation to remove hum. Removes ground loop hum, mode noise & differentially induced hum. Other in-line problem solvers solve only one problem at a time. Sescom transformers are specifically engineered for excellent, extra-wide frequency response allowing a hotter signal. Sescom transformers also provide superior protection against radiated noise thus reducing pickup of hum and interference from outside sources such as power supplies. The IL-19-MINI keeps unwanted signals out of the circuit, but also reduces induced noise providing high-quality transformer isolation to eliminate hum and buzz from interacting gear. Built into a tiny high impact non-conductive ABS enclosure. The IL-19-MINI is a 3.5mm Stereo In-line Matching Transformer, Audio Hum Eliminating Problem Solver with 3.5mm (1/8") Jacks for the Input & Output. As a laptop interface, use it between external PC mic inputs to remove any unwanted hum and noise.

Perfect for use with, but not limited to the following: when interfacing with MP3 players, computer audio, cell phone audio, including Android, RIM/Blackberry and iOS iDevices like the iPhone, iPad and of course the iPod Touch. Just in case you want to connect your Smart Phone to the DJ mixer at the next party you are at!

Features:

• Stereo Inline Hum Eliminator with 3.5mm 1/8 Inch Input and Output Jacks
• Quick Fix Line Isolation
• Removes Ground Loop Hum, Mode Noise, & Differentially Induced Hum
• Line Level Equipment Interface
• Decoupling Lines to Reduce Hum
• Isolating Drive Lines to On-Stage Power Amps
• Long Line Level Cable Runs

Specifications:

• Nominal Target I/O Levels: -16dB to +8dB
• No Lower Limit / Upper Limit: Approx. +24dB
• Nominal Input Impedance: 600 ohms
• Nominal Output Impedance: 600 ohms
• Frequency Response: +/- 1db at 20hz to 20khz Input & Output Device Dependent
