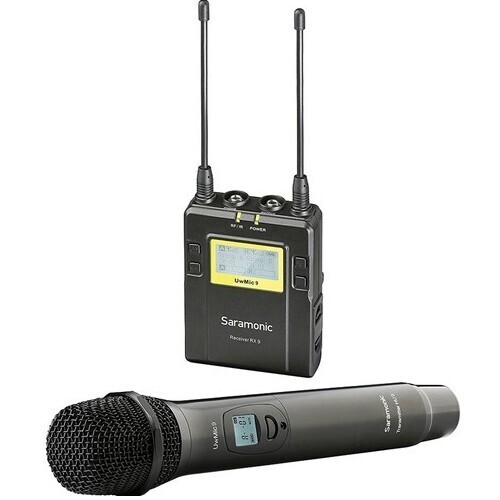

Saramonic UWMIC9 RX9 Bodypack Receiver + HU9 Handheld Microphone Transmitter

Saramonic UWMIC9 RX9 Bodypack Receiver + HU9 Handheld Microphone Transmitter
The Saramonic HU9 Digital UHF Wireless Handheld Microphone pack includes an integrated TX transmitter which provides stable, interference-free audio in a portable, compact package. Connects to the supplied RX9 UwMic9 wireless bodypack receiver.

Automatic Channel Scanning and Infrared Synchronization
The Saramonic HU9 type is a handheld wireless UHF microphone transmitter wrapped in a compact metallic body and all the needed info is displayed on easy-to-read LCD display. It uses a PLL synthesizer which is paired with a RF power switch. The broadcast quality microphone will document clear and rich sound. It has a built-in antenna, a muting function and power lock function. When muted, the audio signal is not output but an RF signal is still transmitted. The channel of HU9 is synced up with the RX9 receiver via infrared.

UwMic9 RX9 Receiver
The UwMic9 's RX-9 receiving unit is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver. Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring from the receiver via headphones, especially useful for cameras that lack a monitor output. The RX9 receiver can be synced with two different frequencies at the same time allowing for 2x TX9 transmitters to be used with 1x RX9. The signals are summed together into the single output.

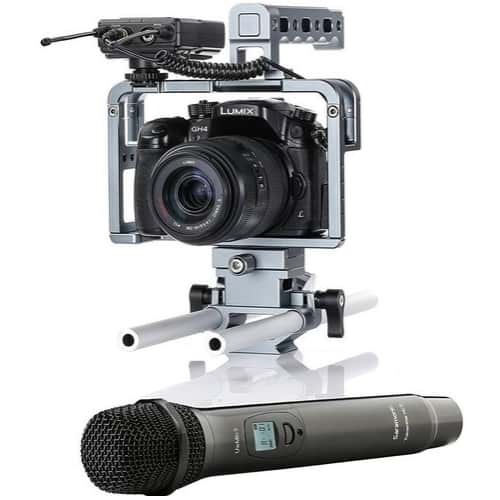

Ideal for DSLR Field Recording
This Saramonic transmitter and lavalier mic can be used when paired with a receiver for field recording, using with DSLR cameras, for broadcast and other similar applications. As a fully battery powered unit, it can be used in any situation or environment. A very good feature is that you can turn off an individual frequency group when not in use to save battery.

Features:

• Reliable, broadcast-quality audio
• Wireless UHF hand-held microphone compatible with UwMic9 series RX-9 receiver
• UHF frequency range: 614 MHz - 694 MHz
• 96 selectable channels in 2 groups
• Operating Range: Over 100m in open areas. 60m with obstacles
• Easy-to-read LCD displays

Specifications:

Microphone

• Channels: 96
• Oscillator Type: PLL synthesizer
• Audio Output Level: -60 dB
• Carrier frequencies: 614 MHz - 694 MHz
• Spur Suppression: -60 dB
• Sensitivity: -95 dBm
• Signal to Noise Ratio: 70 dB or more
• Voice Delay: 12 ms
• Reference Deviation: ± 5 kHz
• RF Output Level: 30 mW/20 mW/10 mW selectable
• Dimensions: (L x W x H)  10 x 2 x 2"(254 x 52 x 52 mm)
• Weight: 13 oz (338.2 g) without batteries

Receiver Bodypack

• Channels: 96 channels
• Groups: A and B groups
• Oscillator Type: PLL synthesizer
• Output: 3.5mm mini jack
• Antenna: 1/4" wire antenna
• Audio Output Level: -60 dBV
• Headphone Output Level: 30mW (16 ohm)
• Frequency Range: 614 MHz - 694 MHz
• Sensitivity: -95 dBm
• Signal to Noise Ratio: 70 dB or more
• Voice Delay: 12 ms
• Reference Deviation: +/- 5 kHz
• Frequency Response: 40 Hz to 18 kHz (+/- 3dB)
• Distortion: 0.5% or less
• Spur Suppression: -60 dB
• Weight: 218.7g (w/out batteries)
• Battery: 2 AA size batteries
• Dimensions: 170.9 x 63.m x 30.0mm
