Rowin Twin Series LTD02 Time Maker Guitar Digital Delay FX Pedal

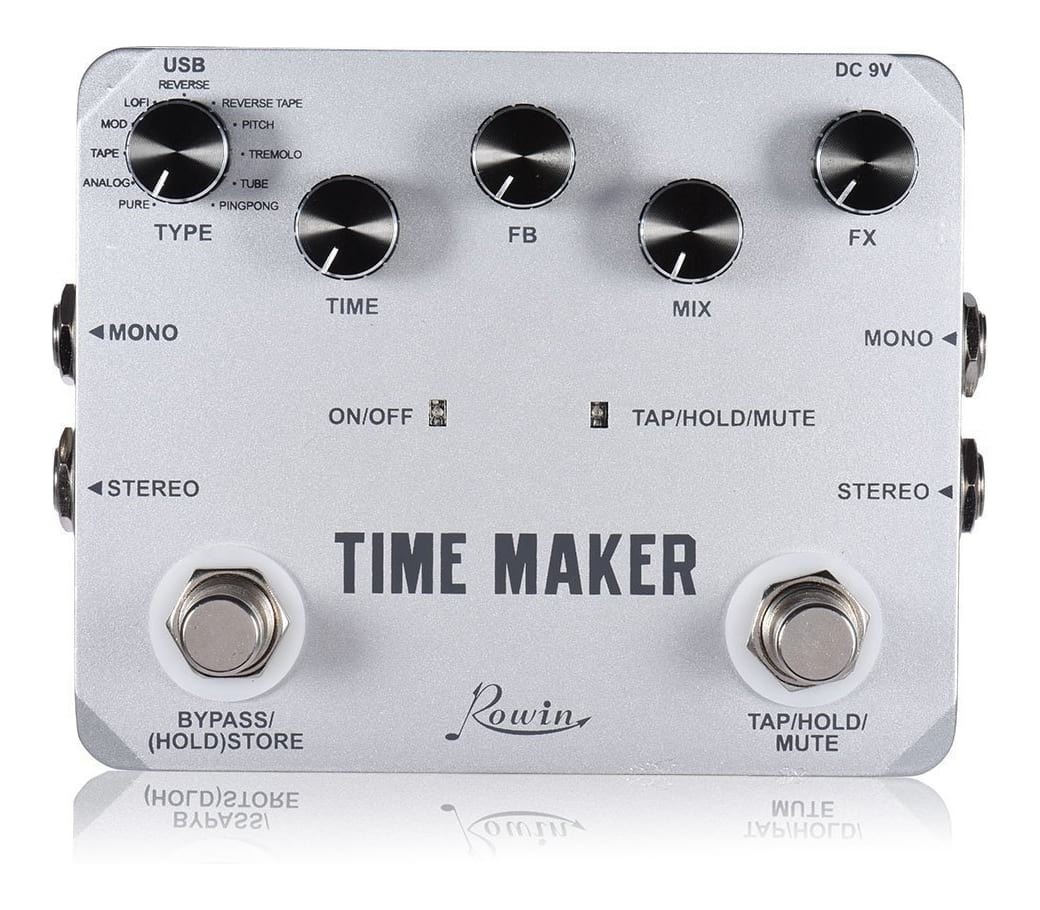

Rowin Twin Series Time Maker Guitar Digital Delay
The Time Maker offers 11 delay types, a user friendly control layout, two footswitches and preset storage capacity all packed into a slim zinc alloy shell. Powered by standard 9V DC and 32bit floating point digital processing, a more reliable, tonally flexible and great sounding pedal cannot be found at such a competitive price point.

11 Unique Delay Sounds with Effects
The LTD02 features 11 different delay algorithms, some analog feeling emulations, some digital, and some just weird! Sounds include Pure, Analog, Tape, Mod, Lofo, Reverse, Reverse Tape, Pitch, Tremolo, Tube and Ping Pong. All of these effects can operate in stereo mode which adds an extra statial dimension to the sound, particularly for the Ping Pong and Mod type settings. Each setting also has its own unique variable effects parameter which can be adjusted with the FX knob. To see which FX correspond to each preset, see page 5 of the manual.

Flexible and Logical Control Layout
Time maker features standard controls that will be familiar to a seasoned delay user or easy to pick up for a beginner. These are Type, Time, Feedback (FB) Mix and Effects (FX). The Type knob allows you to quickly select the delay you desire. The delay speed can be adjusted using the Time knob and Feedback controls how long the delays last. Mix controls the ratio of your dry signal (input) against the effect's tone. The FX knob acts in response to the selected effect, i.e. tone/speed/sample rate/overdrive/pitch.

Dedicated Tap Tempo, Hold and Mute Mode Switch
Having a second footswitch allows for greater convenience and functionality i.e. avoiding too many tedious "press and holds" and "double taps". In Tap Tempo mode, pressing the right switch once initiates the timing counter, and another single press ends the time counter. This allows you to manually set the delay time to your exact requirement without having to adjust the Time knob with your hands. In Hold mode, delay playback is recorded and looped until you deactivate it, great for "freeze" effects and ambient layering. In Mute mode, the recording is cleared and you can start fresh.

Store Function with Soft Touch Switching
Rowin digital effects pedals feature a built-in store function, to quickly save and recall any configuration of effects you create. Hold down the soft touch switch to save a setting, and double tap the switch to recall. Green and red LED indicator lights determine the currently selected channel, and flash to clearly show when a setting is saved. Recall presets even after the pedal is switched off an unplugged.

True Bypass Circuitry
The compact inner circuitry is designed with 3PDT true bypass switches ensuring an unaltered tone when the pedal is not engaged. A true bypass switch has the ability perform a true bypass of the internal hardware circuit of the pedal, meaning the signal goes straight from the IN to the OUT.

Features:

• Zinc Alloy Shell
• 11 Types of Delay
• Store Parameters
• Tap Tempo
• True Bypass 3DPT Switches
• Bypass/Hold/Store Switch
• Tap/Hold/Mute Modes with dedicated Switch
• Type, Time, Feedback, Mix and FX Level Controls

Specifications:​

• Maximum Record Time: 10 Minutes
• USB Compatible with Windows 7-10
• Included USB A to Micro USB Cable
• DSP: 32bit Floating point
• 24bit/44.1kHz Sampling
• Power Supply: 9V DC (Negative Centre) - (Not Included)
• Current Draw: 165mA
• Input Impedance: 470k Ohms
• Output Impedance: 100k Ohms

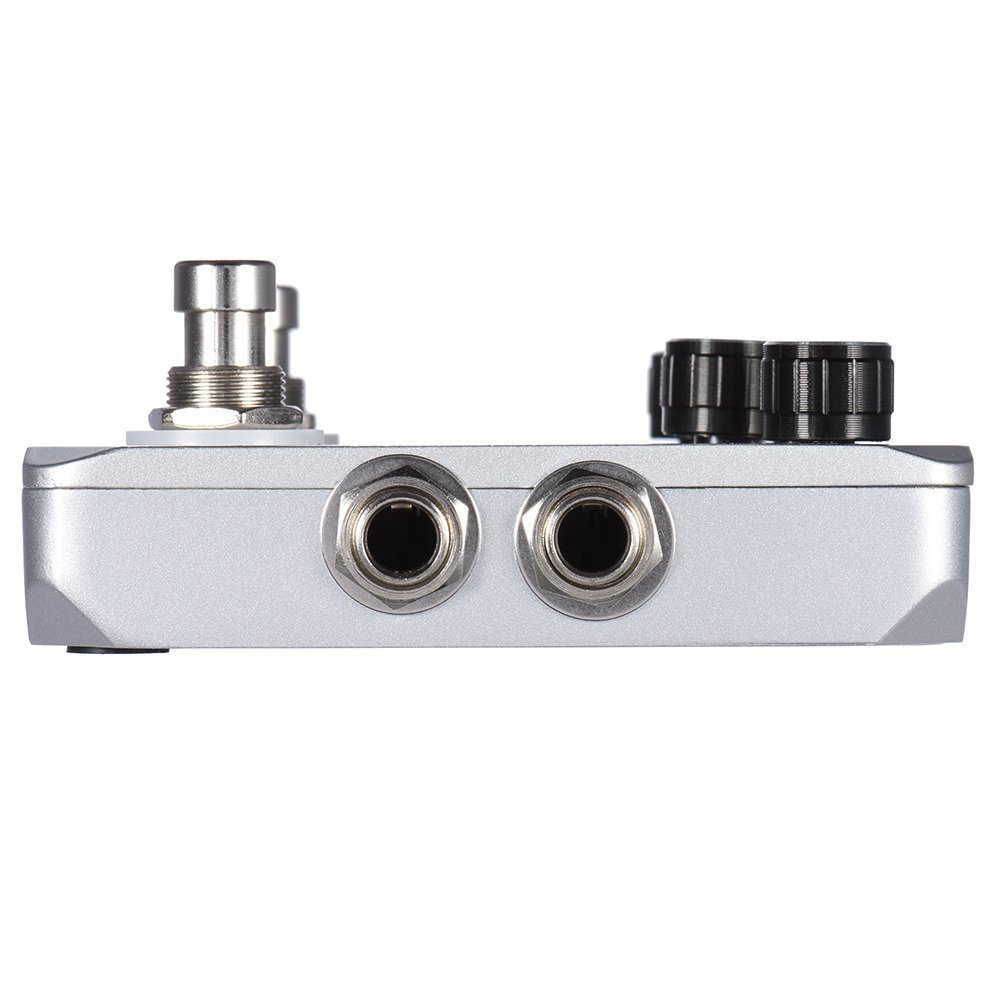

• Input and Output Connectors: Stereo 1/4" TS Jack

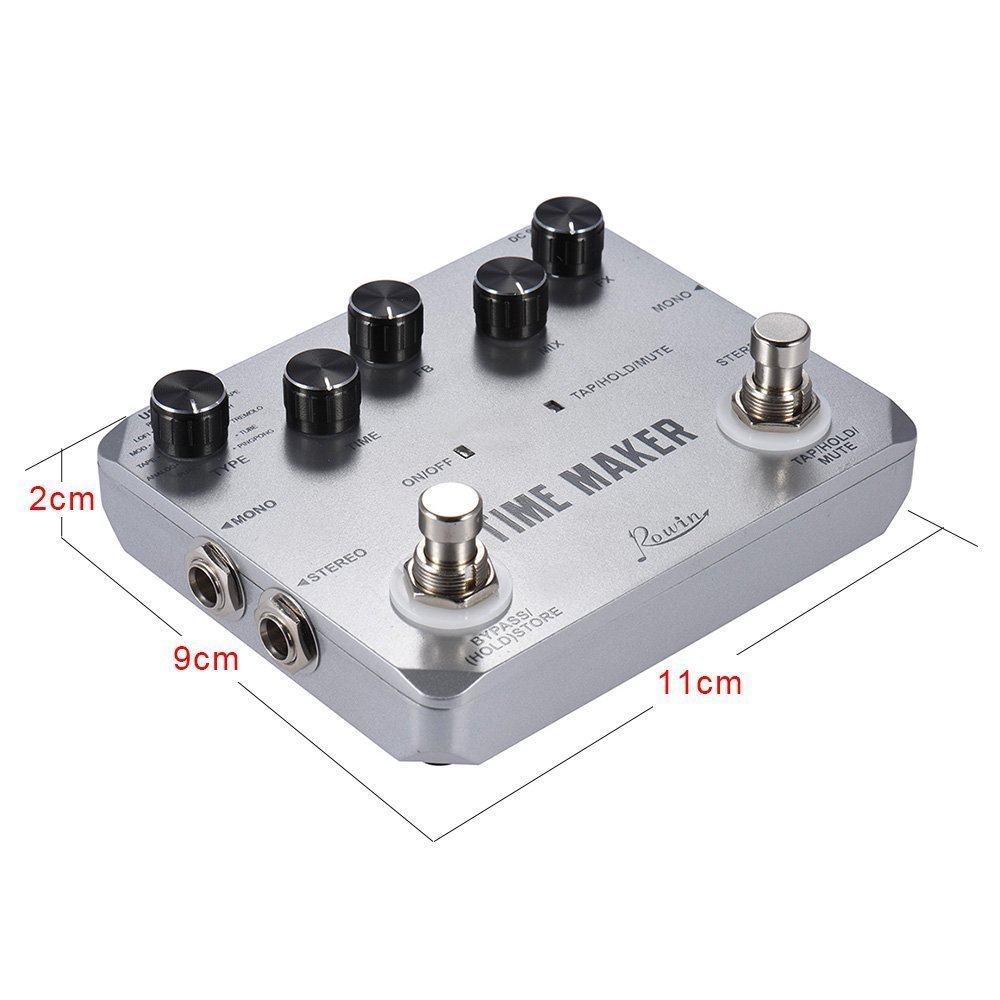

• Dimensions: L90mm x W116mm x H37mm (incl. switch)
• Weight: 385g
