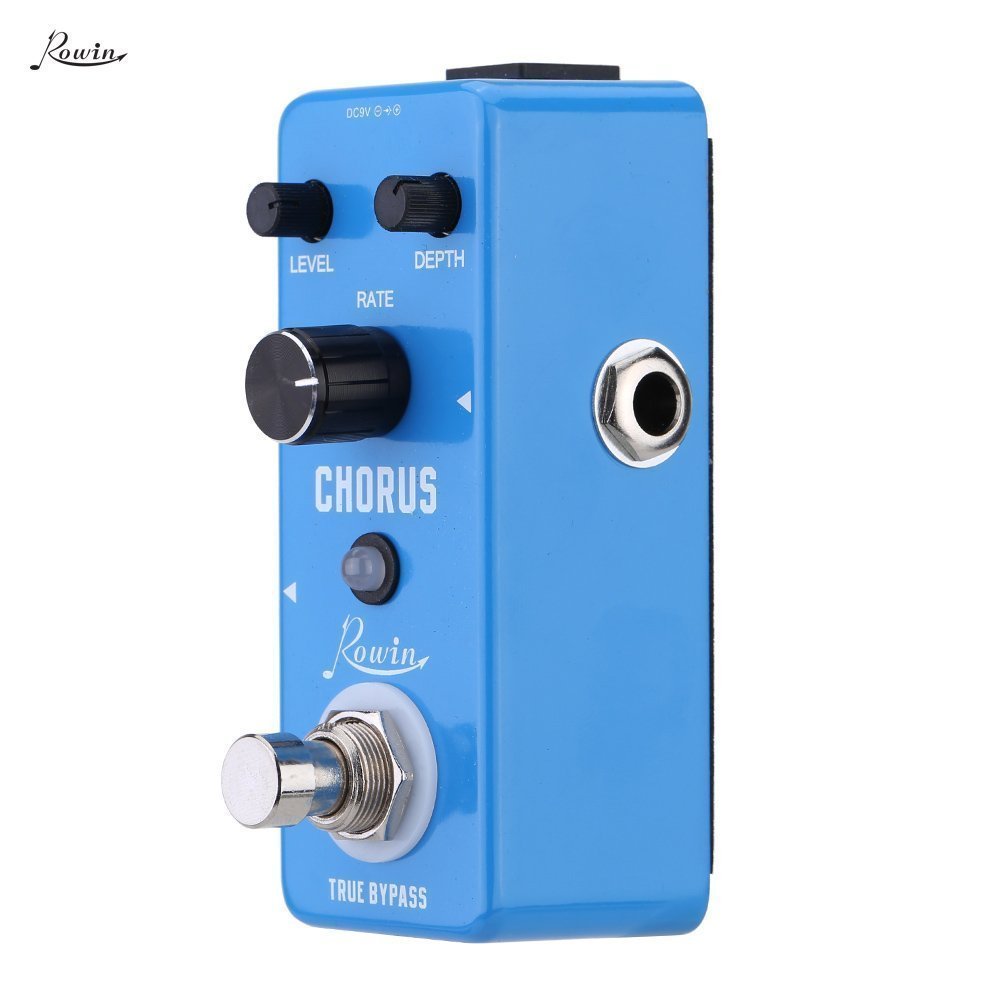

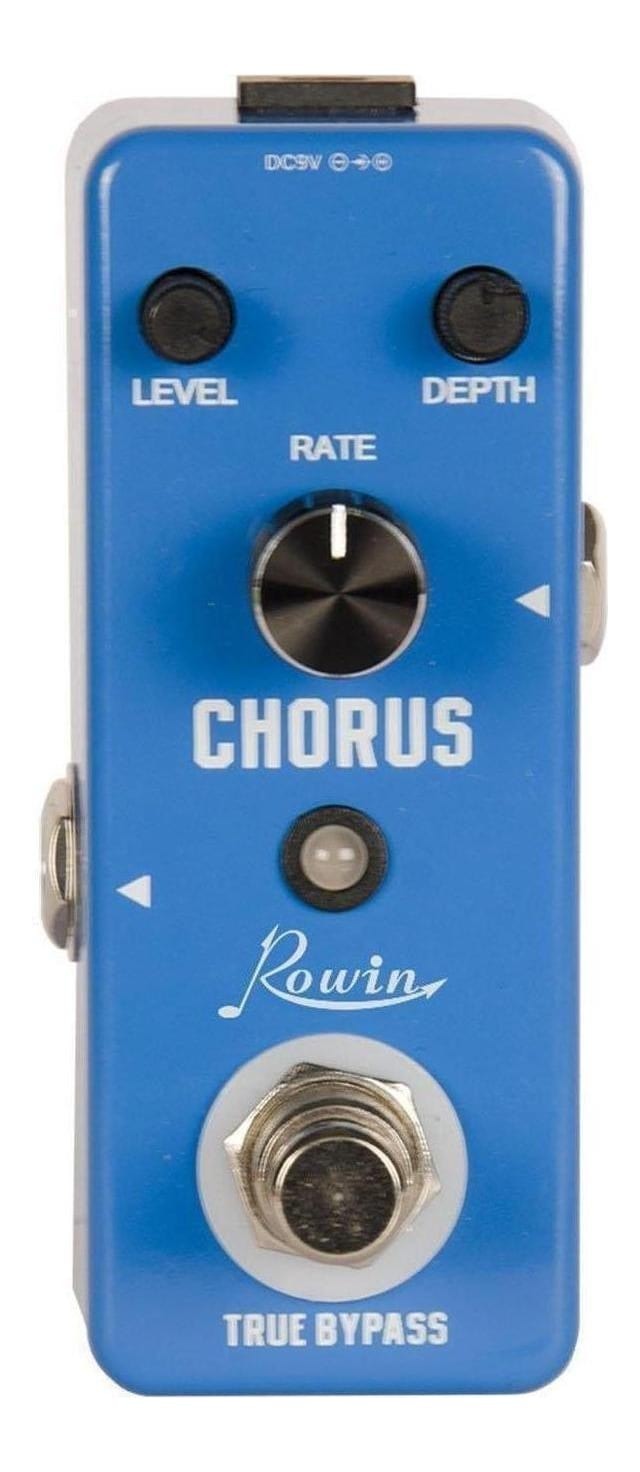

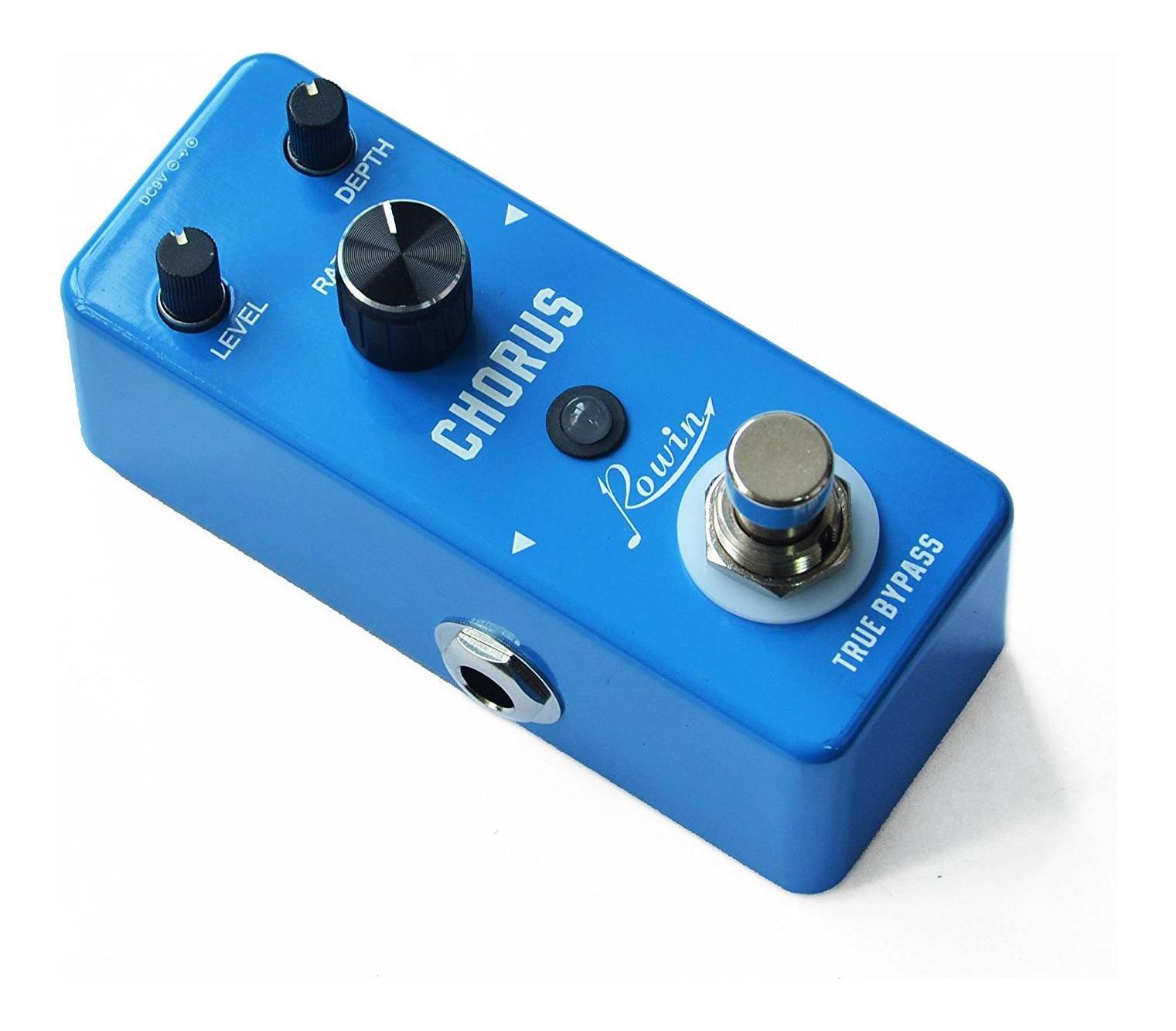

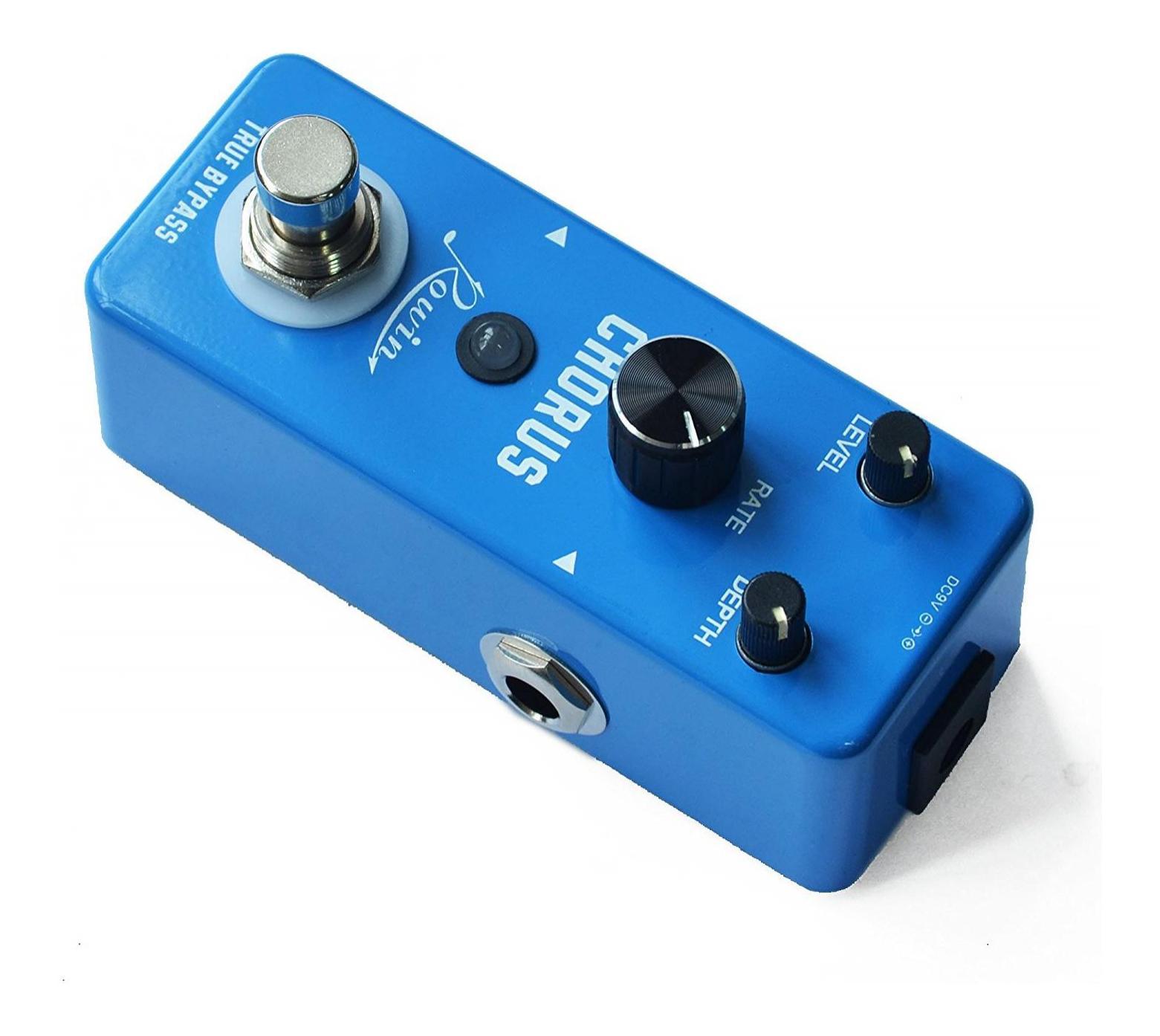

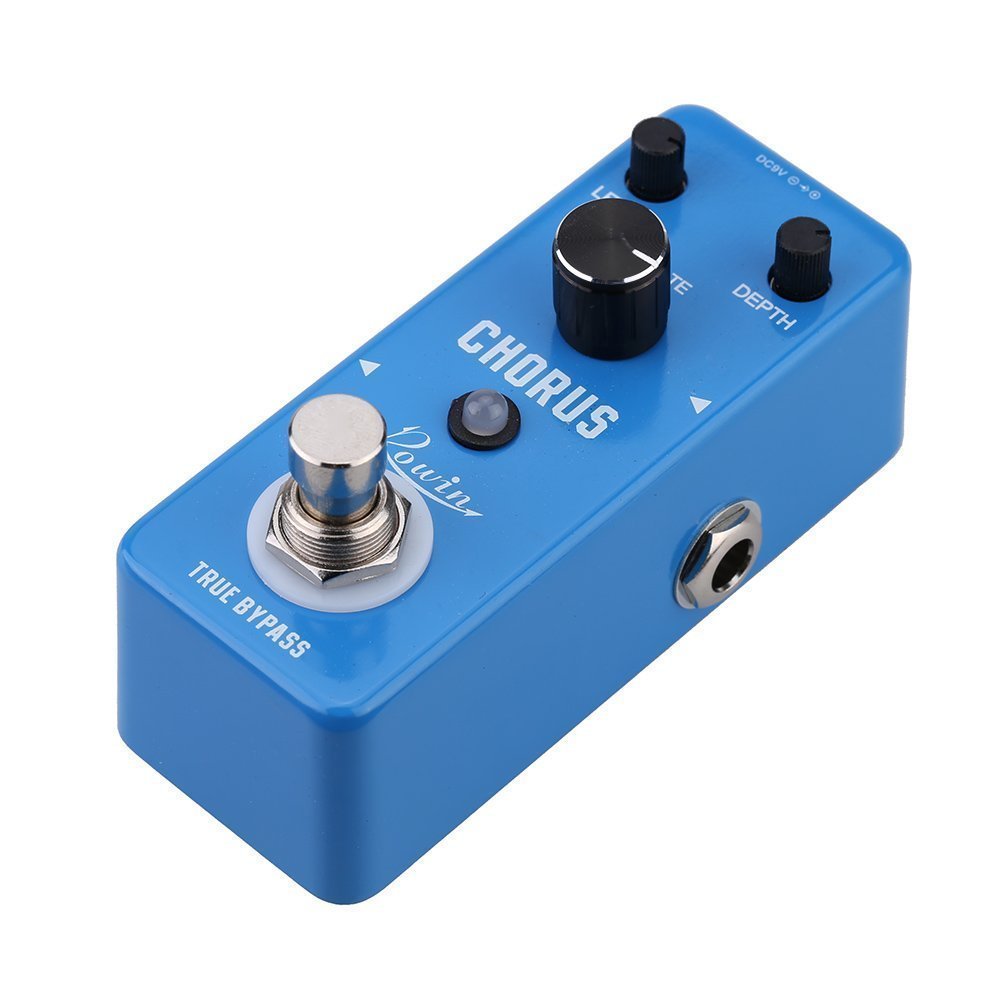

Rowin LEF-304 - Mini Guitar Chorus Pedal

Rowin LEF-304​ Chorus Guitar Effect Pedal
The LEF-304 Chorus is a versatile modulation effect that can produce everything from a subtle shimmer, to dreamy 80s alt rock cleans, to a Leslie speaker warble. Chorus pedals create this effect by introducing extra layers of sound and slightly detuning them. The Speed controls the rate at which the modulation occurs and the Depth controls the extent to which the sound is modulated. Cased in a rugged full metal housing, the LEF-304​ is a widely usable, reliable chorus pedal.

Compact / Miniature Case Size
Advances in circuitry design and manufacture have made it possible for guitar effect pedals to be built in compact enclosures that literally fit in the palm of the hand. The mini design allows more pedals to fit on a pedalboard and helps reduce the overall weight, making them an ideal solution for the traveling guitarist.

True Bypass Circuitry
The compact inner circuitry is designed with a 3PDT true bypass switch ensuring an unaltered tone when the pedal is not engaged. A true bypass switch has the ability perform a true bypass of the internal hardware circuit of the pedal, meaning the signal goes straight from the IN to the OUT.

Specifications:

• Full Metal Housing
• Controls: Rate, Level, Depth
• True Bypass 3DPT Switch
• Power Supply: 9V DC (Negative Centre) - (Not Included)
• Working Current: 10mA
• Input Impedance: 470KΩ
• Output Impedance: 470Ω
• Dimensions: L95mm x W45mm x H53mm (including switch)
• Weight: 211g
