The RockBoard Mini Mounting MOD DC provides a compact DC power management through box, ideal for connecting large wah or expression pedals that sit outside of your pedalboard. Fits perfectly in the side light mounting holes of your Rockboard pedalboard.
| Loading... | ||||||
RockBoard Mini Mounting MOD DC Compact Power Management
The RockBoard Mini Mounting MOD DC provides a compact DC power management through box, ideal for connecting large wah or expression pedals that sit outside of your pedalboard. Fits perfectly in the side light mounting holes of your Rockboard pedalboard.
Versatile and Convenient
The Mini Mounting MOD DC allows convenient access to the setup's multi-power supply without the hassle of laying the power supply cable under the pedalboard. It fits perfectly into the mounting holes of the RockBoard LED light and is a versatile, clean mounting solution on all pedalboards of the RockBoard®® series. The central access to the power supply is through a DC 2.1 x 5.5 mm through socket. Since the power connections are through sockets, power supply from external pedals, such as Wah, is also possible in the opposite direction. To distribute the power supply to the pedals, DC power supply cables or "daisy chain" distributors can be used instead of a multi-power supply. (Outputs A and B are connected in parallel). Note: The total power consumption of all devices on the board should not exceed the output power of the connected multi-power supply or the "daisy chain" connections to avoid damage to the individual components. Make sure that the voltage and polarity of the external power supply meet the requirements of multi-power supply/pedals.
Features:
- Mini MOD DC
- Mounting solution for all RockBoard pedalboards and power supplies
- Fits into the mounting hole for the RockBoard LED Light

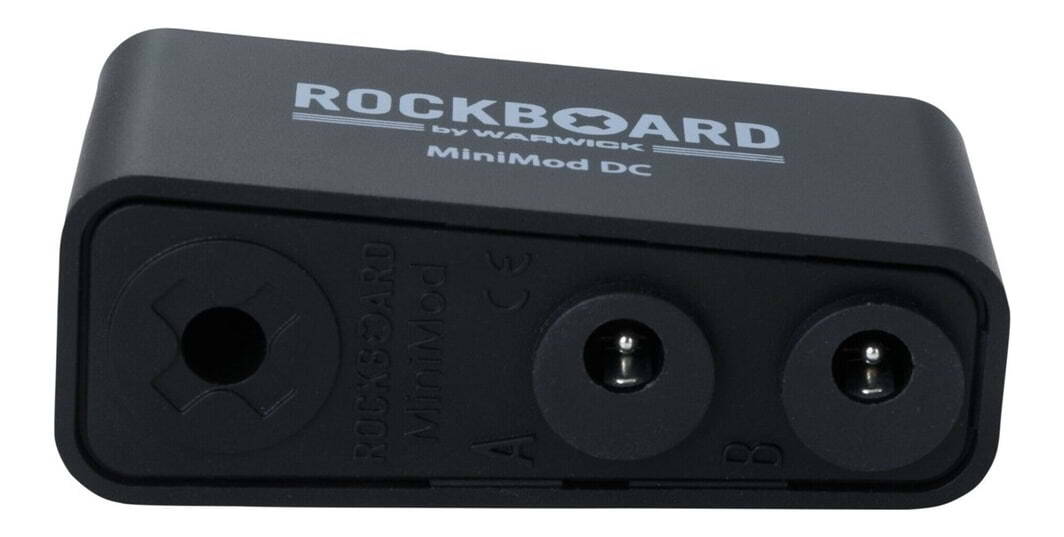

- 1 x DC 2.1 x 5.5 mm barrel plug socket to 2 x DC 2.1 x 5.5 mm barrel plug socket
- No drilling required
- Dimensions: 25mm - 20mm x 35mm x 70mm
- Weight: 30g

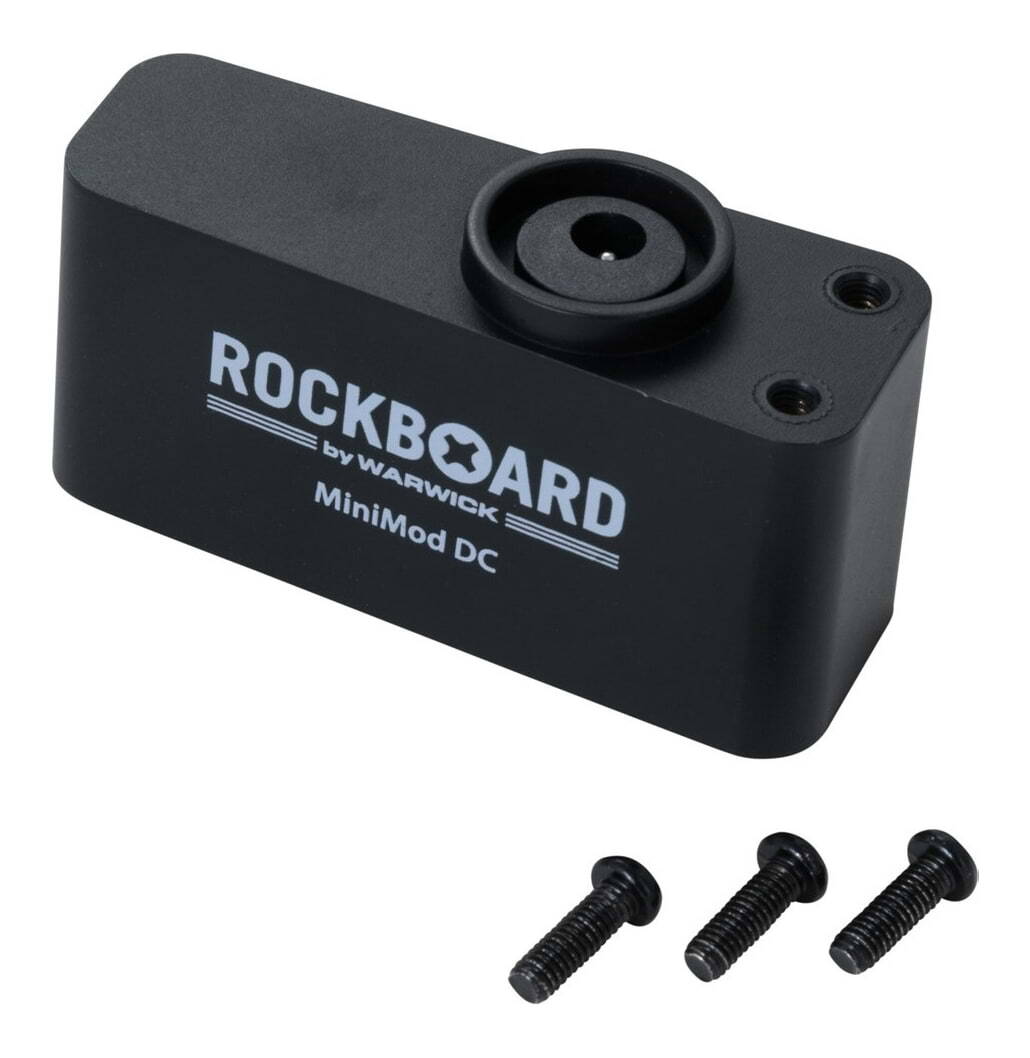

- Incl. mounting screws
