The Radial EXTC-SA is a unique interface for connecting guitar pedals to inputs/outputs of mixers/devices. Play any pre-recorded audio tracks through pedals, take vocals, drums, or strings through effects pedals for unique sonic combinations, or reamping.
| Loading... | ||||||
Radial EXTC-SA Guitar Effects Interface and Reamp Box
The Radial EXTC-SA is a unique interface for connecting guitar pedals to inputs/outputs of mixers/devices. Play any pre-recorded audio tracks through pedals, take vocals, drums, or strings through effects pedals for unique sonic combinations, or reamping.

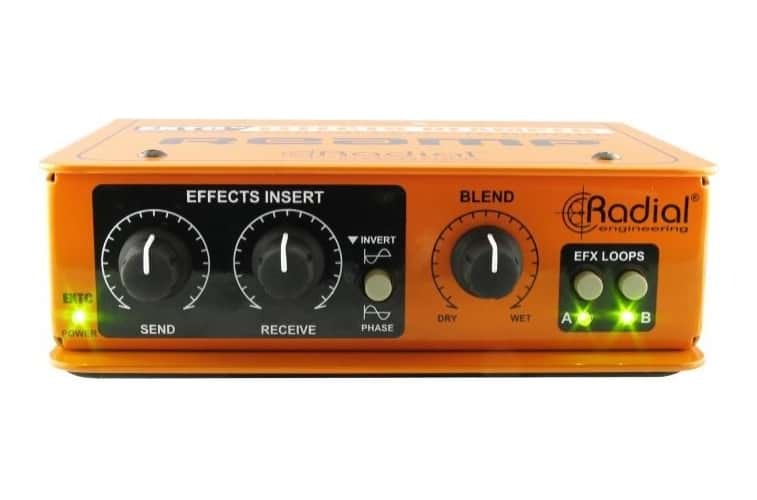

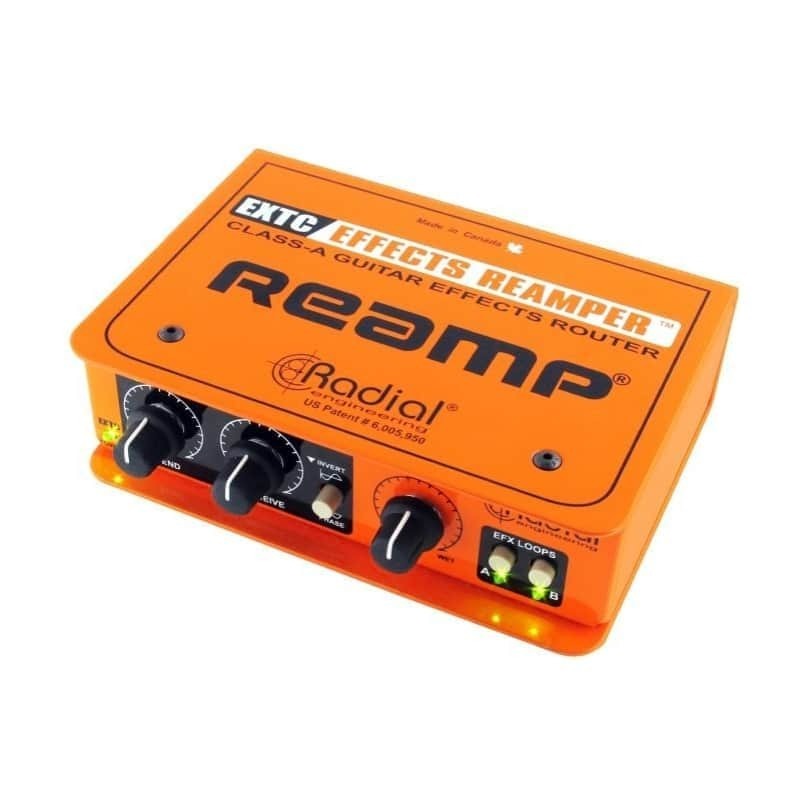

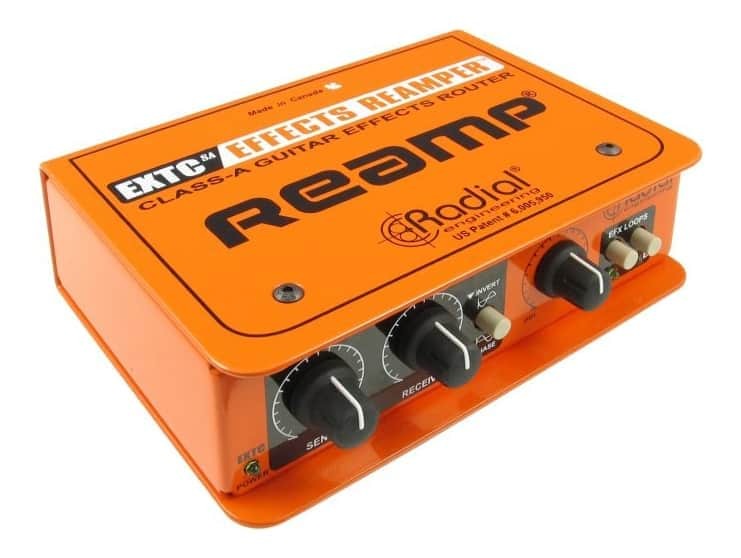

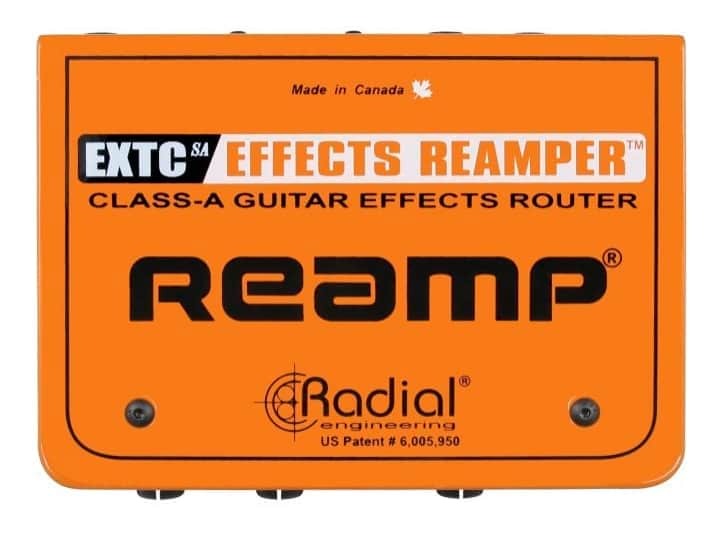

Unique Solution
The EXTC-SA is a unique interface for connecting guitar pedals to the inputs and outputs of pro audio equipment such as recording interfaces or mixing consoles, allowing you to incorporate your pedals in new and creative ways. The EXTC-SA allows you to get creative with your effects pedals, using them in your mix on any recorded track. Add a touch of distortion or chorus to a lead vocal, flange on a violin, or fuzz on piano - the possibilities are endless. The EXTC takes the line level balanced output of your recording interface and converts it so an instrument level high-Z output optimized for guitar effects pedals, so you can Reamp any track through your pedalboard with ease. Once you've run the signal through your pedals, connect the output back into the EXTC and it will boost it up to a balanced line level so you can connect directly to the input of your recording interface. The EXTC features Radial's class-A buffer for the best audio quality and transformer isolation to eliminate any buzz or hum - so you can focus your attention on using your pedals in new and exciting applications.

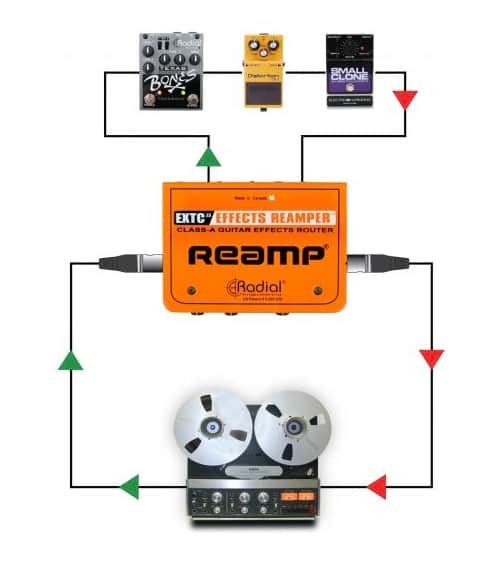

Reamping through Pedals

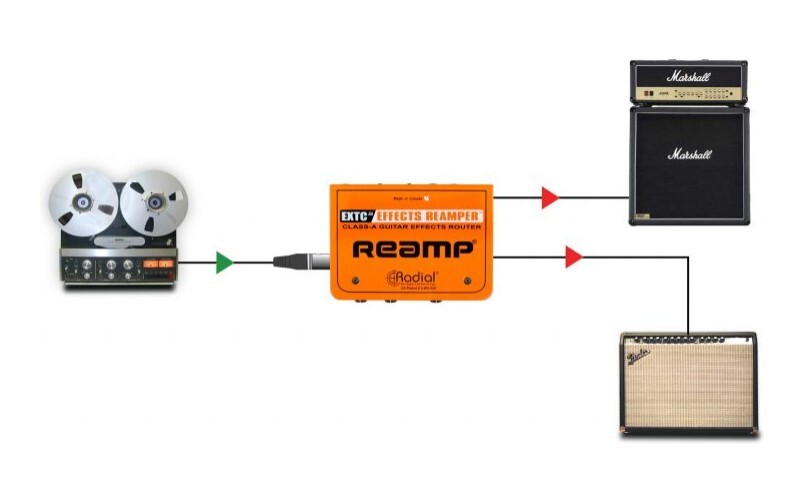

Take a dry track, send it to the EXTC which in turn feeds your pedals. This is the perfect way to add some extra zest to a vocal track; an envelope follower to a kick; or some wah to that Hammond. The EXTC is well suited for Reamping. Simply connect the pre-recorded channel to the EXTC and then split the signal off to two amps using the send connectors. You are set to go!
Features:
- Use with guitar effects on prerecorded tracks
- Take vocals, drums, or strings through effects pedals for new and unique sonic combinations
- Can also be used for standard Reamping through guitar amplifiers
- Stereo EFX loop to Reamp through any guitar pedals
- Send & Receive controls optimize signal path
- Blend control for precise wet/dry adjustment
- Transformer isolation to eliminate hum and buzz
- Creative tool helps your mix stand out from the rest
Specifications:
| Audio circuit type: | Solid state with transformer coupled effects loop | |
| Frequency response: | Dry: 20Hz ~ 20kHz ±1.5dB Wet: 20Hz ~ 10kHz ±3.5dB (-8dB @ 20kHz) | |
| Total harmonic distortion: | Dry: >0.005% 0dB output Wet: >0.002% 0dB output | |
| Intermodulation Distortion: | Dry: >0.003% 0dBu input Wet: <0.02% 0dBu input | |
| Input Impedance: | Line level: 15k Ohms | |
| Output Impedance: | Line level: 200 Ohms | |
| Noise: | Dry: -93dB Wet: -84dB | |
| Maximum Input: | +11dBu | |
| Features | ||
| 180° polarity reverse, Effects Loop | ||
| Input Connectors: | Unbalanced 1/4", Balanced XLR | |
| Output Connectors: | Unbalanced 1/4", Balanced XLR | |
| General | ||
| Conditions: | For use in dry locations only between 5°C and 40°C | |
