Radial DiNet D Network Transmitter - Stereo DI Inputs

Radial

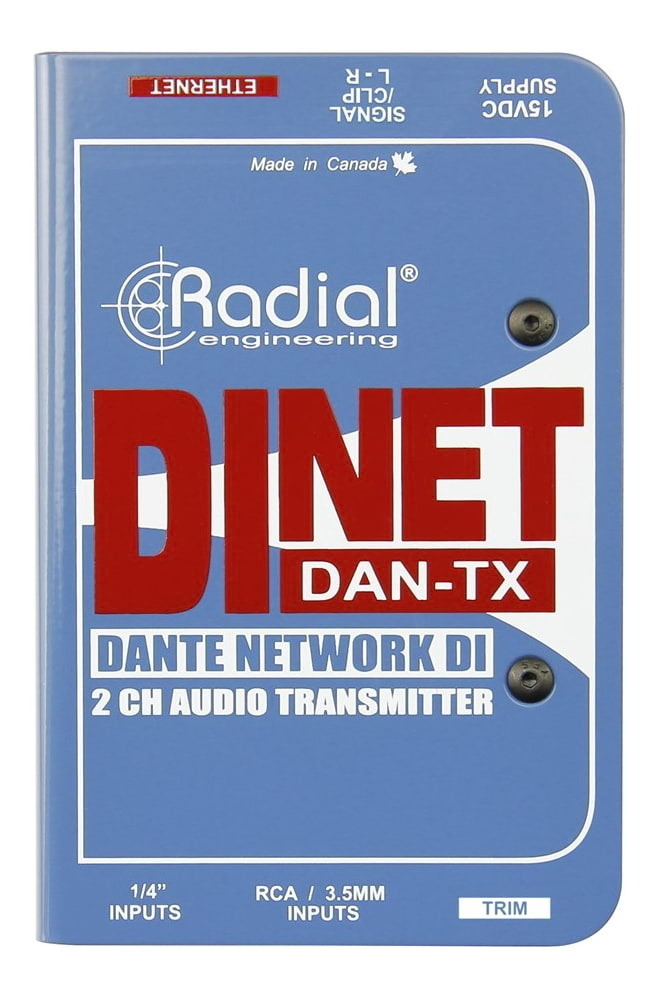

Radial DiNet DAN-TX Dante Network DI Two Channel Audio Transmitter

$789.99
RRP $949.00
BACK-ORDER - DISPATCHED AFTER 30 days
Found a better Price? Price match now
ETA confirmed in <24hr - option to cancel
If your prefer to wait until the stock has arrived:
CLICK HERE TO 'GET NOTIFIED' once we have stock on hand
or interest free for up to 6 months with
-
+

The Radial DiNET DAN-TX is a 2-channel Dante™ transmitter for adding instrument or line level inputs to any Dante system. With signal handling of up to +24dB you can connect the line level outputs of a mixing console to the DAN-TX with ease.




Dispatch

Radial DiNet DAN-TX Dante Network DI Two Channel Audio Transmitter
The Radial DiNET DAN-TX is a 2-channel Dante™ transmitter for adding instrument or line level inputs to any Dante system. With signal handling of up to +24dB you can connect the line level outputs of a mixing console to the DAN-TX with ease.

Another Dante Connection
Need to connect a smartphone, tablet, or any playback device to a Dante network? How about an electric guitar, while still feeding an amp on stage? The DAN-TX can do it all. In fact, with signal handling of up to +24dB, you can connect the line level outputs of a mixing console to the DAN-TX without breaking a sweat. A local level control allows you to adjust as needed, and a number of input connector types ensures you won’t be digging around for an adaptor cable at a critical moment. No matter what source you’re using, the DAN-TX is the easiest way to get your analog audio onto a Dante network.

Dinet DAN-TX Applications

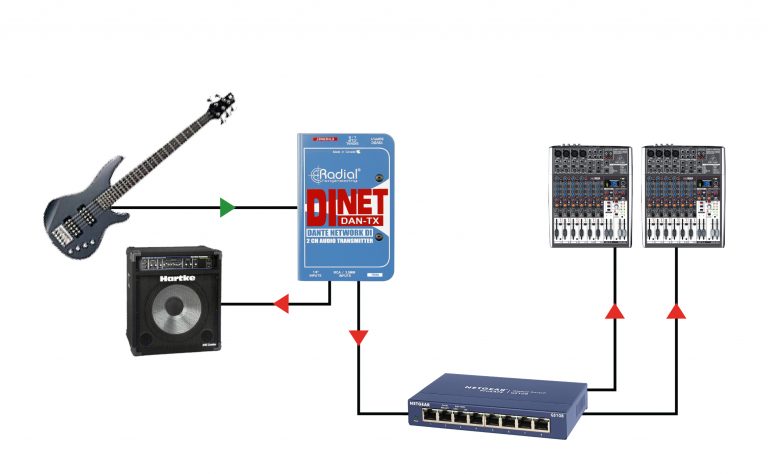

USING THE DAN-TX FOR MONO INSTRUMENTS

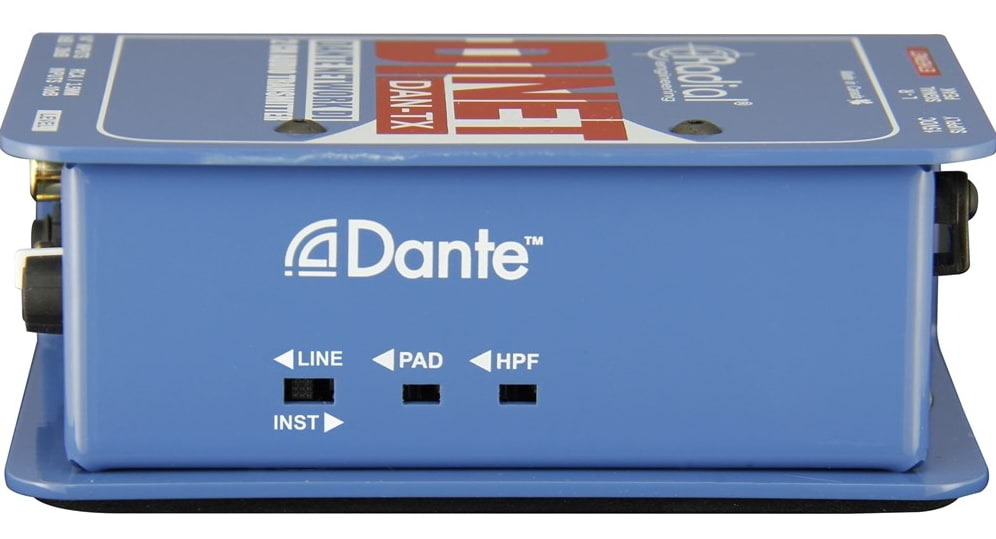

Switching to instrument mode changes the Right ¼" connector to a Thru-put for connection to a local amplifier. Now your instrument can be routed anywhere on Dante network while still allowing for local monitoring through the stage amplifier.

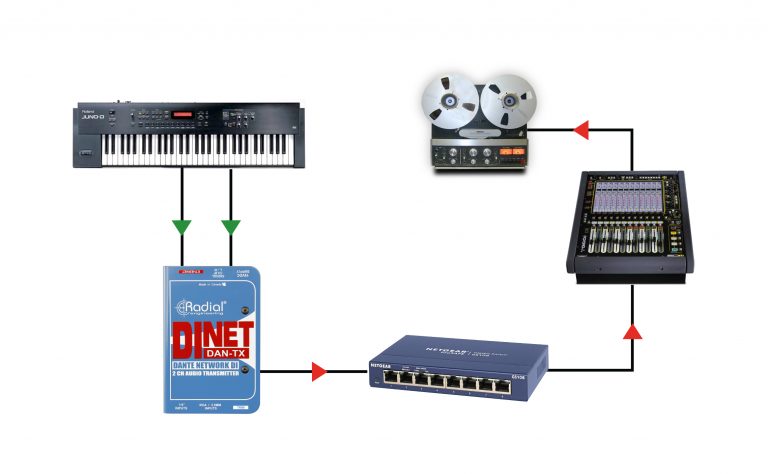

USING THE DAN-TX FOR STEREO INSTRUMENTS OR MULTI-MEDIA
Plug in your stereo keyboards, synths, laptops, tablets or any other unbalanced consumer device and route through the Dante network without installing special software. Simply connect to the ¼", RCA or 3.5mm inputs.

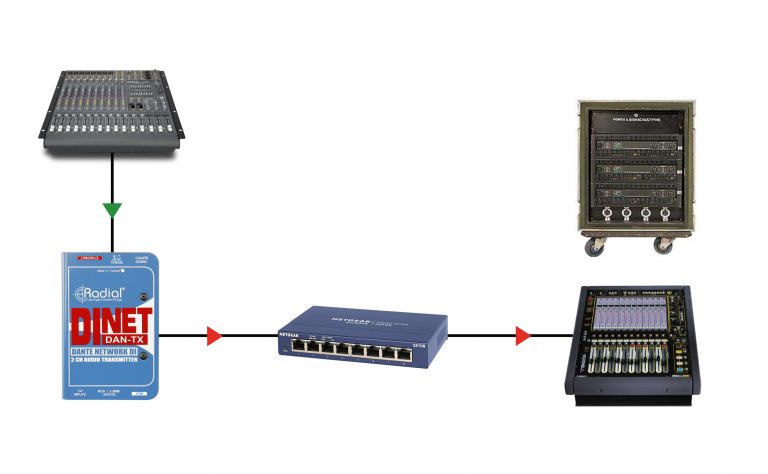

USING THE DAN-TX FOR BALANCED PROFESSIONAL AUDIO
The DAN-TX features ¼” TRS jacks that allow for signal levels up to +24dBu. Any balanced analog mixer, recorder or playback source can be quickly connected to a Dante network.

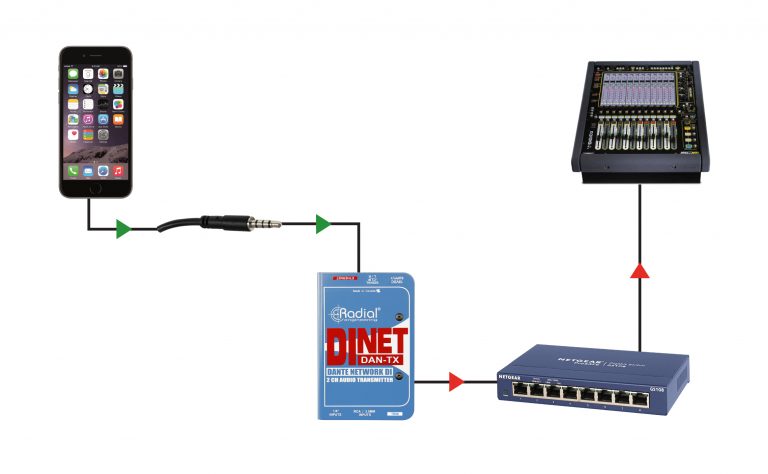

USING THE DAN-TX TO EASILY CONNECT MOBILE DEVICES
The 3.5mm input on the DAN-TX makes it easy to connect smartphones, tablets, and other mobile devices and connect them to your Dante network without worrying about installing software or finding adapter cables.

Features:

  • Stereo analog input device for Dante networks
  • Connect instruments or line level sources

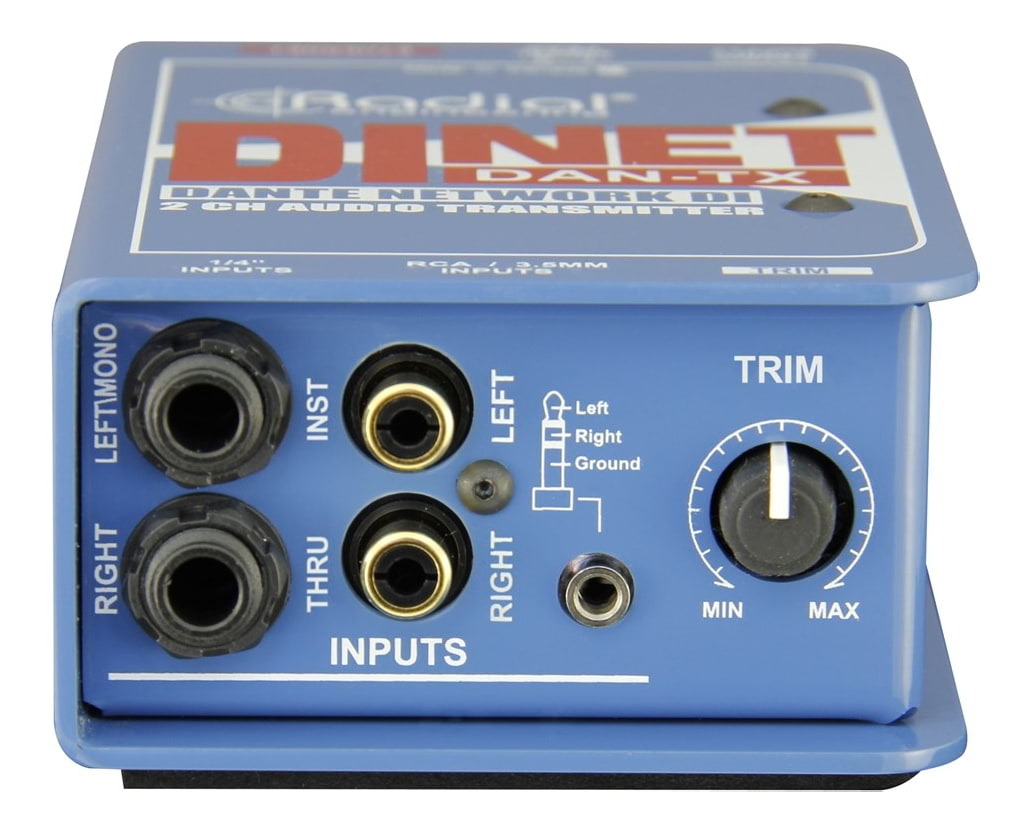

  • ¼”, RCA and 3.5mm stereo TRS inputs
  • 24bit/96kHz analog to digital conversion

Specifications:

  • Audio circuit type: High current balanced active input device
  • Number of channels: 2
  • Frequency response: 20Hz - 20kHz
  • Dynamic range: >103dB
  • Total harmonic distortion: 0.008% @ -6dBfs
  • Intermodulation Distortion: 0.0017% -10dBfs
  • Input Impedance: Unbal 240kΩ (20kΩ Line Mode), Bal 40kΩ,
  • Noise: -98dB (EIN)
  • Sample Rate: 44.1kHz, 48kHz, 88.2kHz, and 96kHz (24bit)
View PDF brochure for Radial DiNet DAN-TX Dante Network DI Two Channel Audio Transmitter
