To get the best possible live tone for your acoustic instrument, use the Radial Tonebone AC-Driver preamp. It features an adjustable low-cut filter, phase switch, notch filter, and a Class-A buffer circuit. Onstage connectivity is easy and streamlined.
| Loading... | ||||||
AC-DRIVER Tonebone Acoustic Instrument Preamp

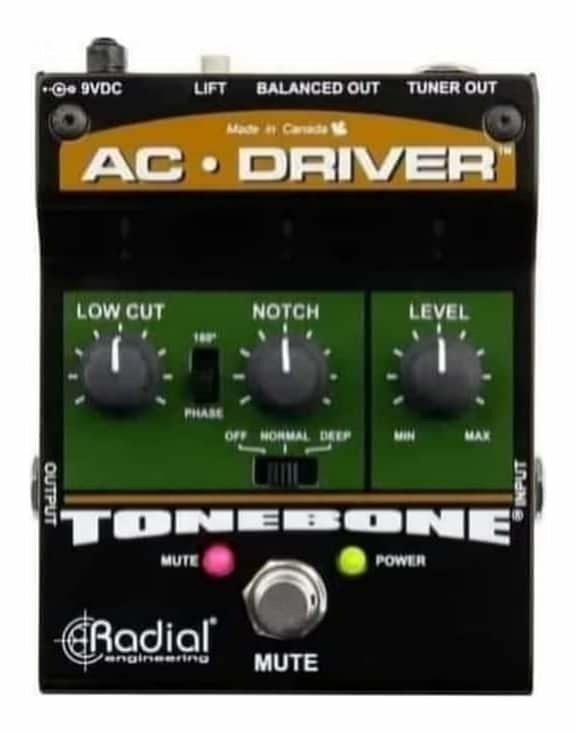

To get the best possible live tone for your acoustic instrument, use the Radial Tonebone AC-Driver preamp. It features an adjustable low-cut filter, phase switch, notch filter, and a Class-A buffer circuit. Onstage connectivity is easy and streamlined, with an amp output, XLR balanced out, tuner out and mute switch.
Class-A Buffer Circuit

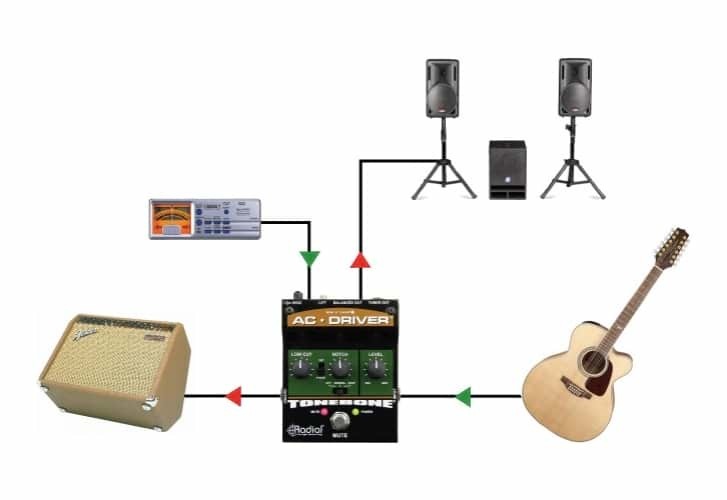

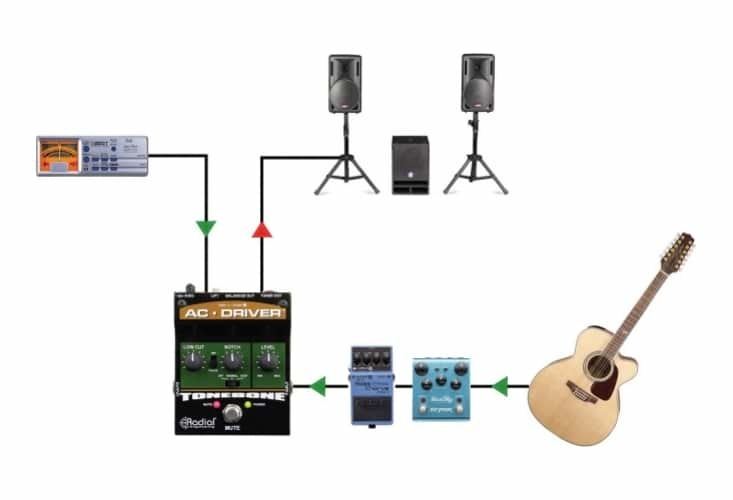

Radial’s Class-A buffer circuit ensures pristine audio quality, and allows you to connect to longer cables or pedal chains without signal loss or degradation. A 1/4" amp output provides you with a way to monitor yourself onstage, as well as a balanced line to feed the PA system or a powered speaker for the audience. When you need to tune silently or switch between instruments without causing clicking or popping, simply hit the mute footswitch to silence everything but the tuner output on the AC-Driver. This makes the AC-Driver perfect for live performances, especially if you don’t have a dedicated sound engineer and need to switch instruments or tune silently on stage, or for shows where you want more control over your sound than a typical DI box might provide.
Studio Quality Preamp with Best Possible Live Tone
The AC-Driver also includes an adjustable low cut filer to remove excessive low frequency content, along with powerful feedback-reducing features. A 180° phase adjustment switch allows you to correct feedback build-up from hot spots on stage, while a notch filter helps target and remove specific frequencies that are causing problems. You can easily power the AC-Driver using typical 9V adapters or multi-pedal power bricks, and its 14-gauge steel chassis and military grade circuit board ensure that it will endure the most punishing touring environments.
Features:
- Studio quality preamp in a compact pedal
- Notch and low cut filters for feedback control
- Mute footswitch for silent tuning on stage
- Easily adjust levels & reduce feedback on stage
- Works with active or passive pickups
- Send your instrument output directly to the PA
- LED indicators for visual feedback
- Ground lift to eliminate buzz and hum
- Powered with a 9V supply
Specifications:
| Audio Circuit Type: | Class-A FET |
| Noise Floor: | -97dBu |
| Dynamic Range: | +107dBu |
| Maximum Input: | +10dBu |
| Input Impedance: | 10 MΩ |
| Output Impedance: | 4.4kΩ |
| Features | |
|---|---|
| Input Connection: | 1/4" TS |
| Ground Lift: | XLR Output |
| LED Indicators: | Power, Mute |
| Ouput Connectors: | XLR, 1/4" Output & 1/4" Tuner out |
| Low Cut Frequency Range: | 10Hz - 200Hz |
| Notch Frequency Range: | 60Hz-500Hz |
| Extras: | 180° phase, Level control, mute footswitch |
| General | |
| Power: | 40mA, 9V DC (center pin negative) |
| Construction: | 14-gauge steel chassis |
| Finish: | Durable powder coat |
| Size (L x W x H): | 12.06 x 9.5 x 4.5cm |
| Shipping Size (L x W x H): | 15.8 x 10.8 x 7.6cm |
| Weight: | 0.63kg |
| Shipping Weight: | 0.77kg |
