Power Dynamics NCSP8 Low Profile 8" Ceiling Speaker - 100V - White

Power Dynamics NCSP8 Low Profile Ceiling Speaker 100V 8″ Inch - White
Offering a beautiful profile, and excellent sound quality, the Power Dynamics NCSP8 features a ½’’ Tweeter and a 8″ Woofer. It also offers tappings power for 10W, 20W and 40W. This combination provides you with an SPL (Sound Pressure Level) of 92dB.

NCSP Series

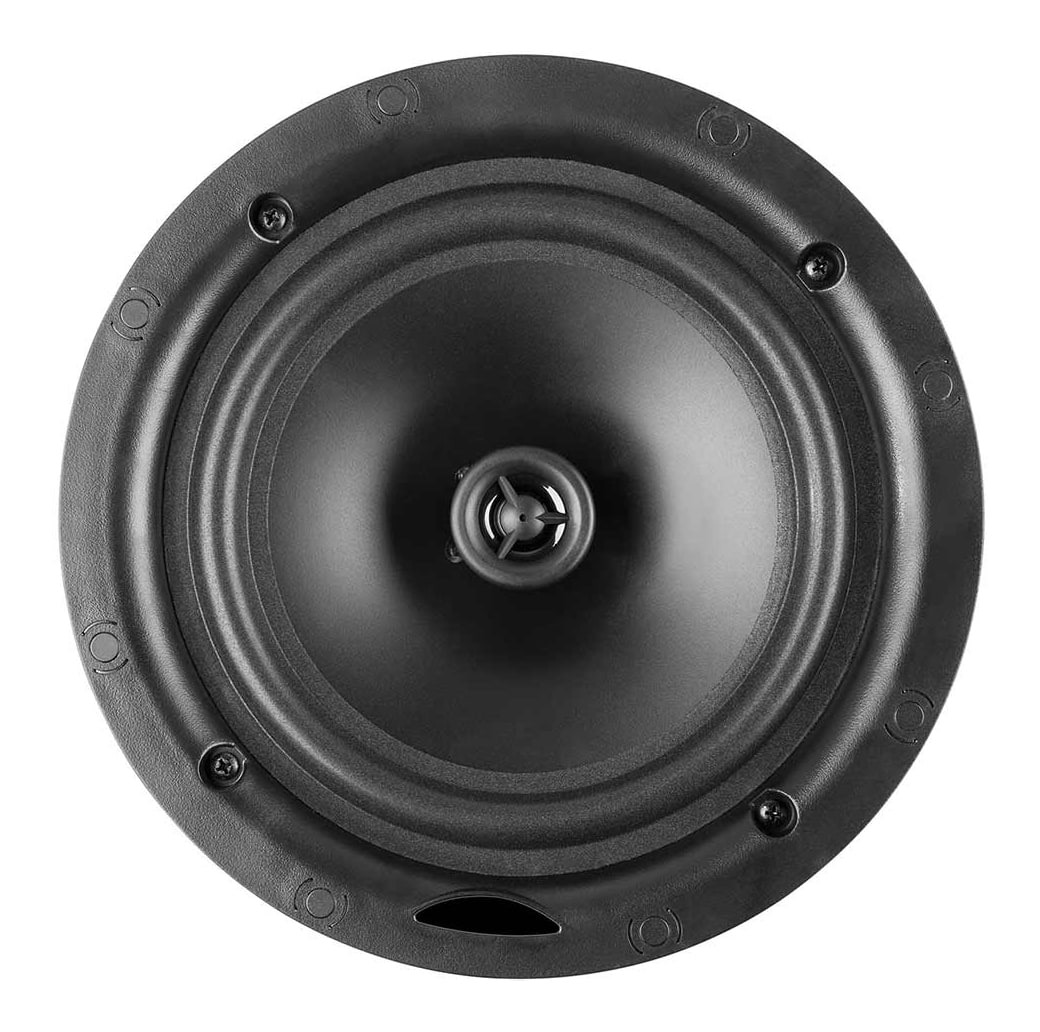

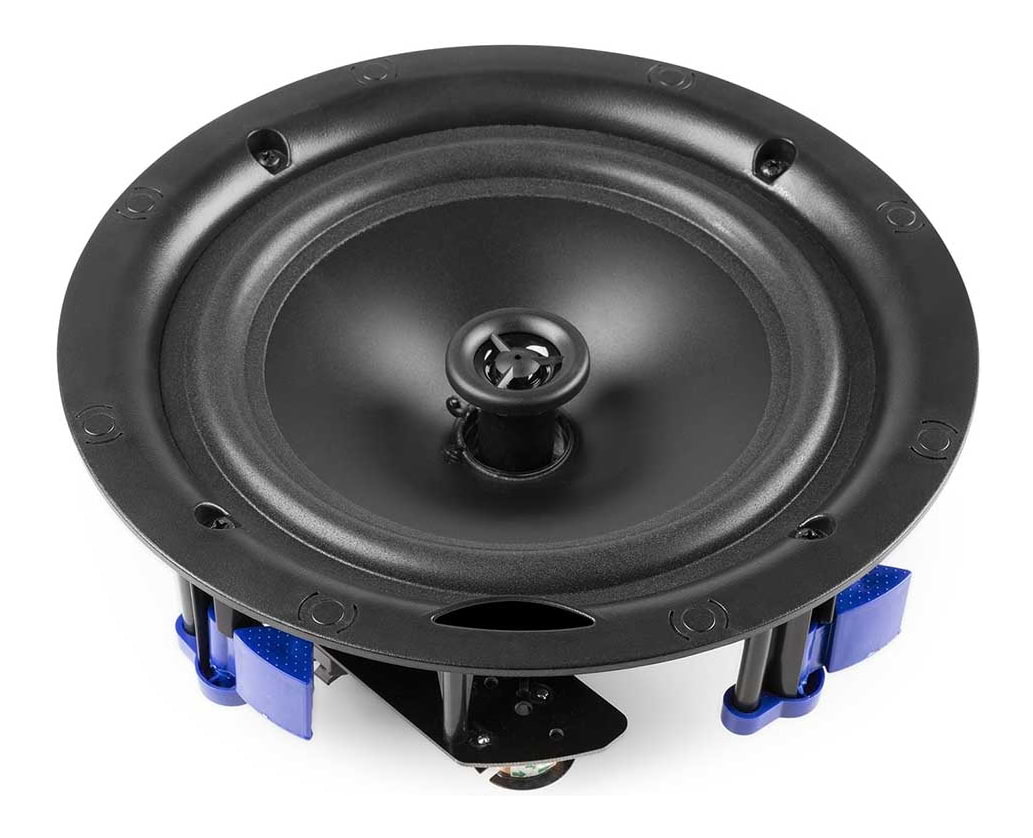

The Power Dynamics NCSP8 is an 8″ Inch High Power 100V Ceiling Speaker in White that offers superior HiFi sound quality. With an Output Power 40Watts RMS, the NCSP8 offers a frequency response between 40Hz – 20kHz. The speaker features a ½’’ Tweeter and an 8″ Woofer. It also offers Tappings power for 10W, 20W and 40W. This combination provides you with an SPL (Sound Pressure Level) of 92dB that delivers rich high-quality audio. The NCSP8 is a Passive 2-Way Coaxial Speaker with an impedance of 100V that requires amplification.

Simple Installation

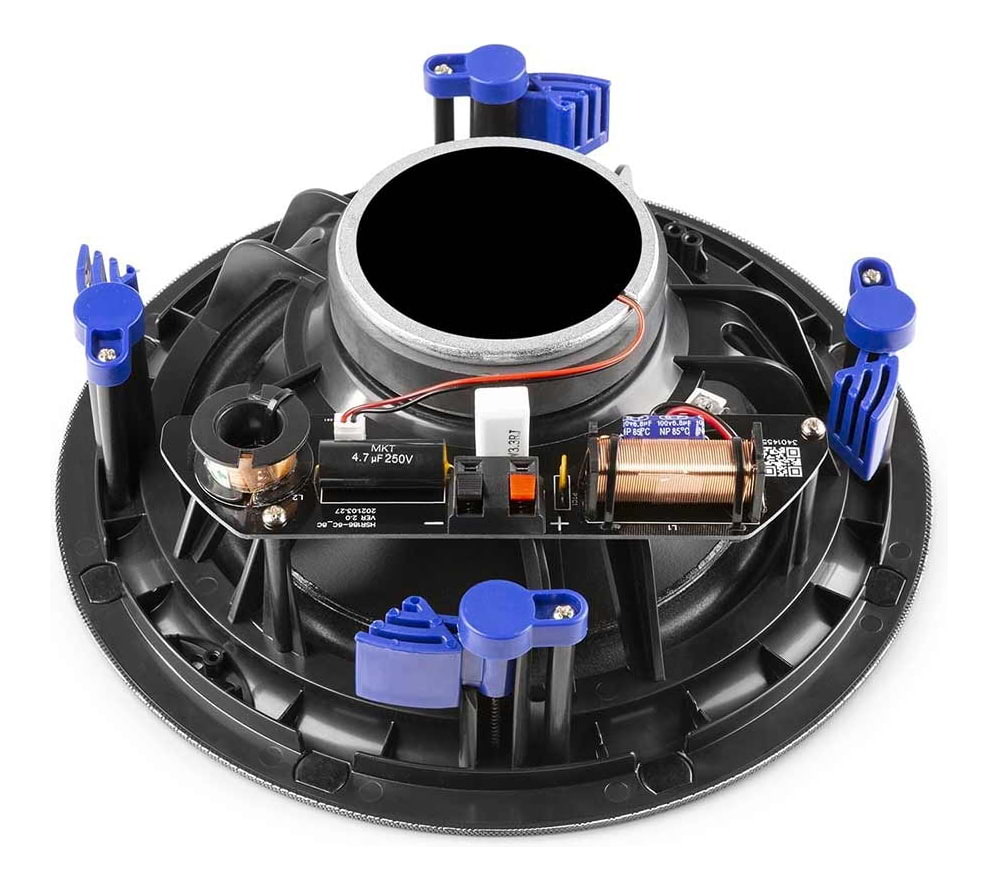

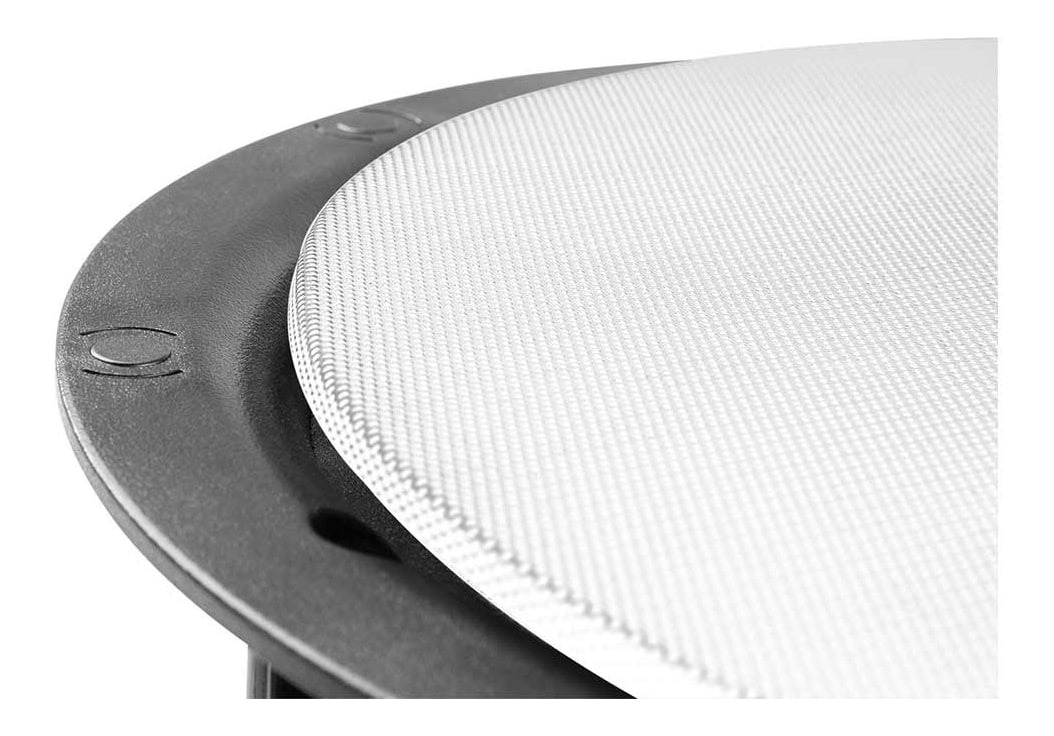

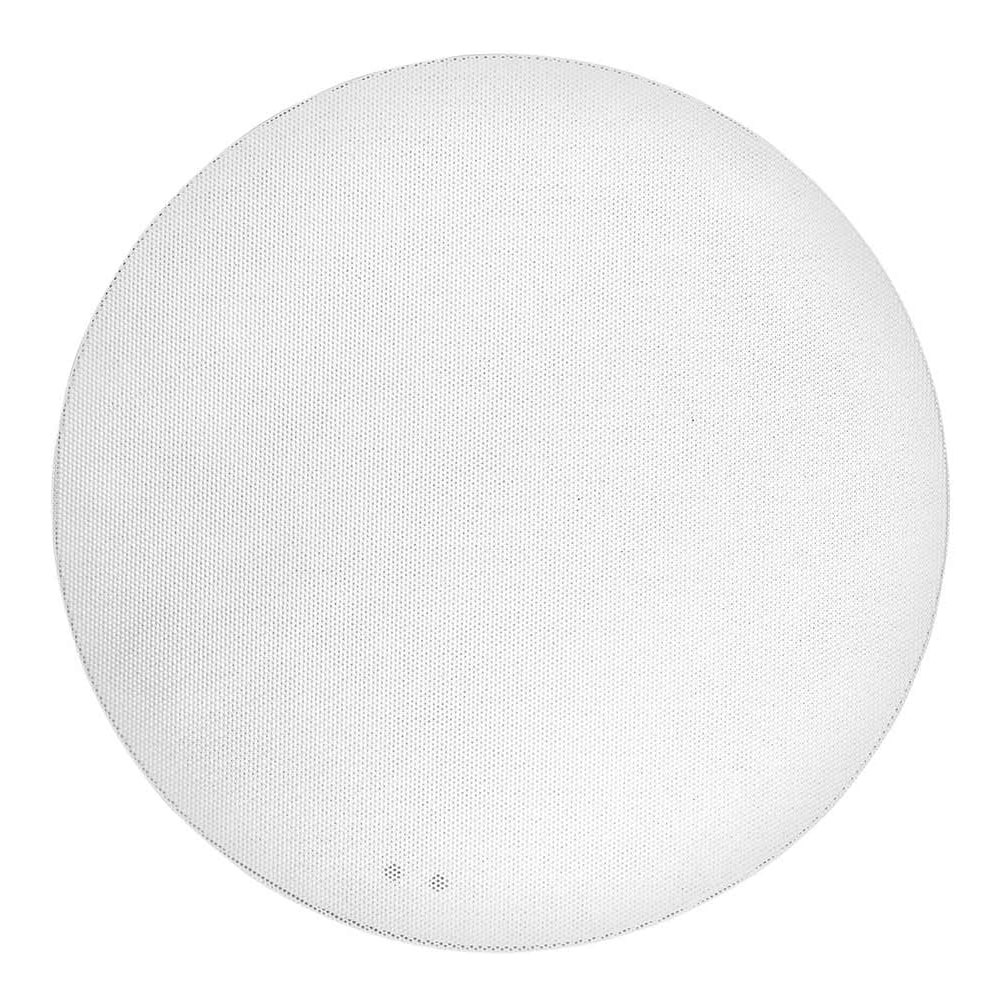

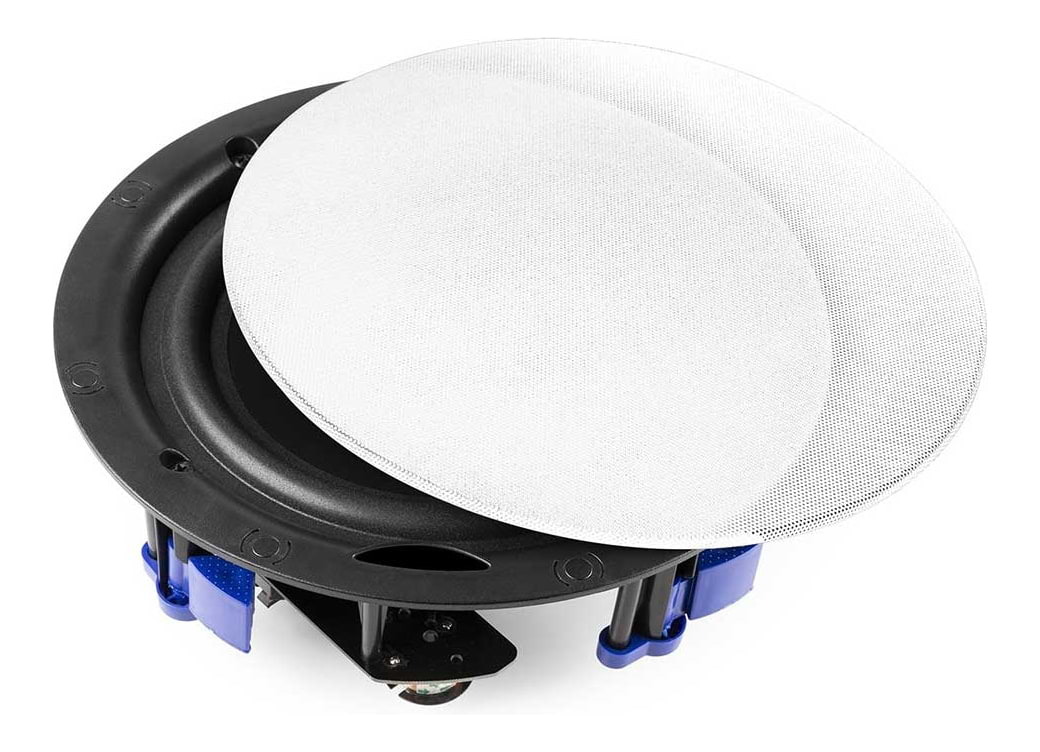

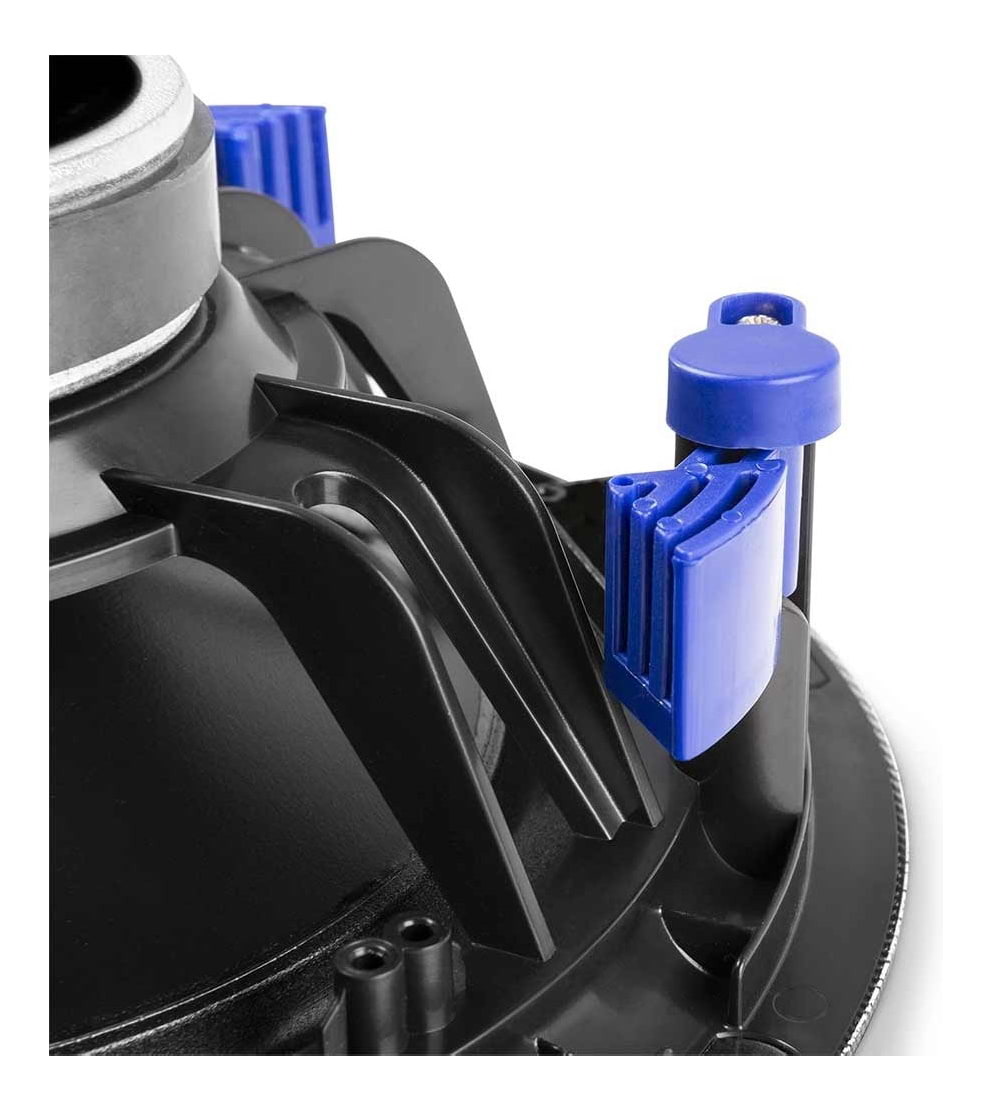

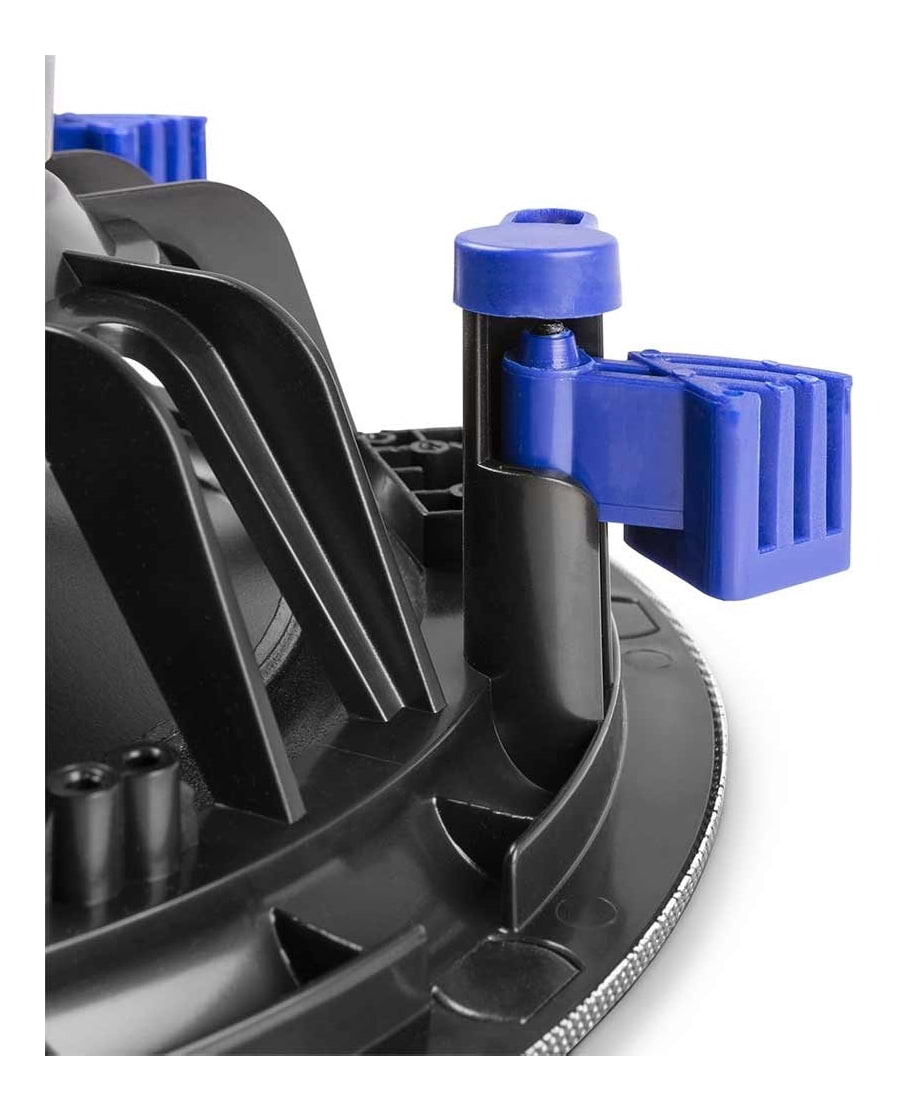

The speaker has a quick fit system that offers fast and easy assembly. Furthermore, the speaker features a White Magnetic Fit Steel Grille that provides you with a slim and discrete low-profile sleek finish. This makes the NCSP8 ideal for use in your living room, veranda, garage, showroom, cafe or restaurant. Installation of the NCSP8 is straightforward and simple. All you have to do is drill a hole in the ceiling big enough to fit the speaker. If the 100Volt system is turned on, turn it off before making any connections. Once turned off, connect the speaker via two cables to the sound system. You can connect the speaker via two cables (using a two-core 100Volt suitable cable) to the 100V output of the amplifier. The speaker then fits into the ceiling hole and you use the swivel clamps to secure the speaker. The locking tabs will then swivel into the rear surface and lock the speakers into place. Lastly, place the White metal grille over the speaker for a discrete low-profile sleek finish.

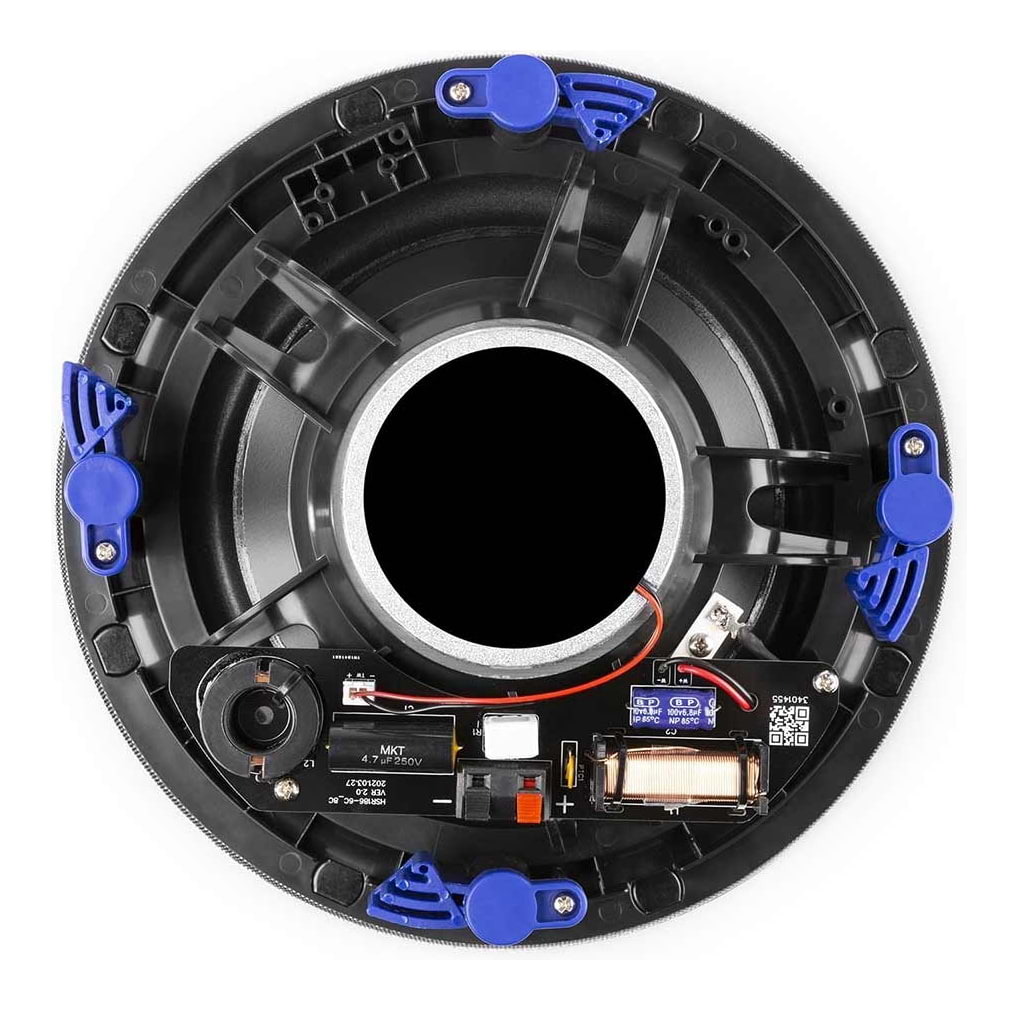

If you are connecting several NCSP8 speakers, make sure that all speakers have the same polarity and that the amplifier is not overloaded. The polarity is conveniently identifiable by Black (Negative Pole) and Red (Positive Pole). It is a good idea to clarify how many speakers you would like to install in the room prior to installation.

Features:

• 100V Ceiling speaker

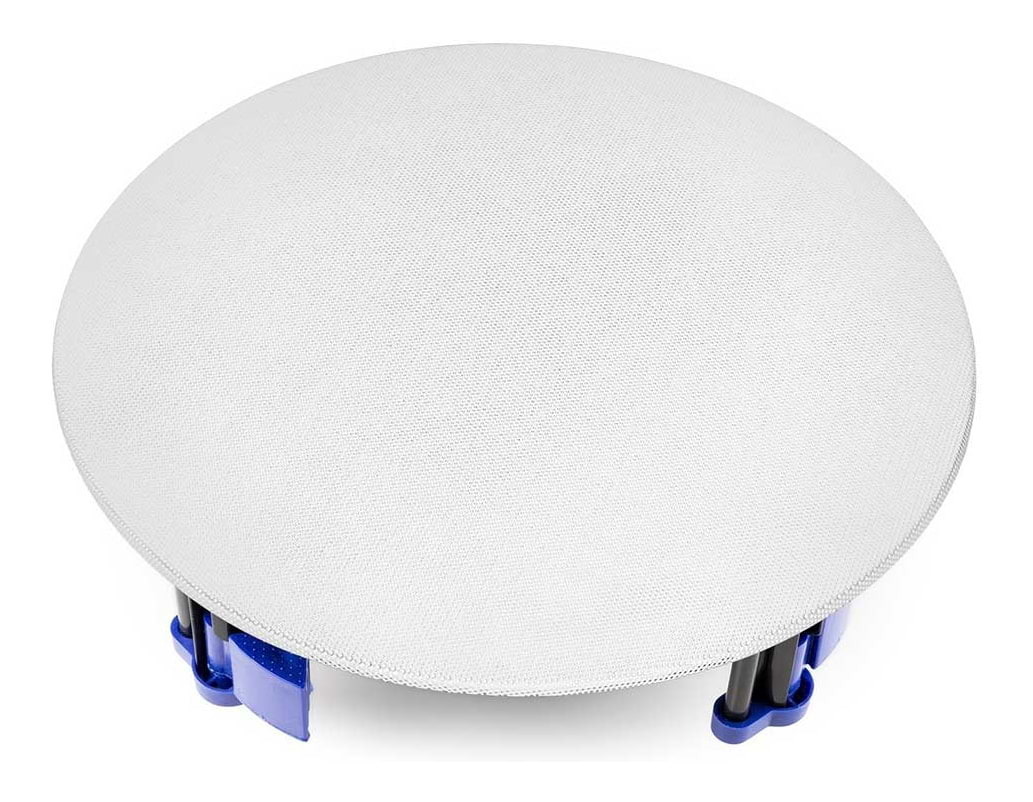

• Magnetic fit steel grille
• Slim low-profile speaker grille for a sleek finish
• 2-Way coaxial speaker
• Supplied per piece
• Colour: White
