PASGAO PAW-266 Wireless Microphone System - 2 Bodypacks and Lapel Mics

PASGAO 2 Channel Wireless Microphone System - 2 Lapel Mics
The PAW-260 system allows for 16 frequency groups that won't interfere with each other. A high cost-performance ratio with intuitive controls and simple operation make this system ideal for churches, multi-function venues, and schools.

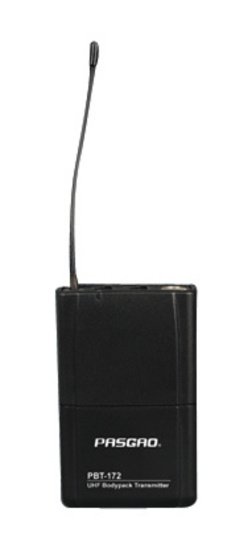

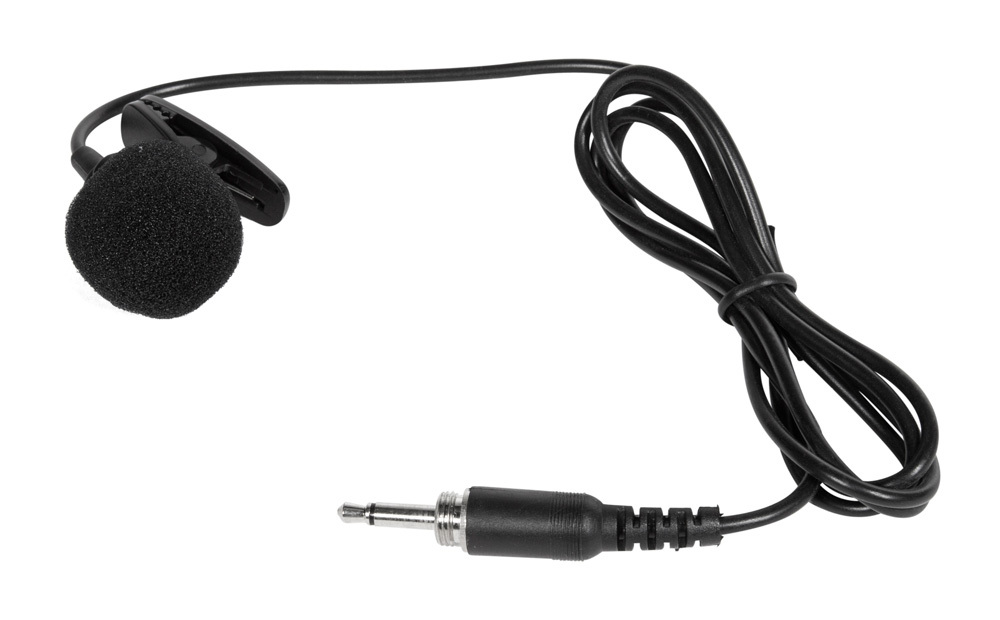

PBT-172 Body Pack and Lapel Mic
The PBT-172 is a lightweight transmitter that can be used with a headset (not included) or a lapel microphone. It features a 3-tier input gain switch, useful for adjusting between singers and speakers. This body pack and headset microphone are ideal for stage productions, sports commentary, and interview situations. The broadcasting range of this device is 655-679MHz, making it both legally and functionally suitable for most areas of Australia.

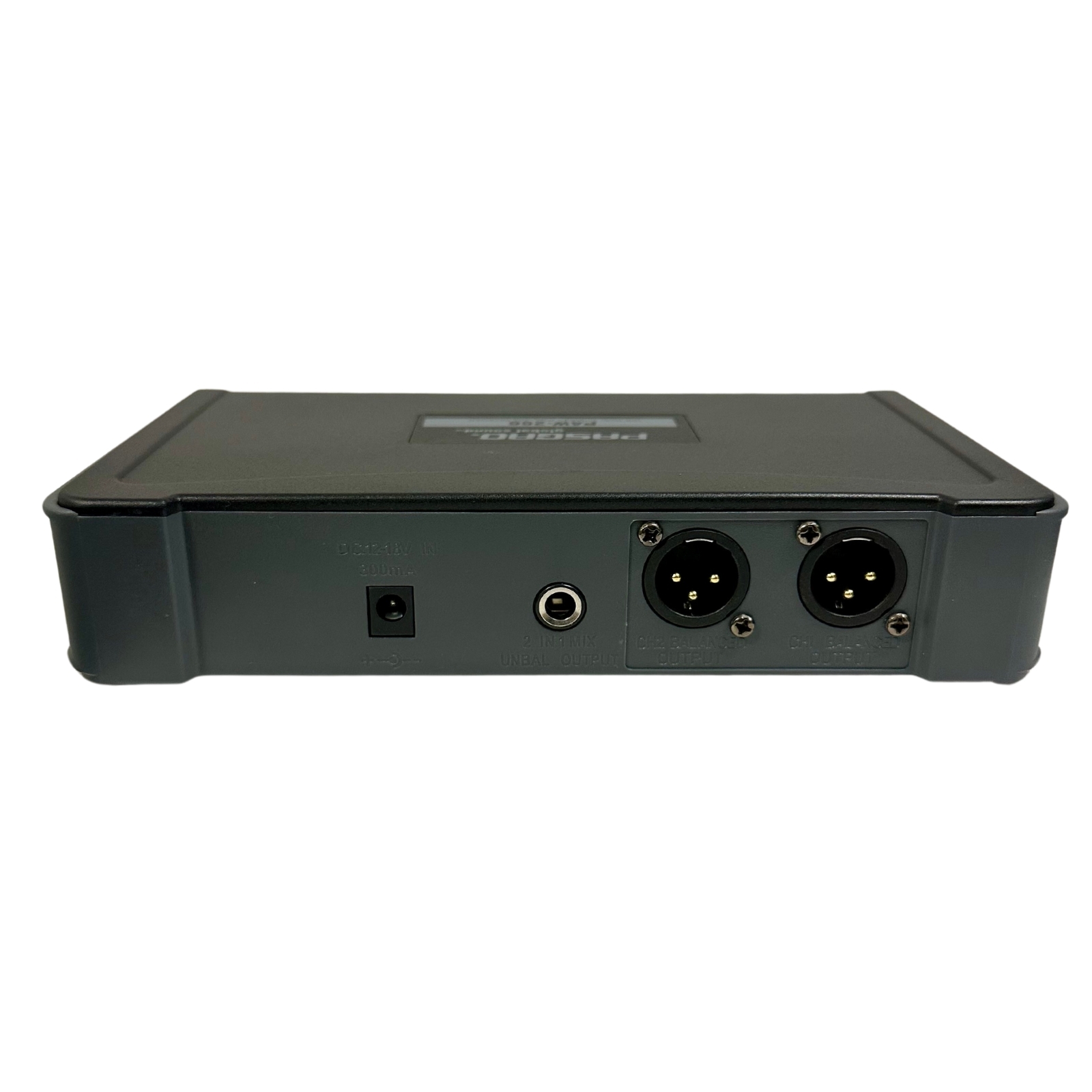

PAW-266 Dual Channel Wireless Receiver
The PAW-266 is a low cost, high performance receiver suitable for a variety of applications. One-touch setup with infrared data synchronization ensures the system is stable and easy to use. The backlit LCD shows the current channel setting. A green/reed LED input meter displays the receivers input type (AF or RF). Tone key squelch circuit technology ensures no interference from ambient radio frequencies.

About PASGAO
PASGAO is an experienced Chinese manufacturer of many types of wireless microphones and audio devices. PASGAO is an OEM manufacturer that has partnered with many famous global microphone brands for their wireless mic ranges. Buying a PASGAO product gives you the quality and reliability you would expect from a well known brand, but at a price that delivers unbeatable value.

Features:

• 2 Channels of wireless audio
• Versatile wireless microphone system
• Omni-directional dynamic microphones
• Lavaliere / lapel mics included
• Battery level indicator on body pack
• Mic input gain level switch
• Infrared data synchronization
• 655-679MHz broadcasting range
• Tonekey squelch technology

Specifications::

PAW-266 Receiver:

• Frequency Range: 655-679MHz
• Pickup Range: 90m
• Max Channel Number: 32
• Receiving Frequencies: 32
• Switching Bandwidth: 24MHz
• Sensitivity: <-93dBm for 30dB S/N ratio
• Peak Deviation: ±55kHz
• Frequency Response: 60Hz - 16kHz
• Signal to Noise Ratio: >102dBm(A)
• THD: <0.8%
• Dynamic Range: >95dB
• Audio Connection: 1/4" (6.35mm) TS Jack (Unbalanced)
• Output Level: +6dBu max (Mic Level)
• Power Supply: 12 - 18V DC 300mA
• Dimensions: 210mm x 116mm x 42mm
• Weight: 370g

PBT-172 Body Pack:

• Frequency Range: 655-679MHz
• Max Channel Number: 160
• Theoretical Output Power: 10mW
• Spurious Rejection: >50dBc
• Switching Bandwidth: 24MHz
• Peak Deviation: ±55kHz
• Frequency Response: 60Hz - 16kHz
• Signal to Noise Ratio: 102dB(A)
• THD: <1%
• Input Voltage Range: 1.5V max
• Power Supply: 2x 1.5A (AA) batteries (included)
• Battery Life: >8hrs
• Dimensions: 105mm x 65mm x 23mm
• Weight: 80g

Digital Dividend
As of 1st of January 2015, any broadcasting system operating in Australia, including wireless microphones and other wireless audio systems, must now operate between 520-694MHz. This is not only a legal requirement, but an operational requirement to prevent interference that can be picked up in commercial broadcasting frequency ranges.

The Pasgao range that SWAMP distributes in Australia generally will have a frequency range between 655-679MHz, though please check the specifications listed.

While 520-694MHz is the general frequency range for operation in Australia without needing approval, the available frequencies bands do vary by location. For more information or to find out how to check available frequencies near you, please read our helpful article about wireless devices in Australia at the following link: Using Wireless Equipment in Australia
