NUX B-7 PRO 2.4 GHz Professional Wireless In-Ear Monitoring System

NUX B-7 PRO 2.4 GHz Professional Wireless In-Ear Monitoring System

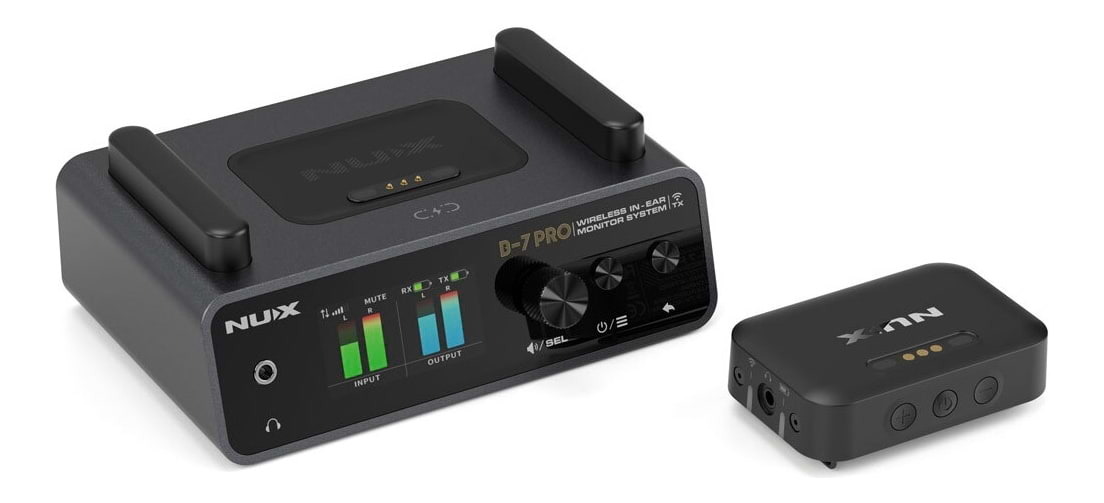

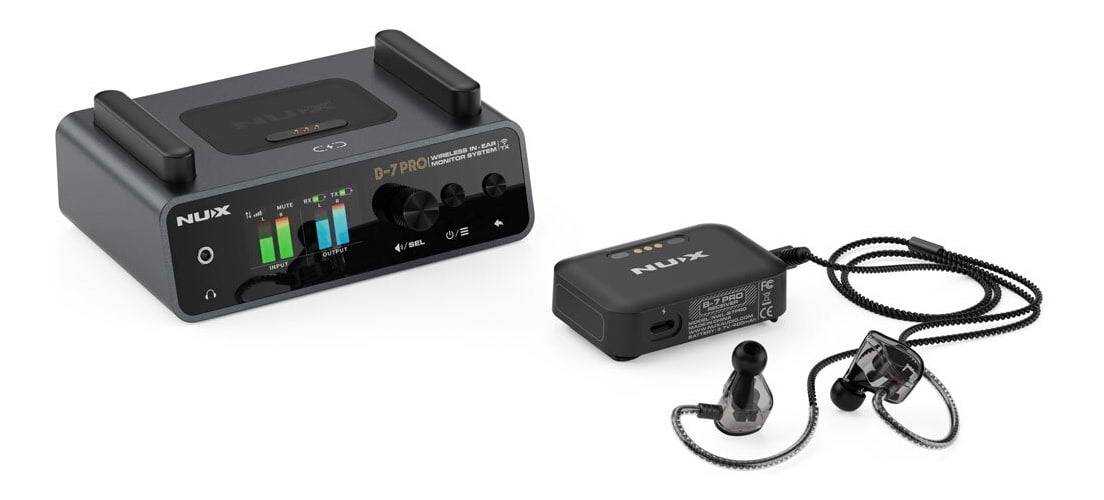

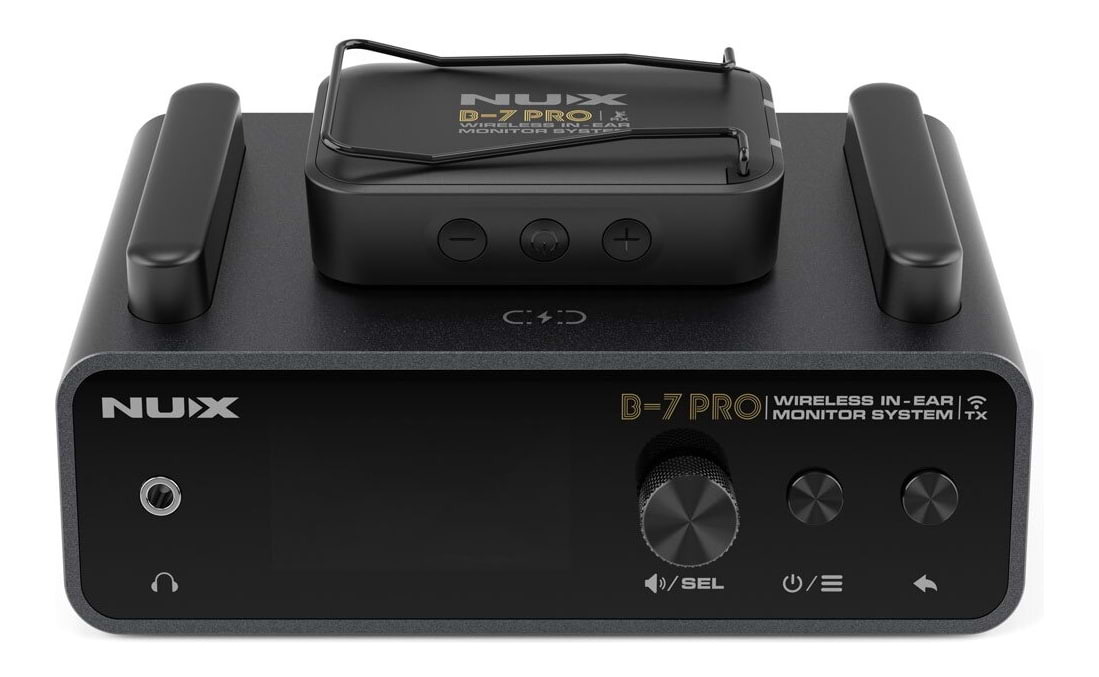

The NUX B-7 PRO 2.4 GHz Professional Wireless In-Ear Monitoring System provides high quality stereo audio monitoring at 24bit / 48kHz frequency range, ultra-low latency, seamless connectivity, LCD display, 6 hour battery life, and USB audio interface.

High Quality Stereo Audio Monitor

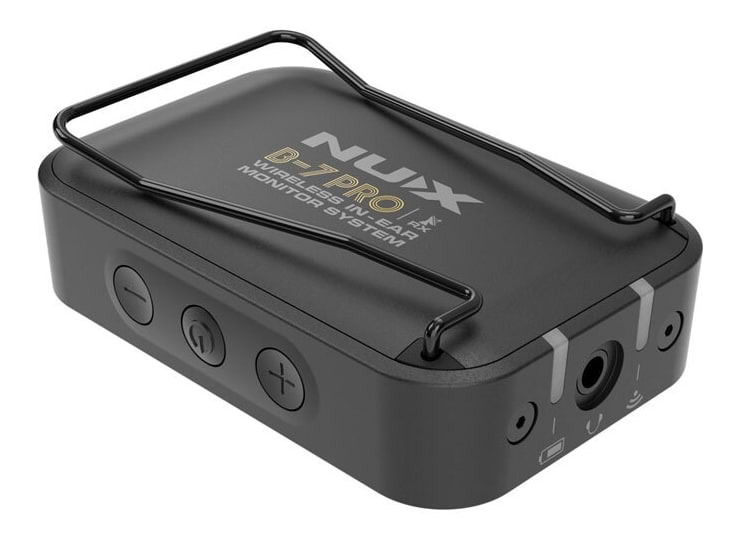

The NUX B-7 PRO is a personal wireless in-ear monitor system with automatic setup, 2.4 GHz interference-free broadcasting frequency, and 24-bit 48 kHz high-quality stereo audio. The operation range is up to 50 metres with very low latency wireless transmitting. It delivers stereo audio signal on 2.4 GHz frequency range. That's a global interference-free broadcasting range you can use everywhere without a signal break. With the 24-bit 48 kHz audio quality you will never experience unwanted sound degradation.

Great Features
The user-friendly matching system makes it easier to use, just turn on the TX & RX and they will be paired with each other within a couple of seconds. Each wireless set has a unique

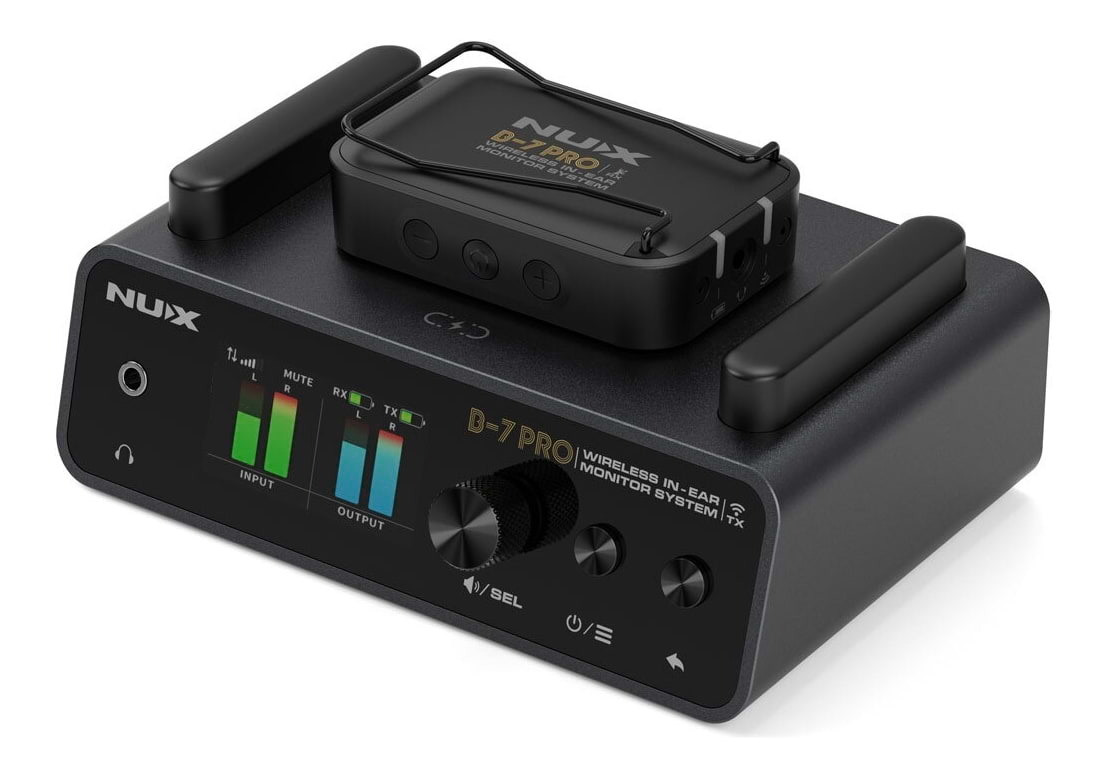

B-7 PRO features a high definition colour LCD display. You can check the information very easily while performing on stage. It features a high definition colour LCD display. You can check the information very easily while performing on stage. To achieve the best performance, you can adjust the transmitting parameter between Low latency and Stable. To avoid interference, please check if there is any Wi-Fi device around the TX&RX. It will be better for TX&RX to stay 0.8~1.0 meter away from any other 2.4GHz device to acheive the best performance.

Long Battery Lifetime

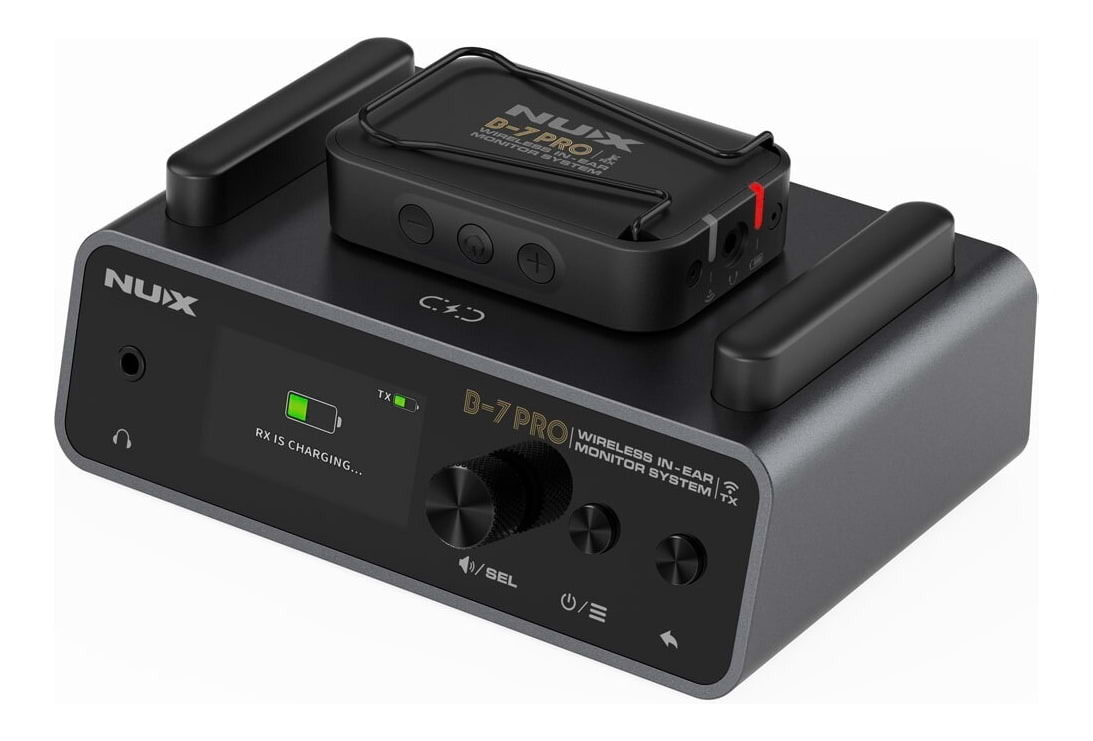

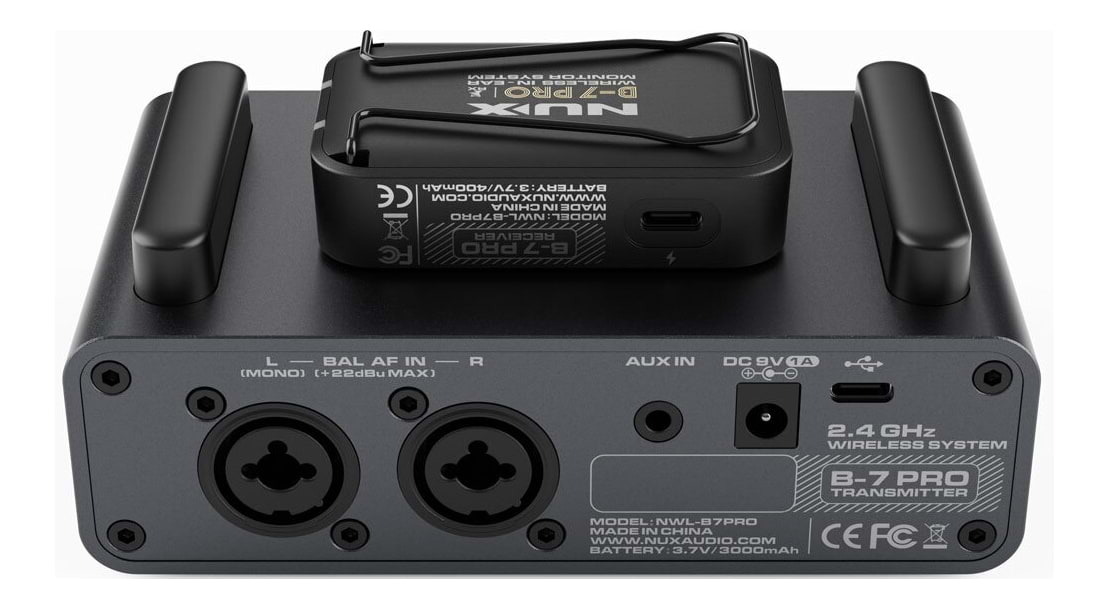

The B-7 PRO features large Li-ion batteries inside the TX & RX. The battery lifetime is as long as 6 hours. You can easily put the RX on the top of the TX to recharge it. Super convenient for you to fully recharge it.

USB Audio Recording
Connect the B-7 PRO's TX (transmitter) to your cellphone or computer, you can use the B-7 PRO as a USB interface for recording. No matter what you play with a band on stage, you can record all sounds you hear form the monitor. Enjoy!

Features:

• 2.4 GHz interference-free wireless operation
• 24-bit/48kHz high-quality stereo audio
• Ultra-low latency (as low as 7.3ms)
• Operating range of up to 50m
• Up to 6 hours battery life
• USB audio recording

Specifications:

• Operating Frequency Band: 2400-2483.5MHz
• Transmit Mode: Frequency Hopping
• RF Output Power: 10mW E.l.R.P. max
• Audio Quality: 24bit/48kHz
• Frequency Response: 20Hz-20kHz
• Latency: 7.33ms (low latency setting) -10.85ms (default) - 14.33ms (safe setting)
• Unbalanced Input lmpedance: 10kΩ
• Balanced Input lmpedance: 20kΩ
• AUX Input Level: 2.1 Vrms(8.7dBu) max
• Balanced Input Level: 9.8 Vrms(22dBu)max
• Headphone output Impedance: Minimum 13Ω
• Headphone Maximum output power per channel: 57mW (THD<0.1% RLOAD=16Ω,1kHz)
• Channel separation: -105dB
• THD+N: <0.01% typical
• Dynamic Range: 110dB A-weighted
• Output level Adjustment Range: Mute -86dB~+12dB
• Auto-0ff: It automatically turns off after 10 minutes of no connection or if the connection is lost

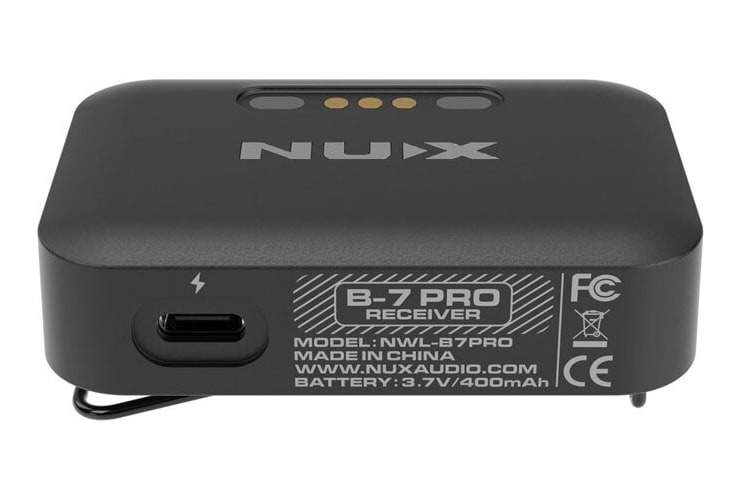

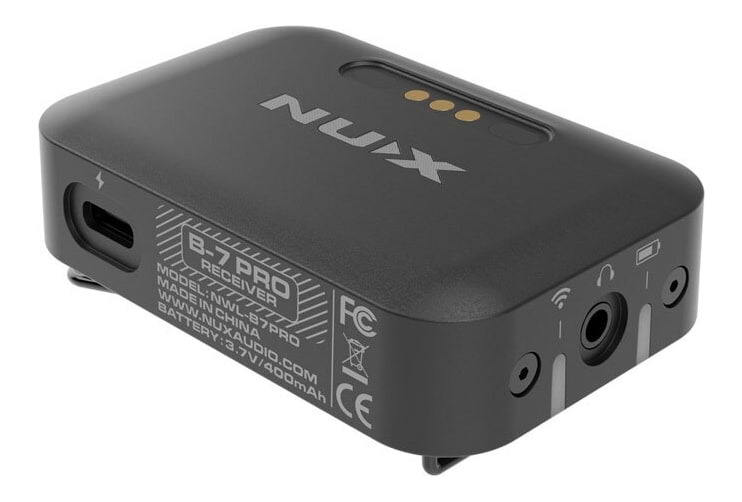

• Built-in Battery Capacity: Rechargeable Li-polymer (Transmitter 3.7V/3000mAh, receiver 3.7V/400mAh)
• Battery Lifetime: TX: Up to 6 hours/ RX: Up to 6 hours
• Power Requirements: DC 9V, 1A min, negative tip power supplies (Transmitter)
• Operation Range: Up to 50m (165 feet) maximum
• TX Dimensions: 140mm (L) x 97mm (W) x 53mm (H)
• TX Weight: 525g
• RX Dimensions: 47mm (L) x 71mm (W) x 22mm (H)
• RX Weight: 51g
