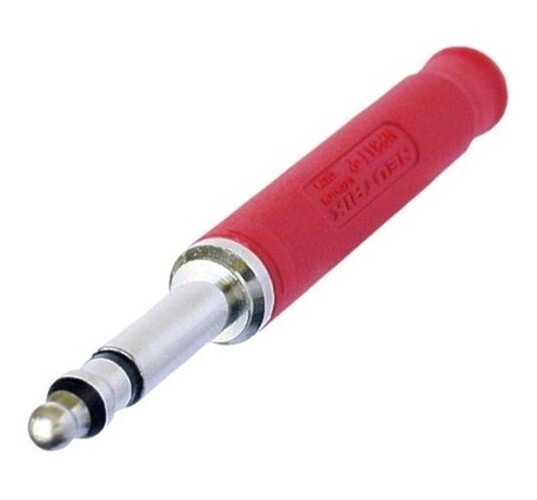

Neutrik NP3TT-P-R Bantam Miniature Jack 3-Pole Connector - Red

Neutrik

Neutrik NP3TT-P-R Bantam Miniature Jack 3-Pole Connector - Red

$9.99
RRP $11.55
  In Stock
or interest free for up to 6 months with
Buy In Bulk & Save!
Buy 2 to 5: Pay $9.64
Buy 6 to 14: Pay $9.31
Buy 15 or more: Pay $9.01
-
+

The perfect connector for all of your bantam cable needs. Genuine Neutrik, 3-pole red connector, ideal for use with TT patch panels. A redesign of the NP3TT-1 connector. 4.4 mm (0.173") size, solder termination for T+R, hex crimp. Nickel contacts.




Dispatch

Neutrik NP3TT-P-R Bantam Miniature Jack 3-Pole Connector - Red
The perfect connector for all of your bantam cable needs. Genuine Neutrik, 3-pole red connector, ideal for use with TT patch panels. A redesign of the NP3TT-1 connector. 4.4 mm (0.173") size, solder termination for T+R, hex crimp. Nickel contacts.

Bantam Connector
4.4 mm tiny telefone plug bantam type, solder termination for T+R, hex crimp of S with a standard RG58 crimp tool, black plastic housing, Nickel contacts. Ideal use with TT patch panels.

Features:

  • Designed for pro audio applications
  • Robust egonomic design - long-lasting and depenable
  • Standard HEX crimp cable clamp for shield termination and cable retention
  • Colored sleeves available for coding and marking

Specifications:

  • Electrical
  • Contact resistance: depends on mating connector mΩ
  • Dielectric strength: 1 kVdc
  • Insulation resistance: > 2 GΩ (initial)
  • Rated current per contact: depends on mating connector A
  • Rated voltage: < 50 V
  • Mechanical
  • Cable O.D.:4 - 4.8 mm
  • Crimp size: 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
  • Lifetime: > 1000 mating cycles
  • Wire size: 0.25mm²
  • Wire size: 24AWG
  • Wiring: Solder contacts
  • Material
  • Bushing: Polyacetal (POM) + PU
  • Contact plating: 2 µm Ni (Su)
  • Contacts: Bronze (CuSn6) (Tip)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Shell: Brass (CuZn39Pb3)
  • Shell plating: Polyamide (6 30% GR) (red)
  • Environmental
  • Standard compliance: MIL-P-642/13
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -20 °C to +65 °C
View PDF brochure for Neutrik NP3TT-P-R Bantam Miniature Jack 3-Pole Connector - Red

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review


MPN: NU-NP3TT-P-R

ID: 336814
