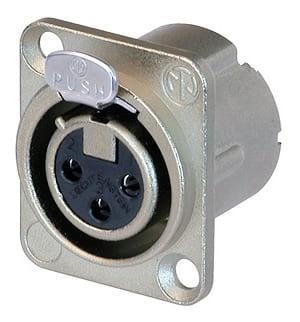

Neutrik NC3FD-LX Female XLR Panel Mount Connector

Neutrik

Neutrik NC3FD-LX Female XLR Panel Mount Connector

$8.49
RRP $10.75
  In Stock
or interest free for up to 6 months with
Buy In Bulk & Save!
Buy 2 to 5: Pay $8.25
Buy 6 to 14: Pay $8.03
Buy 15 or more: Pay $7.81
-
+

Genuine NC3FD-LX Neutrik AG (Liechtenstein) XLR female audio socket connector. The NC3FD-LX is a 3-pole panel mount connector featuring solder cups, Nickel housing and silver contacts.



Dispatch

Genuine NC3FD-LX Neutrik AG (Liechtenstein) XLR female audio socket connector. The NC3FD-LX is a 3-pole panel mount connector featuring solder cups, Nickel housing and silver contacts.

The D-LX series features a complete metal housing with an ingenious duplex ground contact, offering excellent RF (Radio Frequency) protection and shielding.

Neutrik is the leading brand in audio connectors and offers quality of the highest standards. Neutrik connectors are used by professional audio technicans and musicans alike.

Features & Benefits

  • All metal housing offers best overall RF protection and electromagnetic shielding
  • New duplex ground contact for excellent contact integrity between chassis and cable connector
  • Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Larger solder contacts for easier termination
  • Optional connection to easily join pin1 to chassis ground
  • D-style housing provides installation compatibility with industry standard D mounting dimensions

Includes

  • 1x Genuine NC3FD-LX connector

Technical Info
FAQ
Drawing (PDF)

View PDF brochure for Neutrik NC3FD-LX Female XLR Panel Mount Connector

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review


MPN: NC3FD-LX

ID: 31733
