Designed with high quality, flexibility and handy configuration in mind, the Mogami W3080 AES/EBU 110ohm Digital Shielded Cable features low capacitance characteristics that can result in high-quality analog transmission, especially with high frequencies.
| Loading... | ||||||

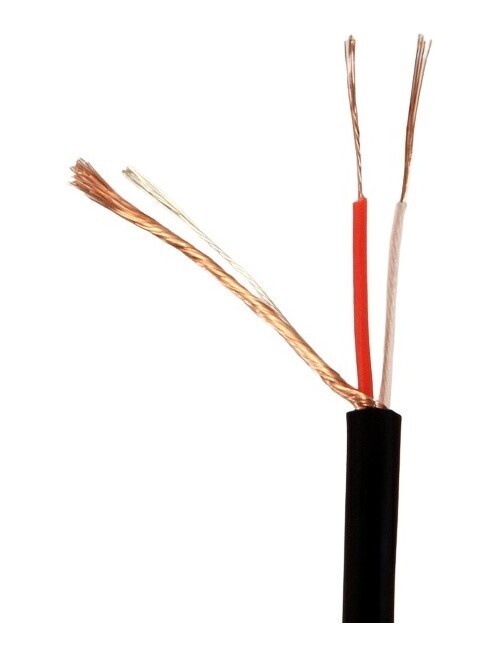

Mogami W3080 AES/EBU 110ohm Digital Shielded Cable - 100m Roll
Designed with high quality, flexibility and handy configuration in mind, the Mogami W3080 AES/EBU 110ohm Digital Shielded Cable features low capacitance characteristics that can result in high-quality analog transmission, especially with high frequencies. Super low capacitance of 14 pF/ft and excellent shielding.
Digital Shielded Cable
All of MOGAMI 110W AES/EBU digital audio cables are designed with flexibility and handy configuration. Many variations are available from regular application type up to long distance application types, from single core up to 12-core types, internal wiring type, and interconnect application types. Strict tolerance control of impedance within ±5% up to ±10% at the maximum. Because of employed cellular PP (polypropylene) insulation material, regardless of its compact overall diameter, larger conductor size is used, which naturally results in lower attenuation.
Features:
- Easy cable core identification system, such as numbered cable core
- Easy wiring assisted by the same conductor size drain wire
- Flexible and good low temperature characteristics
Specifications:
| Configuration |  |
|
| Part No. | W3080 | |
| No. of Conductor | 2 | |
| Conductor | Details | 7/0.18A (7×#33AWG) |
| Size(mm²) | 0.178mm² (#25AWG) | |
| Insulation | Ov. Dia.(mm) | 1.36Ø (0.054") |
| Material | XLPE | |
| Colors | Red/Clear | |
| Drain Wire | Details | 7/0.18A (7×#33AWG) |
| Size(mm²) | 0.178mm² (#25AWG) | |
| Served Shield | Approx. 60/0.12A (Approx. 60/#37AWG) |
|
| Jacket | Ov. Dia.(mm) | 5.0±0.3Ø (0.197± 0.0118"Ø) |
| Material | Flexible PVC | |
| Colors | Black / Blue | |
| Roll Sizes | 50m (164 Ft) 100m (328Ft) 200m (656Ft) |
|
| Weight per 200m Roll | 3.3kg/100m Roll | |
Electrical and Mechanical Characteristics:
| Part No. | W3080 | ||
| DC Resistance at 20°C | Inner Cond. | 0.11Ω/m(0.034Ω/Ft) | |
| Shield | 0.028Ω/m(0.0085Ω/Ft) | ||
| Capacitance at 1kHz, 20°C (effective capacitance value between inner twin) |
46pF/m (14pF/Ft) |
||
| Inductance | 1.0µH/m (0.31µH/Ft) | ||
| Characteristic Imperdance | 110Ω±5% | ||
| Attenuation (6MHz) | 0.069dB/m (0.021db/Ft) |
||
| Phase Constant (6MHz) | Phase Constant (6MHz) | ||
| Electromagnetic Noise** | 50mV Max. | ||
| Electromagnetic Noise at 10kHz* | 2.0mV Max. | ||
| Microphonics** | 40mV Max. | ||
| Voltage Breakdown | Must withstand at DC 500V/15sec, 20°C | ||
| Insulation Resistance | 10000 MΩ × m Min. at DC 250V, 20°C | ||
| Flex Life** | 10,000 cycles | ||
| Tensile Strength | 343N | ||
| Emigration | Non-Emigrant to ABS resin | ||
| Applicable Temperature | -20°C‾ +60°C(-4°F‾ +140°F) | ||
