MOEN AC-BA Acoustic Guitar Preamp DI Pedal 9V Supply

MOEN

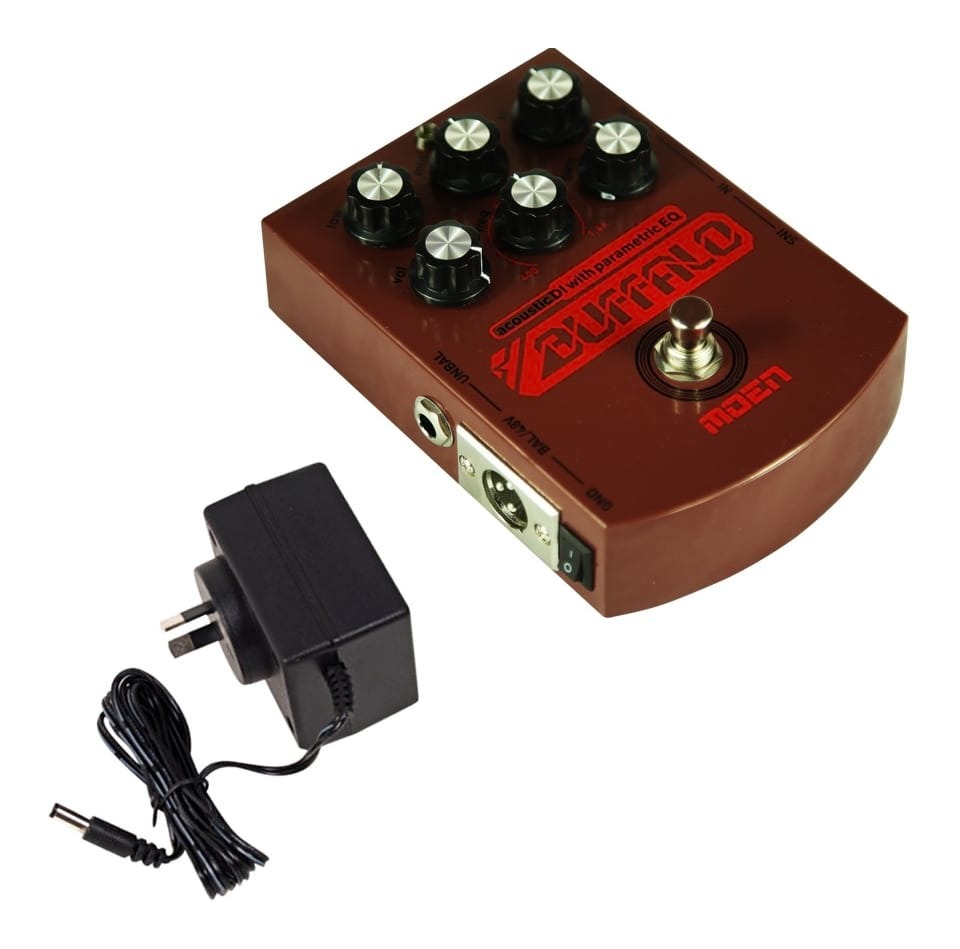

MOEN AC-BA Buffalo Acoustic Guitar Preamp DI Pedal with 9V Linear Power Supply

$89.99
  Sold Out
or interest free for up to 6 months with
Contact us for an ETA

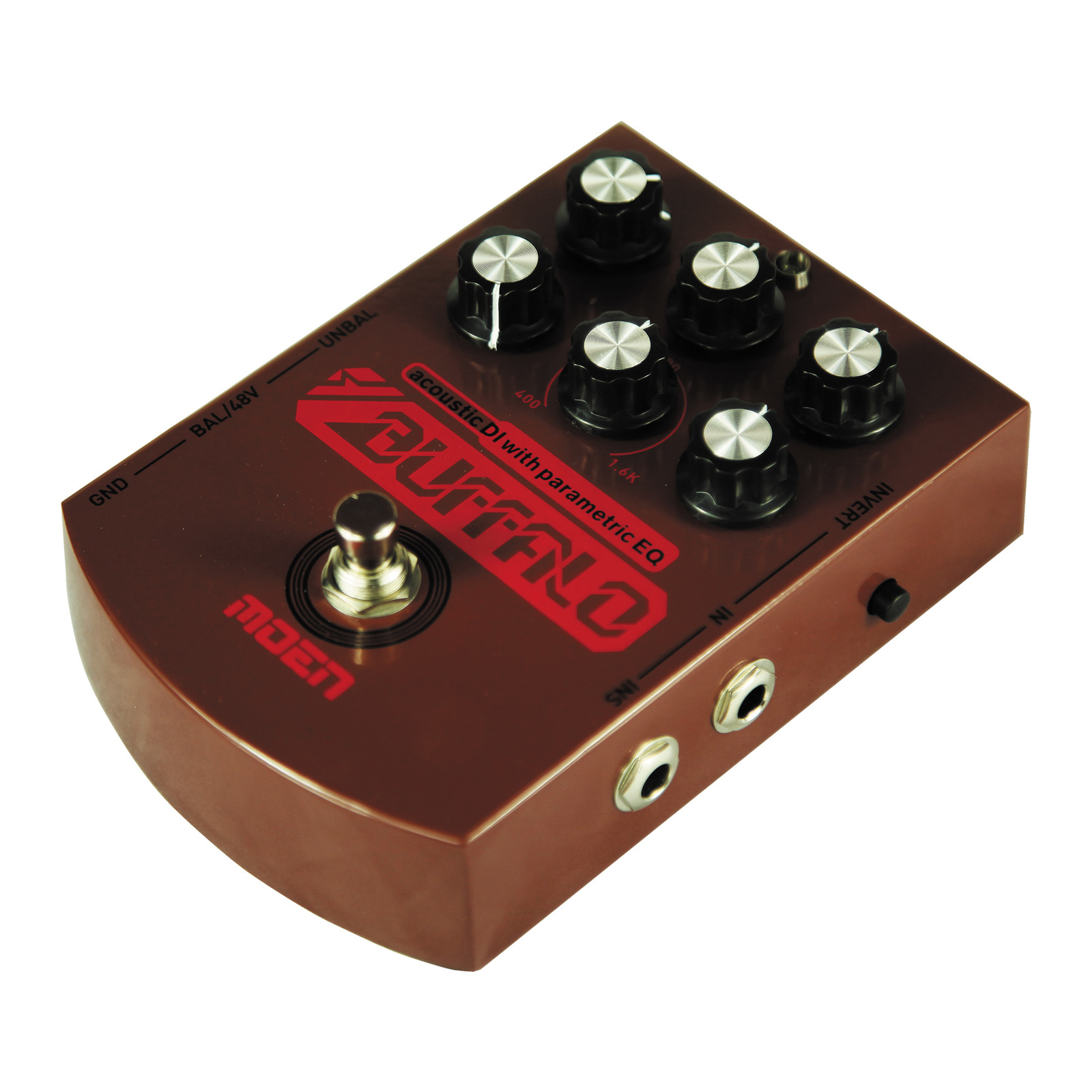

The MOEN AC-BA acoustic buffalo is a DI pedal with a graphic equalizer. The strong metal casing makes it perfect for use as a DI on stage, and the 3 band graphic EQ is easy to use with 6 large controller knobs, and stompbox-style on/off switch.




Dispatch

MOEN AC-BA Buffalo Acoustic Guitar Preamp DI Pedal
The MOEN AC-BA acoustic buffalo is a DI pedal with a 3 Band equalizer with swept mids. The strong metal casing makes it perfect for use as a DI on stage, and the 3 band EQ is easy to use with 6 large controller knobs, and stompbox-style on/off switch.

True Bypass
The AC-BA features a 3PDT True Bypass stomp switch, meaning you don't have to worry about additional noise in your setup when this pedal is not in use.

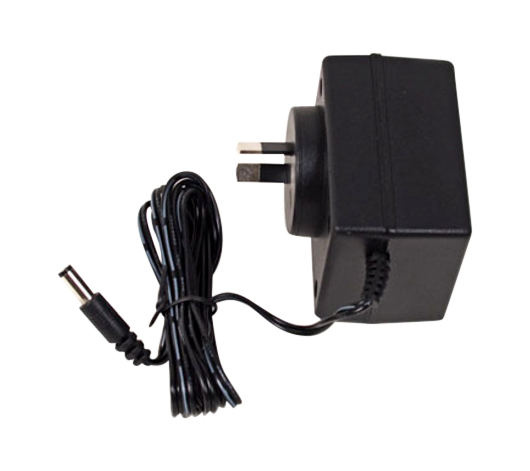

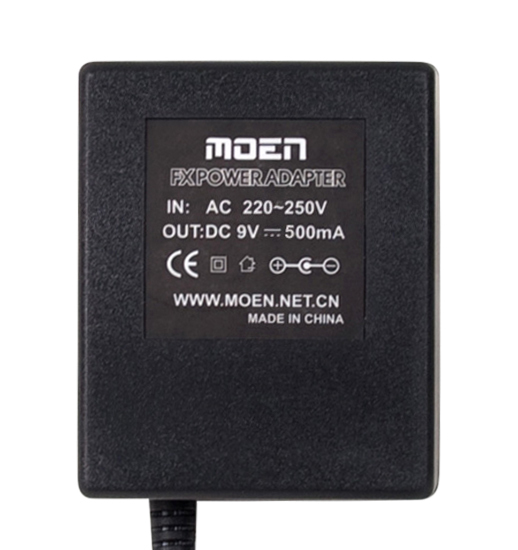

Included MOEN MO-PA 9v Linear Power Supply
The Australian MOEN regulated 9v AC adapter / power supply is built for the MOEN range of guitar effect pedals, though can also be used with many other guitar pedals on the market. With 600mA of current this power supply can power many pedals at the one time with the use of a daisy chain cable. The MO-PA is a linear design and so there is far less chance of introducing noise when compared to a switch mode design.

Features:

  • Volume, Low, Mid, Hi and Gain Controls
  • Sweepable 200Hz-2kHz Frequency Control
  • Red on Brown Stylish Design
  • Rugged Metal Casing
  • True Bypass 3PDT Switching
  • Active LED Power Light
  • On/Off Ground Toggle Switch

Specifications:

  • Model: AC-BA
  • Output: XLR(m)/Unbalanced 1/4 (6.35mm)

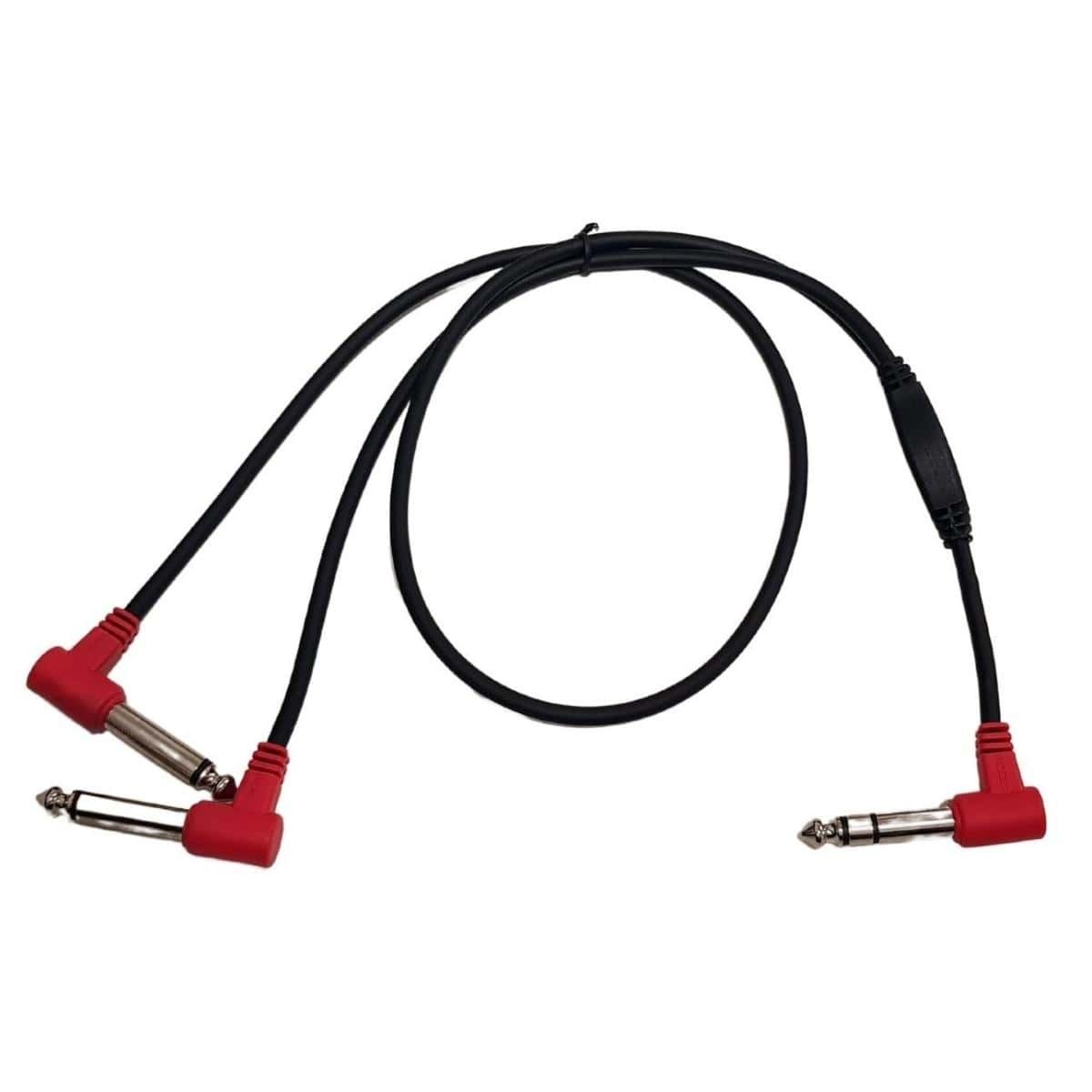

  • Includes TRS splitter cable
  • Power Supply: Linear DC9V (included) or 9V battery (not included)
  • Current Drain: Less than 15mA
  • Input Impedance: 500k ohm
  • Output Impedance: 10k ohm
  • Dimensions: 9.5 x 10.8 x 3.7cm (5.5cm including dials)
  • Weight: 0.3kg
View PDF brochure for MOEN AC-BA Buffalo Acoustic Guitar Preamp DI Pedal with 9V Linear Power Supply
