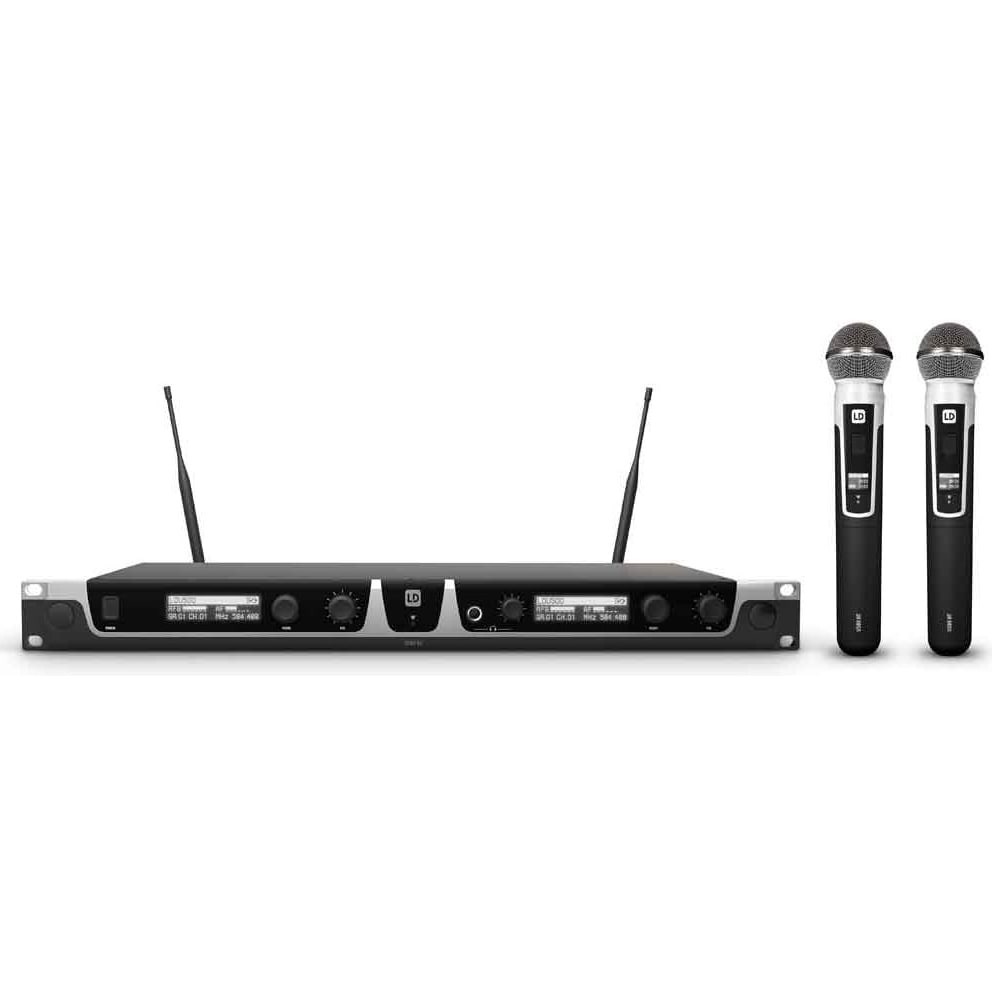

LD Systems U506 HHD2 Dual Handheld Wireless Microphone System

 LD Systems U506HHD2 Dual Handheld Wireless Microphone System
A highly professional wireless system which is easy to use, the LD Systems U506HHD2 is a true diversity dual handheld wireless system, featuring automatic channel scanning, infrared synchronisation, intuitive menu navigation and OLED display. 655–679 MHz.

Professional Technology and Sound Quality
The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

655 - 679 MHz Frequency Band
Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in two frequency bands: 584 – 608 MHz and 655 – 679 MHz, where 12 systems can be operated simultaneously. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.

Many Features
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

Features:

• True diversity UHF wireless system
• Shock-mounted dynamic and condenser microphone capsules
• 12 systems can be used simultaneously
• Automatic channel scan
• Easy one-touch infrared frequency syncing
• Pilot tone squelch circuit prevents noise
• Switchable RF transmitter output (2, 10 or 30 mW)
• Rugged enclosures
• High-contrast OLED display

Specifications:

• Transmission frequency range: 655 - 679 MHz
• Channels: 2 x 96 (8 groups of 12 channels)

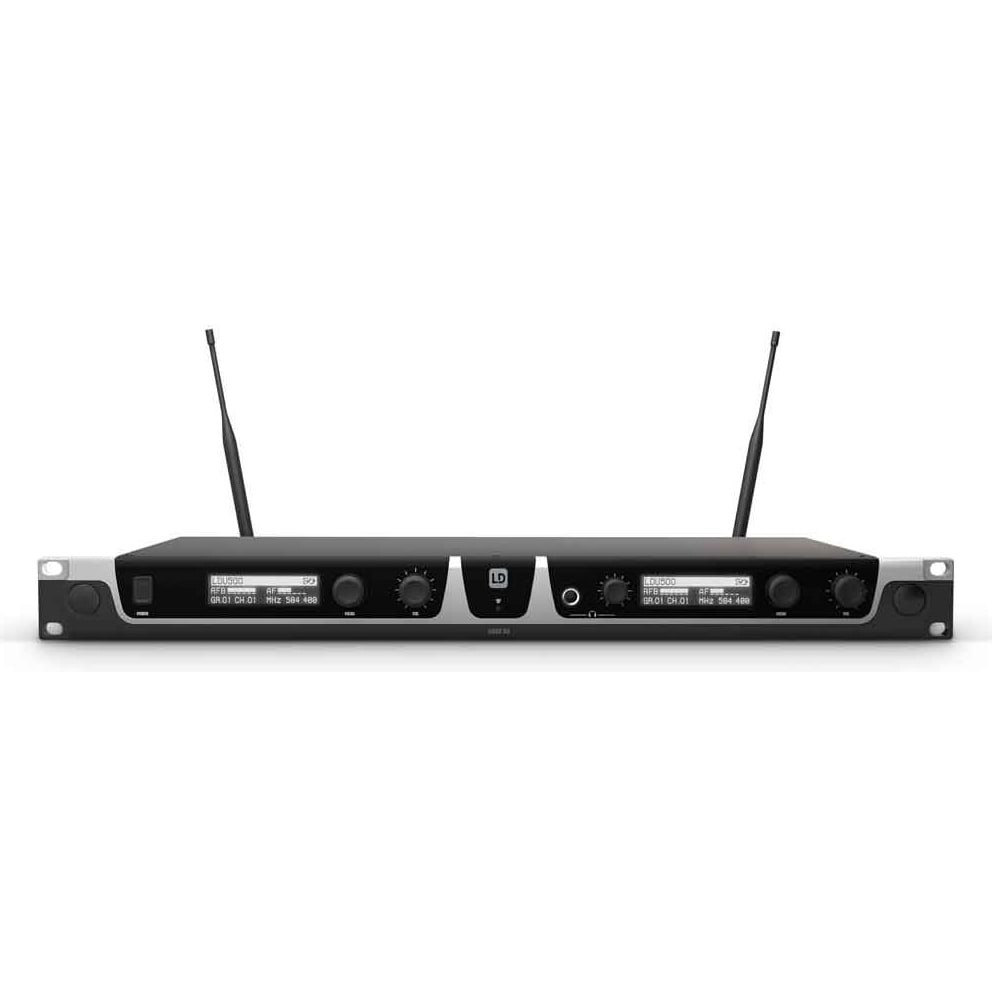

• RECEIVER
  • Antenna inputs: 2
  • Antenna connector: BNC
  • Frequency response: 30 - 16000 Hz
  • Noise reduction: Squelch
  • Total Harmonic Distortion (THD) < 0.1 %
  • Signal-to-noise ratio: > 100 dB

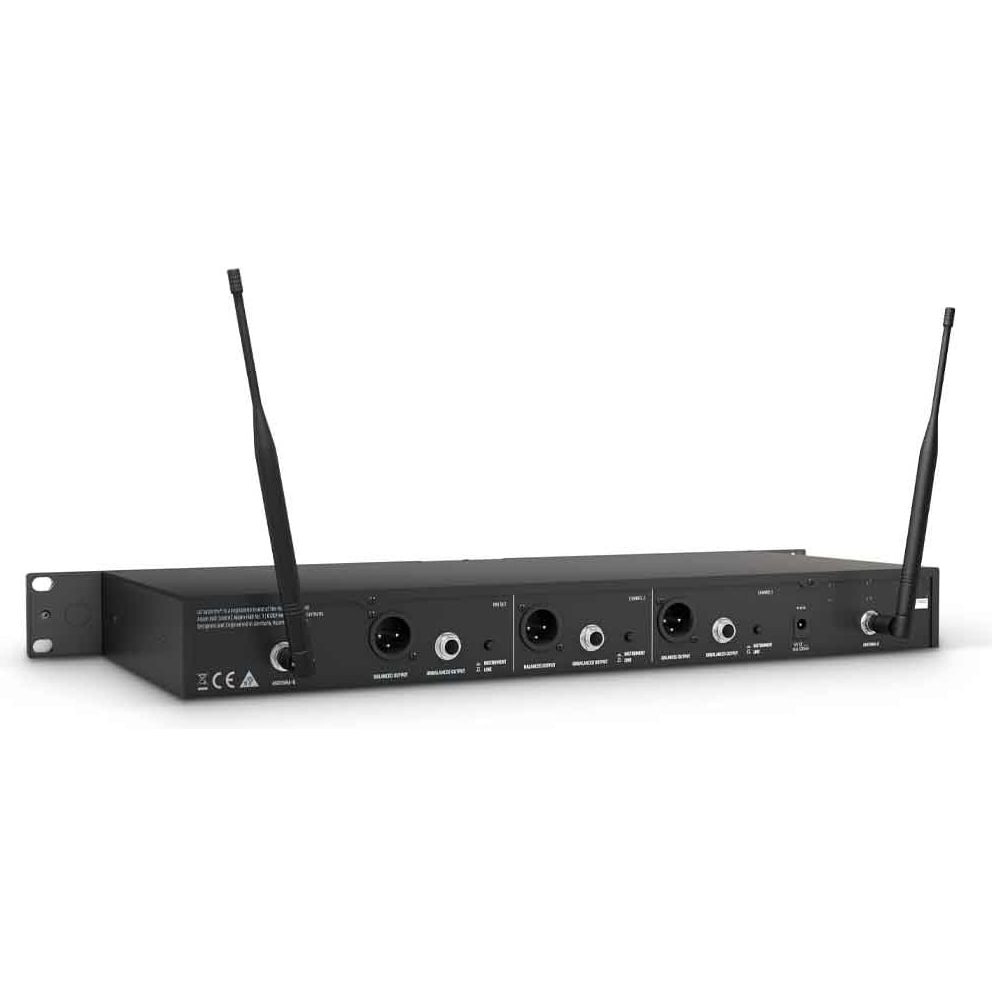

  • Audio output, balanced: 2 x XLR
  • Audio output, unbalanced: 2 x 6.3 mm TS
  • Audio mix output, balanced: XLR
  • Audio mix output, unbalanced: 6.3 mm jack
  • Max. output level: +10 dBu
  • Headphones ouput: 1
  • Headphones outputs: 6.3 mm TRS
  • Controls: volume
  • Indicators: 2 x OLED Display
  • Operating voltage: 12 V DC, 1000 mA
  • Width: 484 mm
  • Height: 44 mm
  • Depth: 200 mm
  • Weight: 2.05 kg
  • Accessories (included): power adapter
  • Other features: Pilot tone
• MICROPHONE
  • Channels: 96 (8 groups of 12 channels)
  • Groups: 8
  • Microphone type: Dynamic
  • Directivity: Cardioid
  • Frequency response: 60 - 16,000 Hz
  • Rated HF output power: Variable (2mW, 10mW, 30mW)
  • Signal-to-noise ratio: >95 dB
  • Operating voltage: 2 x AA battery
  • Operating time: >10 h (with alkaline batteries)
  • Length: 257 mm
  • Diameter: 52 mm
  • Controls: Set
  • Indicators: OLED Display
  • Weight: 0.25 kg
  • Other features: switchable RF power
