JJ Electronic GZ34/5AR4 Rectifying Tube

JJ Electronic GZ34/5AR4 Rectifying Tube

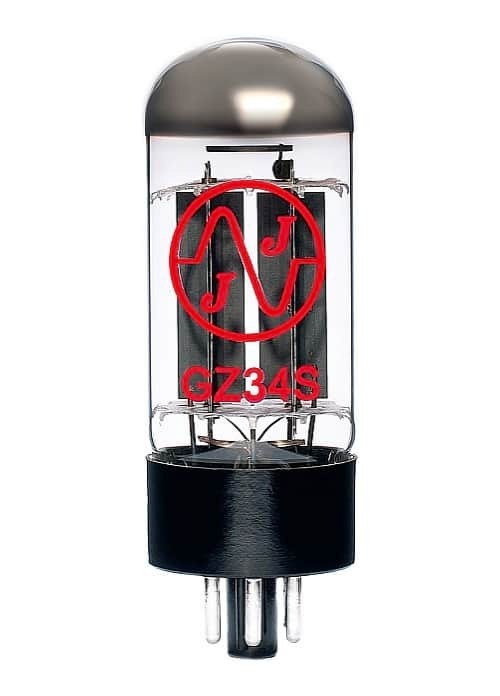

The JJ Electronic GZ34S is 5AR4 octal base rectifier diode, a double anode rectifying tube. It provides strong current output, and a great punch! Suitable for Hi-Fi and guitar amplifiers. A great choice for the JOYO Sweet Baby and other amps.

Solid Rectifying Tube
When combined with a power transformer, a rectifying tube acts as an electron pump to convert 325 volts RMS AC into 360 volts DC. It converts or rectifies the AC voltage coming from the transformer into the high DC voltage needed by your valves in your amplifier. A solid rectifying tube is a must for working musicians and hifi enthusiasts, and the JJ Electronic GZ34/5AR4 is an excellent choice.

JJ Electronic
JJ Electronic is a world-renowned manufacturer of vacuum tubes, electrolytic capacitors and high-end audio amplifiers. Founded in 1993 by Jan Jurco, a small garage business grew to become a well known and respected in music industry. JJ vacuum tubes and capacitors are widely used in guitar and audio amplifiers, recording studio equipment and in a variety of applications for audiophiles. All vacuum tubes and capacitors go through an extended burn-in period to ensure superior stability. A rigorous final test for tubes and capacitors verifies every important parameter. In particular, the parameters for flawless tube functioning include insulation characteristics, vacuum level, cathode emission efficiency, filament voltage, plate currents, and microphonics. The quality control process includes several thousand hours of reliability testing on samples of tubes and capacitors.

Features:

• A solid 5AR4 octal base rectifier diode
• Strong current output
• Suitable for all Hi-Fi and guitar amplifiers
