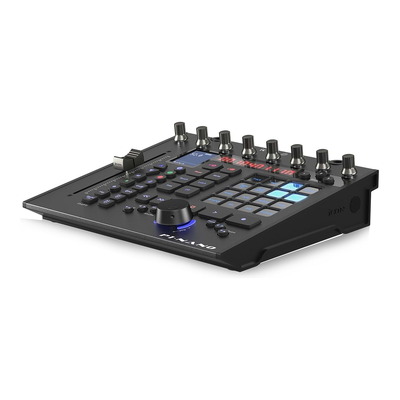

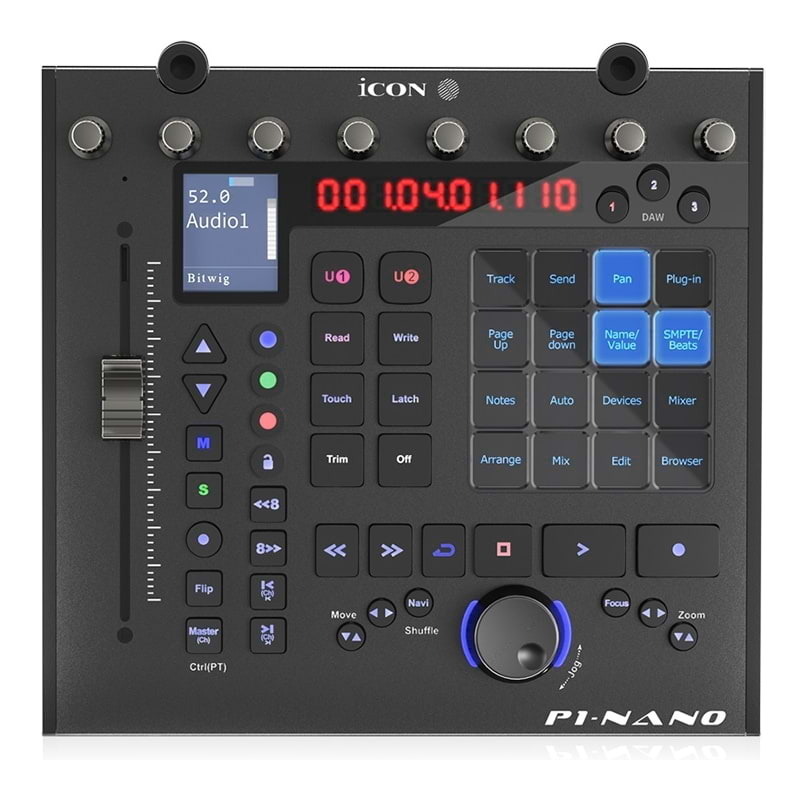

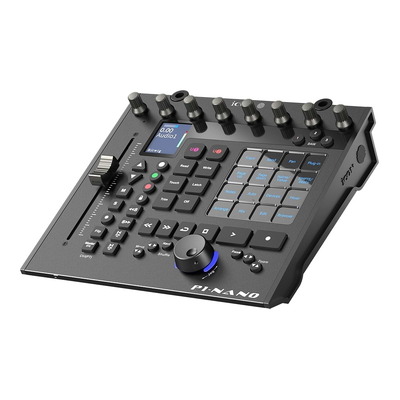

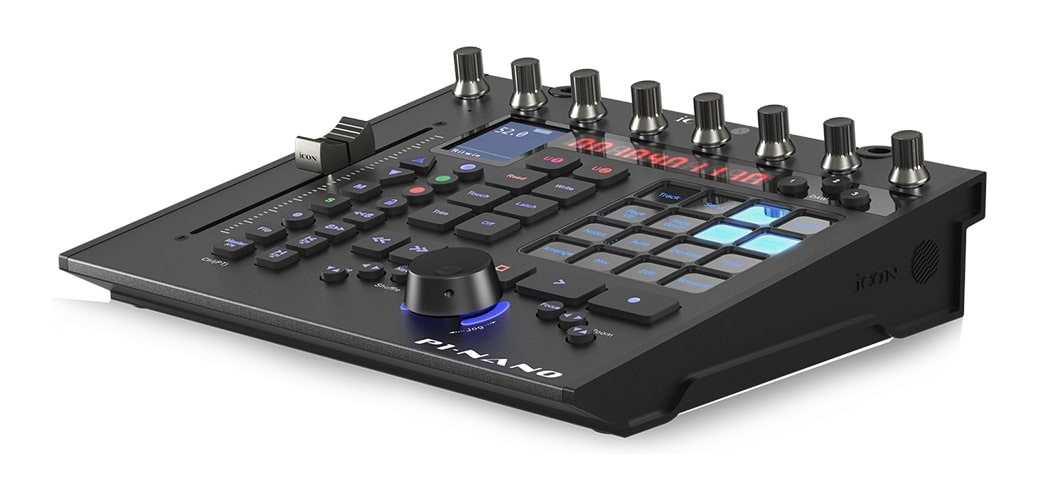

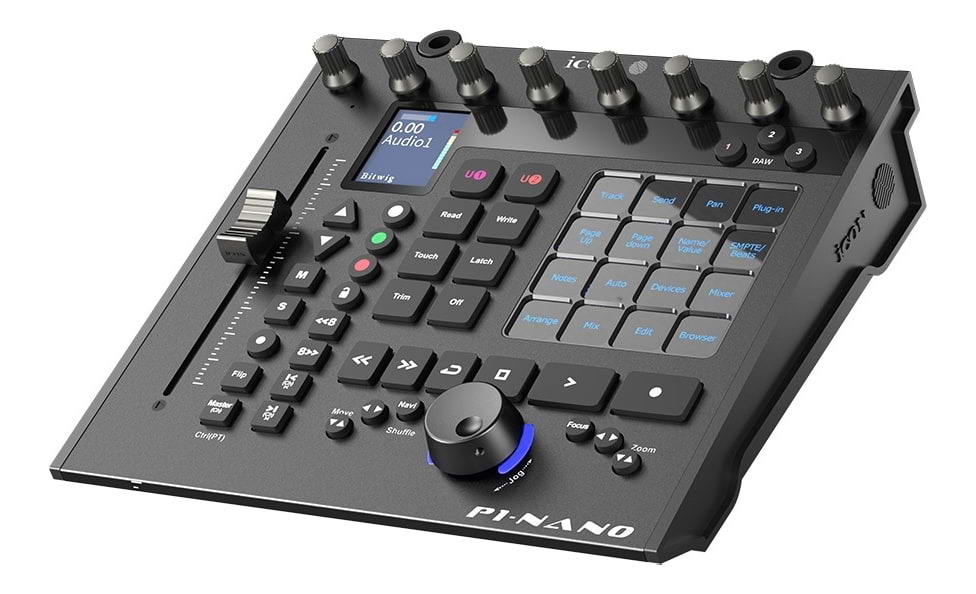

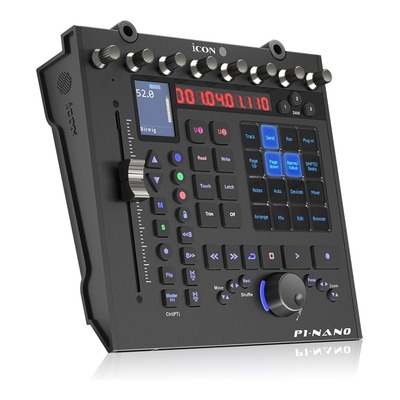

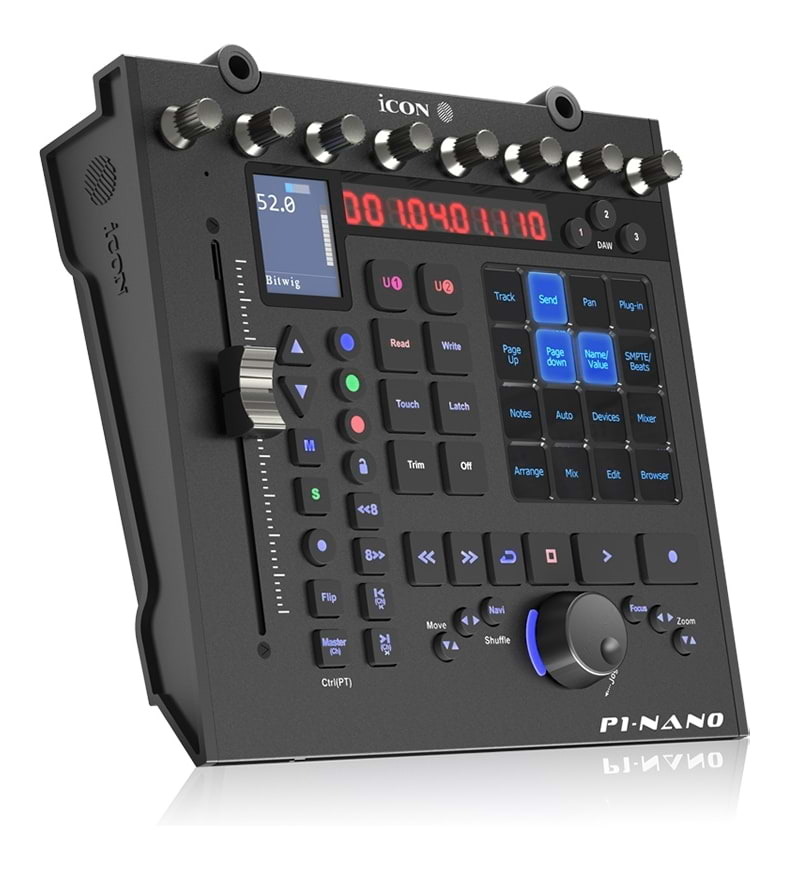

iCON P1-Nano Single Fader DAW Control Surface

iCON P1-Nano Single Fader DAW Control Surface
The iCON P1-Nano Single Fader DAW Control Surface is perfect for your workflow with your favourite DAW. Featuring a touch-sensitive motorised fader with 12-bit resolution, Programmable touch display with 16 panels, 8 encoders, robust and versatile, MAC/PC

Great Features
The P1-Nano is a powerful full featured DAW controller with a single fader that gives you tactile control of your Digital Audio Workstation allowing you to streamline your workflow and get your projects done faster.
Customisable Touchscreen: The P1 Nano has a customizable touchscreen display that can be used to control 5 color coded layers of commands in your DAW and match your specific workflow. Quickly access the controls you need at the touch of a button.|
Control Plugins and Automation: Use the 8 encoder knobs and the optional D5 display to control your session plugins. Illuminated automation command buttons and the motorized fader are perfect for riding vocals or automating sends.
Integration with popular DAWs: The P1 Nano gives you the ability to control up to 3 DAWs at one time with no interruption to your workflow. Control a wide range of popular DAWs, including Bitwig, Cubase/Nuendo, Logic Pro X, Ableton Live, and Pro Tools.

iMAP
iMAP is the heart of the P1 Nano. This powerful software helps you to get the most out of your controller. It's easy to use and it's packed with advanced functionality.

• Button Functions - "Drag and Drop" your DAW commands to different buttons on the touchscreen function layers
• Hot Keys - Program your keyboard hot keys into touchscreen function buttons
• MIDI Commands - Setup MIDI commands to use your P1 Nano as a MIDI controller for virtual instruments and other software
• Mapped with 18 DAWs - The iMAP comes preloaded with maps for 18 popular DAWs

Different Applications

• Music Production - Be creative. The P1 Nano fits snugly into your workspace giving you transport control and DAW functions right at your fingertips.
• Recording and Mixing - No matter the size if your studio, the P1 Nano is the perfect controller. Use it as the center of your project studio, or use it as the DAW controller that feels right at home on your large format console.
• Content Creation - Enhance control of your content and improve your editing workflow to keep your audience engaged more efficiently.
• Post Production and Sound Design - Use the eight encoder knobs to control your sound design and MIDI parameters along with your plugins and your DAW.

Features:

• 1x touch-sensitive motorized fader with 12-bit resolution
• Programmable 4 inch, 16 panel digital touch display showing DAW functions per 5 color modes – a potential total of 80 displayable and actionable functions
• Organize DAW functions in the 16 panel touchscreen easily via ‘drag and drop’ in the iMAP – changes made in real time
• Capability of connecting to 3 DAWs at one time via the DAW select buttons
• Extremely compact, durable and versatile
• On-board display showing channel name, control values, metering etc.
• 8 smooth action dual-function encoder knobs (Rotate and Enter)
• 12-segment LED display shows timecode or location of your project in either SMPTE or beat clock (bars:beats:ticks) formats
• Smooth-action jog wheel shuttle for fast search, scrub and control
• Illuminated function buttons for ‘Read’, ‘Write’, ‘Touch’, ‘Latch’, ‘Trim’ and ‘Off’ – activated/deactivated as required per DAW
• Illuminated buttons for channel control including Mute, Solo and Record
• 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward and Loop
• Dedicated ‘Flip’ and ‘Master’ buttons for fader flipping and access to the master channel
• Illuminated “Zoom” button with 2 directional keys (Left/Right & Up/Down) – used in combination with the jog wheel
• Illuminated “Focus” button which allows the user to ‘focus’ in and adjust plug-in & EQ parameters etc. via the smooth-action jog wheel
• 2 illuminated “Track” buttons for selecting individual channels
• 2 illuminated “Bank” buttons for shifting 8-channels at a time
• Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software
• Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Reaper, Reason, Samplitude, Studio One and Tracktion Waveform
• iMapTM software downloadable from website product page
• USB C high-speed connectivity
• Firmware upgrade available via USB C connection and iMapTM software
• User A & User B 1/4 inch inputs for connecting footswitch pedals
• D5 display unit available (Optional)
• Class-compliant with MacOS 10.15 or above & Windows 10 or above
• Superior build quality and robust metal casing with Kensington lock port

Specifications:
