Focusrite ISA ADN2 Two-Channel A-D Card for ISA One

Focusrite ISA ADN2 Two-Channel A-D Card for ISA One
Upgrade Your Focusrite ISA One with This 2-channel A/D Card. ISA ADN2 is a two-channel A/D card that delivers high-quality analog-to-digital conversion for the Focusrite ISA One mic preamp. The card operates at sample rates up to 24-bit/192kHz and provides Dante, AES3, and ADAT connectivity.

Dante Connectivity

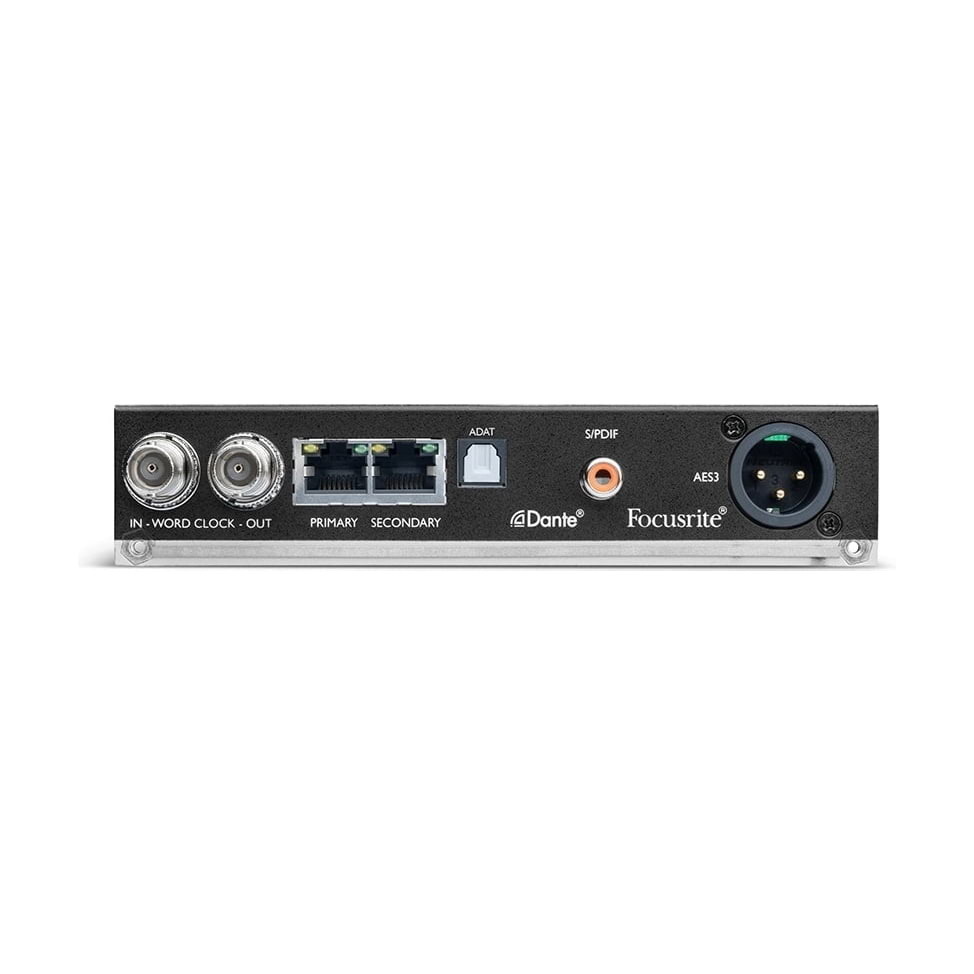

The Focusrite ISA ADN2 is a two-channel A/D card that delivers high-quality analog-to-digital conversion for the Focusrite ISA One mic preamp. The card operates at sample rates up to 24-bit/192kHz and provides Dante, AES3, and ADAT connectivity. The ISA ADN2 is fitted with primary and secondary RJ45 Dante Out ports, a connector for AES3 output, plus a TOSlink connector for ADAT output. Word clock I/O on BNC connectors permits synchronization with multiple digital sources. This also allows the Dante network to be sync’d with house clock or external gear.

Redundant Network Connectivity
The Dante outputs on the ISA ADN2 enable your ISA One to network with all Focusrite RedNet devices and Red interfaces, as well as Dante-equipped devices from other manufacturers. Metering and settings can be effortlessly accessed through RedNet Control, and routing is configured via Dante Controller software. The ISA ADN2 is equipped with redundant Dante connectivity via its primary/secondary Ethernet ports with auto switchover in the event of failure.

Features:

• 2 channels of high-quality, precision analogue-to-digital converter for ISA One
• Sample rates: up to 24-bit/192kHz
• Redundant Dante connectivity via primary/secondary Ethernet ports with auto switchover
• 2-channel XLR connection for AES3 output
• 2-channel RCA connection for S/PDIF output
• 2-channel TOSlink connector for ADAT output
• • Word Clock I/O on BNC connectors allows synchronization with many external devices
• Included RedNet Control and Dante Controller software allow Dante routing and control from a computer; no hardware patching required
• Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.Audio Pro Artist

Specifications:

• AUDIO PERFORMANCE
  • 0 DBFS Reference Levels: 22dBu
  • Frequency Response: 20Hz - 20kHz ±0.1dB
  • THD+N: -105dB (0.0006%) unweighted, 20Hz - 20kHz; -1dBFS input
  • Noise In Presence Of Signal: -121dBu 'A'-Weighted (typical)
  • Dynamic Range: 121dB 'A'-weighted (typical), 20Hz - 20kHz
• DIGITAL PERFORMANCE
  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
  • Clock Sources: Internal or Word Clock
• CROSSTALK
  • Input To Input: < -100dB; 20Hz - 20kHz (driven channel at -20dBFS)
• FRONT PANEL OUTPUT CONNECTIVITY
  • Channel Count: 2 x Dante channels
  • Output: 1 x Male XLR
• DANTE
  • Output: 2 x Ethernet standard RJ45 connectors (Compatible with Cat 5e and above)
  • Channel Count: 2 x Dante channels
• AES3
  • Channel Count: 2 x Dante channels
  • Output: 1 x Male XLR
• ADAT
  • Channel Count: 2 x ADAT channels
  • Output: 1 x TOSLINK connectors
  • Channel Assignments @ 44.1 KHz, 48 KHz: Port 1 = Channels 1 - 2
  • Channel Assignments @ 88.2 KHz, 96 KHz: SMUXI: Port 1 = Channels 1 - 2
  • Channel Assignments @ 176.4 KHz, 192 KHz: SMUXII: Port 1 = Channels 1 - 2
• S/PDIF
  • Channel Count: 2 x S/PDIF channels
  • Output: 1 x RCA phono socket
