EMP-MIDIBLOX
The Empress Effects Midibox2 provides the ability to connect Empress Pedals equipped with a control port to MIDI. It converts the standard 5 pin MIDI cable to a simple guitar patch cable. You can control up to 4 pedals at once, versatile and easy to use.
Loading... | ||||||

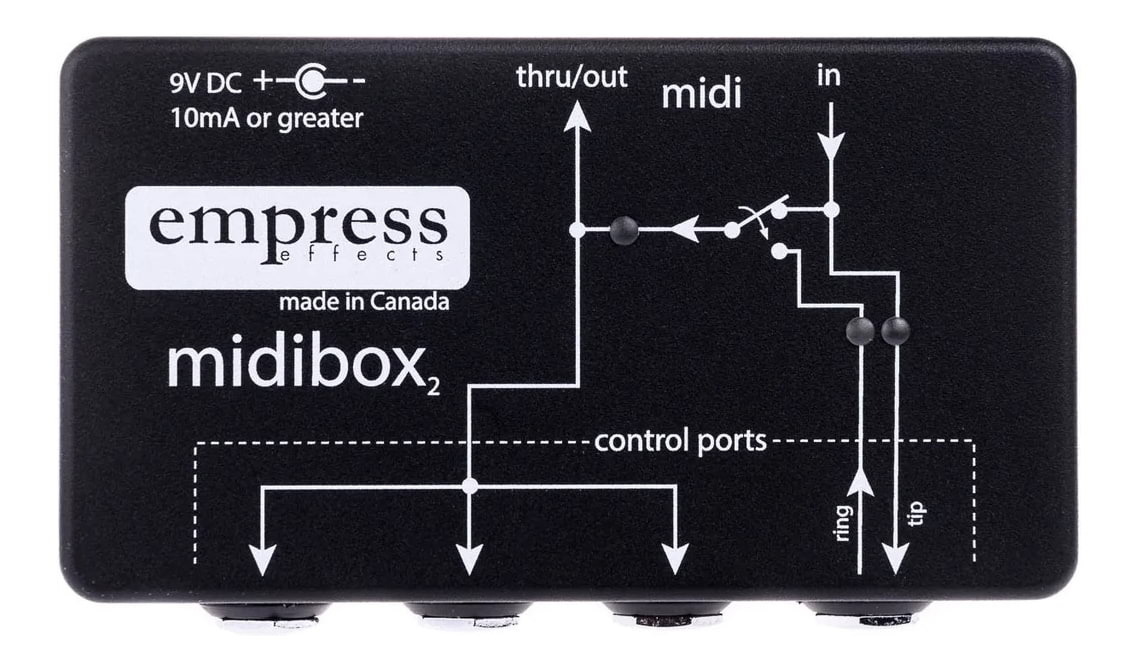

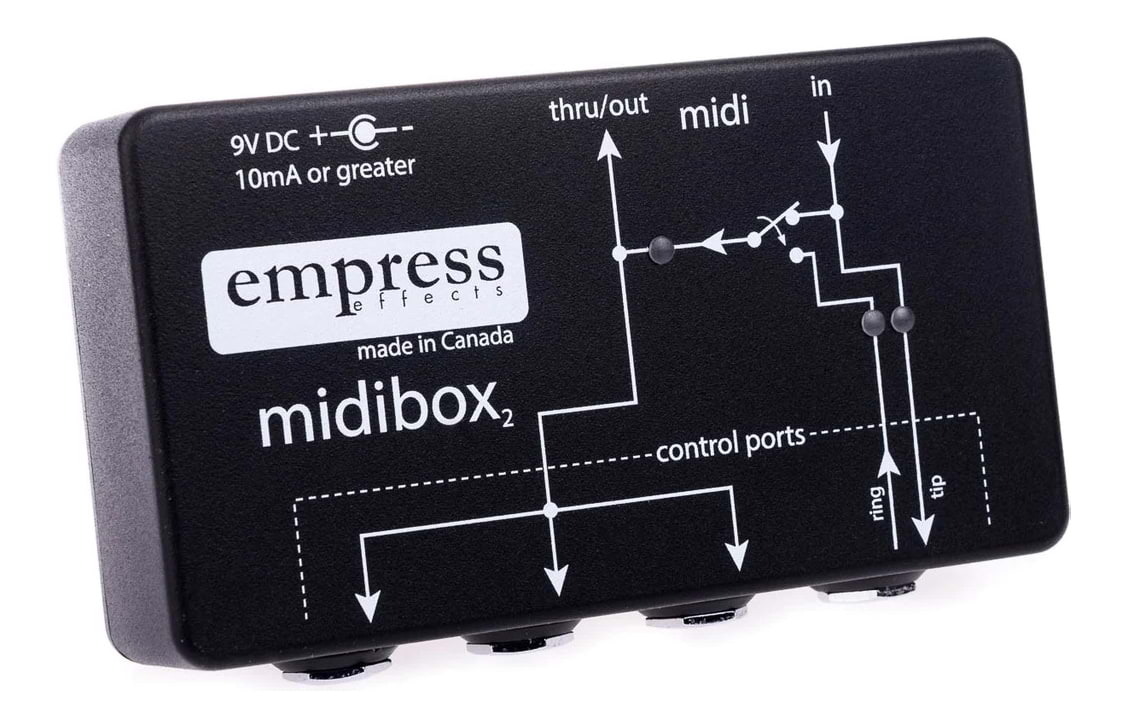

Empress Effects Midibox2 MIDI Controller for Empress Guitar Pedals
The Empress Effects Midibox2 provides the ability to connect Empress Pedals equipped with a control port to MIDI. It converts the standard 5 pin MIDI cable to a simple guitar patch cable. You can control up to 4 pedals at once, versatile and easy to use.
Hand-Made in Canada.
2-Year Warranty, extended to 4 Years when you register online.
Features:
- Control Empress Pedals with MIDI - Use MIDI to control any Empress pedal equipped with a control port
- Control up to 4 pedals at once - The midibox has 4 control port outputs that let you control up to 4 Empress pedals simultaneously
- MIDI out - set the internal dip switch to accept midi out messages from the control port and relay them to the other control ports and the midi thru/out connector
- LED feedback - LEDs light up, letting you know when and where MIDI messages are being sent
Specifications:
Power Input Voltage | 9V DC |
Power Input Connector | 2.1mm barrel connector (Negative tip) |
Power Consumption | ~ 30mA |
Enclosure Material | Die Cast Aluminum |

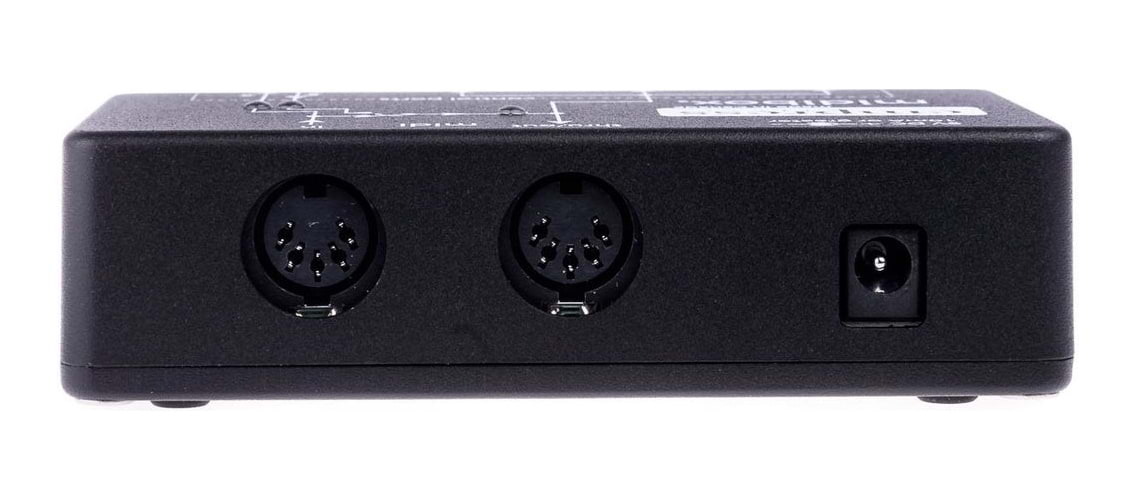

Input connector | Standard 5 pin MIDI connector |

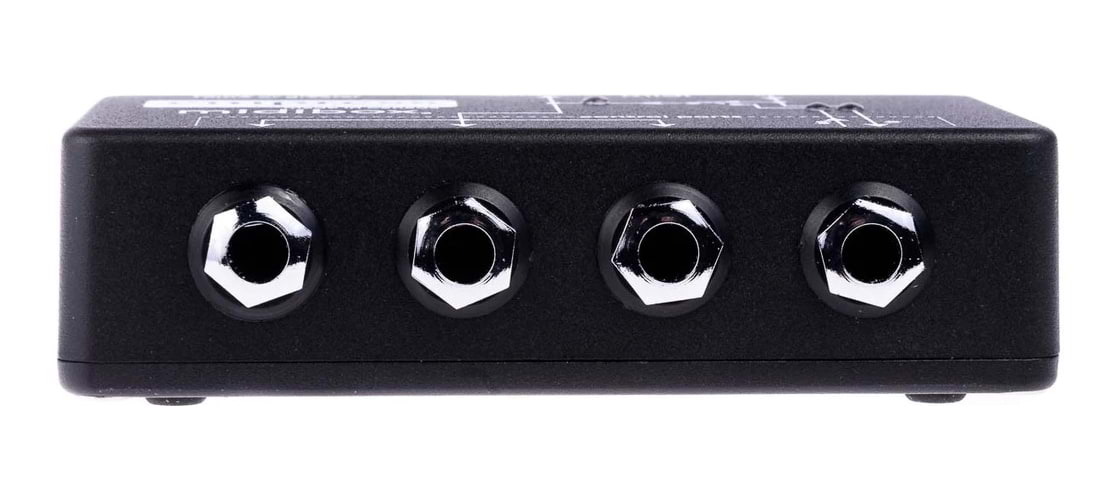

Output connector | 1/4" Jack |
Height | 3.17cm |
Length | 11.4cm |
Width | 6.35cm |
Weight | 227g |
