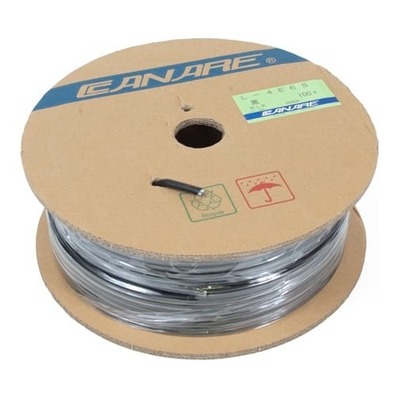

Canare L-4E6S Star Quad Microphone Cable - Green - 100m Roll
In Stock
L-4E6S-G100
Enter Post Code to Calculate Shipping Cost & ETA
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
The premier Star Quad cable for all hand-held microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR type audio connectors.
| Loading... | ||||||
Star Quad Microphone cable (L-4E6S) - Green - 100 metre roll (100m)
The premier Star Quad cable for all hand-held microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing. Available in 10 beautiful matte finish color jackets.
Features:
- Braided Copper Shield
- Flexible in Extreme Cold Weather
- Cross Linked PE Insulation
- Reduced Handling Noise
- Rejects EMI and RFI
- 10 Matte Color Jacket Selections
Applications:
- Microphones
- Portable Applications
- Audio Rack Wiring
- PA Systems
- Audio Patch Cords
|
|
||||||||||
| Model | Std. Lng. ft. (m) |
Wt Std. Lng. lbs (kgs) |
Nom. O.D. in. (mm) |
Jacket Nom. Thick. in. (mm) |
Brittle Point F° (C°) |
No. of Cond. |
Insul. Type* Thick mil |
Cond-AWG (Qty./mil) Cross Sec. Area mil.² **Quad AWG |
Pitch Twist Quad in. (mm) |
Shield Cover- age |
| L-4E6S | 656ft (200m) 1000ft (305m) |
24 (11) 35 (16) |
.236 (6.00) |
PVC .044 (1.12) |
-56 (-49) |
4 2 Blue 2 Wht |
IPE 15.7 |
AC - #24 40/3.15 310 #21 |
.79 (20) |
>95% TAC Braid |
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.
|
|
|||||||
| Model | Cond. D.C.R. ohm/1000ft (ohm/100m) |
Shield D.C.R. ohm/1000ft (ohm/100m) |
Nom. Cap. *** pF/ft (pF/m) |
Nom. Cap. † pF/ft (pF/m) |
Nom. Imp. (ohm) |
Nom. Atten. V/1000ft (V/100m) |
Group Delay Time nS/ft (nS/m) |
| L-4E6S | <29.9 (<9.8) |
<9.1 (<3.0) |
46 (150) |
57 (185) |
44 | 0.9 (0.3) |
1.80 (5.9) |
***Capacitance between twin Blue and twin White conductors.
†Capacitance between conductors to shield.
