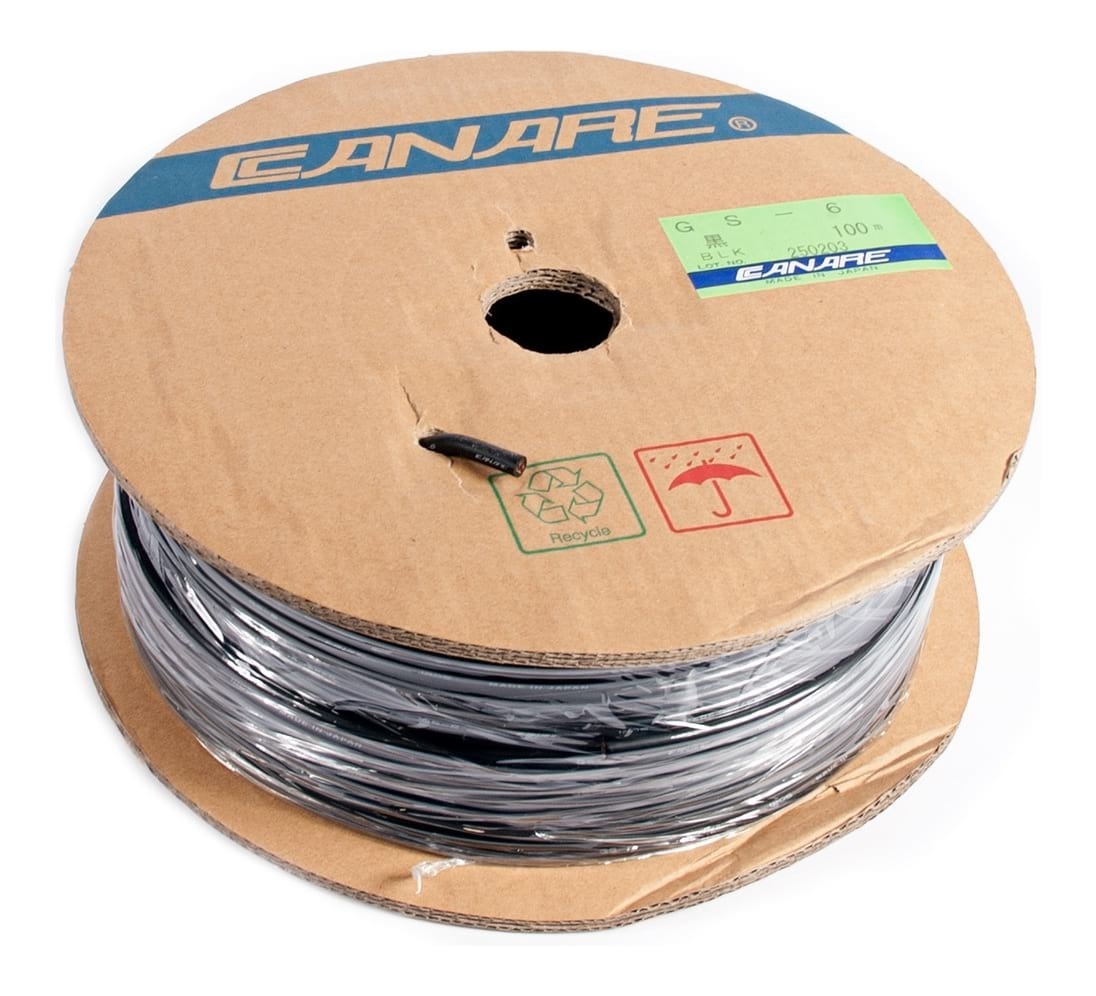

GS6-BK-100
Canare GS-6 Guitar / Keyboard / Instrument Cable - 100 meter roll. A specially designed Oxygen Free Copper 18 AWG cable for connecting Guitar/Bass or Keyboards to amps, mixers, effects pedals and all outboard signal processing gear.
Loading... | ||||||
Canare GS-6 Guitar / Keyboard / Instrument Cable

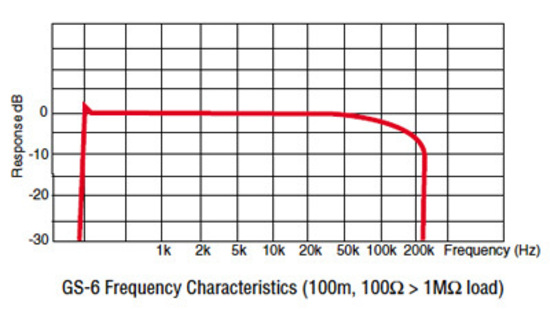

A specially designed Oxygen Free Copper 18 AWG cable for connecting Guitar/Bass or Keyboards to amps, mixers, effects pedals and all outboard signal processing gear. Low capacitance and low series resistance provides improved frequency response (flat to 50kHz).
Professional Quality Instrument Cable

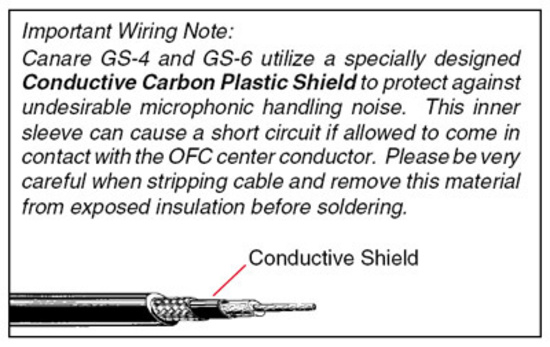

A bright, ringing characteristic sound is preserved, even when using HI-Z guitar pickups with long cable runs. The proprietary double Carbon/Braid Copper shield construction eliminates microphonic handling noise, especially on stage where amps are often set at maximum volume levels. Also highly recommended for Amp Head to Speaker Cabinet leads.
Suitable For:
- Electronic Instruments
- Hi-Fi Interconnects
- Test Probes
- Audio Patch Cords
- AMP to Cabinet Leads
Features:
- Stays Flexible even in Sub-Zero Weather
- Oxygen Free Copper Conductor & Shield
- Reduced Microphonic Handling Noise
- Low Capacitance & Resistance
MECHANICAL SPECIFICATIONS |
||||||||||
Model
|
Std. Lng.
ft. (m) |
Wt
Std. Lng. lbs (kgs) |
Nom.
O.D. in. (mm) |
PVC
Jacket Nom. Thick. in. (mm) |
Brittle
Point F° (C°) |
No.
of Cond. |
Insul.
Type* Thick mil |
Cond-AWG
(Qty./mil) Cross Sec. Area mil.2 |
Pitch
Twist Quad in. (mm) |
Shield
Cover- age |
GS-6
|
656ft
(200m) |
22
(10) |
.228
(5.8) |
.039 (1.0)
|
-56
(-49) |
1
|
PE
33.5 |
OFC-#18
(127/3.94) 1550 |
-
|
OFC>92%
Braid+ Carbon Sleeve |
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.
|
|||||||
Model
|
Cond.
D.C.R. ohm/1000ft (ohm/100m) |
Shield
D.C.R. ohm/1000ft (ohm/100m) |
Nom.
Cap. *** pF/ft 1>(pF/m) |
Nom.
Cap. † pF/ft (pF/m) |
Nom.
Imp. ohm |
Nom.
Atten. V/1000ft (V/100m) |
Group
Delay Time nS/ft (nS/m) |
GS-6
|
<5.6
(<1.8) |
<7.6
(<2.5) |
-
|
49.0
(160) |
-
|
-
|
-
|
***Capacitance between conductors.
†Capacitance between conductors to shield.
