Audiocenter’s first lightweight moulded active speaker, the MA12 features excellent sound, compact size, and stylish industrial design. Versatile and portable it can be widely used in various types of applications. DSP-controlled, 131dB, 1600W peak.
| Loading... | ||||||

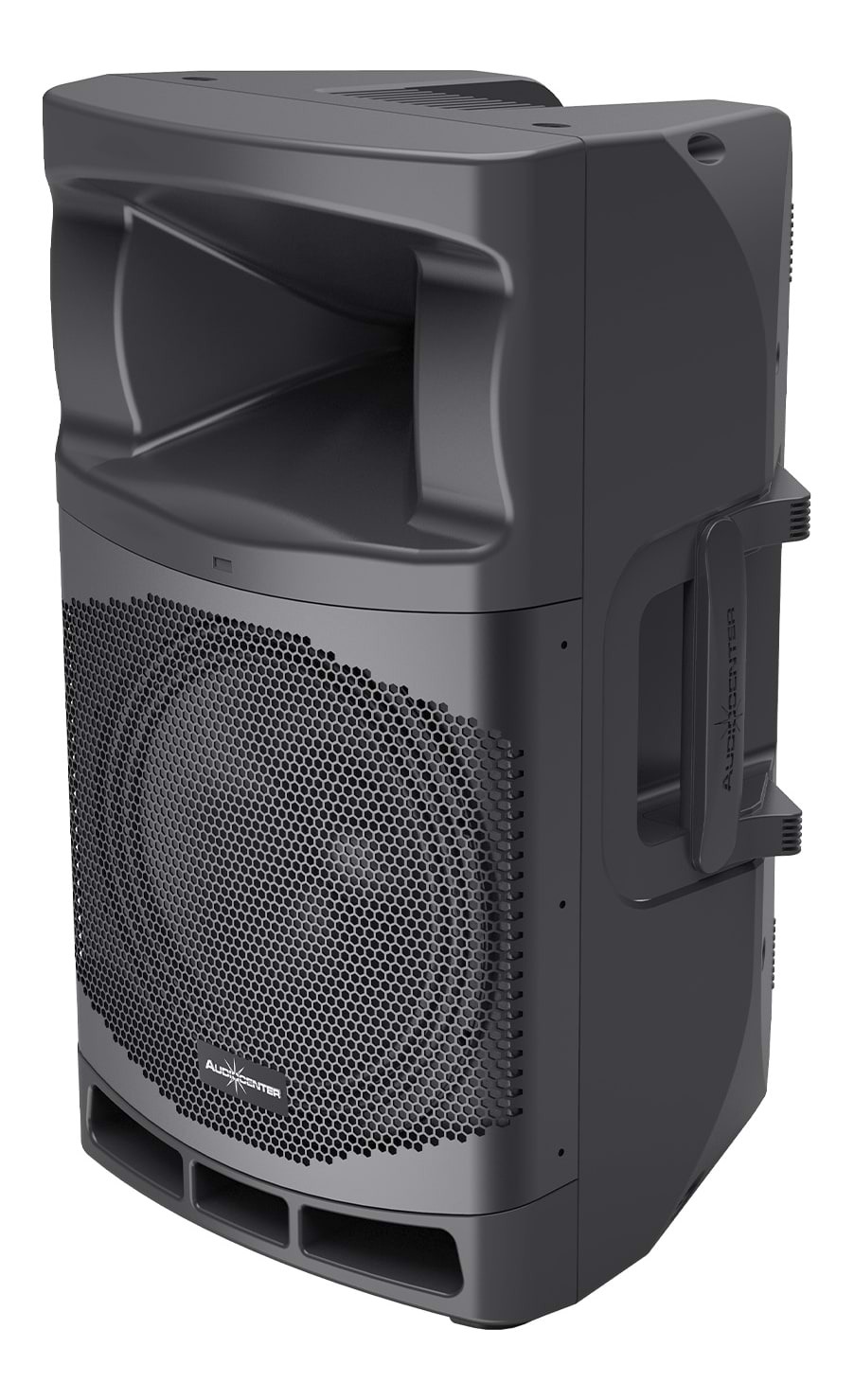

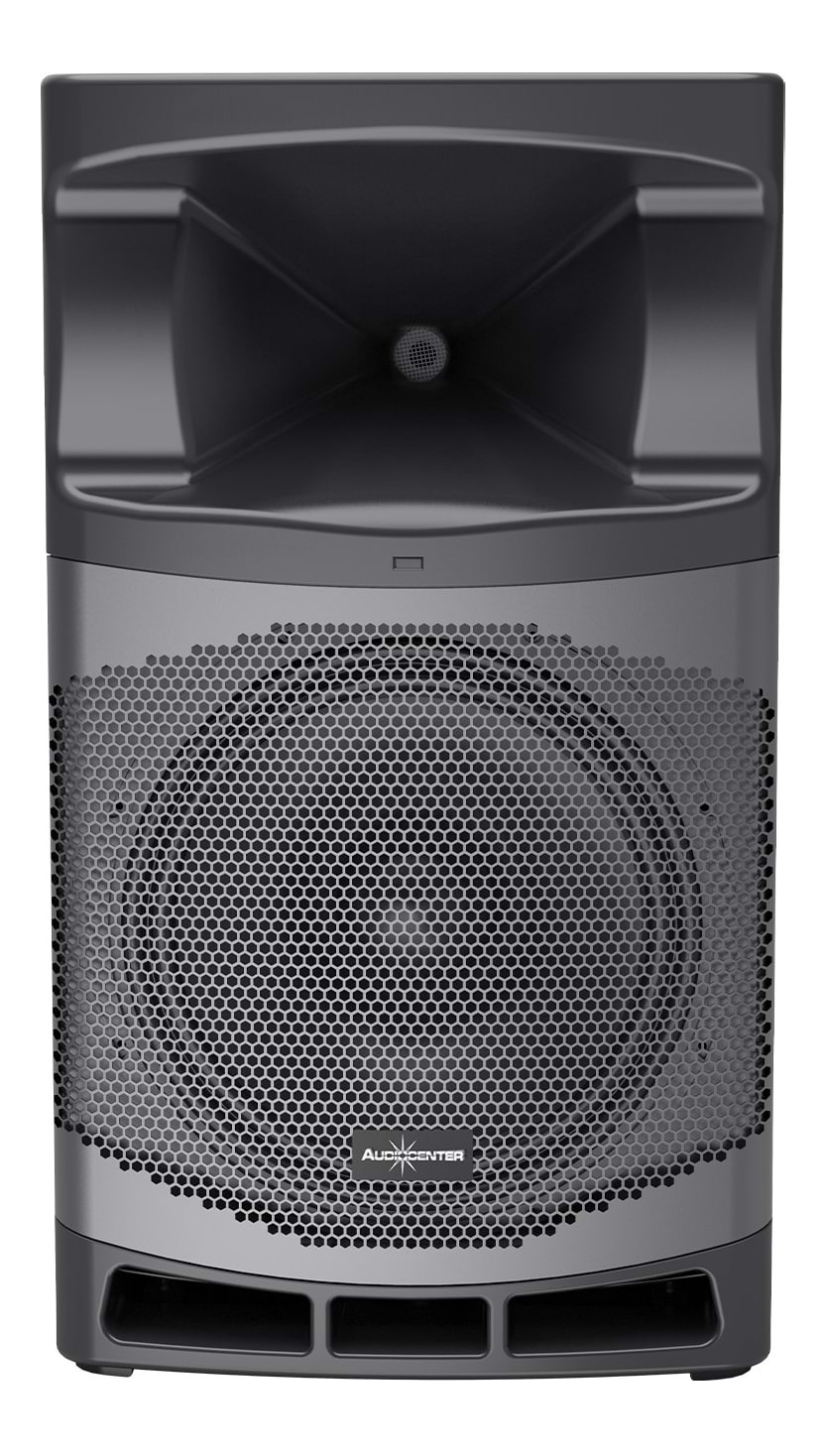

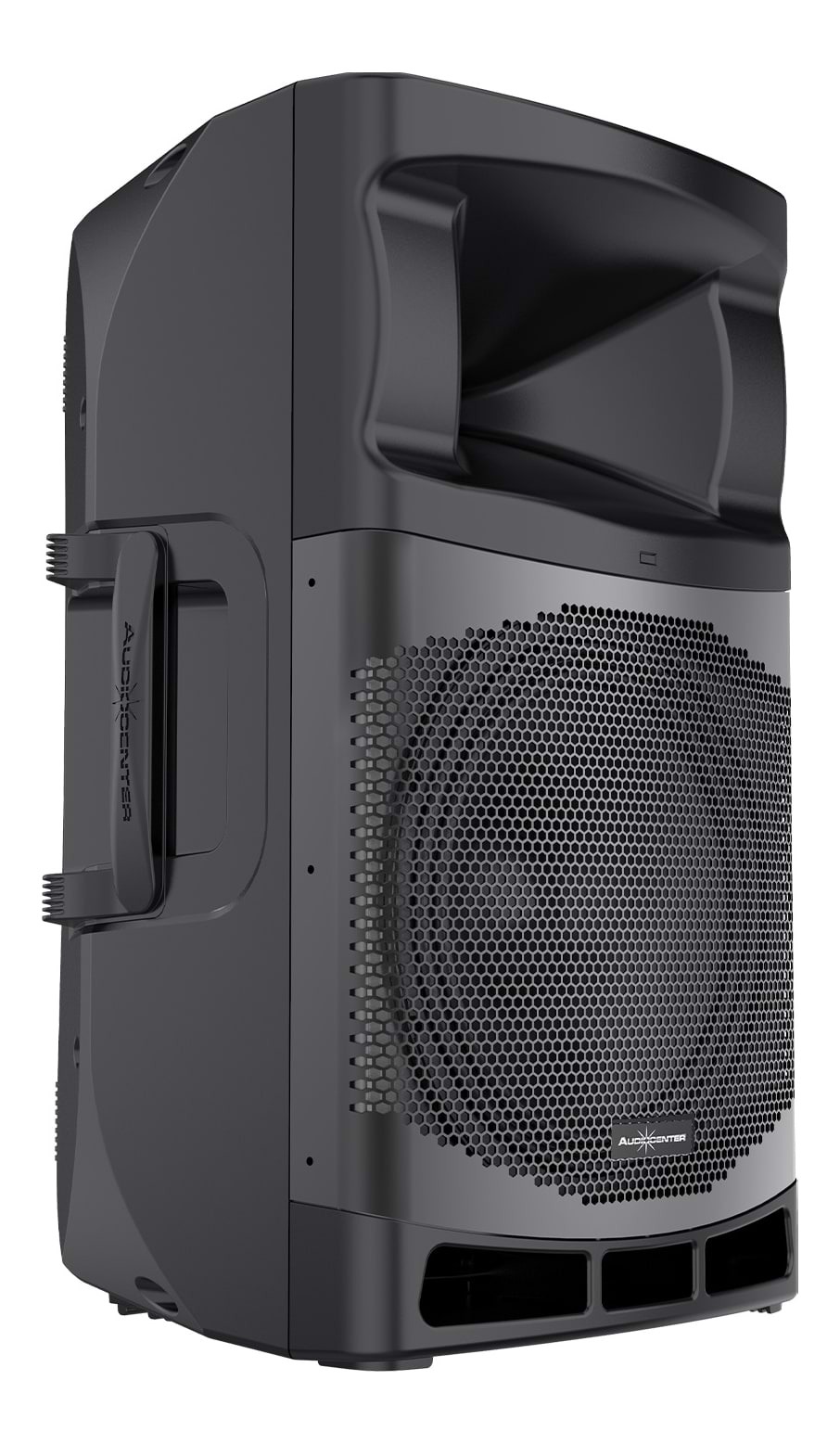

Audiocenter MA12 Active DSP-Controlled Full Range Speaker
Audiocenter’s first lightweight moulded active speaker, the MA12 features excellent sound, compact size, and stylish industrial design. Versatile and portable it can be widely used in various types of applications. DSP-controlled, 131dB, 1600W peak.
MA Series
The MA12 full range DSP-controlled 12" speaker is moulded, and made from a new polypropylene composite material, providing supreme performance. Audiocenter's BrainCore Technology provides the best sound quality by analysing and processing input signals, integrated Class D amplifier and DSP module optimally, improving the audio performance of the system significantly. This speaker has built-in Bluetooth to link with various smart devices easily. The MA12 can be used as PA speakers and stage monitors. There are multiple ways of mounting and installation, for example, pole mount with a three-feet stand, or hanging installations.
Audiocenter
Audiocenter are a global audio company specialising in the design and manufacturing of high performance power amplifiers and loudspeakers. The range of solutions includes everything from small PA systems with high SPL powered speakers, inbuilt EQ and mic preamps, to large scale line array systems for festivals and arenas. Audiocenter are committed to incorporate cutting edge design and technology into their products, including top shelf Class D amplification and advanced digital signal processors (DSP). Adhering to the principle of standing on the shoulders of giants, Audiocenter integrates top European R&D teams and top European speaker and electronic suppliers.
Features:
- Braincore technology analyses and processes the input signal, achieving excellent frequency response and high SPL levels
- Cabinet made from a new type of polypropylene composite material
- Excellent protection systems including short circuit, overheat, input overload, output overload, soft startup, overvoltage, and undervoltage protection
- Plug'n'Play user friendly controls
- Higher reliability for advanced cooling system
- High quality audio output from Class D amplifier
- Built-in Bluetooth
- Portable design, durable, easy to carry
Specifications:
| Type | Portable Active DSP-controlled Speaker |
| Frequency Response (-6dB) | 50Hz-20kHz |
| Maximum Calculated SPL/1M (Continuous/Peak) | 125dB/131dB |
| LF | Customised 12” driver, 2.5” voice coil |
| HF | Customised driver, 1.4” voice coil and 1.0”exit |
| Horizontal Coverage | 80° |
| Vertical Coverage | 50° |
| AMPLIFIER | |
| Amplifier Circuitry | Class D |
| Power (Peak) | 1600W |
| Frequency Response (1W 8Ω 2ch) | 20Hz-20kHz(±1dB) |
| Intermodulation Distortion | ＜0.05% |
| Total Harmonic Distortion | ＜0.05% |
| Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Cooling System | Air convection |
| DSP | |
| Processor | 96kHz signal sampling frequency, 24bit precision |
| Crossover | Controlled by DSP |

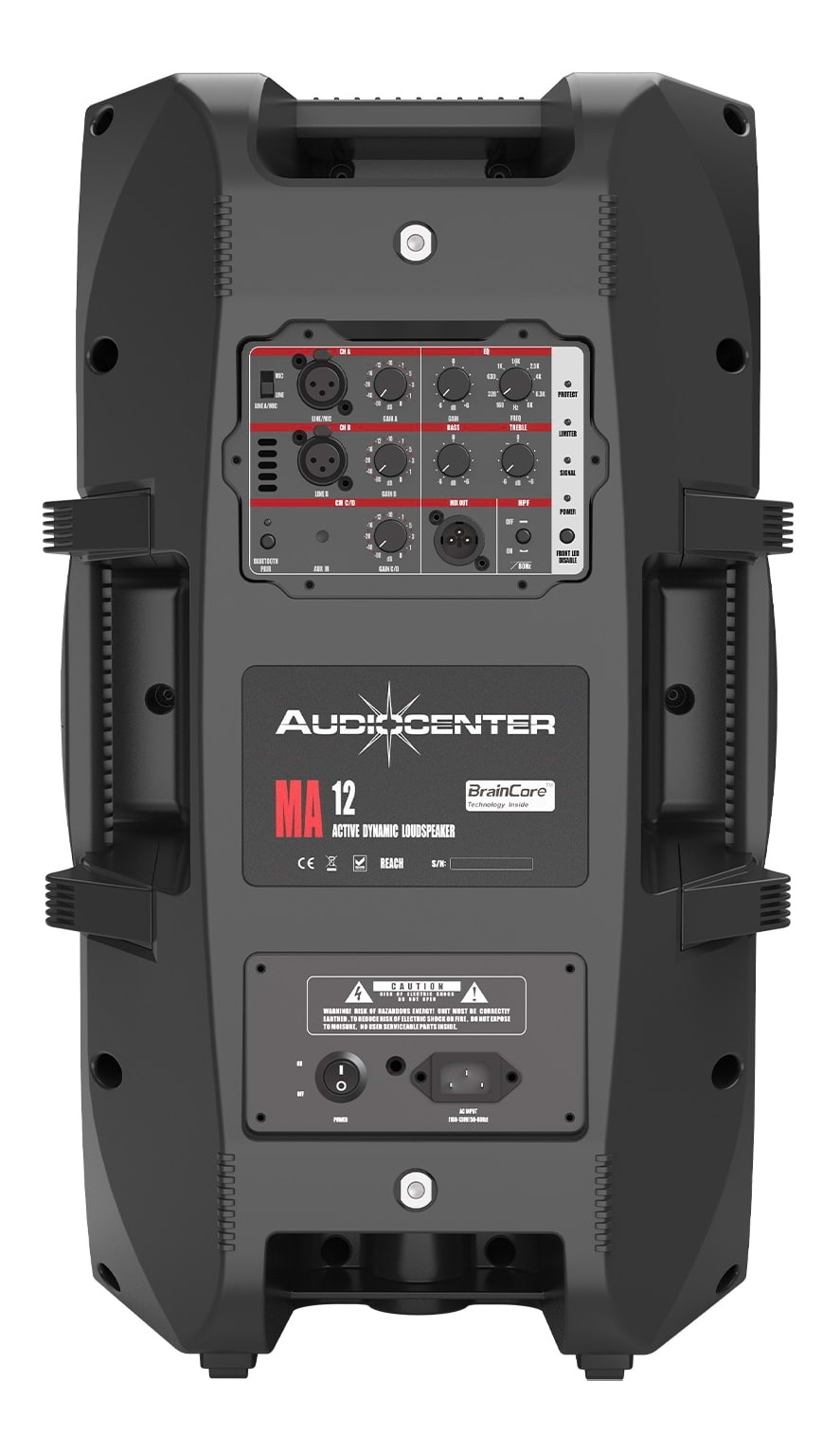

| Output/Input | |

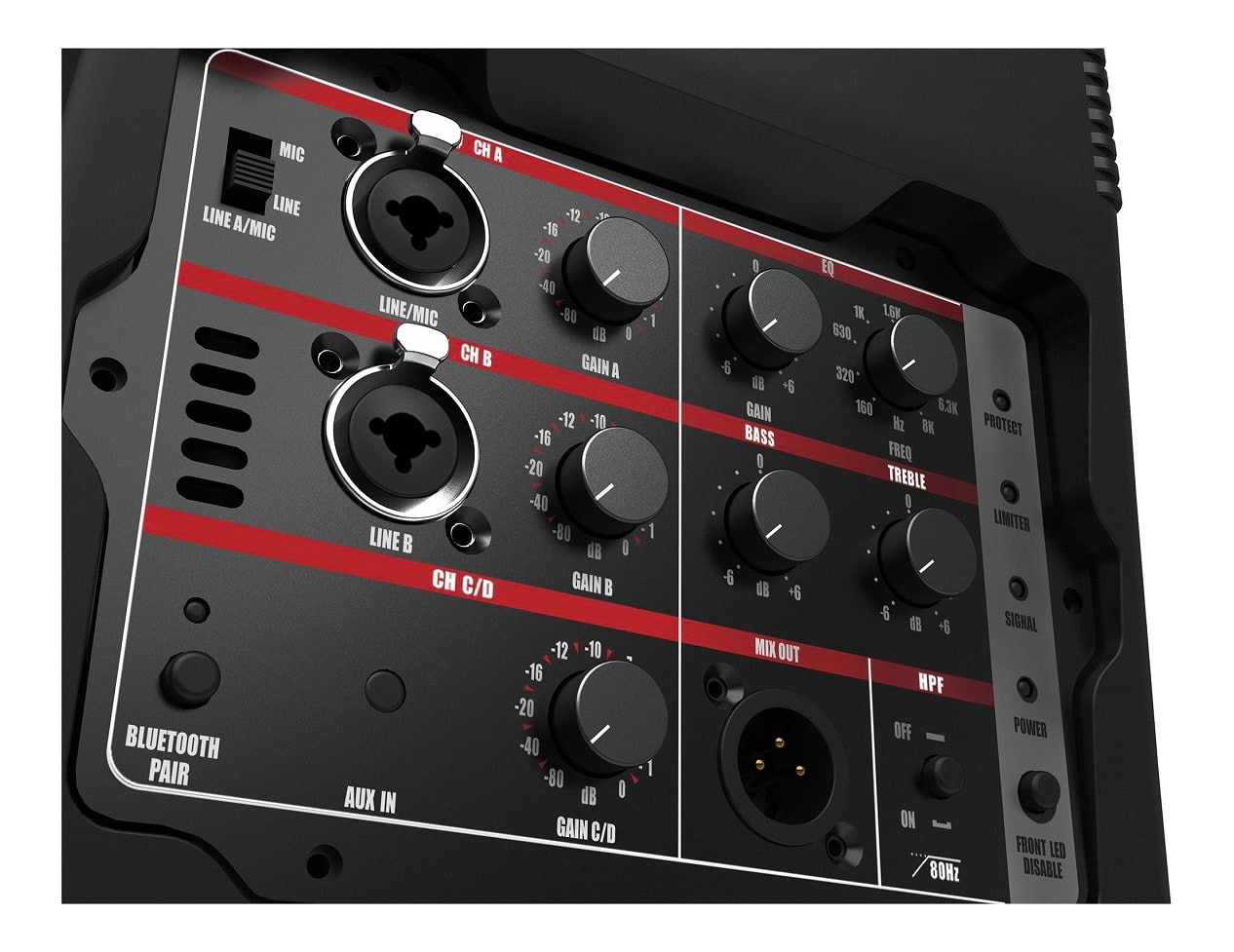

| Signal Input | 2×female XLR(Mono jack 6.35)、1×wireless bluetooth、1×Mini jack 3.5 |
| Signal Output | 1× male XLR |
| Power Input | IEC power connector |
| Working Voltage | 100-240V (±10%，50/60Hz） |
| CABINET | |
| Cabinet Material | New polypropylene composite material |

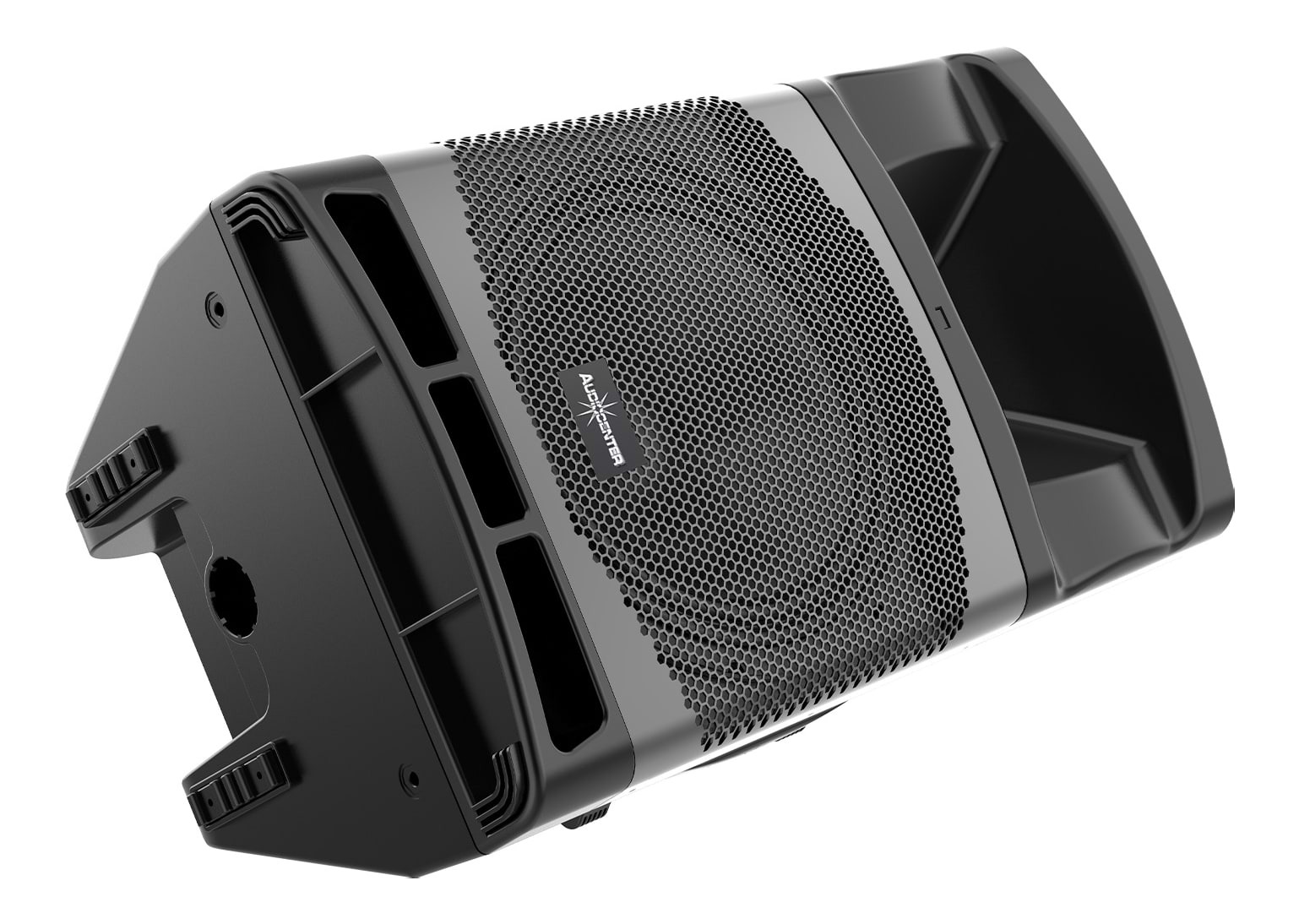

| Monitor Angle | Symmetrical 45° monitoring Angle |
| Pole Mount | Φ35mm |
| Dimension (W × H × D) | 345mm × 610mm × 352mm |
| Net Weight | 14kg |
