Designed for long term usage in professional situations, the Audiocenter GT510A is an active DSP-controlled 10" speaker, consisting of a high-quality wooden cabinet designed as a FOH or floor wedge, customised drivers, combo inputs, 130dB SPL, 2200W Peak.
| Loading... | ||||||

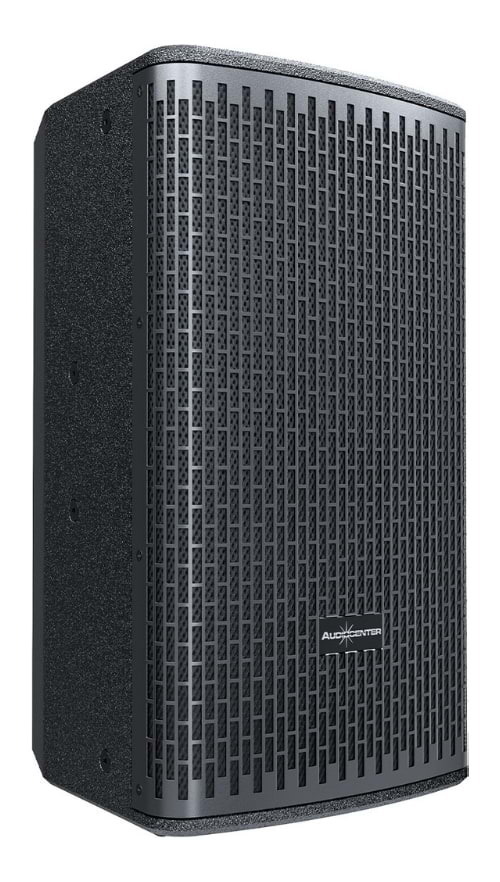

Audiocenter GT510A Active DSP-Controlled Full Range 10" Speaker
Designed for long term usage in professional situations, the Audiocenter GT510A is an active DSP-controlled 10" speaker, consisting of a high-quality wooden cabinet designed as a FOH or floor wedge, customised drivers, combo inputs, 130dB SPL, 2200W Peak.
GT Active Series
The GT Active series is Audiocenter's latest active speaker built with BrainCore innovative core application, technology researched and developed by Audiocenter with supreme performance and high reliability. The series is specially designed for fixed installation like club rooms, meeting room, lecture hall, exhibition center, house of worship and touring performance like party, road show, seminar, speech, etc.
Dual Channel

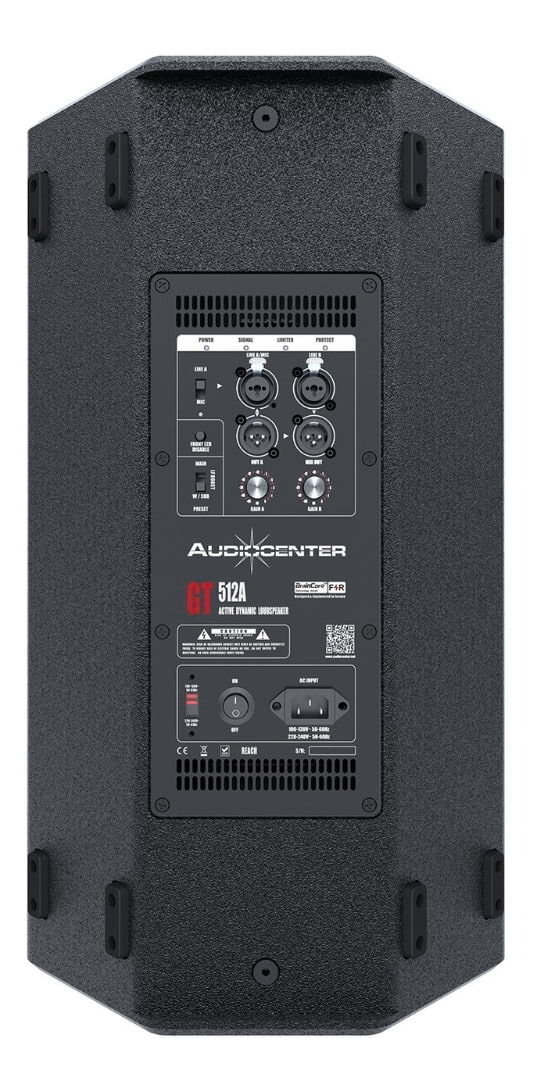

The GT510A speaker has two combo inputs (2-way XLR and Mono jack 6.35). The CH A input can be switched between line balanced input or microphone input. The two audio sources can be internally mixed and output as a balanced output, transmitting the signal to multiple speakers for easy system signal cascading distribution.
Solid Cabinet

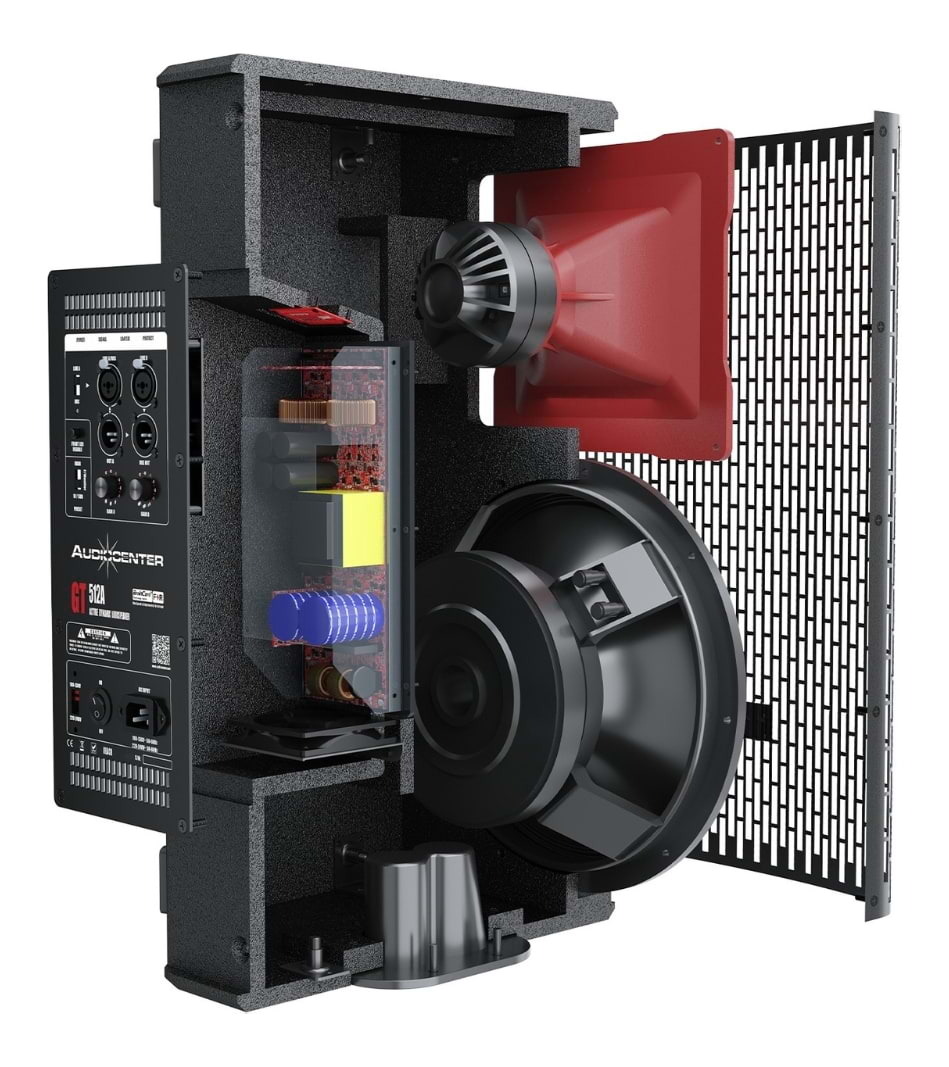

The solid, moisture-proof cabinet is made of high-quality wood with polyurea coating, with an innovative and compact multi-purpose symmetrical cabinet structure CNC machined body. This provides clear and powerful perfect sound quality. The base mounting holes are available in 0° or 10° options. According to different installation locations and methods, the cabinet can meet different sound reinforcement installation environments.
Audiocenter
Audiocenter are a global audio company specialising in the design and manufacturing of high performance power amplifiers and loudspeakers. The range of solutions includes everything from small PA systems with high SPL powered speakers, inbuilt EQ and mic preamps, to large scale line array systems for festivals and arenas. Audiocenter are committed to incorporate cutting edge design and technology into their products, including top shelf Class D amplification and advanced digital signal processors (DSP). Adhering to the principle of standing on the shoulders of giants, Audiocenter integrates top European R&D teams and top European speaker and electronic suppliers.
Features:
- Braincore technology analyses and processes the input signal, achieving excellent frequency response and high SPL levels
- Advanced digital FIR Filter technology for more defined attack and linear phase responses
- Higher reliability for advanced cooling system
- Excellent protection systems including short circuit, overheat, input overload, output overload, soft startup, overvoltage, and undervoltage protection
- DSP system with 3 presets

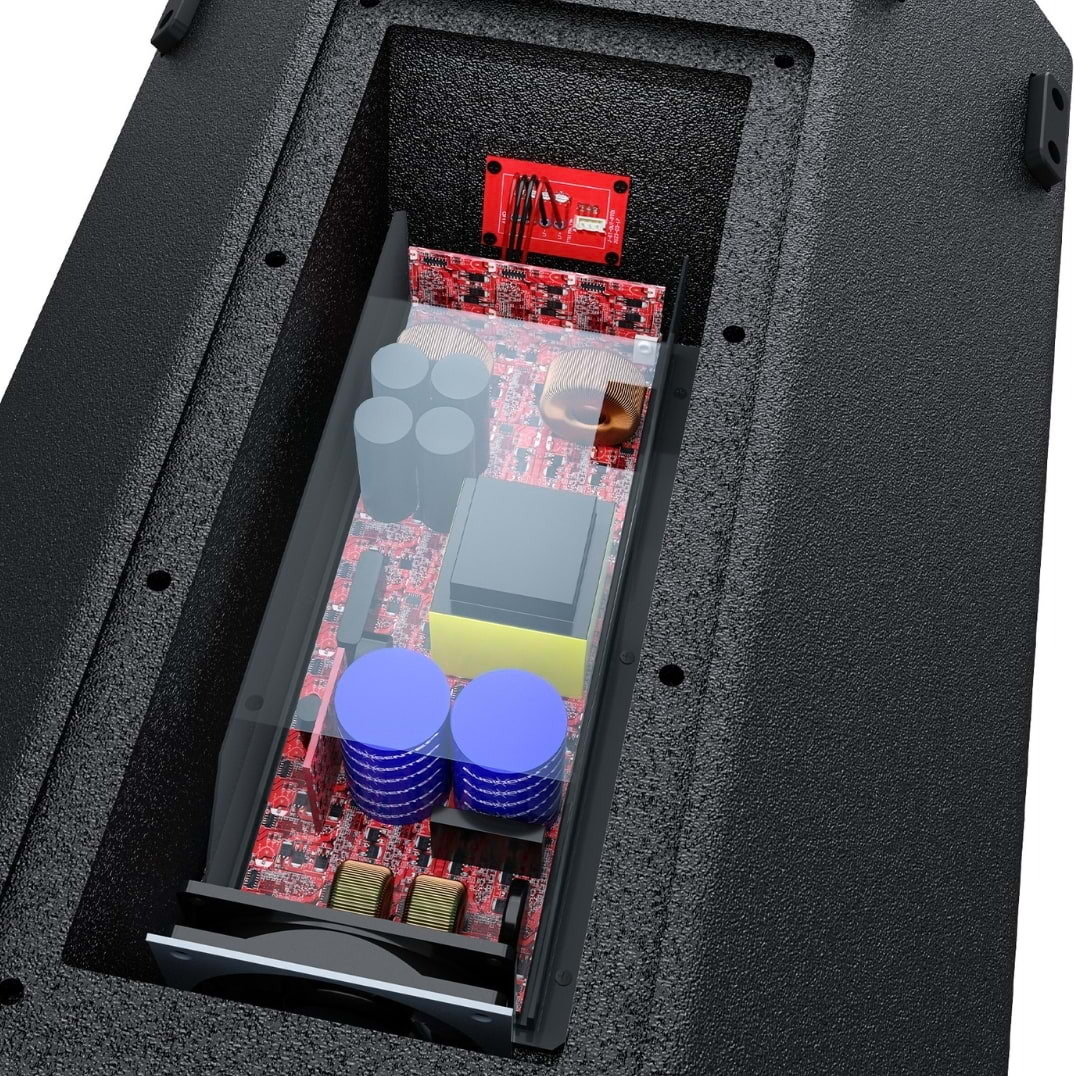

- High quality audio output from Class D amplifier
- Hybrid horn design with DMF composite materials
- Rotatable horn
- Latest driver technology
- Sleep mode if no signal for 45mins
- Double pole mount for 0° or 10° options
- Polyurea coating
Specifications:
| Type | Active DSP-controlled full range loudspeaker |
| Frequency Response(-6dB) | 45Hz-20kHz |
| Maximum Calculated SPL/1M (Continuous/Peak) | 128dB/134dB |
| LF | Customised 12” driver, 3.0” voice coil |
| HF | Customised driver, 1.75” voice coil and 1.0”exit |
| Horizontal Coverage | 90°/60° |
| Vertical Coverage | 60°/90° |
| AMPLIFIER | |
| Amplifier Circuitry | Class D |
| Power (Peak) | 2200W |
| Frequency Response (1W 8Ω 2ch) | 20Hz-20kHz(±0.5dB) |
| Intermodulation Distortion | ＜0.05% |
| Total Harmonic Distortion | ＜0.05% |
| Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Cooling System | Cooling with fans, air convection |
| DSP | |
| Processor | 48kHz signal sampling frequency, FIR filtering |
| Presets | MAIN, LF BOOST, W/SUB |
| Output/Input | |
| Signal Input | 2× female XLR, Mono jack 6.35 |
| Signal Output | 2× male XLR |
| Power Input | IEC power connector |
| Working Voltage | 100V~130V or 220V~240V(±10%,50/60Hz) |
| Power consumption (1/8 output power) | 95W |
| CABINET | |
| Cabinet Material | CNC machined plywood |
| Monitor Angle | Symmetrical 45° monitoring Angle |
| Hanging Hardwares | M8 screw |
| Pole Mount | Base hole Φ35mm, 0° or 10° options |
| Optional accessories | U bracket |
| Cabinet Color | Black is the default color. Contact Audiocenter for customization |
| Dimension (W×H×D) | 355mm × 599mm × 349mm |
| Net Weight | 21kg |
