Audiocenter GT508A Active DSP-Controlled Full Range 8" Speaker

Audiocenter

Audiocenter GT508A Active DSP-Controlled Full Range 8" Speaker

$749.99
  In Stock
or interest free for up to 6 months with
-
+

Designed for long term usage in professional situations, the Audiocenter GT508A is an active DSP-controlled 8" speaker, consisting of a high-quality wooden cabinet designed as a FOH or floor wedge, customised drivers, combo inputs, 125dB SPL, 2200W Peak.




Dispatch

Audiocenter GT508A Active DSP-Controlled Full Range 8" Speaker
Designed for long term usage in professional situations, the Audiocenter GT508A is an active DSP-controlled 8" speaker, consisting of a high-quality wooden cabinet designed as a FOH or floor wedge, customised drivers, combo inputs, 125dB SPL, 2200W Peak.

GT Active Series
The GT Active series is Audiocenter's latest active speaker built with BrainCore innovative core application, technology researched and developed by Audiocenter with supreme performance and high reliability. The series is specially designed for fixed installation like club rooms, meeting room, lecture hall, exhibition center, house of worship and touring performance like party, road show, seminar, speech, etc.

Dual Channel
The GT508A speaker has two combo inputs (2-way XLR and Mono jack 6.35). The CH A input can be switched between line balanced input or microphone input. The two audio sources can be internally mixed and output as a balanced output, transmitting the signal to multiple speakers for easy system signal cascading distribution.

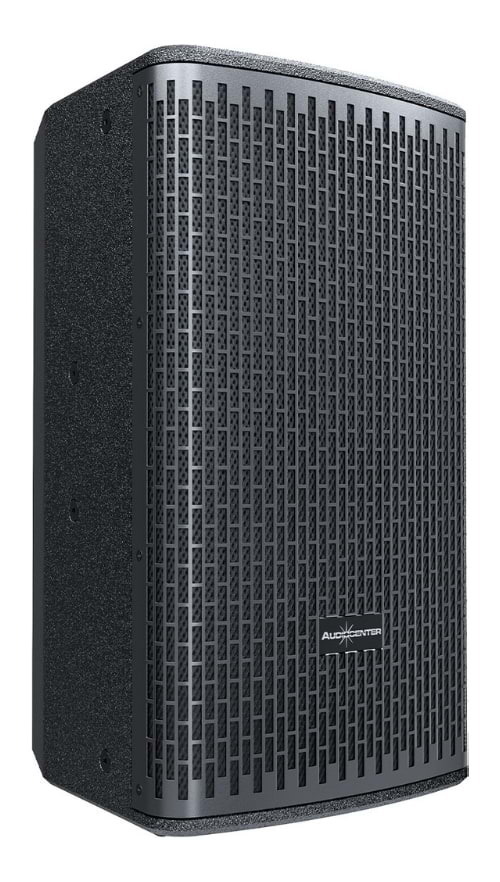

Solid Cabinet
The solid, moisture-proof cabinet is made of high-quality wood with polyurea coating, with an innovative and compact multi-purpose symmetrical cabinet structure CNC machined body. This provides clear and powerful perfect sound quality. The base mounting holes are available in 0° or 10° options. According to different installation locations and methods, the cabinet can meet different sound reinforcement installation environments.

Audiocenter
Audiocenter are a global audio company specialising in the design and manufacturing of high performance power amplifiers and loudspeakers. The range of solutions includes everything from small PA systems with high SPL powered speakers, inbuilt EQ and mic preamps, to large scale line array systems for festivals and arenas. Audiocenter are committed to incorporate cutting edge design and technology into their products, including top shelf Class D amplification and advanced digital signal processors (DSP). Adhering to the principle of standing on the shoulders of giants, Audiocenter integrates top European R&D teams and top European speaker and electronic suppliers.

Features:

  • Braincore technology analyses and processes the input signal, achieving excellent frequency response and high SPL levels
  • Advanced digital FIR Filter technology for more defined attack and linear phase responses
  • Higher reliability for advanced cooling system
  • Excellent protection systems including short circuit, overheat, input overload, output overload, soft startup, overvoltage, and undervoltage protection
  • DSP system with 3 presets
  • High quality audio output from Class D amplifier
  • Hybrid horn design with DMF composite materials
  • Rotatable horn
  • Latest driver technology
  • Sleep mode if no signal for 45mins
  • Double pole mount for 0° or 10° options
  • Polyurea coating

Specifications:

Type Active DSP-controlled full range loudspeaker
 Frequency Response(-6dB) 65Hz-20kHz
Maximum Calculated SPL/1M (Continuous/Peak) 119dB/125dB
LF Customised 8” driver, 2.0” voice coil
HF Customised driver, 1.75” voice coil and 1.0”exit
Horizontal Coverage 90°/60°
Vertical Coverage 60°/90°
AMPLIFIER
Amplifier Circuitry Class D
Power (RMS standards) 1100W
Power (Peak) 2200W
Frequency Response (1W 8Ω 2ch) 20Hz-20kHz(±0.5dB)
Intermodulation Distortion <0.05%
Total Harmonic Distortion <0.05%
Protection DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Cooling System Cooling with fans, air convection
DSP
Processor 48kHz signal sampling frequency, FIR filtering
Presets MAIN, LF BOOST, W/SUB
Output/Input
Signal Input 2× female XLR, Mono jack 6.35
Signal Output  2× male XLR
Power Input IEC power connector
Working Voltage 100V~130V or 220V~240V(±10%,50/60Hz)
Power consumption (1/8 output power) 950W
CABINET
Cabinet Material CNC machined plywood
Monitor Angle Symmetrical 45° monitoring Angle
Hanging Hardwares M8 screw
Pole Mount Base hole Φ35mm, 0° or 10° options
Optional accessories U bracket
Cabinet Color Black is the default color. Contact Audiocenter for customization
Dimension (W×H×D) 245mm × 447mm × 320mm
Net Weight 13kg
View PDF brochure for Audiocenter GT508A Active DSP-Controlled Full Range 8" Speaker
