This Audiocenter L Series PA package consists of a pair of L83S active subwoofers and L83 passive column speakers, creating a quality compact DSP column system. Combined total of 5000W peak power, at an SPL of 131dB per side. Ideal compact PA for bands.
| Loading... | ||||||
Dual L83+L83S Active DSP Column PA System
This Audiocenter L Series PA package consists of a pair of L83S active subwoofers and L83 passive column speakers, creating a quality compact DSP column system. Combined total of 5000W peak power, at an SPL of 131dB per side. Ideal compact PA for bands.

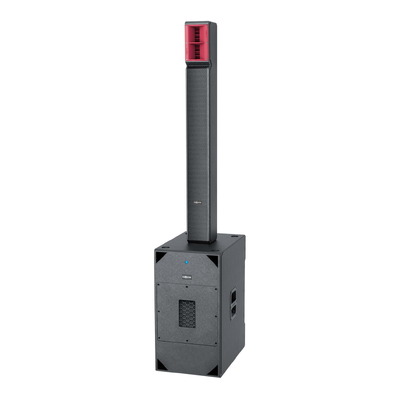

Compact Column System

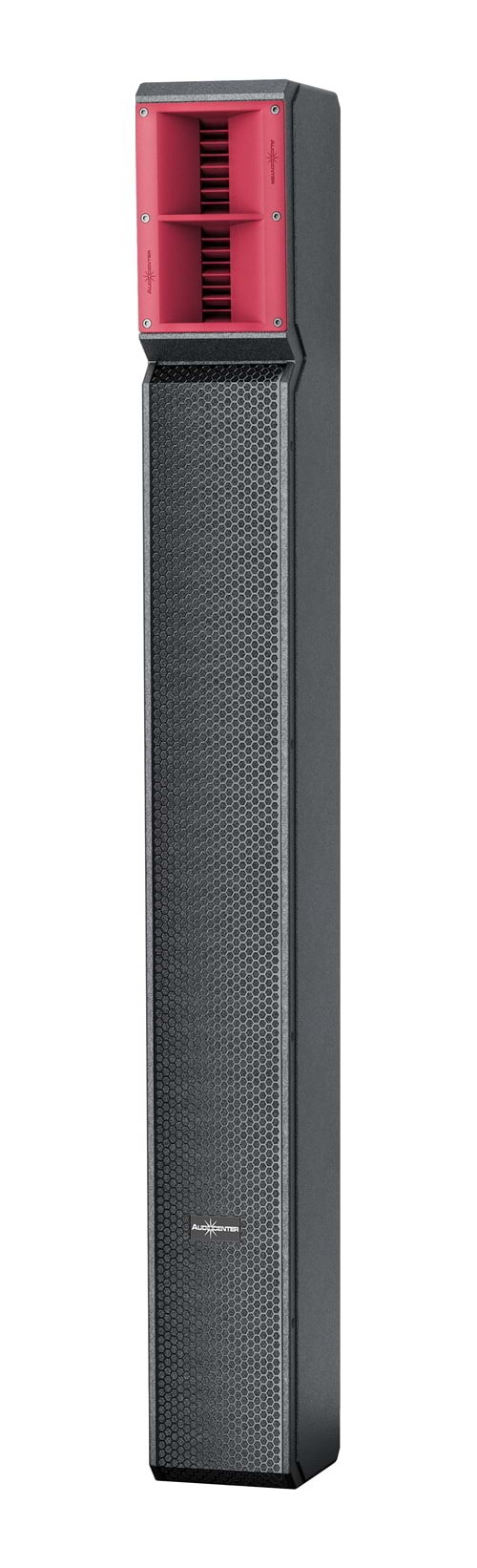

The Audiocenter L83 is a passive full range column speaker, which works perfectly with the active L83S subwoofer to create a high quality compact DSP column system. Patented technologies featured with BrainCore, ETE Waveguide, and Phycal technology. A powerful system, it suitable for fixed installation and touring performance of various types. The adjustable pole mount design offers a 0 degree and 10 degree mounting angle.
Powerful PA

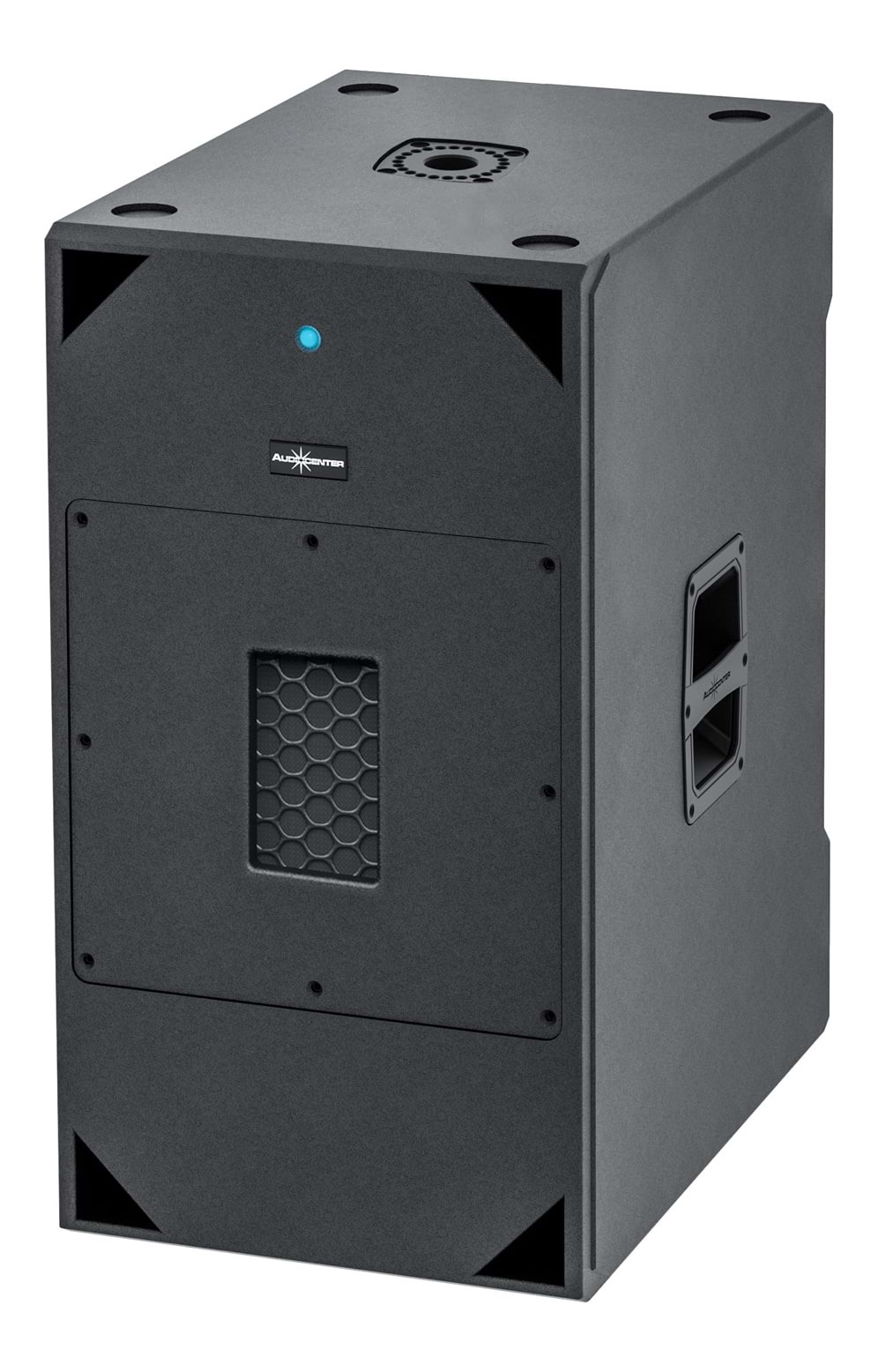

This Audiocenter L-Series PA is a pair of compact multi-purpose active DSP column systems consisting of a passive full-range column speaker L83 and an active DSP controlled dual 12" subwoofer L83S. The L83 contains 8 x 3” neodymium full-range drivers. The drivers in the L83 are arranged using Phycal technology to maximise the coverage of the vertical sonic beam. The drivers in the cabinet work as one integrative full range speaker system, which achieve excellent frequency responses and sound performance. The L83S is an active DSP controlled compact subwoofer with 2 x 12" customized Audiocenter ferrite drivers and a Class D amplifier module. This efficient system has built-in Bluetooth and multiple signal inputs. The combined speaker set has 2500W of peak power, with a maximum SPL of 131dB.
Easy Connections

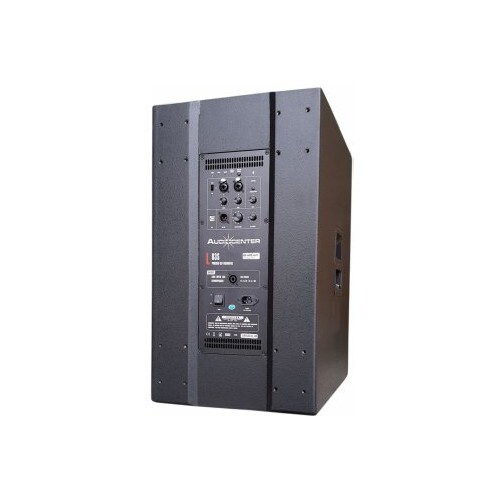

Utilising Neutrik panel mount connectors, there are two combo jack/XLR inputs with separate gain controls and a mic/line switch. An XLR mix out connects easily to the other powered subwoofer. There are separate master volume and sub volume controls. A USB port is available for utilising DSP software. Finally, bluetooth is available with a pairing button for ease of use.
Patented Technologies
With its advanced technology and scientific methodology, BrainCore analyses and processes the input signal, DSP module, Class D amplifier and loudspeaker optimally, achieving excellent frequency response and audio reproduction even at high levels of SPL. ETE technology calculates the perfect frequency response, providing the most accurate horizontal coverage, ensuring clear sonic signals. The Phycal (physical calibration) technology raises the coverage of the vertical acoustic sonic spectrum. These technologies were researched and developed by Audiocenter.
Specifications:
|
Type |
Active DSP-controlled Column Speaker System |
|
Frequency Response(-6dB anechoic chamber) |
42Hz-20KHz |
|
Maximum Calculated SPL/1M |
131dB |
|
Subwoofer |
Customized Audiocenter ferrite driver, 2pcs 12” driver |
|
Mid-high Driver |
Customized Audiocenter neodymium full-range driver, 8pcs 3” drivers |
|
Horizontal Coverage Angle(Symmetrical) |
100° |
|
Vertical Coverage Angle(Symmetrical) |
20° |
|
DSP |
|
|
Processor Crossover |
96KHz signal sampling frequency, 24bit precision controlled by DSP |
|
Class D amplifier |
|
|
Power |
2500W |
|
Frequency Response |
20Hz-20KHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Cooling System |
Fans + air convection |
|
Output/Input |
|
|
Signal Input |
2×Combo (NEUTRIK® female XLR & Mono jack 6.35), 1×Bluetooth |
|
Signal Output |
1×NEUTRIK® male XLR |
|
Amplifier Output Link L83 |
1×NEUTRIK® NL4MP |
|
Column input Link L83S |
1×NEUTRIK® NL4MP |
|
Power Input |
3 pin power socket |
|
Working Voltage |
100-130V/60Hz or 220-240V/50Hz |
|
Cabinet |
|
|
Cabinet Material |
CNC made of excellent wood |
|
L83 base bracket hole |
Φ35mm (0/10° adjustable) |
|
L83S base bracket hole |
M20 base Φ35mm |
|
Cabinet Color |
Black is standard and default color. Consult with Audiocenter sales team for other customized colors |
|
Dimension(W×H×D) |
|
|
L83 |
125×758×150mm |
|
L83S |
374x660x538mm |
|
Height for 1pc L83+1pc L83S+Pole |
1896mm |
|
Net Weight |
|
|
L83 |
5Kg |
|
L83S |
32Kg |
