Audiocenter T88D Audio Matrix Speaker System

Audiocenter

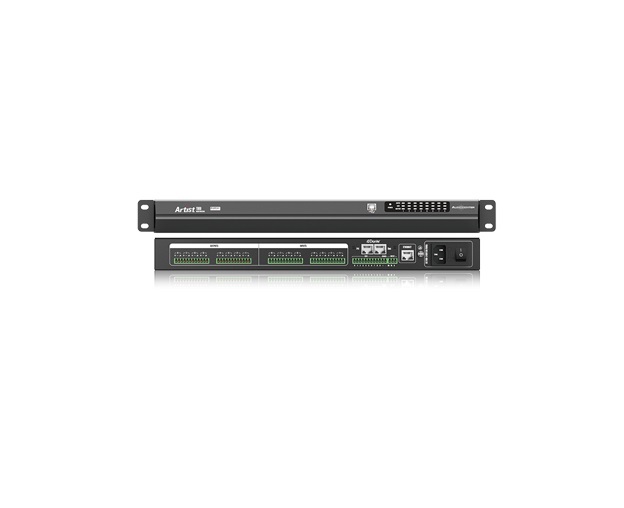

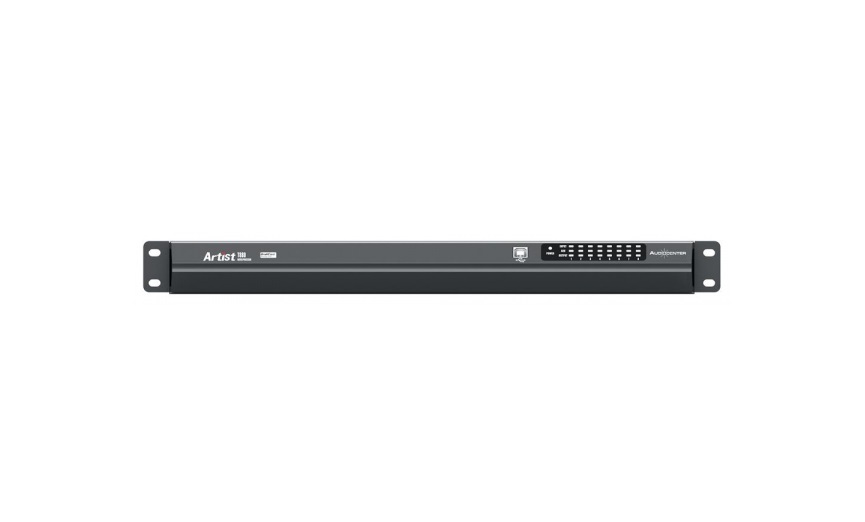

Audiocenter Artist T88D 8-In 8-Out Audio Matrix Speaker Management System

$1,749.99
  Sold Out
Found a better Price? Price match now
or interest free for up to 6 months with
Contact us for an ETA

The Audiocenter Artist T88D is a powerful audio matrix that supports 8 analog audio inputs and 8 analog audio outputs. It also supports 4 x 4 Dante network audio input and output. Multiple options of inputs and outputs provide you with upmost flexibility.




Dispatch

Audiocenter Artist T88D 8-In 8-Out Audio Matrix Speaker Management System
The Audiocenter Artist T88D is a powerful audio matrix that supports 8 analog audio inputs and 8 analog audio outputs. It also supports 4 x 4 Dante network audio input and output. Multiple options of inputs and outputs provide you with upmost flexibility.

Highly Effecient
The Artist T88D adopts a high-performance 24-bit AD/DA converter with a 32-bit floating-point arithmetic chip to deliver premium sound performance. This matrix offers eight analog inputs and eight analog outputs. The input channels each have a high-quality microphone preamplifier, which can also be configured for line input level. Other functions of this 8 x 8 matrix include AFC, auto mixing, matrix mixing, equalizer, crossover and a limiter function. A USB port is available on the front of the device for communication with a PC and the appropriate configuration software.

Braincore Net Software
Through the Windows system computer software BrainCore Net software, you can remotely control all devices in the local area network and efficiently control all parameters of the processor. It can be linked with a laptop by USB port, and with RS-232, RS-485, or TCP/IP protocol for third-party control. All functions can be configured through the computer software of the Windows system, and can be controlled via wall panel or the mobile phone app (Android). Cameras can be connected and controlled by sound. A password can be set for protection. Through the joint debugging function, multiple devices of the same model can be debugged simultaneously. Through the scene preset function, users can directly use the wall panel or intelligent central control to achieve scene recall, volume adjustment and other functions.

Audiocenter Artist Series
The Artist Series from Audiocenter has been created to provide a complete audio solution to a wide range of both touring and fixed applications. It comprises of speakers and line arrays along with a subwoofer, audio matrix and multichannel digital amplifier.

Features:

  • 24-bit AD / DA conversion, 96KHz sampling rate, 10Hz ~ 28KHz bandwidth and 116dB above dynamic range
  • 8 analog audio inputs, 8 analog audio outputs, the Artist T88D supports 4 * 4 Dante network audio input and output
  • Includes both micro input and line input, plus 48V Phantom power supply
  • Built-in camera tracking function to control the camera with sound
  • GPIO programming connector
  • Integrated functions of AFC, auto mixing, matrix mixing, equalizer, crossover, and limiter by DSP for clear sound
  • Artist T88D works smoothly with Artist speakers and amps. Users can recall various installation packages and applications from the wall panel to quickly build a complete commercial sound system. Password can be set to protect the system
  • Automatic connection software without USB port, open RS-232, RS-485 protocol for third-party control, support TCP / IP remote control
  • All functions can be configured through Windows system. Artist T88D supports debugging for a variety of devices and remote controls

Specifications:

Type: Professional 8 x 8 audio matrix
Processor: 32-bit floating point arithmetic chip
AD / DA converter: 24-bit

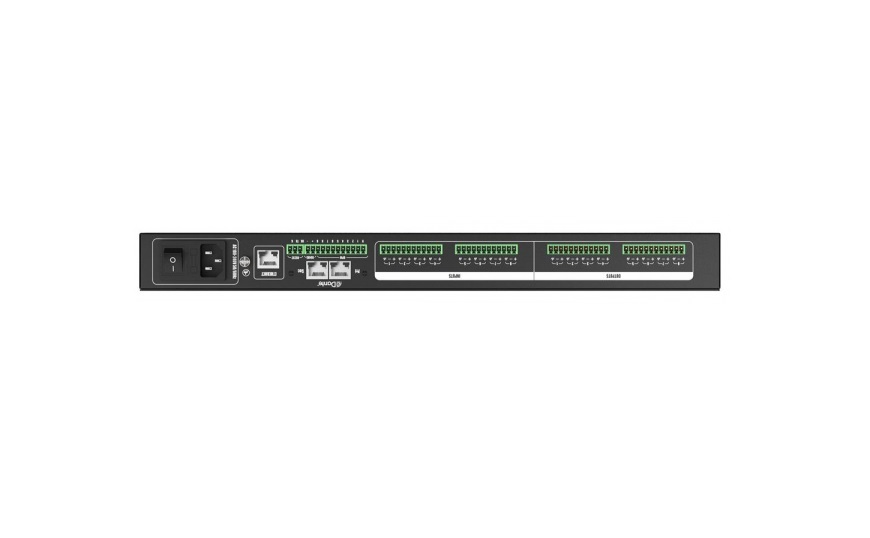

Audio inputs: 8 x analog inputs via Phoenix, 3-pin, 4x Dante In
Audio outputs: 8 x analog outputs via Phoenix, 3-pin, 4x Dante Out
Other connections: USB port on the front, RS232, RS485, Dante interface and TCP / IP for control via third party controller, GPIOs (8 x)
Functional scope: built-in functions such as AFC, auto mixing, matrix mixing, equalizer, crossover and DSP limiter
Dimensions (WxHxD): 19 '' / 1U (488 x 44 x 248 mm)
Weight: 3.5 kg
Colour: black
Scope of delivery: Audiocenter Artist T88D, Phoenix clamps, power cord, USB-AB cable, instruction manual
Specialty: controllable via external in-wall control modules or via a smart phone APP (Android), programmable via PC software (Windows)
View PDF brochure for Audiocenter Artist T88D 8-In 8-Out Audio Matrix Speaker Management System
