ART TubeMix 5-Channel Mixer 12AX7 Tube with USB

ART

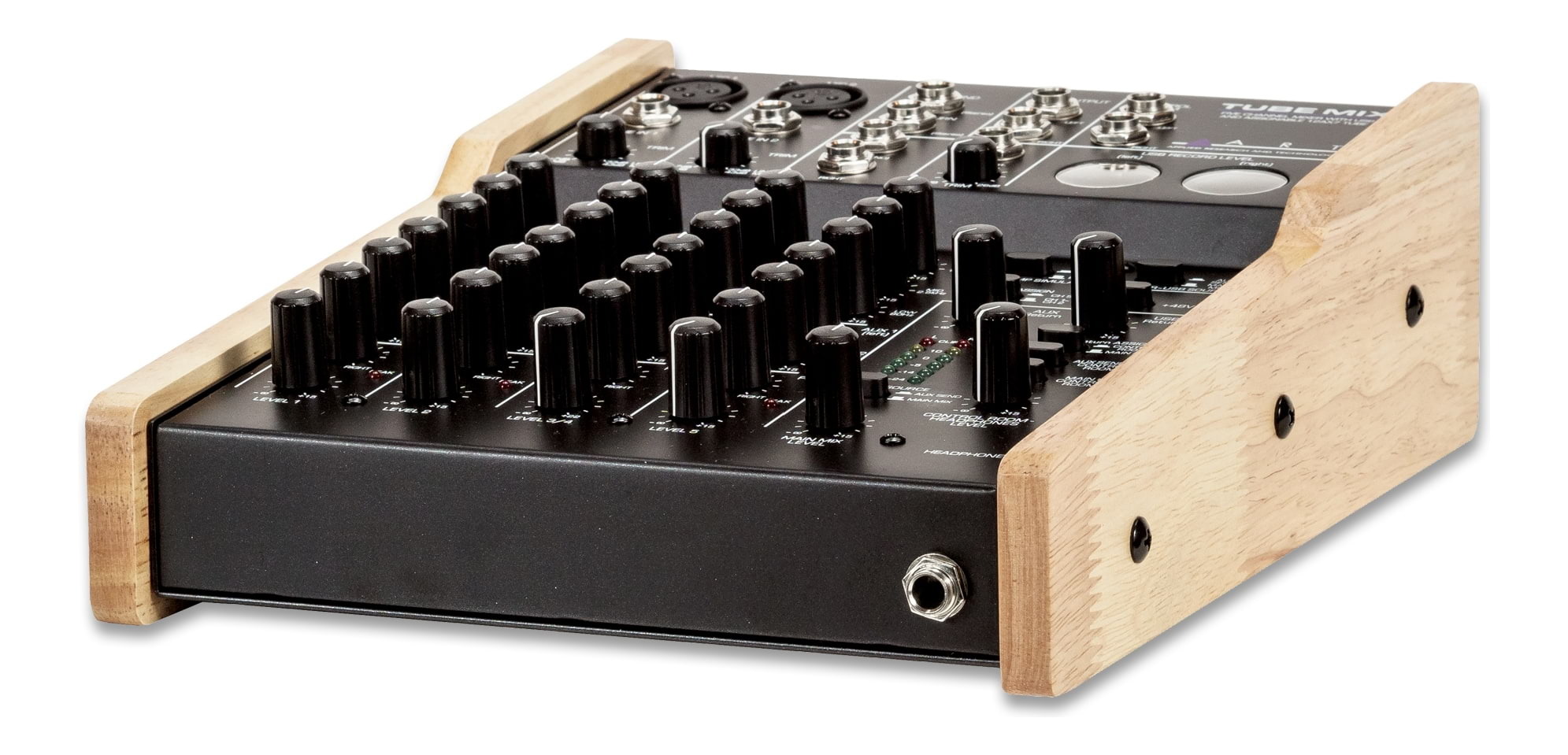

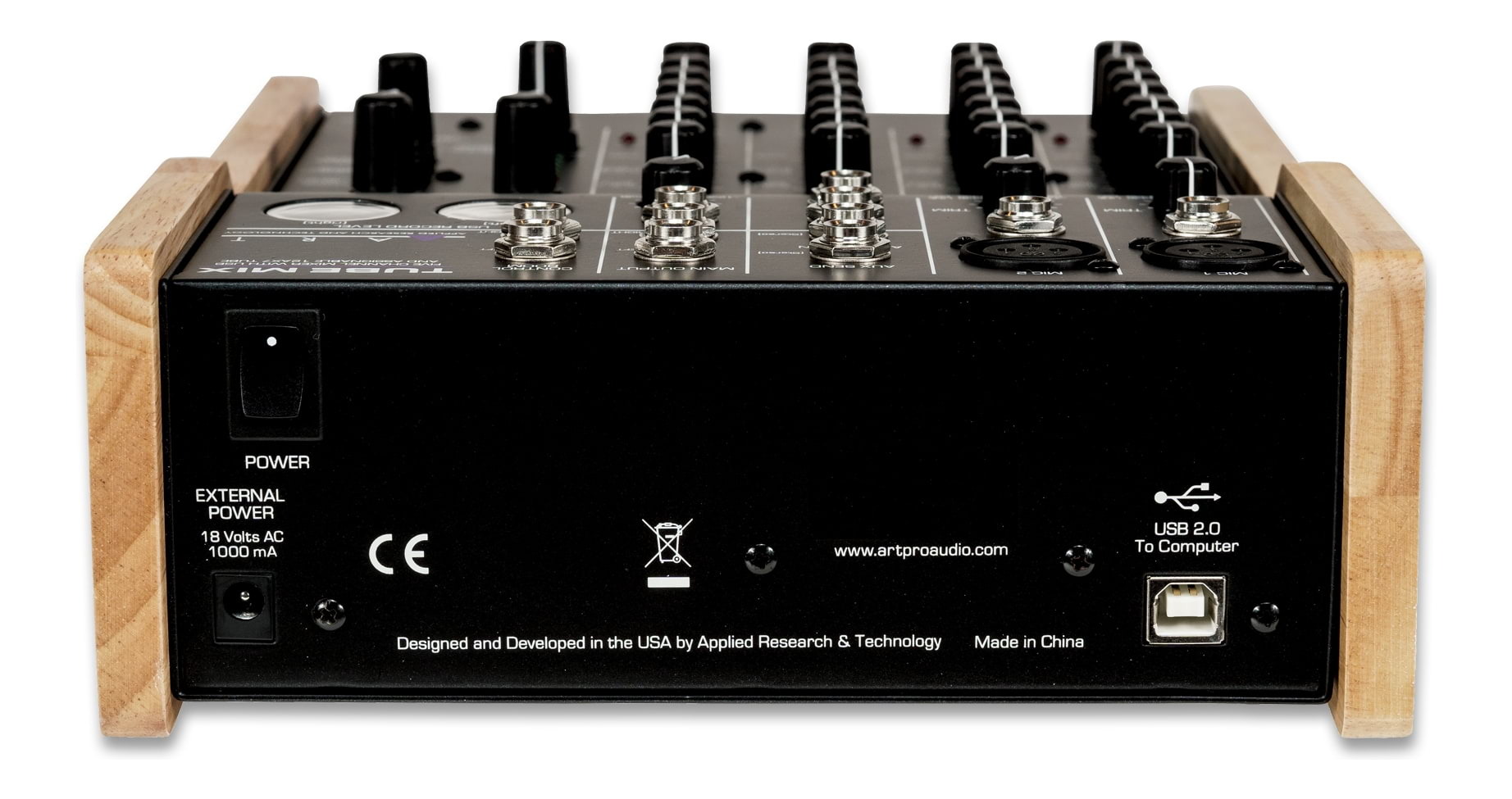

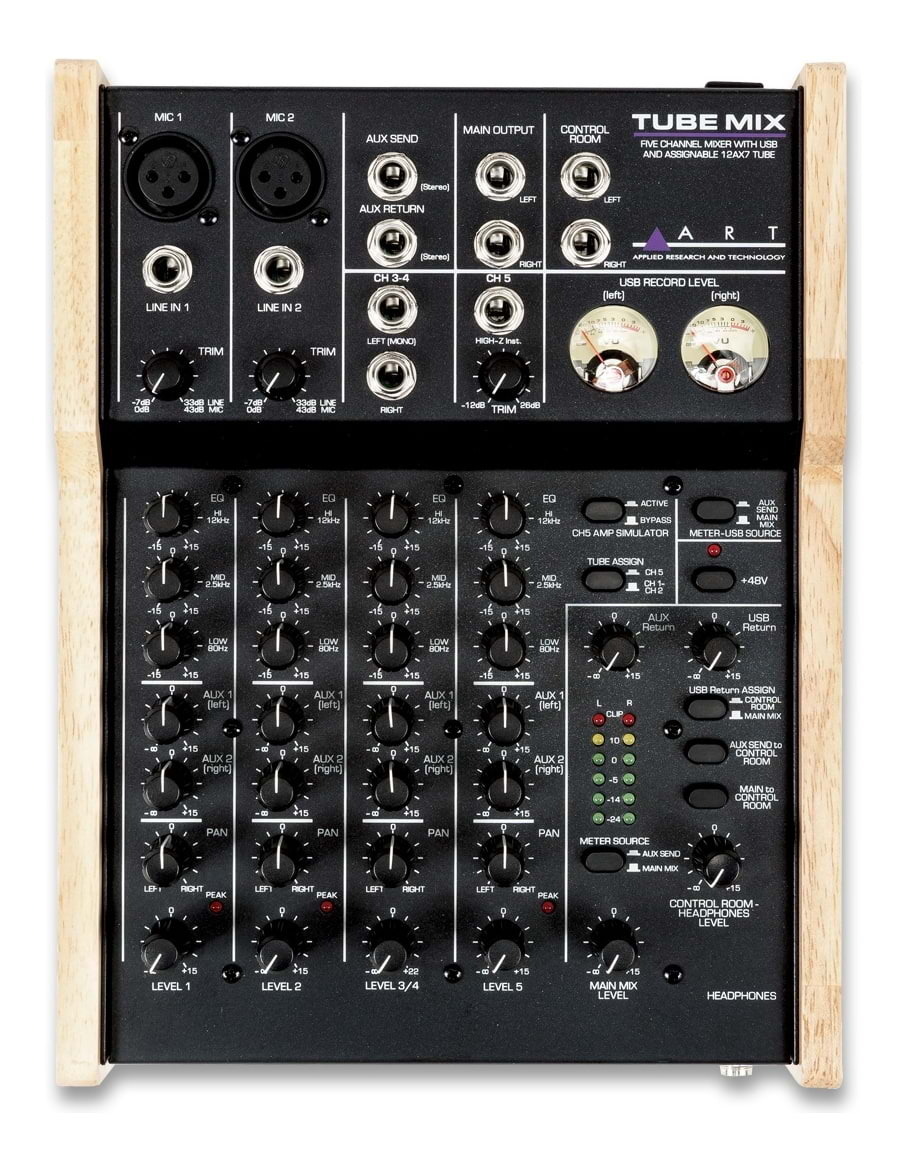

ART TubeMix 5-Channel Mixer with USB and Assignable 12AX7 Tube

$616.54
$648.99
  In Stock

We're currently matching a competitors price!

Found a better Price? Price match now
or interest free for up to 6 months with
RRP $919.99
SAVE 5%
Sale Ends:
-
+

The ART Tube Mix is a great solution as an audio interface or a live mixer. 5-input mixer with two mic inputs, a Hi-Z instrument input, and two line inputs. The 12AX7 Tube can be assigned to act as a dual channel tube mic preamp, or stacked. 3-Band EQ

Dispatch

ART TubeMix 5-Channel Mixer with USB and Assignable 12AX7 Tube
The ART Tube Mix is a great solution as an audio interface or a live mixer. 5-input mixer with two mic inputs, a Hi-Z instrument input, and two line inputs. The 12AX7  Tube can be assigned to act as a dual channel tube mic preamp, or stacked. 3-Band EQ

TubeMix Applications
All input channels are fully featured with 3-band EQ, two aux sends, pan and level controls. The built-in 12AX7 vacuum tube is ready to  add harmonic richness to either mic or instrument inputs. Select inputs include input trim control and clip indicators for optimum level setting. High impedance instrument input has an amp simulation function. Versatile output section allows separate stereo monitor mix on the main buss while recording the via aux buss, or vice versa if required. Flexible Control Room/Headphone section allows routing to monitor the main mix, USB input and aux sends for maximum flexibility. Authentic VU meters and wood side panels add to the great vintage look and feel of the USB TubeMix.

Features:

  • Fully Featured Tube Driven Five Channel Stereo USB Mixer
  • Two Wide Dynamic Range Low Noise Mic Preamp Channels
  • Dedicated High Impedance Instrument Input with Amp Simulator
  • Integrated 12AX7 Tube can be Applied to Either Microphone or Instrument Inputs
  • Switchable Low Noise +48V Phantom Power for Condenser Microphones
  • Precise VU Meters and Wide Range LED Meters with Selectable Source
  • Fully Featured Input Channels
  • Flexible Control Room / Monitor Section
  • USB 2.0 compliant. No special drivers needed with most modern versions of Windows, Mac OS, and Linux

Specifications:

Input Impedance  Microphone: 3.5k Ω
Line (CH1, CH2, CH3/4), 10k Ω
CH5 (Inst.), 1M Ω
Output Impedance Main, Control Room (Balanced/Unbalanced), 150/100Ω
AUX Outputs, 150 Ω
Headphones, 100 Ω
Frequency Response 20-100kHz + 1dB
Maximum Input Level Level    CH1, CH2 (Mic), +9dBu
CH1 CH2 (Line In), +20dBu
CH3/4 (EQ Flat), +20dBu
CH5 (EQ Flat), +16dBu
AUX Return, +24dBu
Maximum Output Level Main, Control Room (Balanced, Unbalanced), +20dBu/+17dBu
Aux Send, +20dBu
Headphones, 100mW / Ch @ 300 Ω, 50mW /Ch @32 Ω
Maximum Gain LINE IN to Main output (balanced), +63dB
CH 5 to Main output (balanced), 56dB
CH3/4 to Main output (balanced), +30dB
Equivalent Input Noise Microphone (@max gain), 127dBu “C”wtd.
Line (@max gain), -105dBu “C” wtd.
Instrument (@ max gain), -112dBu “C” wtd.
USB Computer Interface USB class compliant plug-and-play Mac and PC interface
A/D, D/A 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
Phantom Power Switch selectable, +48V DC, filtered, current limited
Power Requirements 18 VAC, 1000mA
Dimensions 3.3″H x 7.8″W x 10.4″D (84mm x 198mm x 265mm)
Weight 5.5 lbs (2.5 kg)
Note 0 dBu = 0.775Vrms
View PDF brochure for ART TubeMix 5-Channel Mixer with USB and Assignable 12AX7 Tube
