AC-PRO-DI4
The Alctron PRO DI4 is a professional 4-channel passive DI Box / direct injection box for stage and studio applications. It provides impedance and signal matching for the direct connection of instruments to mixers. Single 1U 19 rack mountable format.
Loading... | ||||||

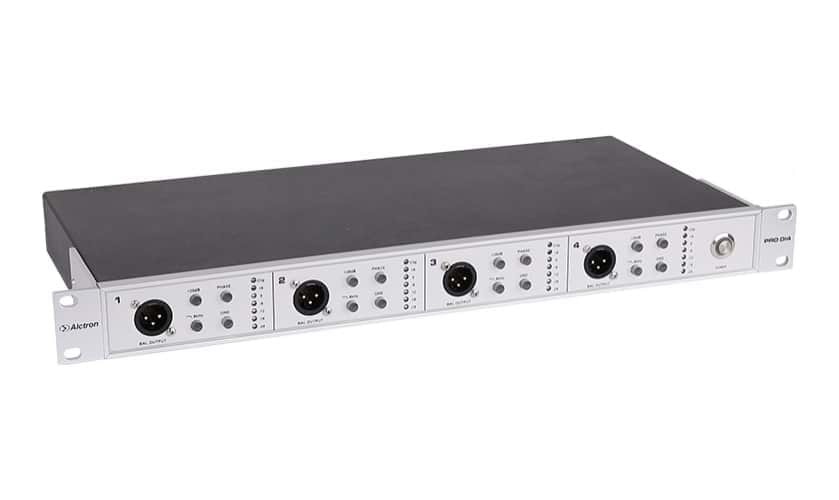

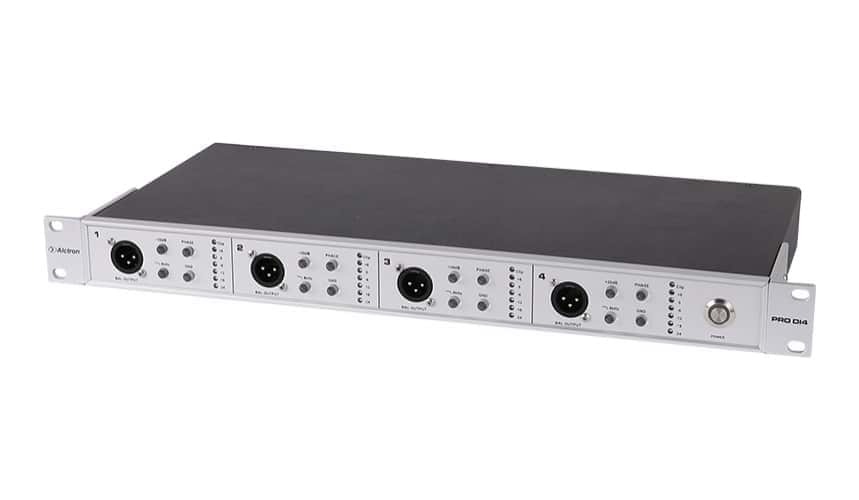

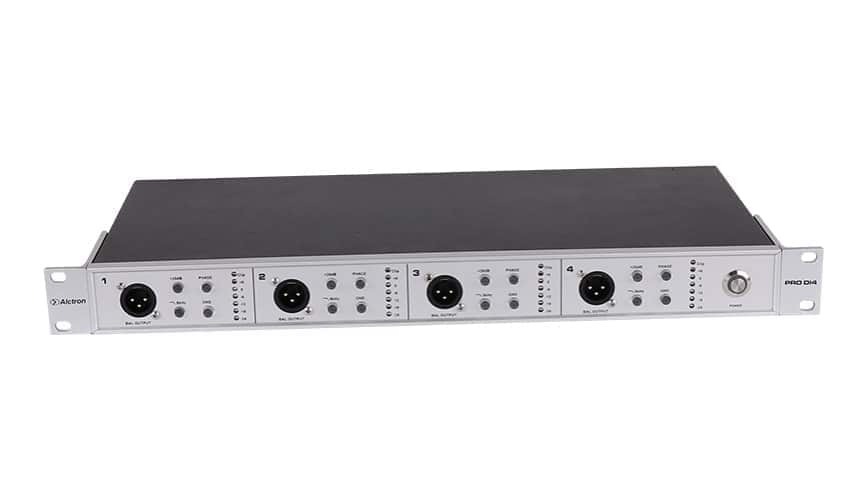

Alctron PRO DI4 4-Channel Direct Injection Box
The Alctron PRO DI4 is a professional and multi-purpose 4-channel passive direct injection box for stage and studio applications. It provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers. Single 1U rack format.
4 Channel Rackable DI Box

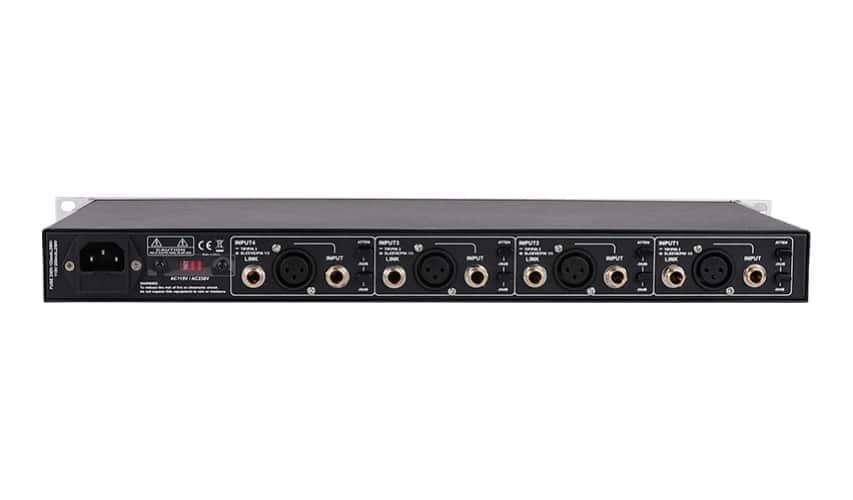

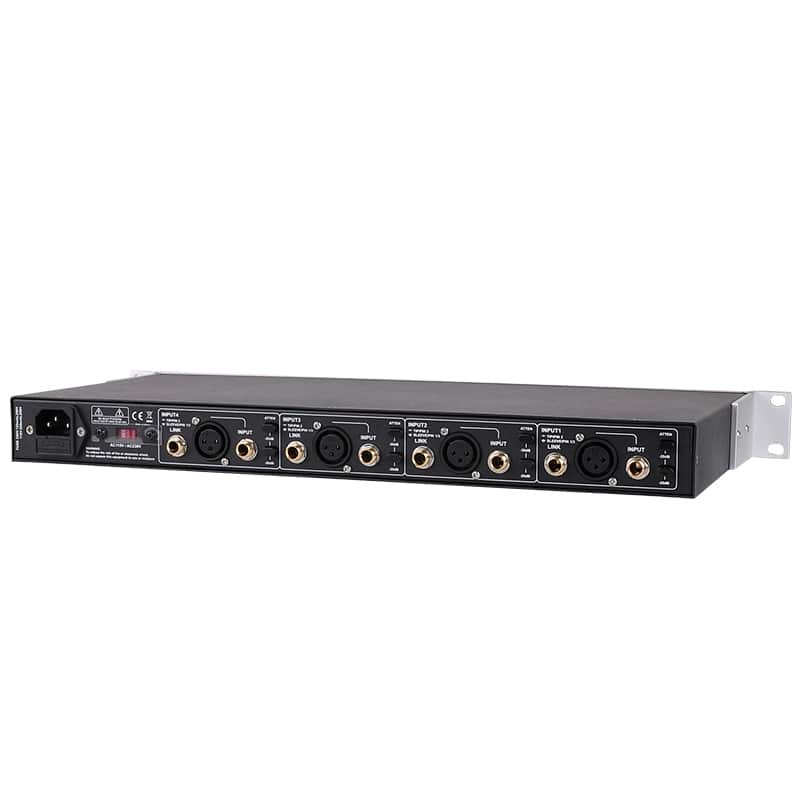

Each channel is equipped with two input options, XLR and 1/4’’ TRS, a balanced XLR output and a 1/4’’ link output to connect to your amp or monitor console. It provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers. The ground lift switch eliminates typical ground loop problems. The accurate 7-segment LED level meter provides precise measurements for optimum performance.
Features:
- Multi-purpose 4-channel passive direct injection box (4CH DI Box)
- Used in stage and studio application
- Provides impedance and signal matching
- Ground lift switch eliminates typical ground loop problems
- Accurate 7-segment LED level meter
Specifications:
Connector | XLR and 1/4’’ jack |
Type | Passive - DC-decoupled, unbalanced input |
Impedance | max 22kohm |
Max input level | +20/+40+60dbu |
Audio output | |
Connector | XLR |
Type | transformer-balanced output stage |
Impedance | 600ohm balanced |
Max output level | +20dbu |
System specifications | |
Bandwidth(100k ohm) | 23hz-120khz(±3db) |
Bandwidth(600 ohm) | 23hz-27khz(±3db) |
Bandwidth(high cut) | 10hz-8khz(±3db) |
Noise | -95dbu |
Power supply | |
USA/Canada | 120V, 60Hz |
U.K/Australia | 240V, 50Hz |
Europe | 230V, 50Hz |
Fuse | 100-120V T200mA H/200-240V T100mAH |
Mains connection | standard IEC receptacle |
Physical Dimension | 482mm x 207mm x 44mm |
