Alctron HP400V2 4-Channel Headphone Amplifier

Alctron

Alctron HP400V2 4-Channel Headphone Amplifier

$219.99
  In Stock
or interest free for up to 6 months with
-
+

The Alctron HP400V2 is a professional headphone amplifier, designed for 12 users through 4 channels. Features 7-digit LEDs, L mute/R mute knob, treble and bass frequency EQ, output level control and balance. 1U rack. Great for schools, labs, training.



Dispatch

Alctron HP400V2 12-Channel Headphone Amplifier
The Alctron HP400V2 is a professional headphone amplifier, designed for 12 users through 4 channels. Features 7-digit LEDs, L mute/R mute knob, treble and bass frequency EQ, output level control and balance. 1U rack. Great for schools, labs, training centres.

12 User Headphone Station

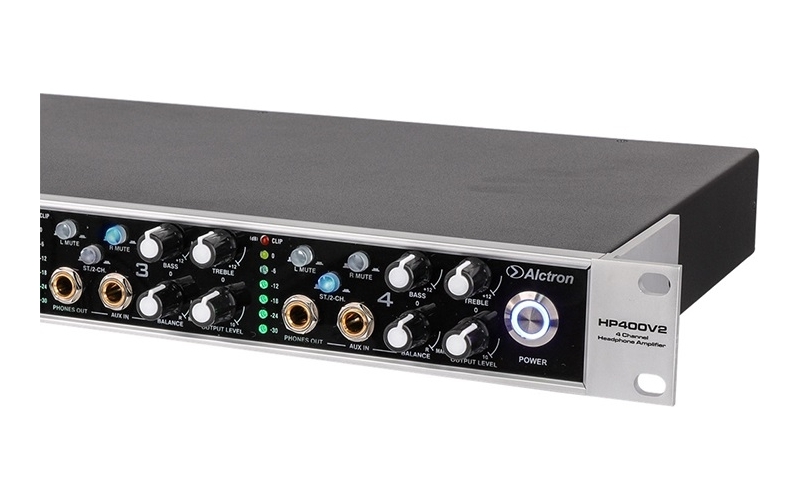

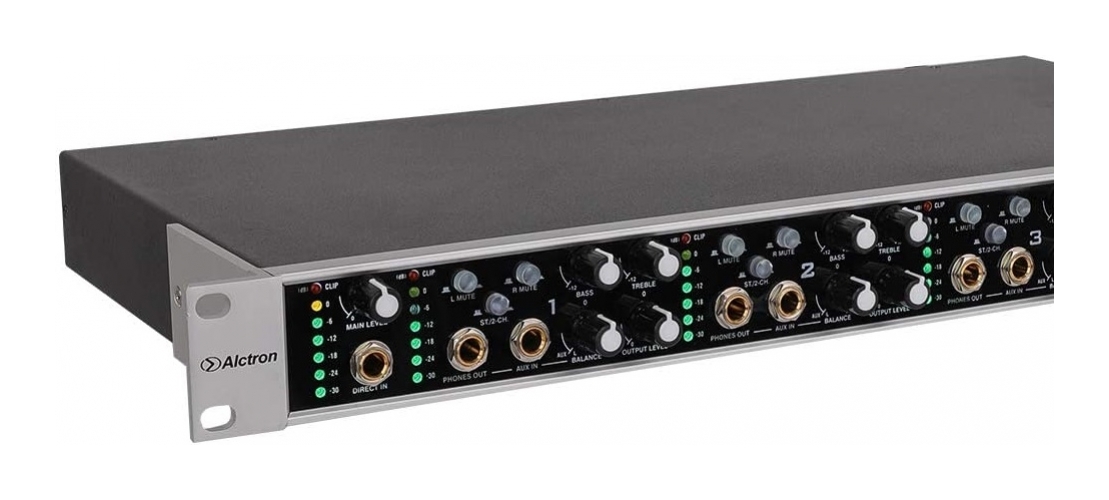

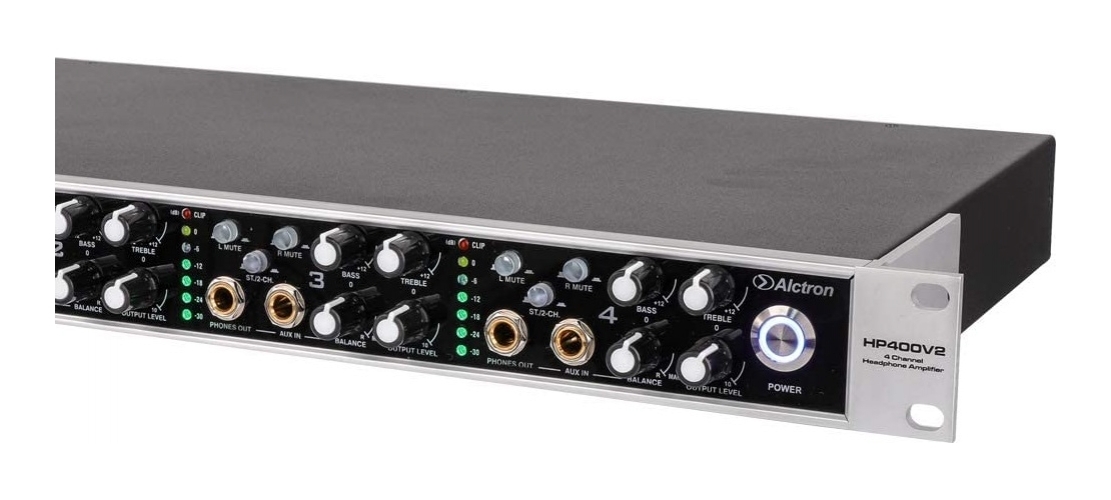

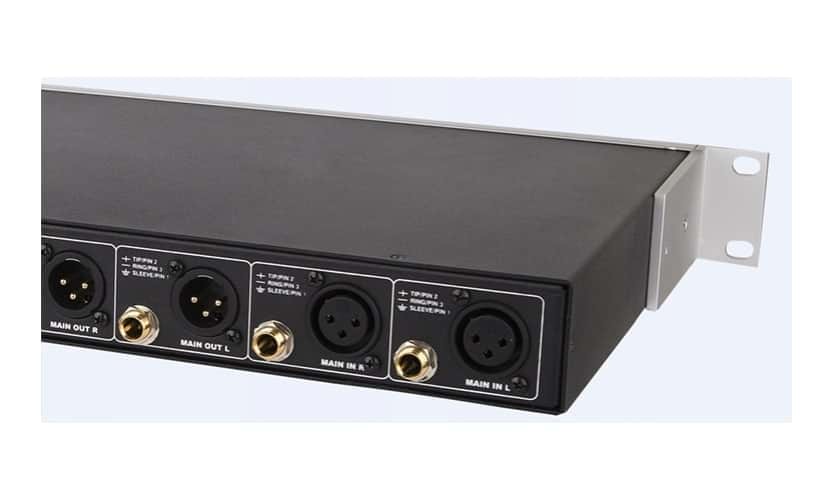

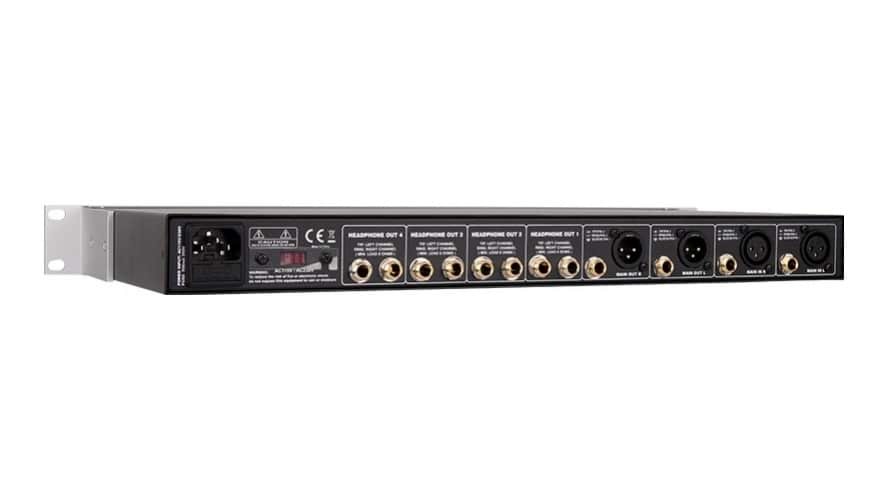

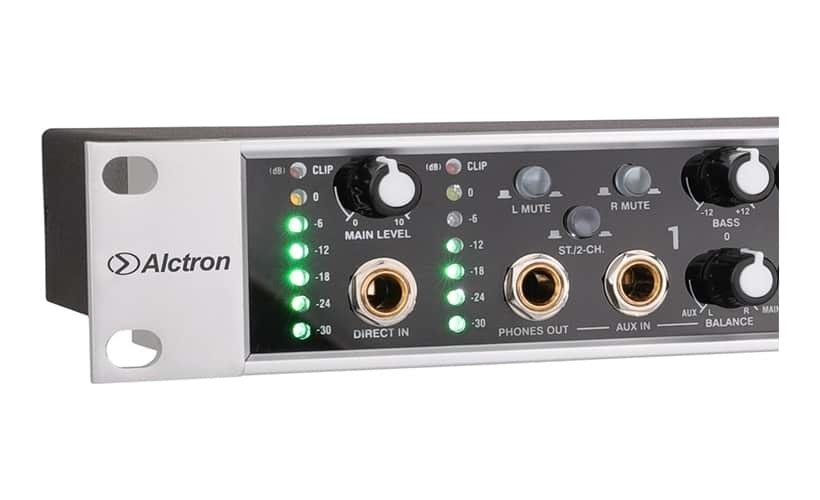

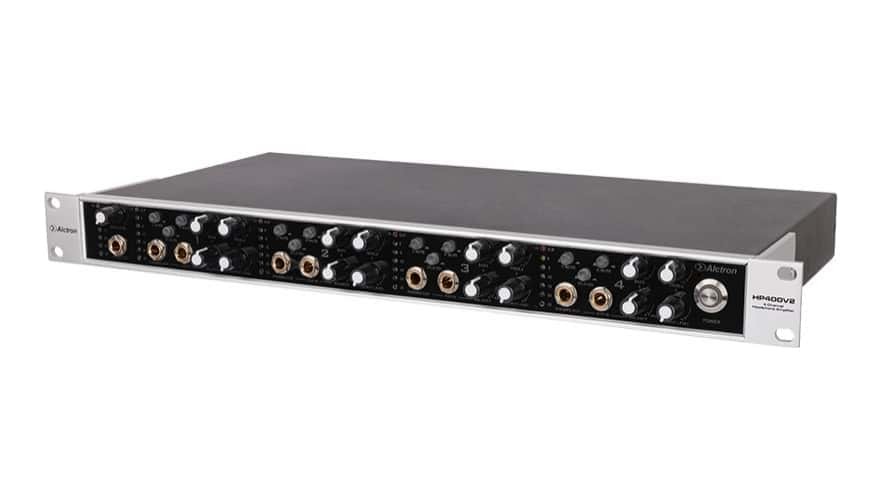

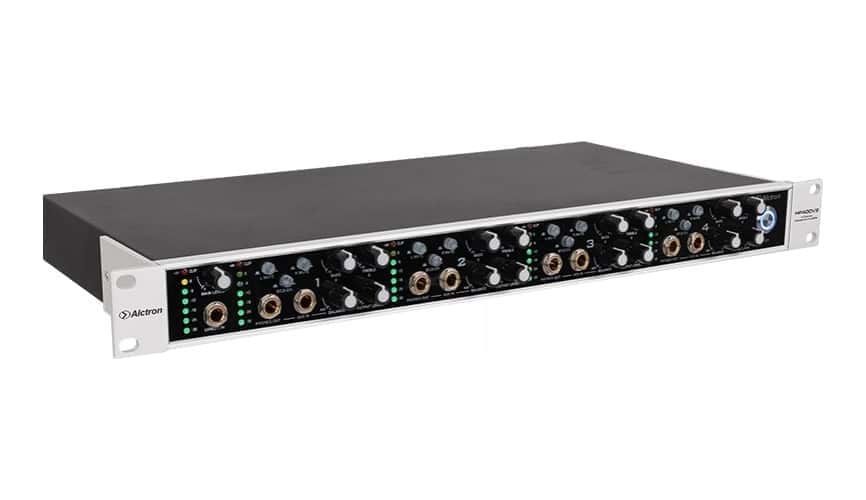

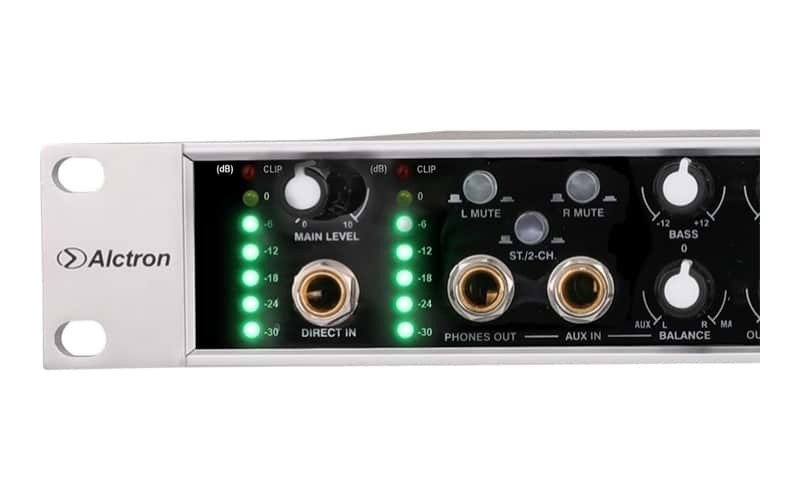

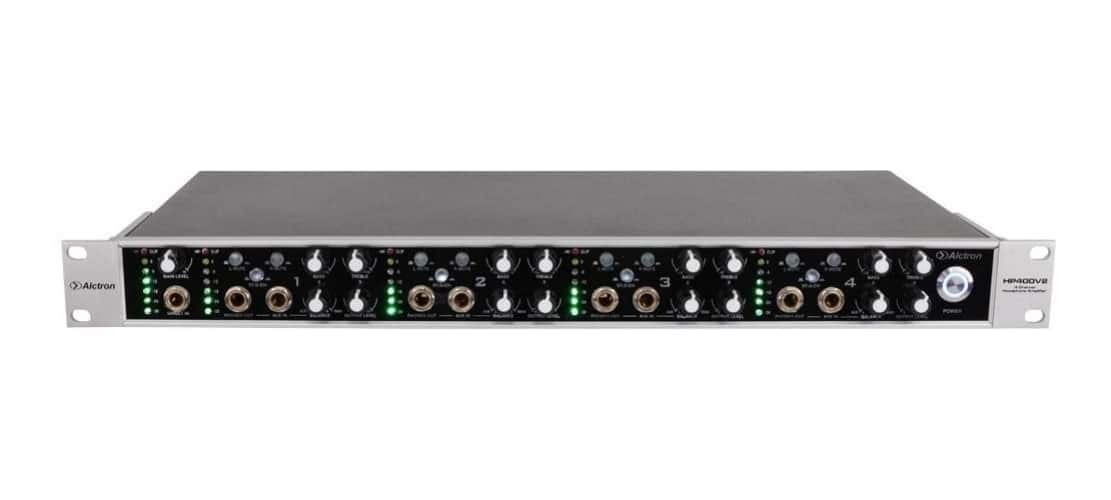

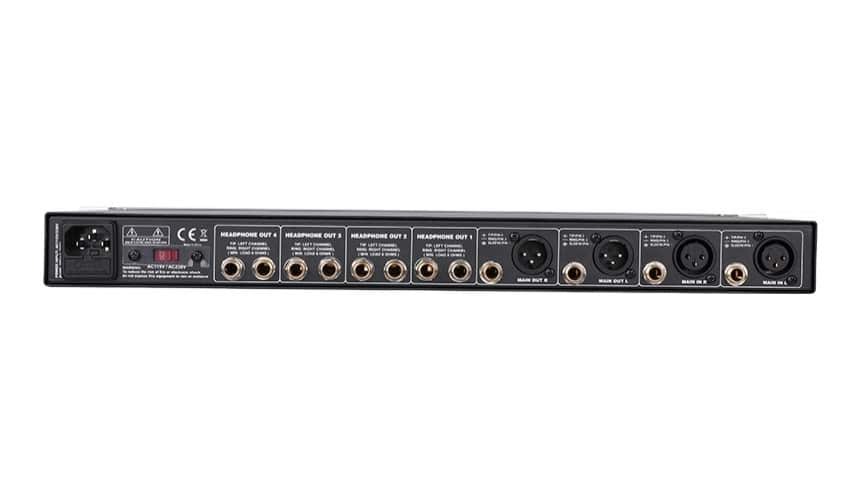

The HP400V2 is a professional headphone amp, which has a solid aluminium alloy shell. Each of the 4 channels has an independent left and right channel mute button, high and low frequency equalisation switch, output volume control and output balance adjustment knobs, TRS and XLR connectors are offered for inputs and outputs, alongside 8 TRS headphone inputs at the back, along with 4 headphone inputs at the front.

Features:

  • 1U rack shell
  • Ultra-musical High and Low EQ per channel
  • Independent amplify circuit rejects interference
  • Output level control and accurate 7-digit LED output meter per channel
  • Adopts JRC performance chip to amplify the signal
  • Each channel features stereo XLR and 6.35mm connector

Specifications:

Main input XLR and 1/4” TRS connectors
Input impedance 40KΩ(balance)/ 30KΩ(unbalance)
Max input level 16dBu
Input impedance 5kΩ
Max. Input level 22dBu
Direct in 1/4” TRS connector
Main output XLR and 1/4"TRS balance connector
Headphone output 1/4"TRS stereo connector
 Max output amp +24dBm(load impedance 100Ω)/ +21dBm(load impedance 80Ω)
Min load impedance
Input level 7-digital LED display: -30/-24/-18/-12/-6/0dB
Output level 7-digital LED display: -30/-24/-18/-12/-6/0dB
Frequency response 10Hz-150KHz +/-3dB
Noise 22Hz-22KHz >90dB@0dBu

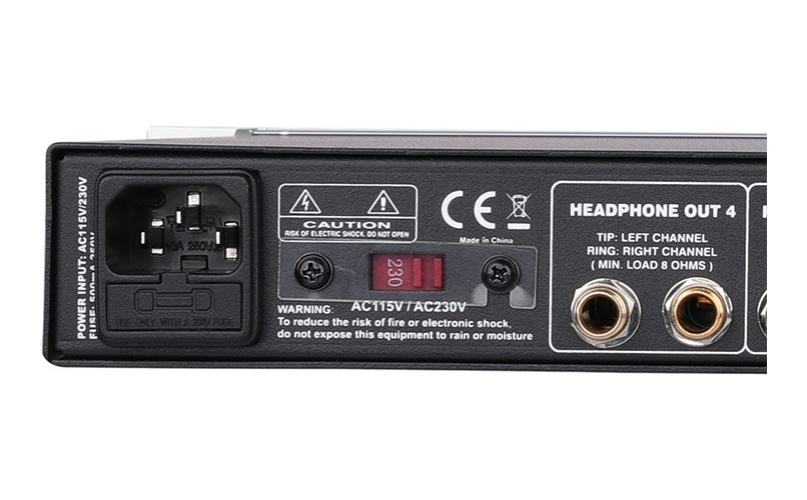

Power cord connector standard IEC receptacle with built-in fuse holder
Dynamic range 22Hz-22KHz 110dB
Distortion 0.006% typically, @+4dBu 1KHz
Input level variable
Balance per channel mix  aux and main signals / balance between right and left channel
Output level per channel variable
Treble cutoff frequency: 6kHz; range +/-12dB
Bass cutoff frequency; 150Hz, range +/-12dB
Steeo/2-channel switches between stereo mode and 2-channel mode
Left mute mutes the left signal of the respective channel
Right mute mutes the right signal of the respective channel
Voltage 100-120V AC, 200-240V AC, 50-60HZ optional
Connection cable standard IEC



View PDF brochure for Alctron HP400V2 4-Channel Headphone Amplifier
