Alctron HA130 Portable Headphone Monitor Amplifier

Alctron HA130 Professional In-Ear Monitoring Headphone Amplifier

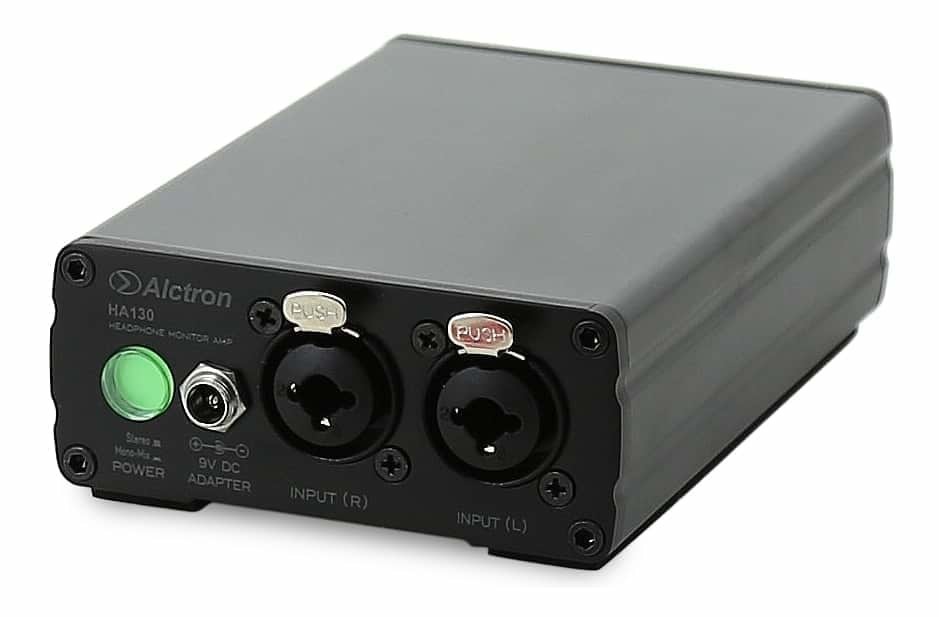

Ideal for studio or stage use, this compact headphone amplifier has two line level inputs featuring combo jack connectors, accepting both XLR or 1/4" TRS. Ideal for taking a signal from AUX send on a mixing desk and delivering it as a headphone level 3.5mm output, perfect for wired in-ear monitoring on stage or in a studio.

Stereo SUM Capability
The headphone output can be run either mono or stereo with a simple press of the mode switch. The mono mix option can be useful if the two input signals are of from different instruments and you want to blend the two together, instead of each instrument only being heard in one headphone.

Plenty of Output Volume and Panning Functionality

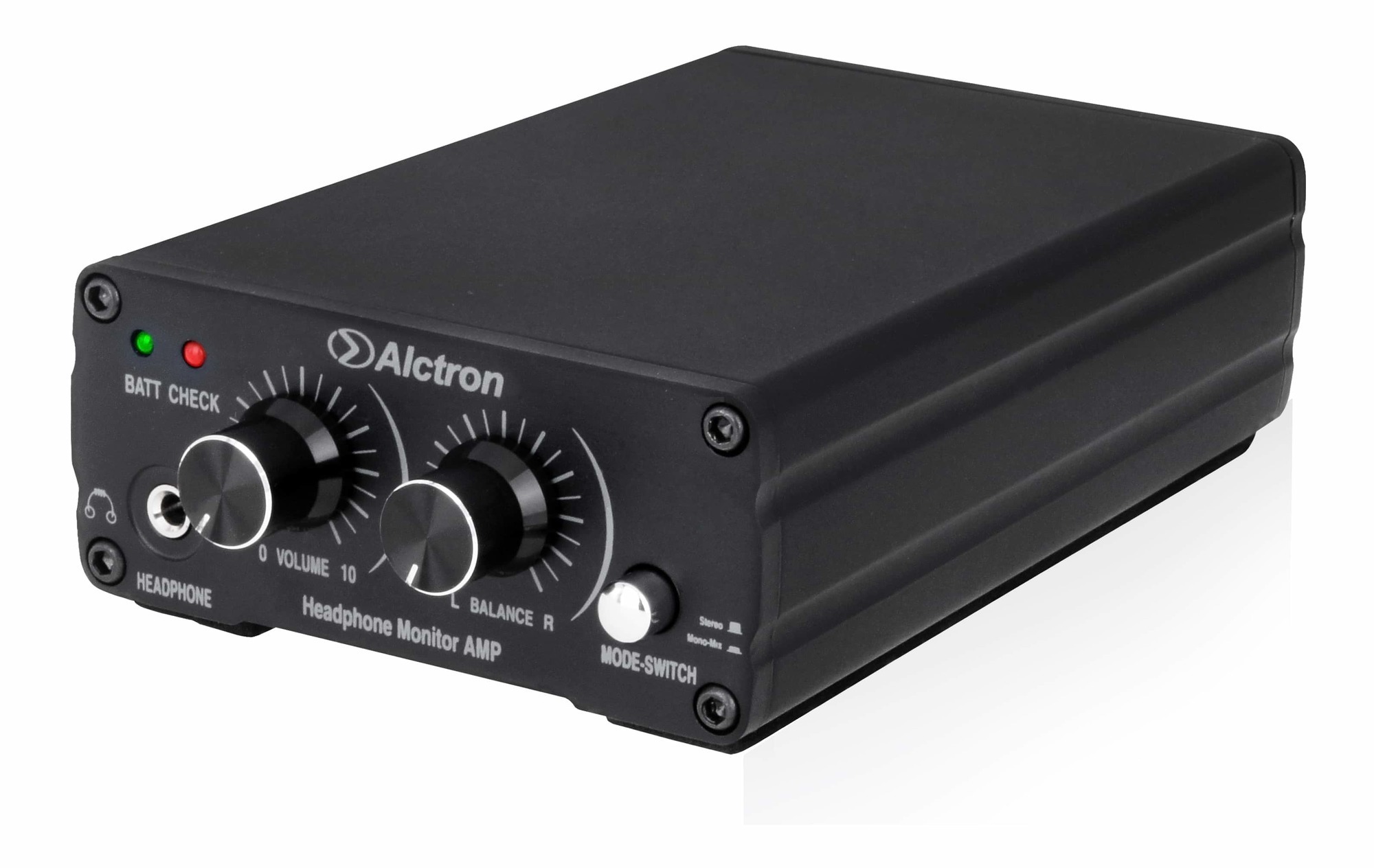

The HA130 has a powerful headphone amplifier delivering a high volume output that is adjustable via the volume control knob. While the balance knob allows the user to pan the output to the left or right, accentuating the signal from either input.

Self-Powered with the Included 9 Volt DC Adapter
The HA130 has the option of running from the supplied 9V DC power supply. Or it can also be run off a standard 9V alkaline battery (also included), making it extremely portable.

Belt Clip Included
Constructed with a solid aluminium black casing and featuring a screwed-on metal belt clip, the HA130 can be conveniently worn during a performance. Alternatively, the rubber pads on the base allow the unit to rest anywhere. Perfect for use on stage for wired in-ear monitoring.

Specifications:

• Input Connectors: 2x Combo-Jack inputs (3pin XLR or 1/4" TRS)
• Output Connectors: 1x 3.5mm / 1/8" TRS mini jack connector
• Frequency Response: 30Hz - 20KHz +/- 2 db
• Minimum Impedance of earphones: 16 Ohms per side
• Maximum Output into 20 Ohms: 50mW per channel
• Input Impedance: 15k Ohms
• Power 9V DC (Adapter included) or 9V Alkaline Battery
• Belt Clip
• Dimensions: (90mm x 170mm x 45mm)
• Weight 360 grams
