KF-SBL008-30m

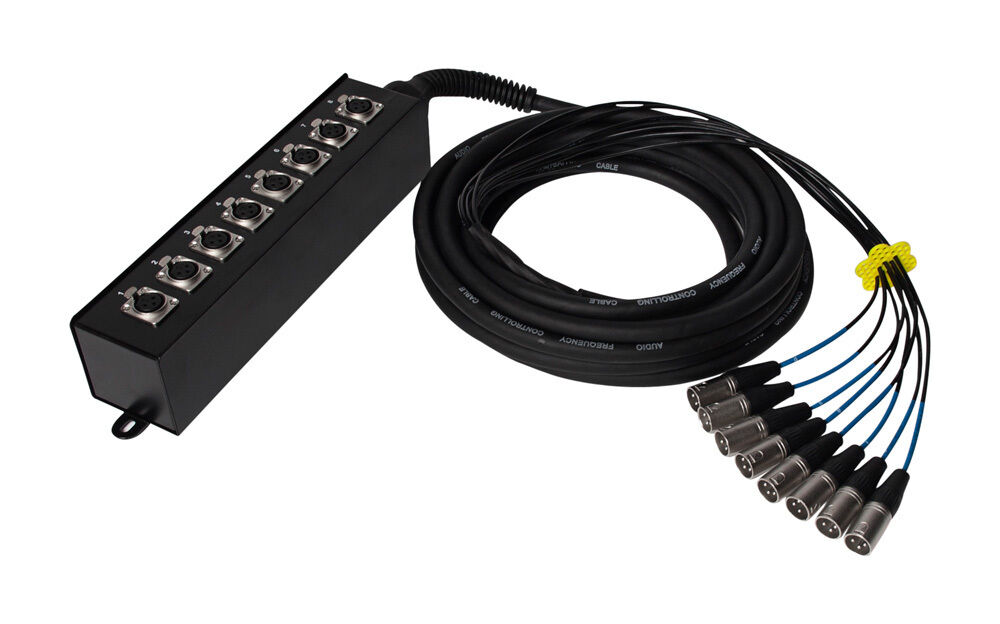

30m Length - SWAMP 8 channel multicore cable with stage box. SLIM STYLE Stage Box, Features a slim style stage box which is great for studio set ups and small stages.
Loading... | ||||||
SWAMP 8 channel, 5m multicore cable with stage box.
SLIM STYLE Stage Box

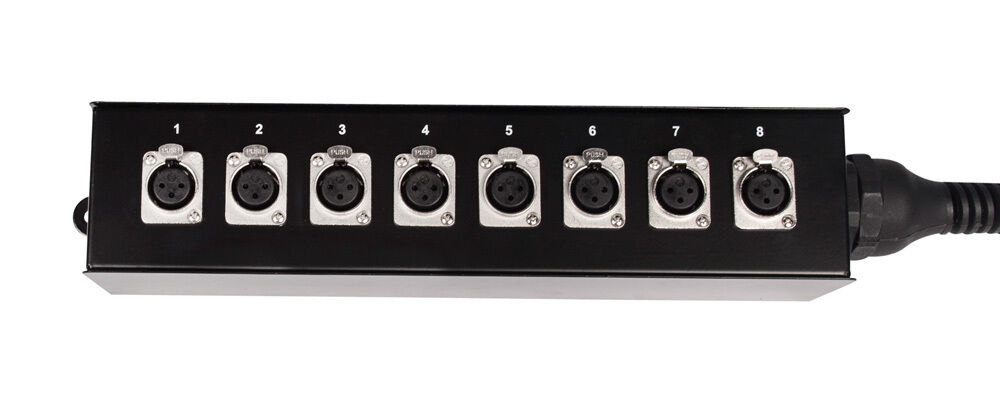

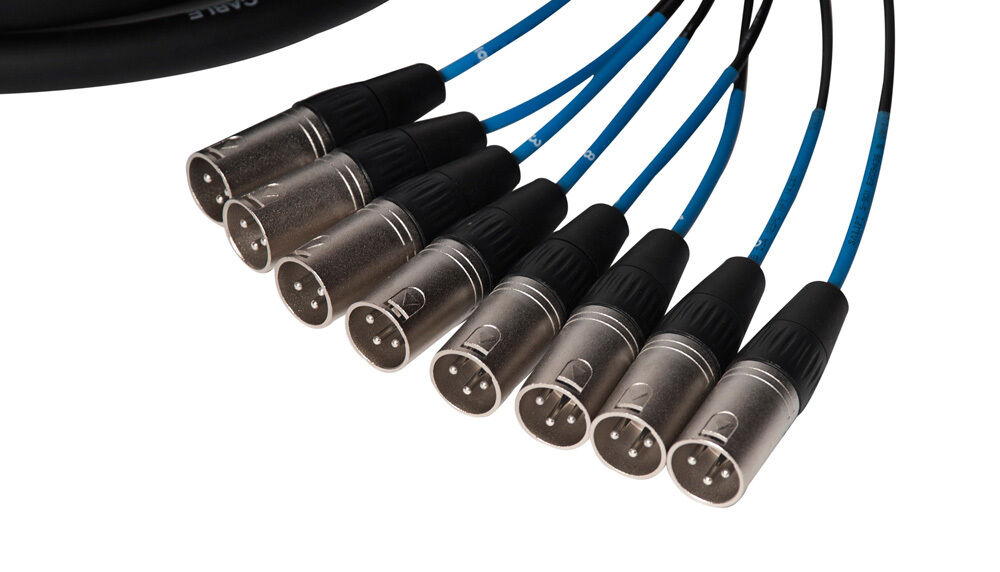

Features a slim style stage box which is great for studio set ups and small stages. Instruments (DI Boxes) and microphones are plugged into the send inputs marked 1 to 8 on the stagebox. The signals are carried through the multicore to 8 corresponding XLR(m) number coded connectors, usually connected to a mixing console.
Use SEND channels as RETURNS
It is possible to use "send" channels as "returns". Simply use a XLR(m) to XLR(m) adapter on stage box end, and a XLR(f) to XLR(f) adapter on the fan end. Or if your equipment accepts 1/4" jacks, then XLR(m/f) to 1/4" cables can work for this purpose without the need for adapters.
Typically used to connect performers on stage or in a recording studio to a mixing desk.
Features:
- 8 Balanced Microphone Cable Send Channels
- Ningbo Neutrik Connectors - Stage box (YS145) - Fan (YS137N)
- Cable Core: 0.15mm*7*8 (Conductors) + 0.15mm*7 (Ground) + AL-Foil (Shield) + Cotton
- Cable Outer Diameter: 14mm OD (Outer Diameter)
- Box Dimensions: L 320mm x W 70mm x H 75mm
- Length: 30m
Slim Style 8-channel stage box and 10m cable

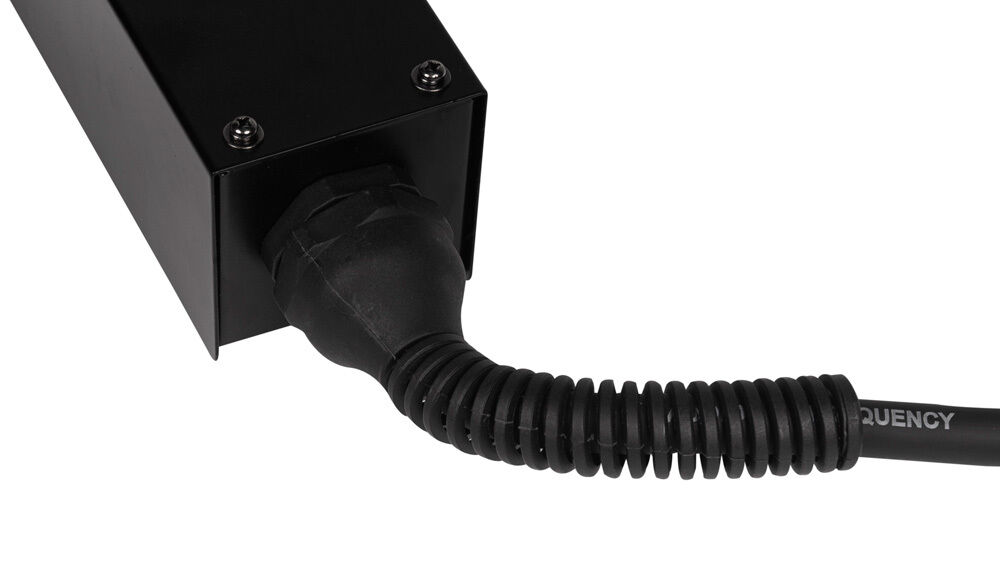

By: Victor Quittner on 21 April 2023I bought this unit to make setup of microphones and DI-boxes at an amateur open-mike night easier, and the 10m length allowed me to position the mixer further back. I first used it last night, it all went well, and it is reasonably priced. The unit I received is actually slightly better than the photograph, because there is a metal stress/strain relief feature at the mixer end of the multicore which allows you to support the thick cable using a foot of the mixer or similar. This takes pull/bend-pressure off the individual XLR flying leads. Also the stress/strain relief at the box end is better because it is a semi-rigid metal-wire type instead of the plastic one shown.
5 (5)
Very nice
By: Rat Beattie on 16 January 2018I found the multi core, to be of very good quality and just right for the project I, had in mind. The service was as always perfect and the postage very fast
5 (5)
8 channel multicore cable w/slim style stage box
By: Peter Te Kani on 5 October 2017Brought for my home studio. This product is so popular I had to back order it. Well, it was well worth the wait. Excellent well made product that is perfect for the job. Great after sales service. Will purchase more products from this company. Highly recommended.
5 (5)
By: David E on 2 October 2014Great - saves a lot of setup/strike time. plus a neater/professional look. Build quality seems solid. Prompt delivery, and easy to deal with.
5 (5)
